DSSERVO | SKU:

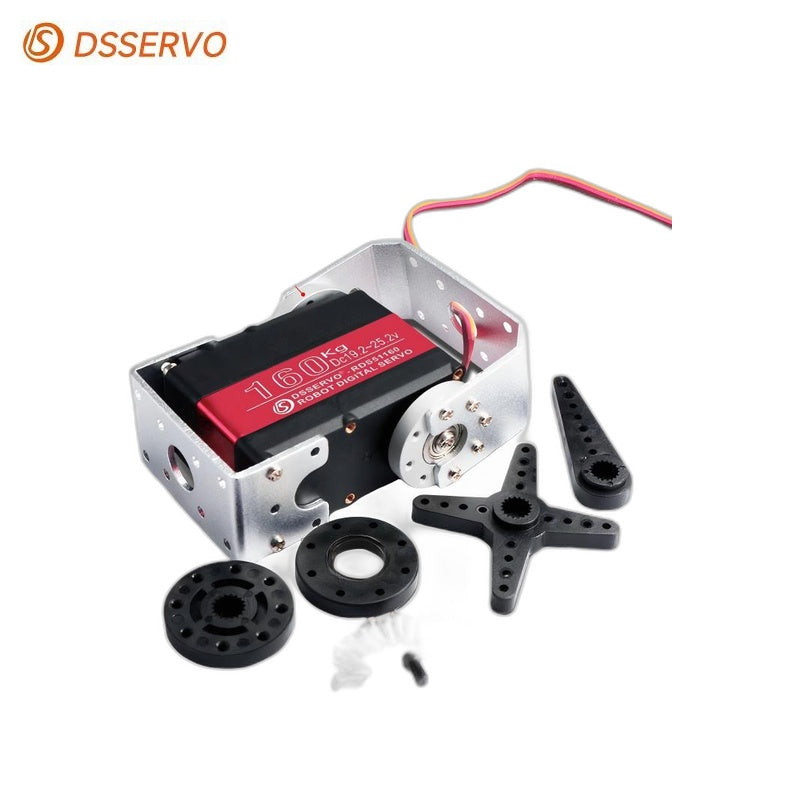

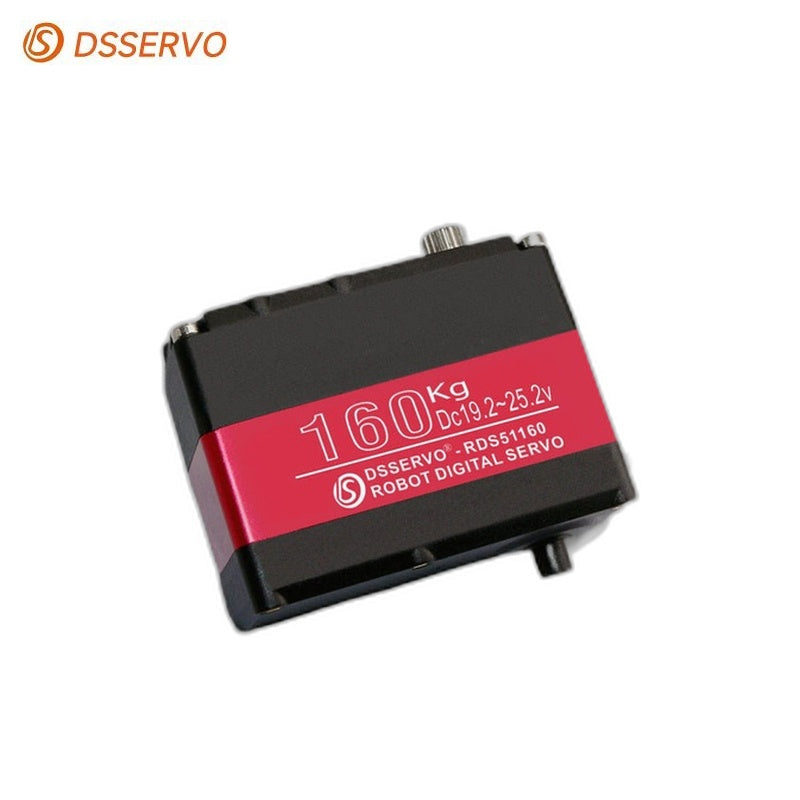

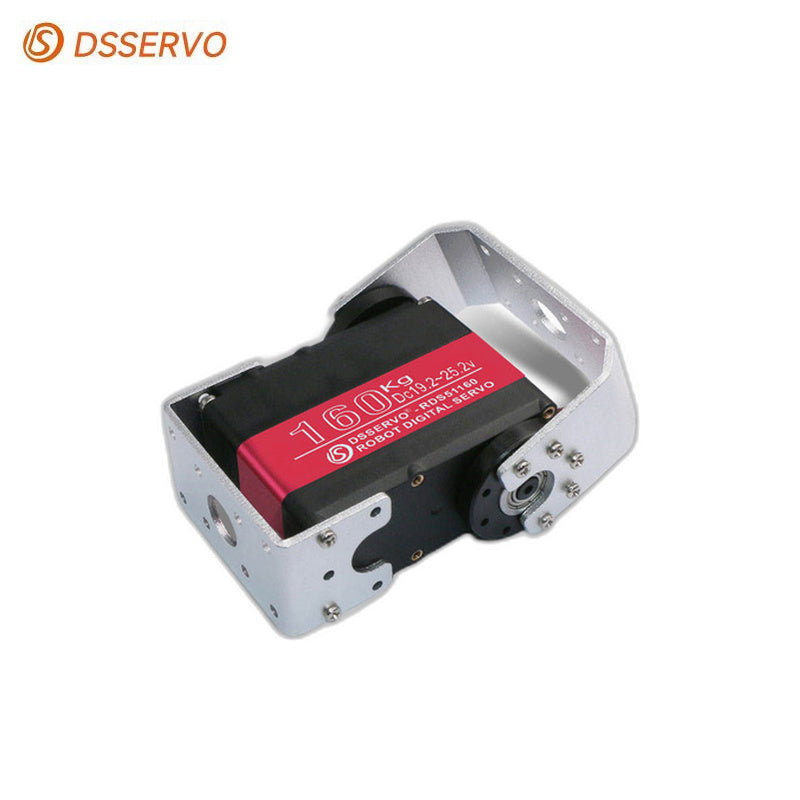

DSSERVO RDS51160 Servo Motor
Regular price
$80.00
Unit price
DSSERVO RDS51160 Servo Motor - RDS51160 / 180° is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
DSSERVO RDS51160 Servo Motor
Regular price
$80.00
Unit price
DSSERVO RDS51160 Servo Motor - RDS51160 / 180° is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Storage Temperature Range | -30°C ~ +80°C |
| Operating Temperature Range | -15°C ~ +70°C |
| Operating Voltage Range | 19.2 ~ 25.2V |
| Size | 65 × 30 × 48 mm |
| Weight | 163g |
| Gear Ratio | 357 |
| Bearing | Double bearing |
| Connector Wire Length | 300 ± 5 mm |
| Motor | 3‑pole(s) |
| Waterproof Performance | No |
| Idle Current (at stopped) | 4mA @ 19.2V / 5mA @ 24V / 6mA @ 25.2V |
| Operating Speed (at no load) | 0.24 sec/60° @ 19.2V / 0.21 sec/60° @ 24V / 0.19 sec/60° @ 25.2V |
| Stall Torque (at locked) | 155 kg·cm @ 19.2V / 170 kg·cm @ 24V / 185 kg·cm @ 25.2V |
| Stall Current (at locked) | 3.8A @ 19.2V / 4.2A @ 24V / 4.5A @ 25.2V |
| Control System | PWM (Pulse Width Modulation) |
| Pulse Width Range | 500 ~ 2500 µsec |
| Neutral Position | 1500 µsec |
| Running Degree | 180° or 270° (500~2500 µsec) |
| Dead Band Width | 3 µsec |
| Operating Frequency | 50 ~ 330Hz |
| Rotating Direction | Counterclockwise (500~2500 µsec) |
