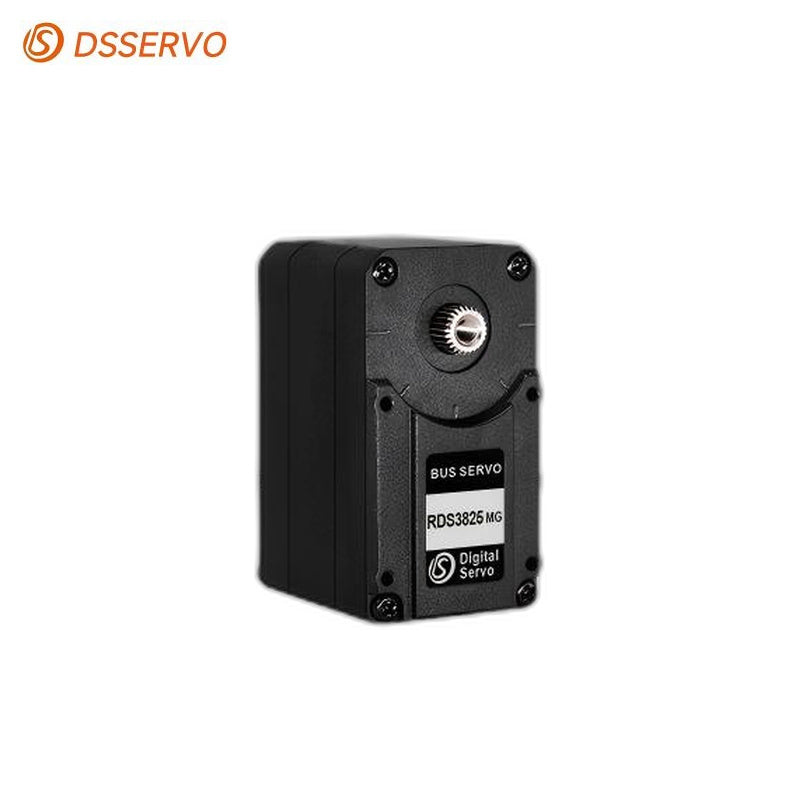

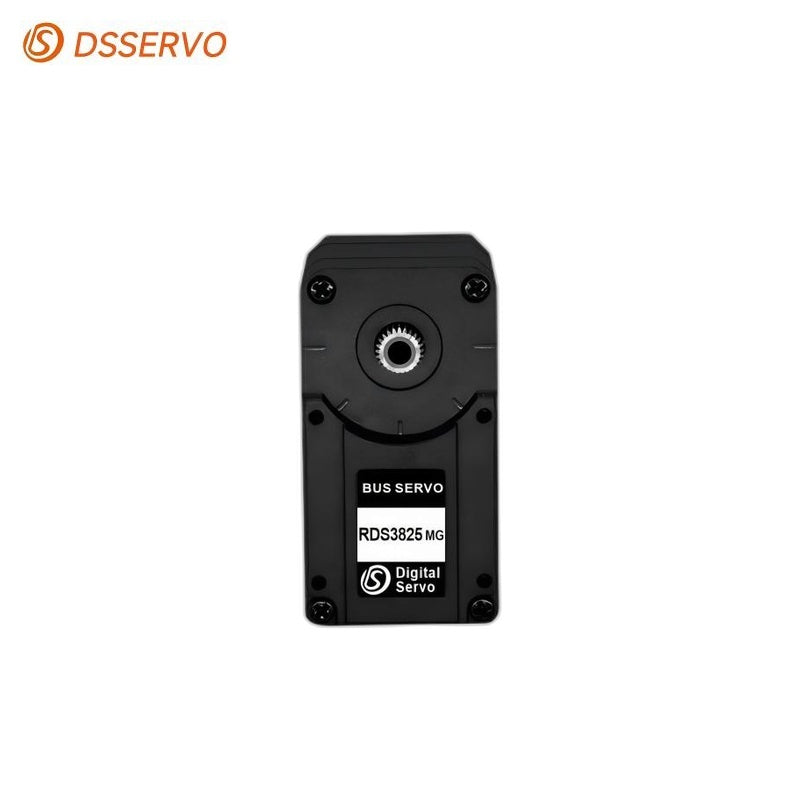

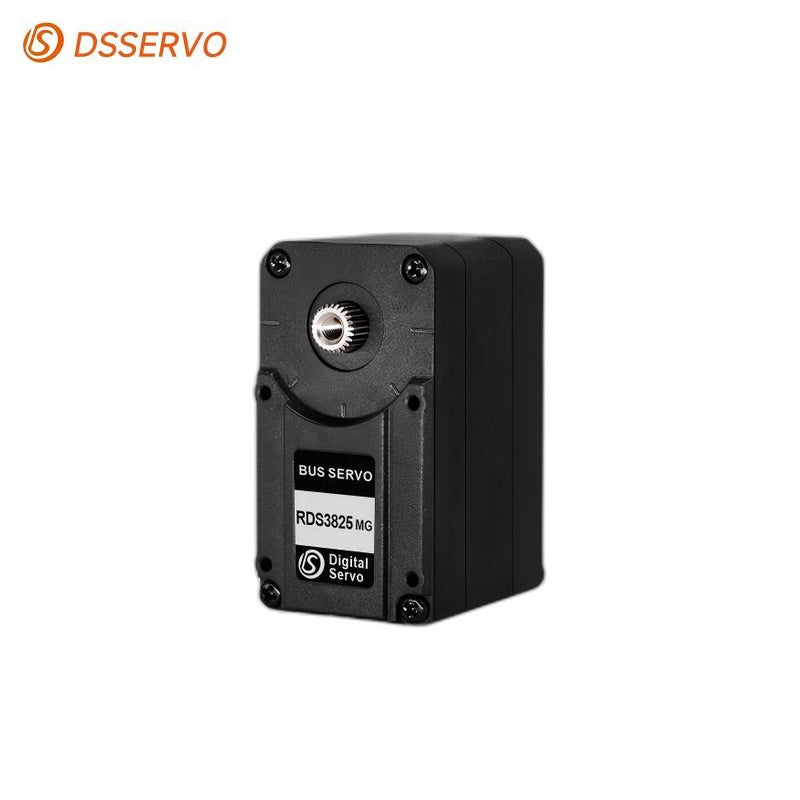

DSSERVO RDS3825 Servo Motor

$35.00
Version
Angle Range

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Storage Temperature Range -30°C ~ +80°C
Operating Temperature Range -20°C ~ +60°C
Size A: 45.2 mm, B: 24.7 mm, C: 35 mm
Weight 55 ± 1 g
Gear Type Steel gear
Limit Angle No limit
Bearing Ball bearings
Output Shaft Spline 25T / OD 5.9 mm
Horn Type Plastic (POM)
Case Material PA+GF
Connector Wire Length 15 cm
Motor Core motor
Operating Voltage Range 4 ~ 14 V
No‑load Speed (@12 V) 0.222 sec/60°
No‑load Current (@12 V) 180 mA
Peak Stall Torque (@12 V) 30 kg·cm
Rated Torque (@12 V) 10 kg·cm
Stall Current (@12 V) 2.7 A
Command Signal Digital packet
Protocol Type Half-duplex asynchronous serial communication
ID Range 0 ~ 253
Communication Speed 38400 bps ~ 1 Mbps
Running Degree 360° (0 ~ 4096)
Feedback Load, Position, Speed, Input voltage, Current
