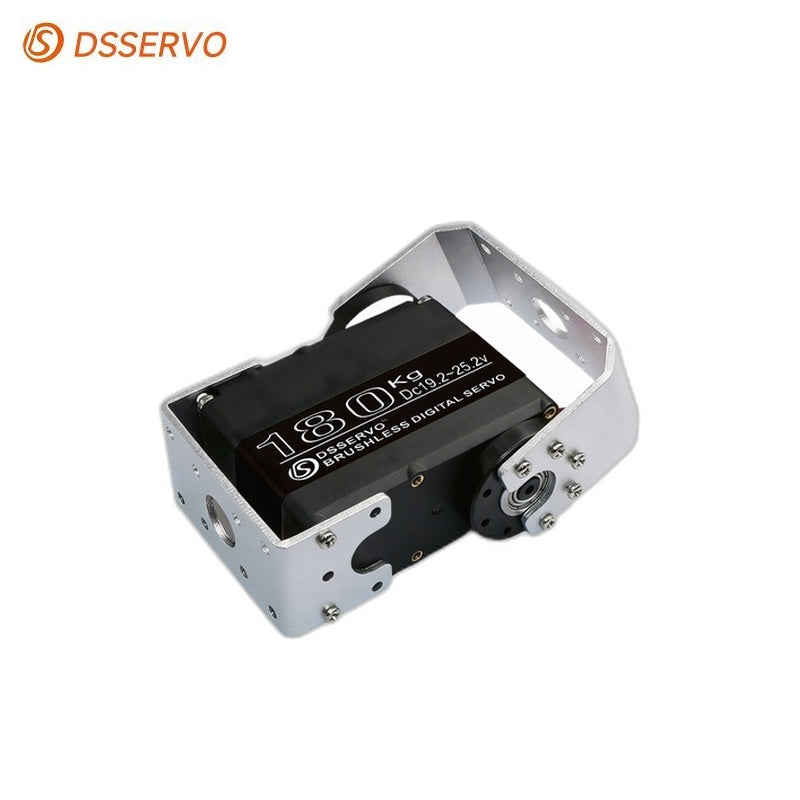

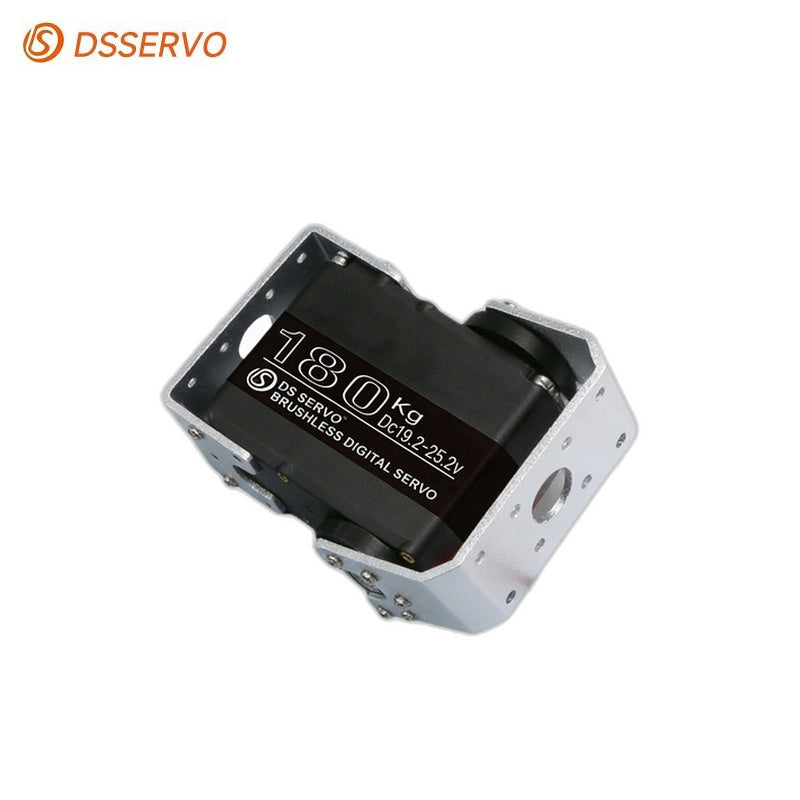

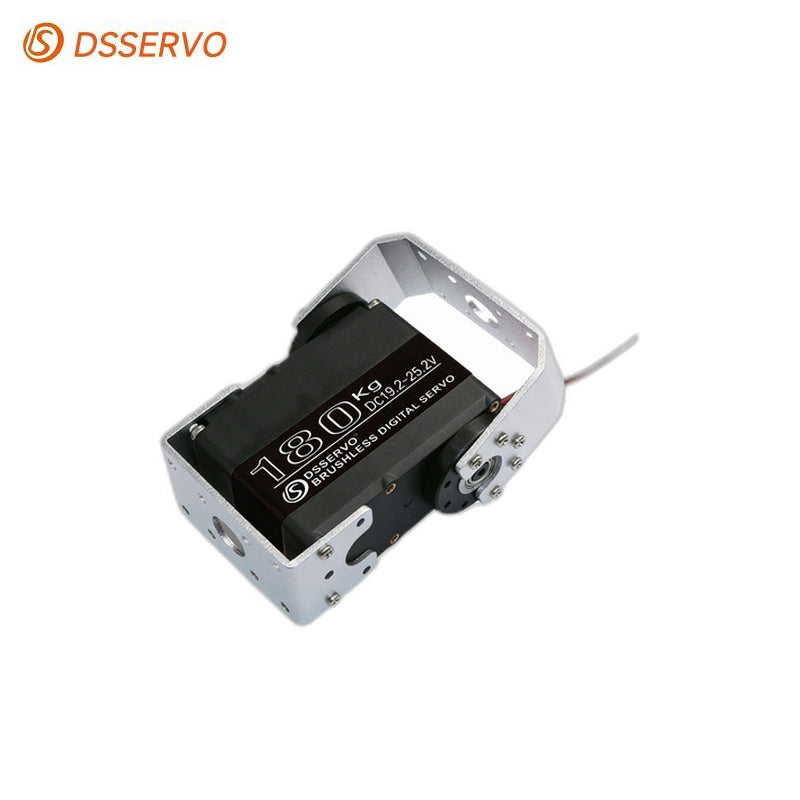

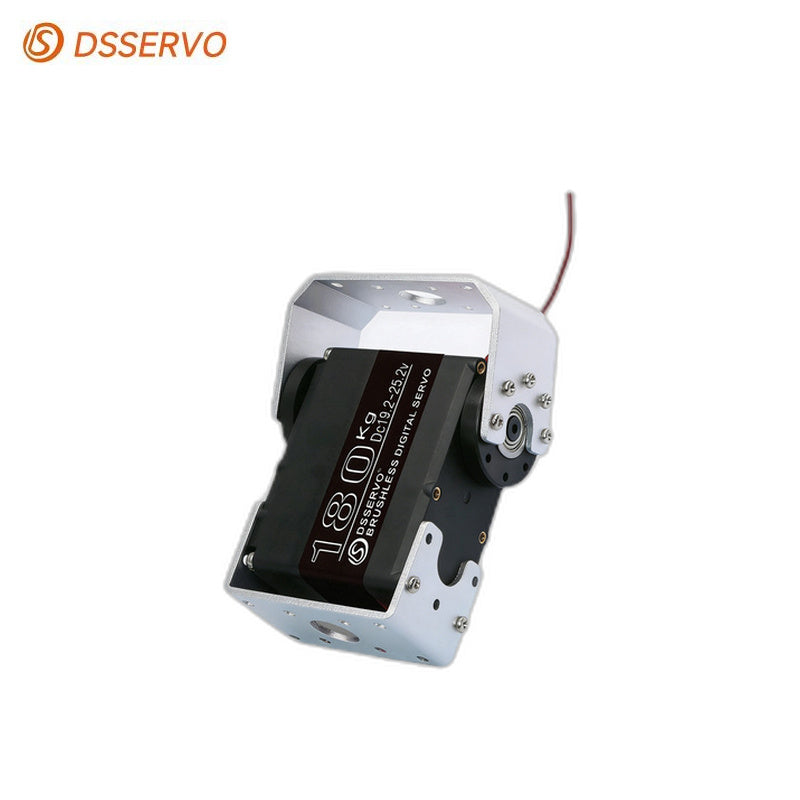

DSSERVO RBLS51180 Servo Motor
Regular price
$155.00
Unit price
DSSERVO RBLS51180 Servo Motor - RBLS51180 / 180° is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
DSSERVO RBLS51180 Servo Motor
Regular price
$155.00
Unit price
DSSERVO RBLS51180 Servo Motor - RBLS51180 / 180° is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Storage Temperature Range | -30°C ~ +80°C |
| Operating Temperature Range | -15°C ~ +70°C |
| Operating Voltage Range | 9.6 ~ 12.6V |
| Size | 65 × 30 × 48 mm |
| Weight | 175g |
| Gear Ratio | 357 |
| Bearing | Double bearing |
| Connector Wire Length | 300 ± 5 mm |
| Motor | 3‑pole(s) |
| Waterproof Performance | IP67 |
| Idle Current (at stopped) | 4mA |
| Operating Speed (at no load) | 0.24 sec/60° |
| Stall Torque (at locked) | 120 kg·cm |
| Rated Torque | 30 kg·cm |
| Stall Current (at locked) | 8.5A |
| Control System | PWM (Pulse Width Modulation) |
| Pulse Width Range | 500 ~ 2500 µsec |
| Neutral Position | 1500 µsec |
| Running Degree | 180° or 270° (500~2500 µsec) |
| Dead Band Width | 3 µsec |
| Operating Frequency | 50 ~ 330Hz |
| Rotating Direction | Counterclockwise (500~2500 µsec) |
