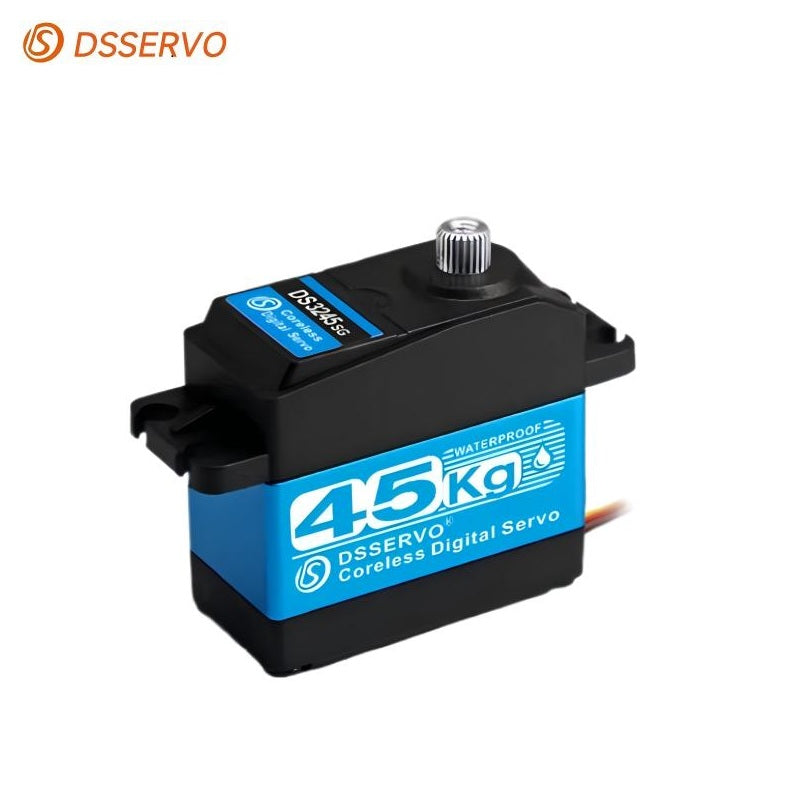

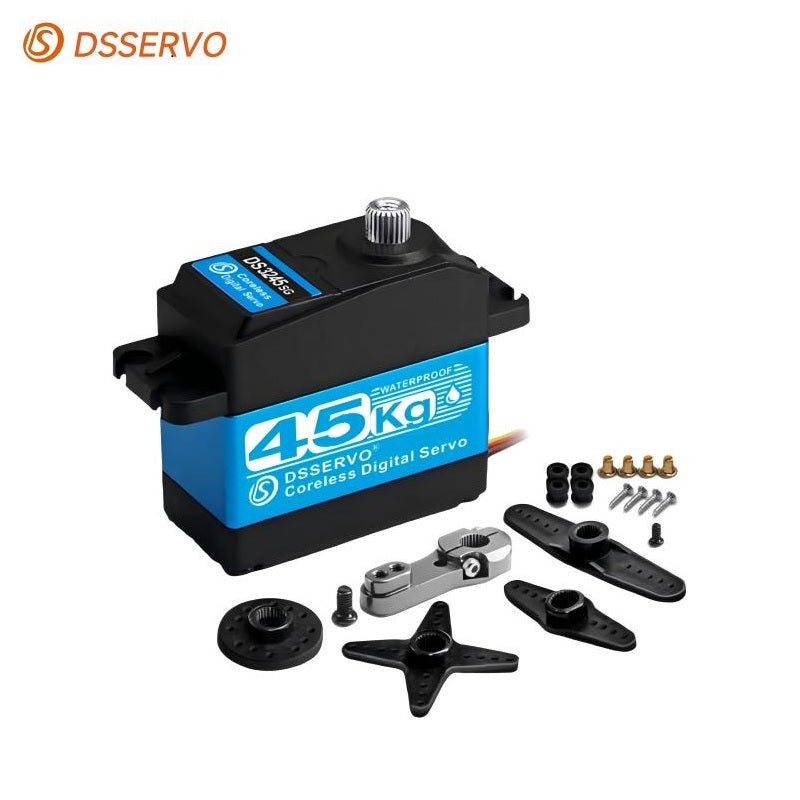

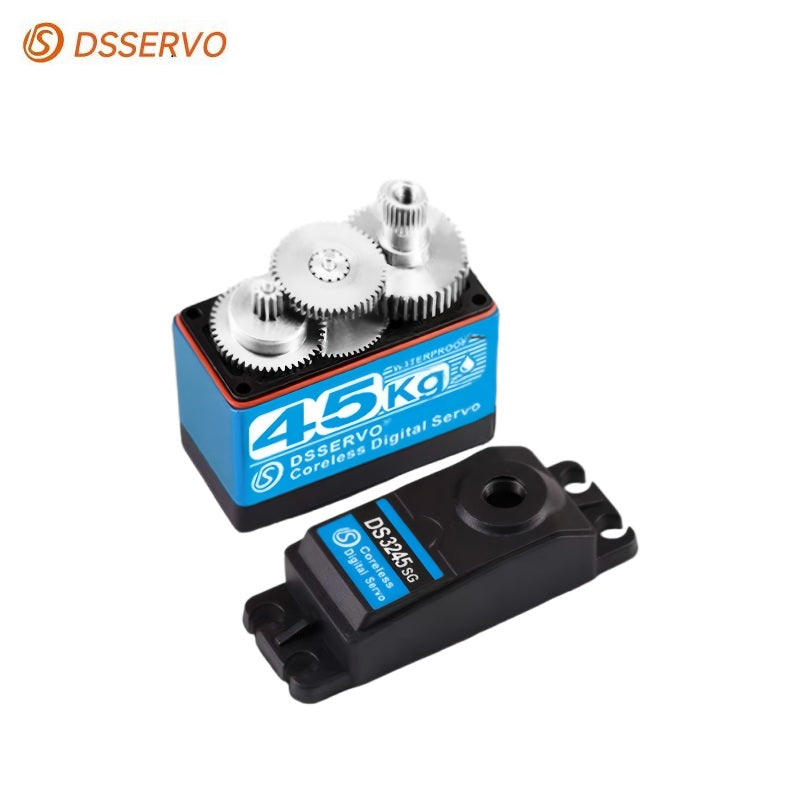

DSSERVO DS3245 SG Servo Motor
Regular price
$35.00
Unit price
DSSERVO DS3245 SG Servo Motor - DS3245 SG / 180 / Metal Arm is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value | Value | Value | Value |
|---|---|---|---|---|
| Operating Voltage | 5V | 6V | 7.4V | 8.4V |
| Idle current(at stopped) | 5mA | 5mA | 5mA | 5mA |
| Operating speed (at no load) | 0.18 sec/60° | 0.15 sec/60° | 0.13 sec/60° | 0.11 sec/60° |
| Stall torque (at locked) | 35 kg·cm | 40 kg·cm | 46 kg·cm | 51 kg·cm |
| Stall current (at locked) | 3.5A | 4.2A | 5.2A | 5.8A |
| Control System | PWM(Pulse width modification) | PWM(Pulse width modification) | PWM(Pulse width modification) | PWM(Pulse width modification) |
| Pulse width range | 500～2500μsec | 500～2500μsec | 500～2500μsec | 500～2500μsec |
| Neutral position | 1500μsec | 1500μsec | 1500μsec | 1500μsec |
| Running degree | 180° or 270° (when 500～2500 μ sec) | 180° or 270° (when 500～2500 μ sec) | 180° or 270° (when 500～2500 μ sec) | 180° or 270° (when 500～2500 μ sec) |
| Dead band width | 2 μsec | 2 μsec | 2 μsec | 2 μsec |
| Operating frequency | 50~330Hz | 50~330Hz | 50~330Hz | 50~330Hz |
| Rotating direction | Counterclockwise (when 500～2500 μ sec) | Counterclockwise (when 500～2500 μ sec) | Counterclockwise (when 500～2500 μ sec) | Counterclockwise (when 500～2500 μ sec) |
| Size | 40*20*38.5mm | 40*20*38.5mm | 40*20*38.5mm | 40*20*38.5mm |
| Weight | 60g | 60g | 60g | 60g |
| Gear ratio | 342 | 342 | 342 | 342 |
| Bearing | Double bearing | Double bearing | Double bearing | Double bearing |
| Connector wire | 300±5mm | 300±5mm | 300±5mm | 300±5mm |
| Motor | Coreless motor | Coreless motor | Coreless motor | Coreless motor |
| Waterproof performance | IP66 | IP66 | IP66 | IP66 |
| Storage Temperature Range | -30℃～80℃ | -30℃～80℃ | -30℃～80℃ | -30℃～80℃ |
| Operating Temperature Range | -15℃～70℃ | -15℃～70℃ | -15℃～70℃ | -15℃～70℃ |
| Operating Voltage Range | 5-8.4V | 5-8.4V | 5-8.4V | 5-8.4V |
DS3245SG_Motor.stp
DS3245SG_Motor_Product_instalation_drawing.pdf
