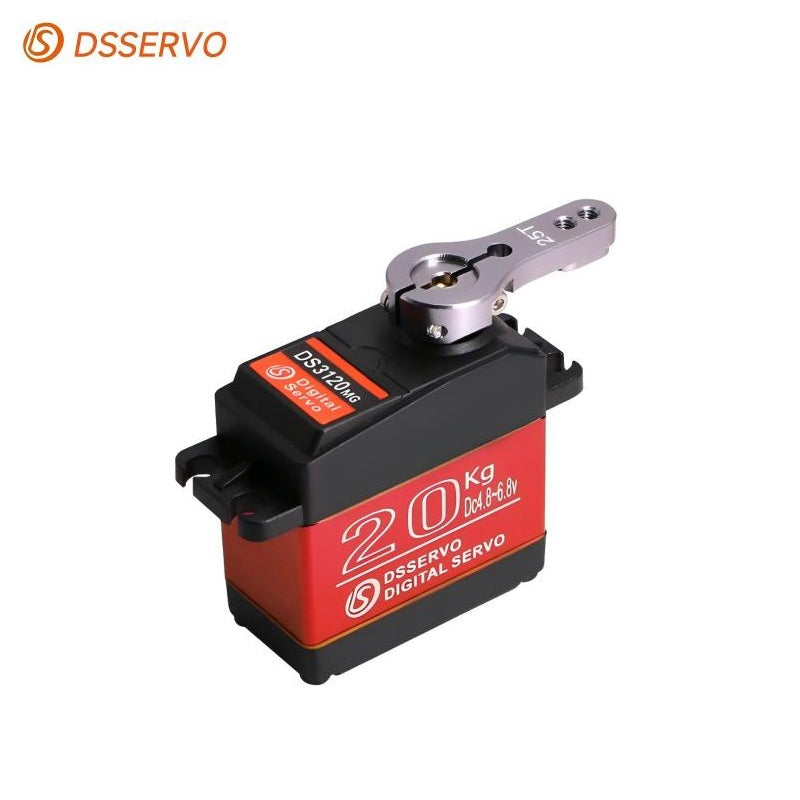

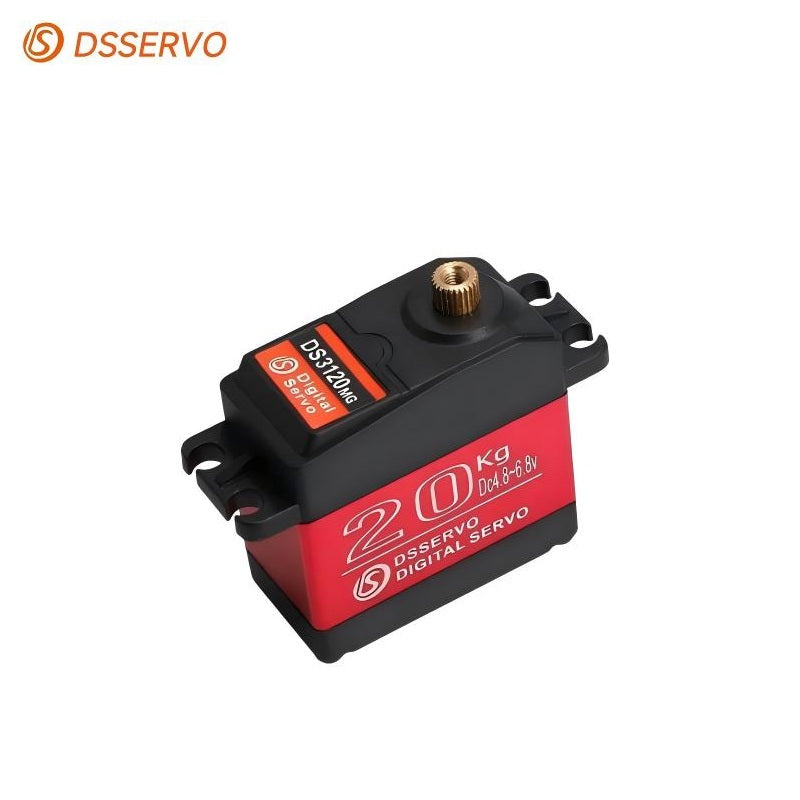

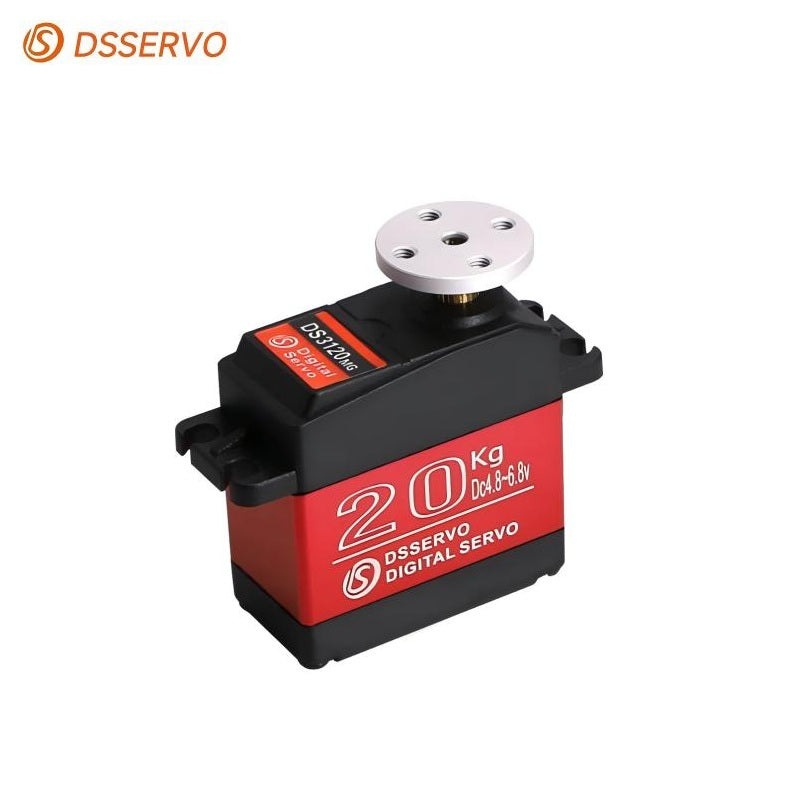

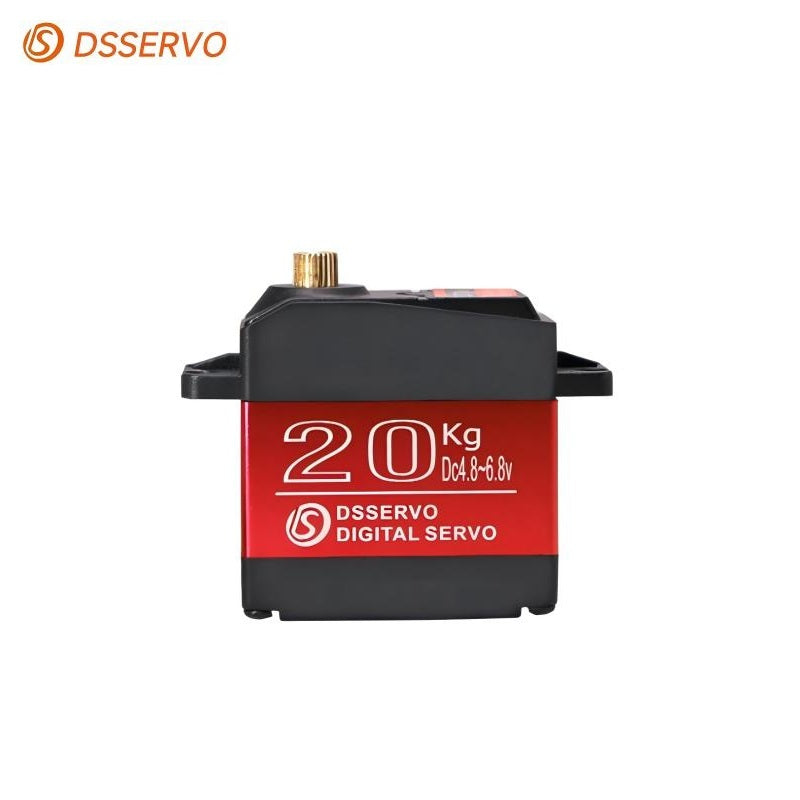

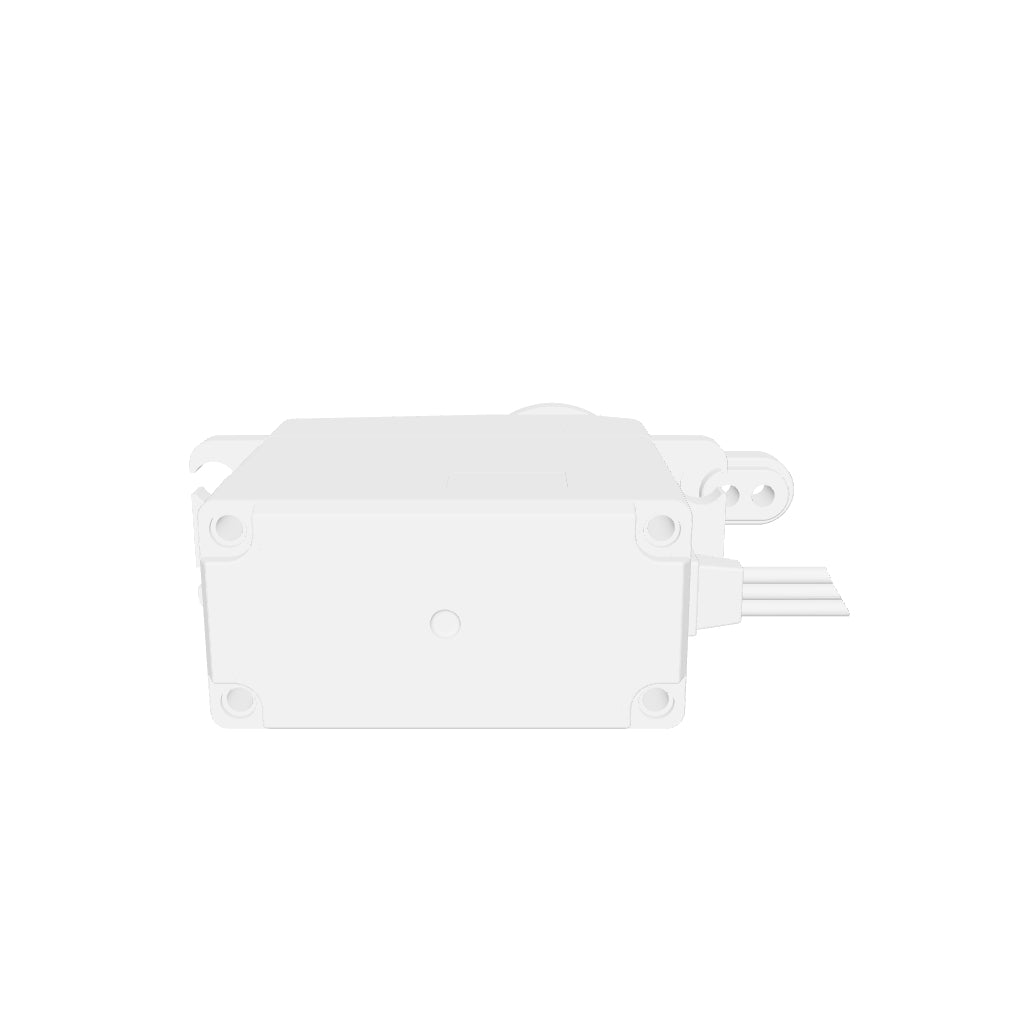

DSSERVO DS3120 Servo Motor

Regular price $14.00

Version
Angle Range

Delivery and Shipping

  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Operating Voltage Range 4.8 ~ 6.5V
Size 40 × 20 × 40.5 mm
Control System PWM (Pulse Width Modulation)
Pulse Width Range 500 ~ 2500 µsec
Weight 65g
Dead Band Width 3 µsec
Stall Current 2A
