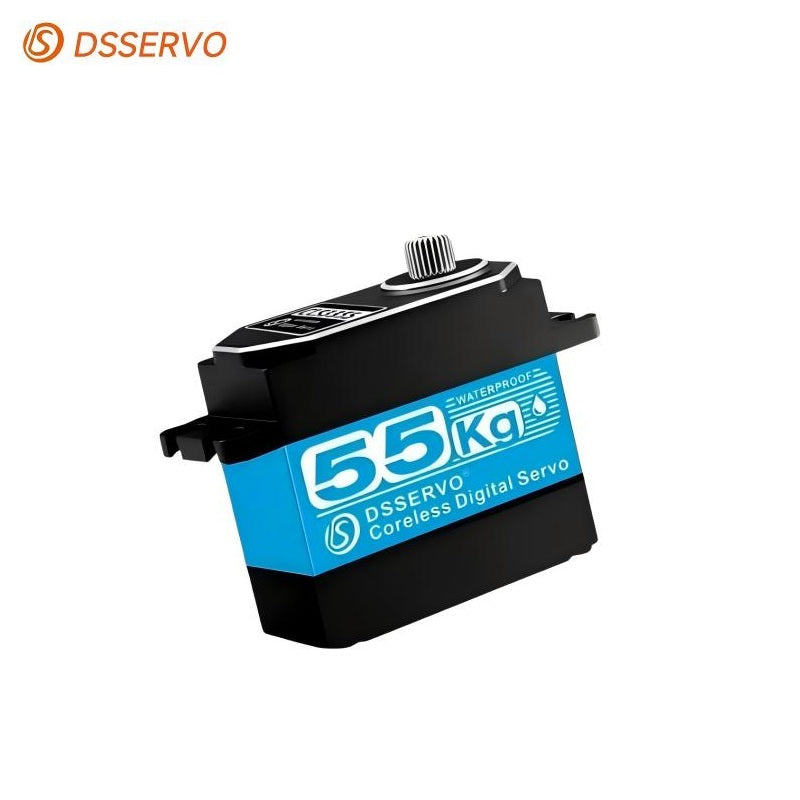

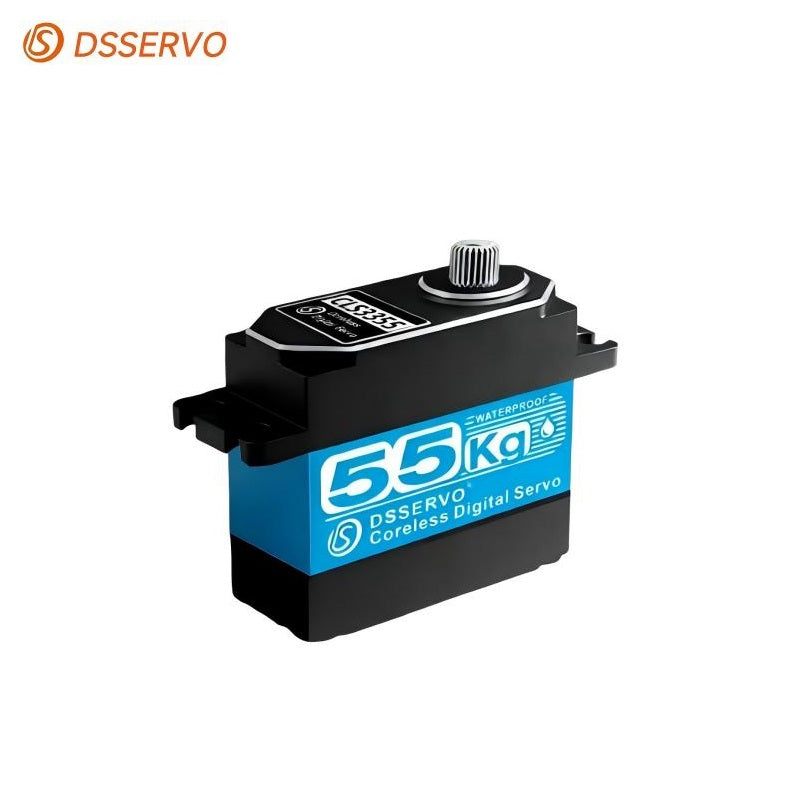

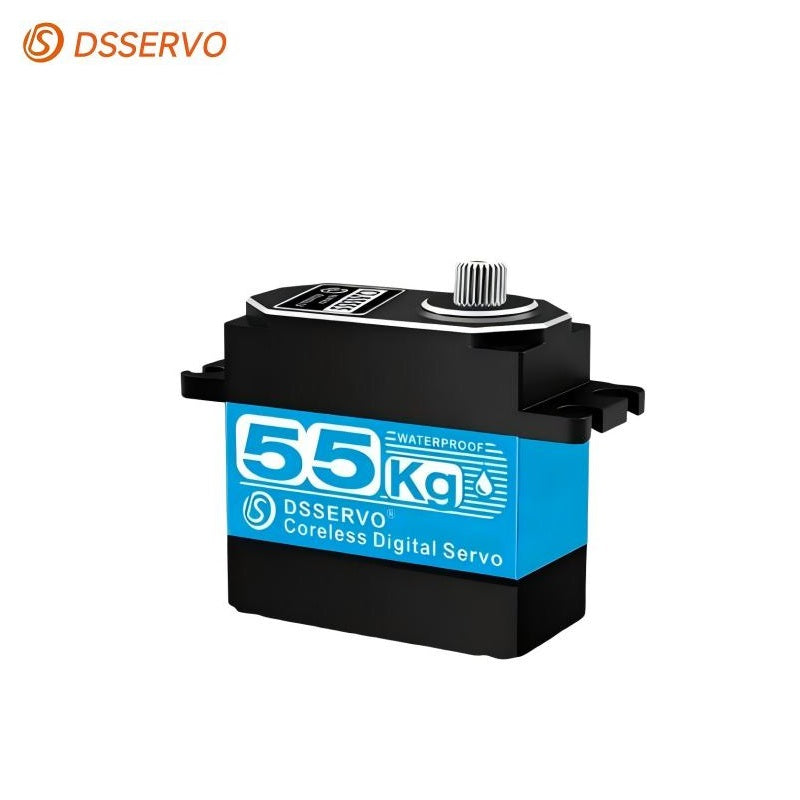

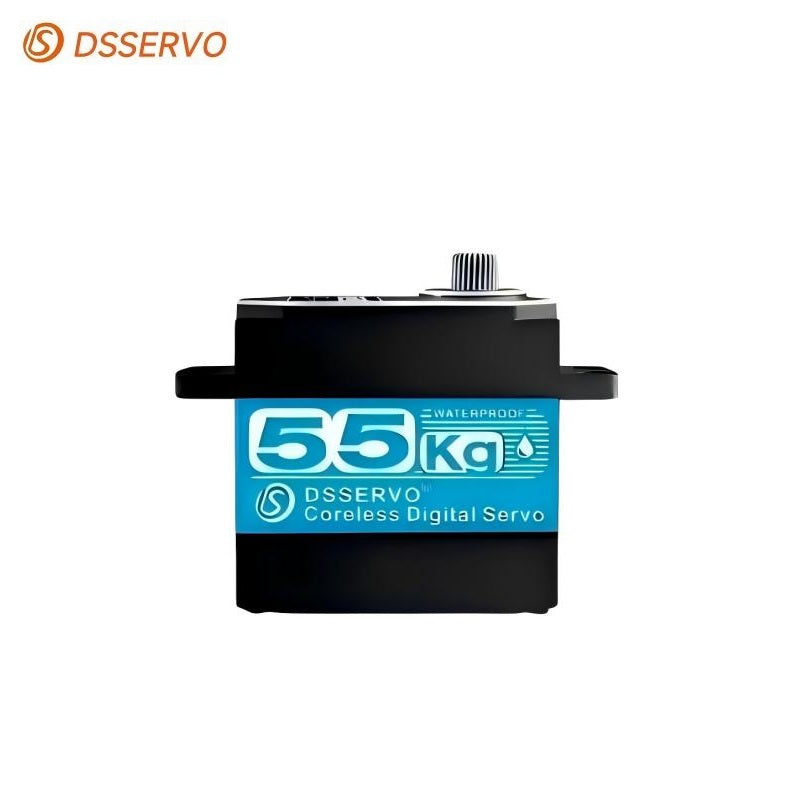

DSSERVO CLS3355 Servo Motor
Regular price
$40.00
Unit price
DSSERVO CLS3355 Servo Motor - CLS3355 / 180° is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
DSSERVO CLS3355 Servo Motor
Regular price
$40.00
Unit price
DSSERVO CLS3355 Servo Motor - CLS3355 / 180° is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Storage Temperature Range | -50°C ~ +80°C |
| Operating Temperature Range | -30°C ~ +80°C |
| Operating Voltage Range | 5 ~ 8.4V |
| Size | 40 × 20 × 40.5 mm |
| Weight | 85g |
| Gear Ratio | 366 |
| Bearing | Double bearing |
| Connector Wire Length | 300 ± 5 mm |
| Motor | Coreless motor |
| Waterproof Performance | IP67 |
| Idle Current (at stopped) | 5mA @ 4.8V / 5mA @ 6V/ 5mA @ 7.4V/ 5mA @ 8.4V |
| Operating Speed (at no load) | 0.14 sec/60° @ 4.8V / 0.12 sec/60° @ 6V/ 0.1 sec/60° @ 7.4V/ 0.09 sec/60° @ 8.4V |
| Stall Torque (at locked) | 38 kg·cm @ 4.8V / 46 kg·cm @ 6V/ 55 kg·cm @ 7.4V/ 62 kg·cm @ 8.4V |
| Stall Current (at locked) | 3.2A @ 4.8V / 4A @ 6V/ 4.6A @ 7.4V/ 5.2A @ 8.4V |
| Control System | PWM (Pulse Width Modulation) |
| Pulse Width Range | 500 ~ 2500 µsec |
| Neutral Position | 1500 µsec |
| Running Degree | 180° or 270° (500~2500 µsec) |
| Dead Band Width | 2 µsec |
| Operating Frequency | 50 ~ 330Hz |
| Rotating Direction | Counterclockwise (500~2500 µsec) |
