DSSERVO | SKU:

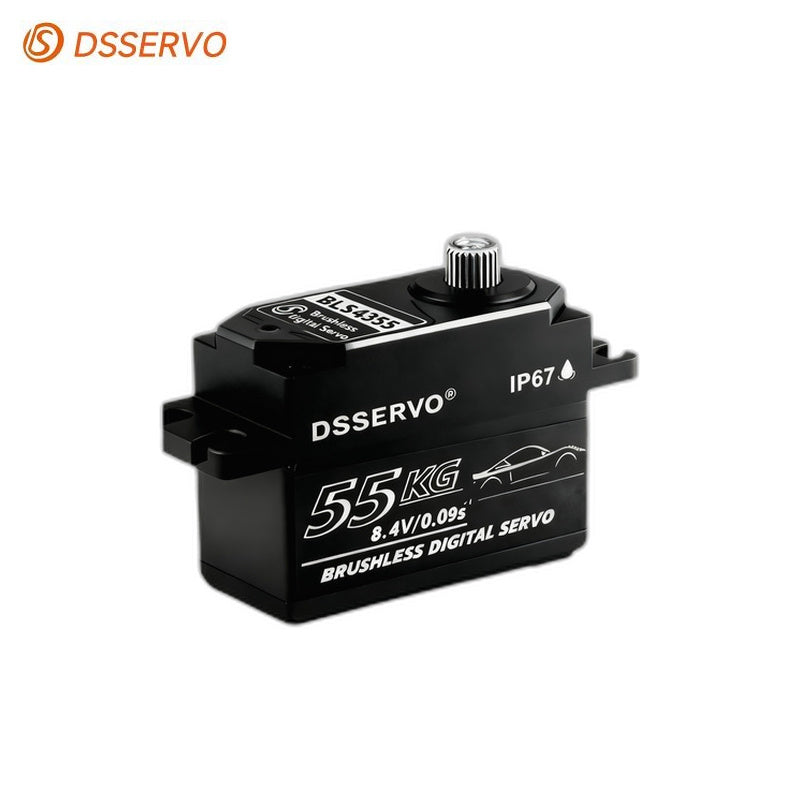

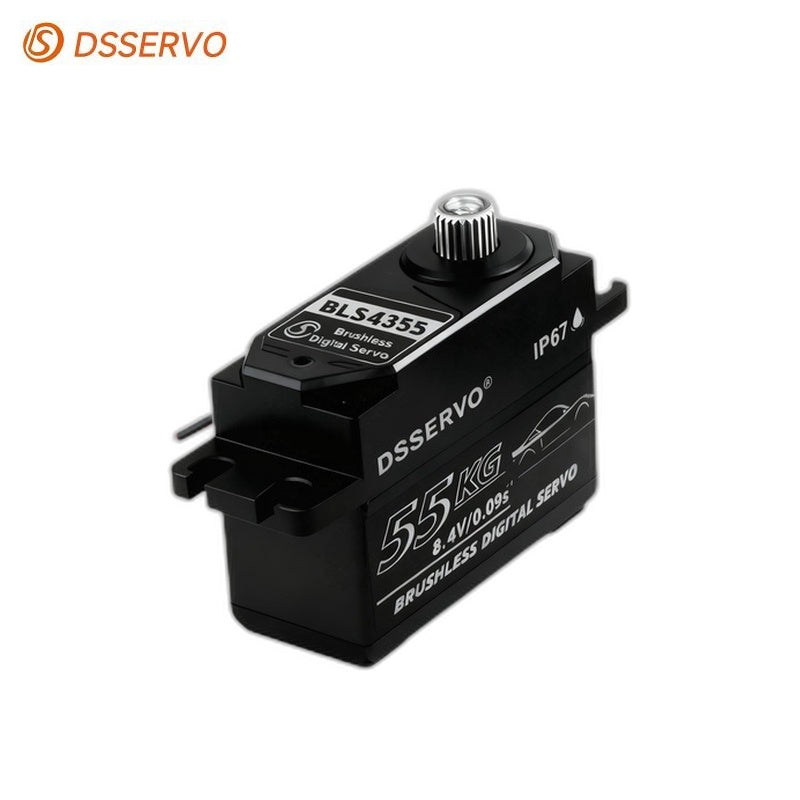

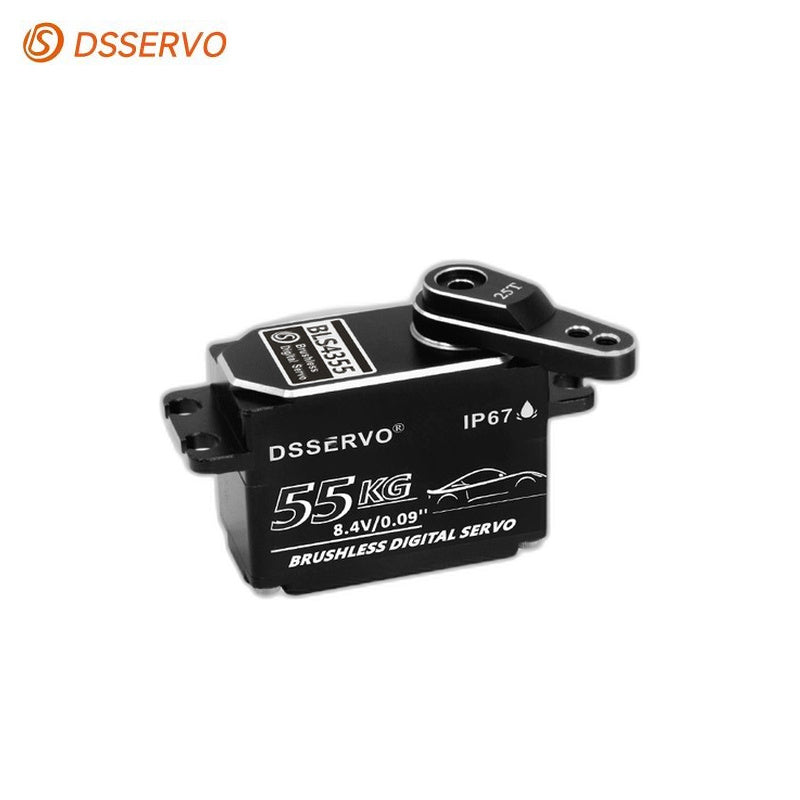

DSSERVO BLS4355 Servo Motor
Regular price
$70.00
Unit price
DSSERVO BLS4355 Servo Motor - BLS4355 / 180° is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
DSSERVO BLS4355 Servo Motor
Regular price
$70.00
Unit price
DSSERVO BLS4355 Servo Motor - BLS4355 / 180° is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Storage Temperature Range | -30°C ~ +80°C |
| Operating Temperature Range | -15°C ~ +70°C |
| Operating Voltage Range | 5 ~ 8.4V |
| Size | 40 × 20 × 38 mm |
| Weight | 75g |
| Gear Ratio | 365 |
| Bearing | Double bearing |
| Connector Wire Length | 300 ± 5 mm |
| Motor | Brushless motor |
| Waterproof Performance | IP67 |
| Idle Current (at stopped) | 5mA (typical, 6V, 7.4V) |
| Operating Speed (at no load) | 0.14 sec/60° (typical) / 0.1 sec/60° @ 6V / 0.1 sec/60° @ 7.4V |
| Stall Torque (at locked) | 39 kg·cm (typical) / 55 kg·cm @ 6V / 61 kg·cm @ 7.4V |
| Stall Current (at locked) | 3.2A (typical) / 4A @ 6V / 5.2A @ 7.4V |
| Control System | PWM (Pulse Width Modulation) |
| Pulse Width Range | 500 ~ 2500 µsec |
| Neutral Position | 1500 µsec |
| Running Degree | 180° or 270° (500~2500 µsec) |
| Dead Band Width | 2 µsec |
| Operating Frequency | 50 ~ 330Hz |
| Rotating Direction | Counterclockwise (500~2500 µsec) |
