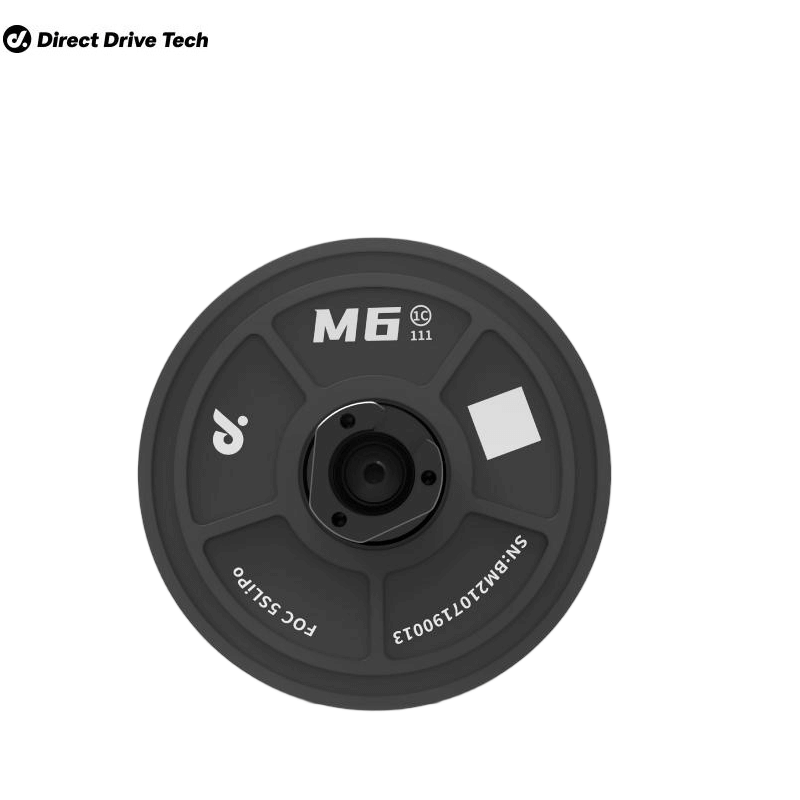

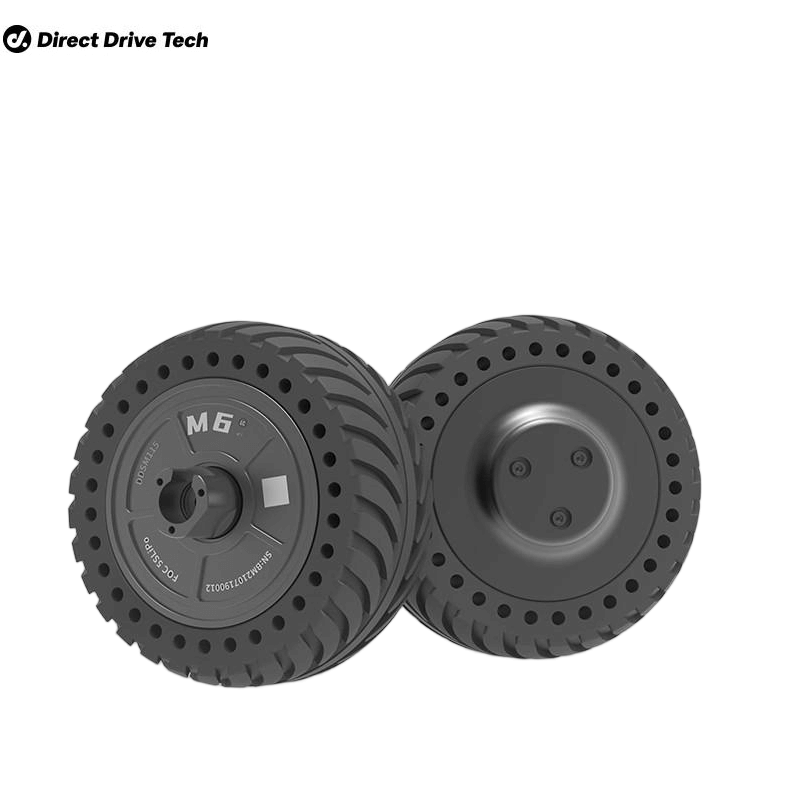

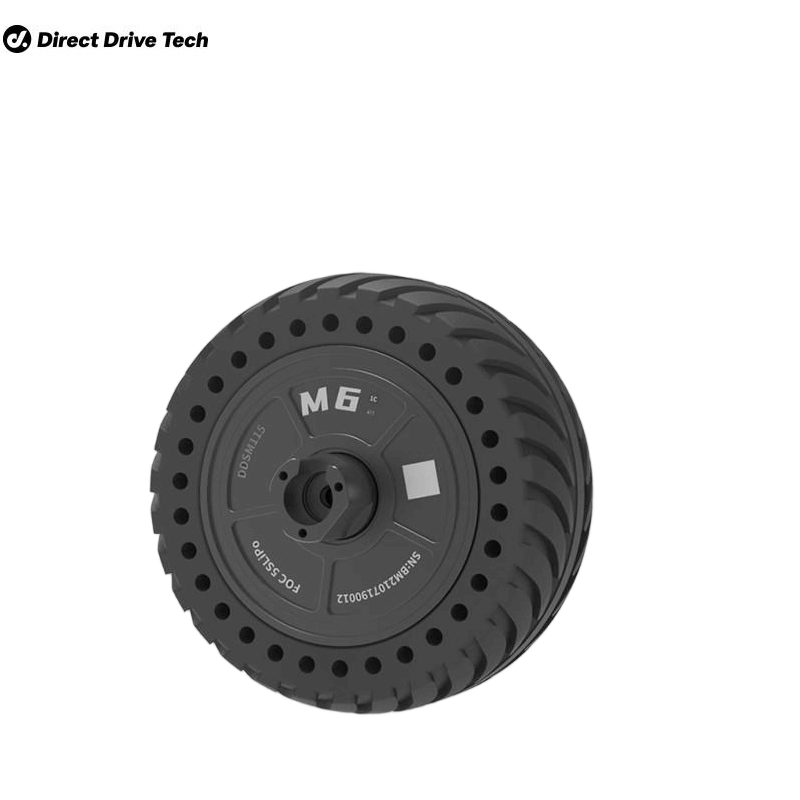

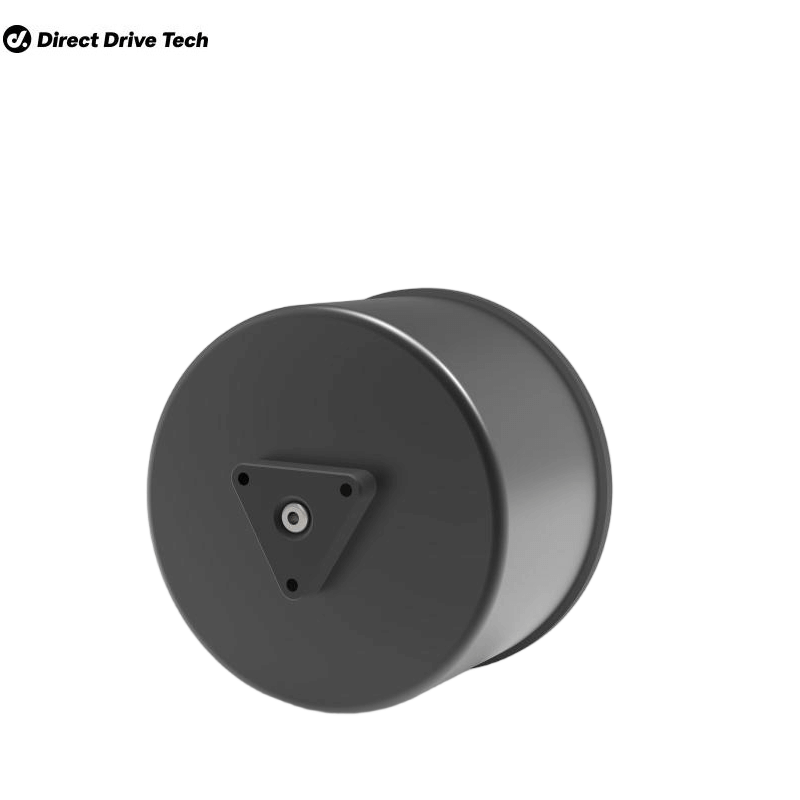

Direct Drive Tech M0601C Directdrive Motor
Direct Drive Tech M0601C Directdrive Motor
Direct Drive Tech M0601C Directdrive Motor
Direct Drive Tech M0601C Directdrive Motor

Direct Drive Tech M0601C Directdrive Motor

$65.00
$65.00
Version: M0601C_111
Subtotal: $65.00
Direct Drive Tech M0601C Directdrive Motor

Direct Drive Tech M0601C Directdrive Motor

$65.00
Direct Drive Tech M0601C Directdrive Motor
Direct Drive Tech M0601C Directdrive Motor
Direct Drive Tech M0601C Directdrive Motor
Direct Drive Tech M0601C Directdrive Motor

Direct Drive Tech M0601C Directdrive Motor

$65.00
Version: M0601C_111
Description
Description
x

Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter

 Value
ltem Name Direct Drive Tech M0601C Directdrive Motor
No-Load Speed
200±10rpm
No-Load Current
≤0.25A
Rated Speed 115rpm
Rated Torque
0.96N·m
Rated Current
1.25A
Rated Voltage
18VDC
Maximum Efficiency
≥60%
Stall Torque
≥2.0N·m
StallCurrent
≤2.7A
Torque Constant
0.75Nm/A
Speed Constant
11.1rpm/V
Operating Ambient Temperature
-20℃~45℃
Motor Weight
485g
Encoder Resolution
4096
Accuracy (Relative)
1024
Noise Level
≤50dB
Protection Rating (IP Rating)
IP54
M0601C_411_Outline_Drawing_with_Tire.pdf
M0601C_111_Installation_Dimension_Drawing.pdf
