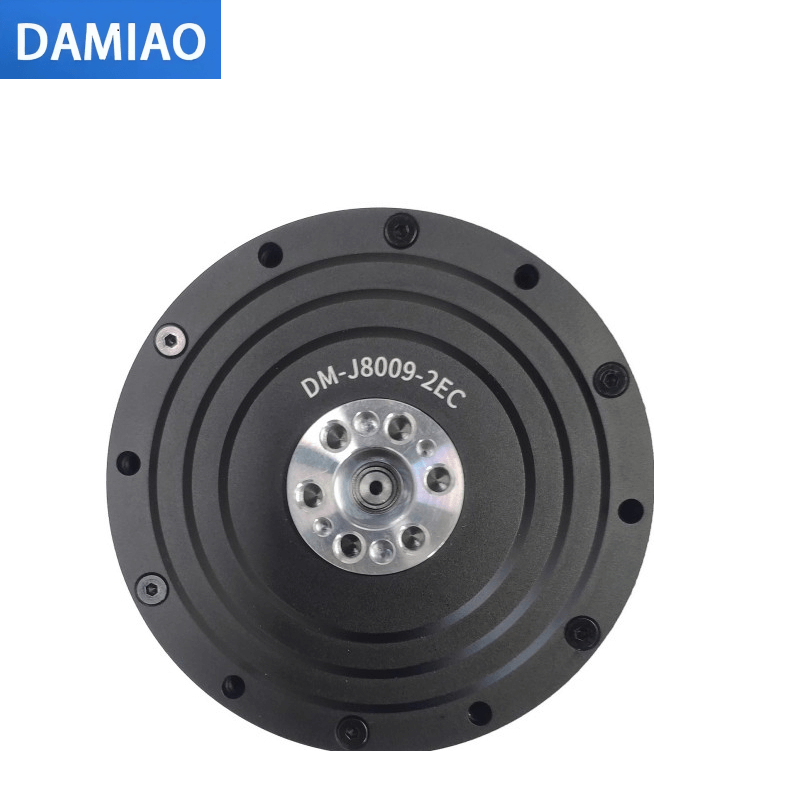

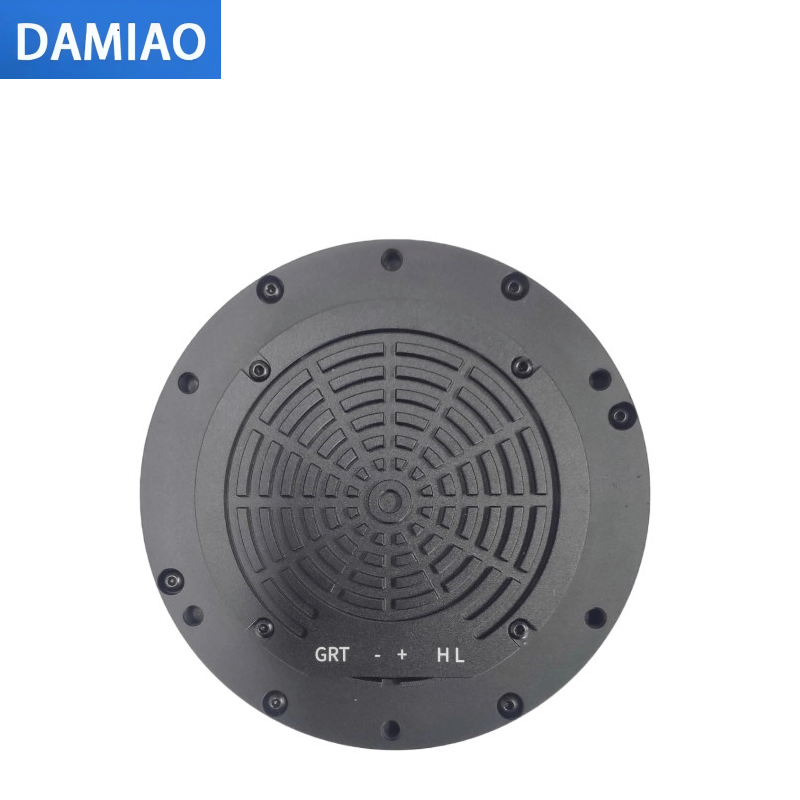

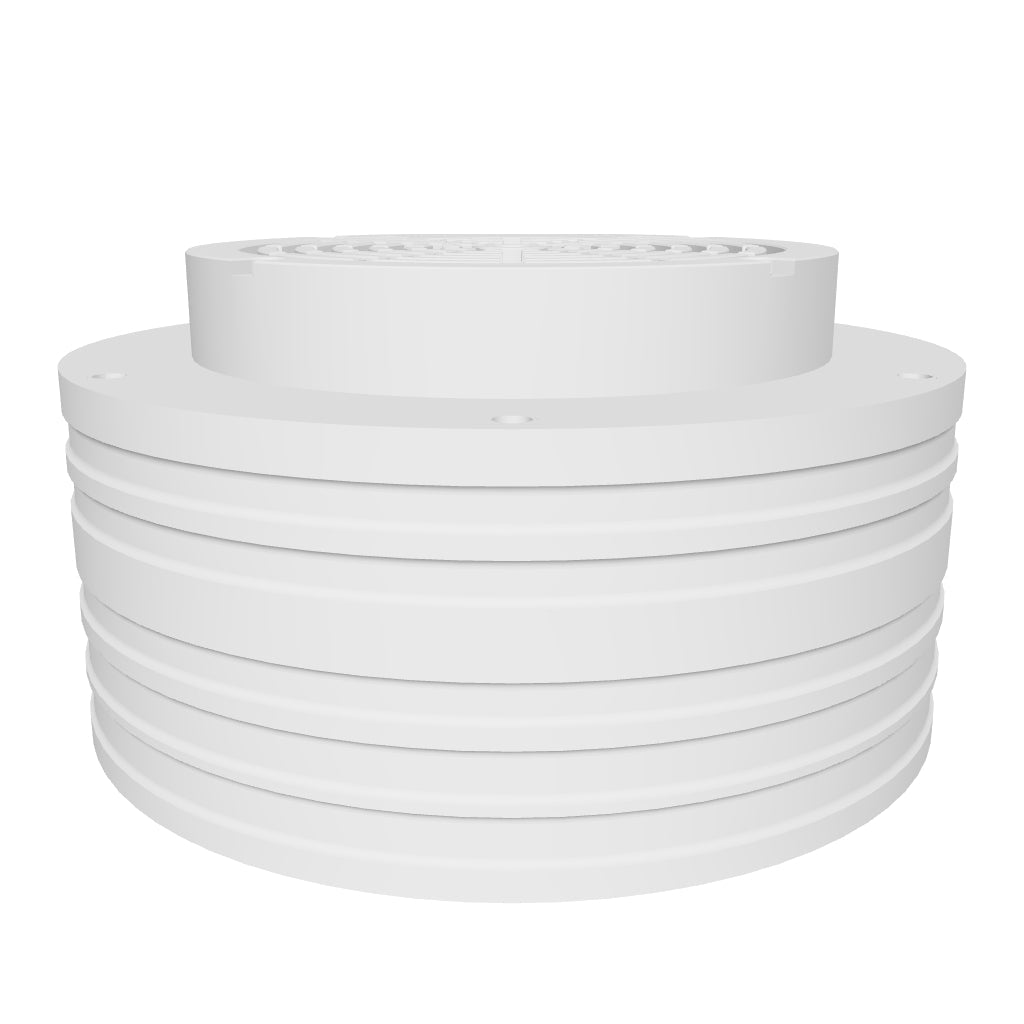

DAMIAO DM-J8009-2EC Motor
DAMIAO DM-J8009-2EC Motor
DAMIAO DM-J8009-2EC Motor

DAMIAO DM-J8009-2EC Motor

$470.00
$470.00
Version: Include Driver
Subtotal: $470.00
DAMIAO DM-J8009-2EC Motor

DAMIAO DM-J8009-2EC Motor

$470.00
DAMIAO DM-J8009-2EC Motor
DAMIAO DM-J8009-2EC Motor
DAMIAO DM-J8009-2EC Motor

DAMIAO DM-J8009-2EC Motor

$470.00
Version: Include Driver
Description
Description
x

Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Model
DM-J8009-2EC
Nominal Voltage 24V
Nominal Current 20A
Peak Current 50A
Nominal Torque 20N.M
Peak Torque 40N.M
Nominal Speed

24V：100rpm
48V：200rpm
Max. No-load Speed

24V：160rpm
48V：320rpm
Reduction Ratio 9:1
Pole Pairs 21
Phase Inductance 61μH(@25℃)
Phase Resistance 0.09Ω(@25℃)
Outer Diameter 98mm
Height 61.7mm
Motor Weight 896g
Encoder Resolution 14Bit
Encoder Quantity 2
Encoder Type Single-Turn Magnetic Encoder
Control Interface CAN@1Mbps
Configuration Interface UART@921600bps



DM-J8009-2EC_User_Manual.pdf

DM_J8009_instalation_drawing.pdf
