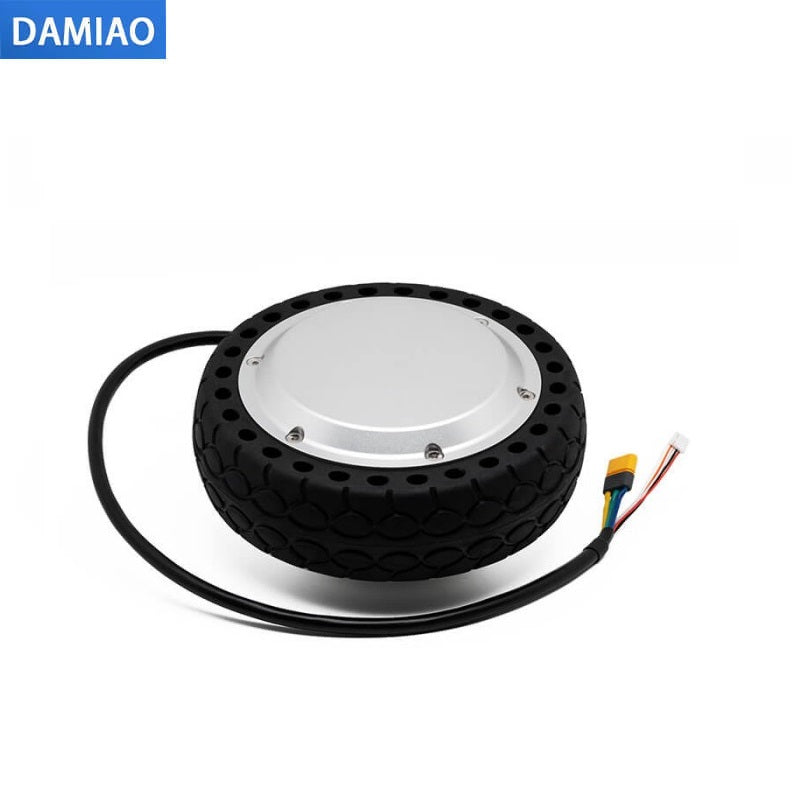

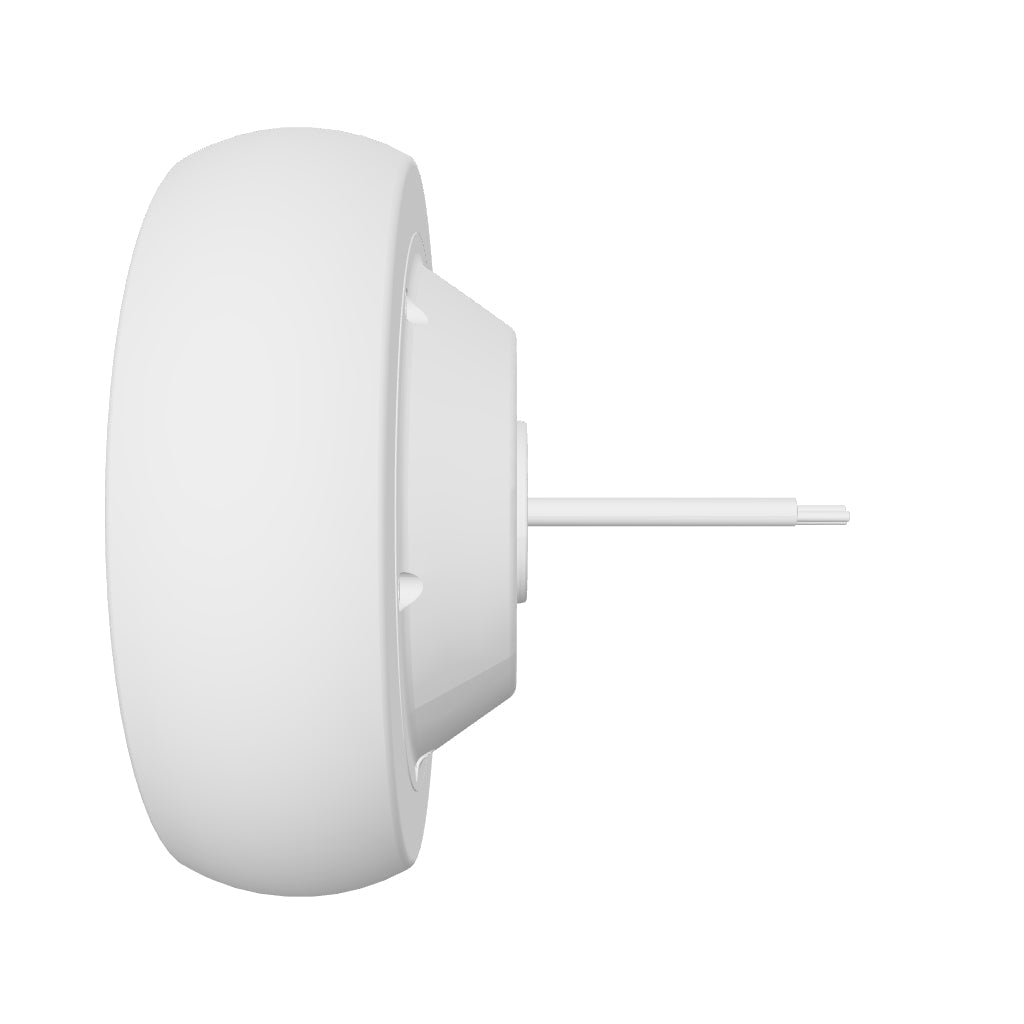

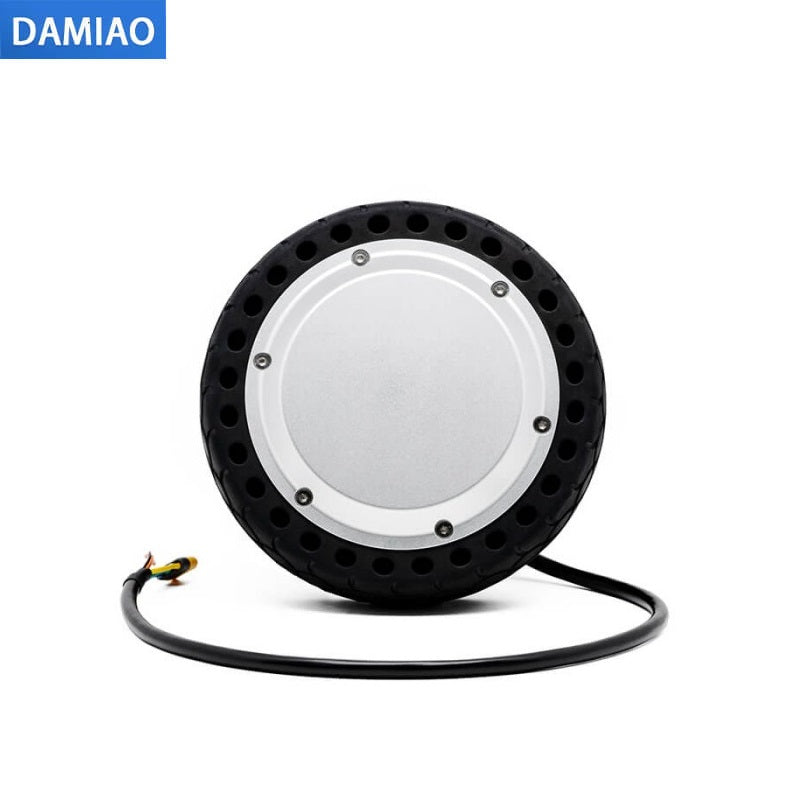

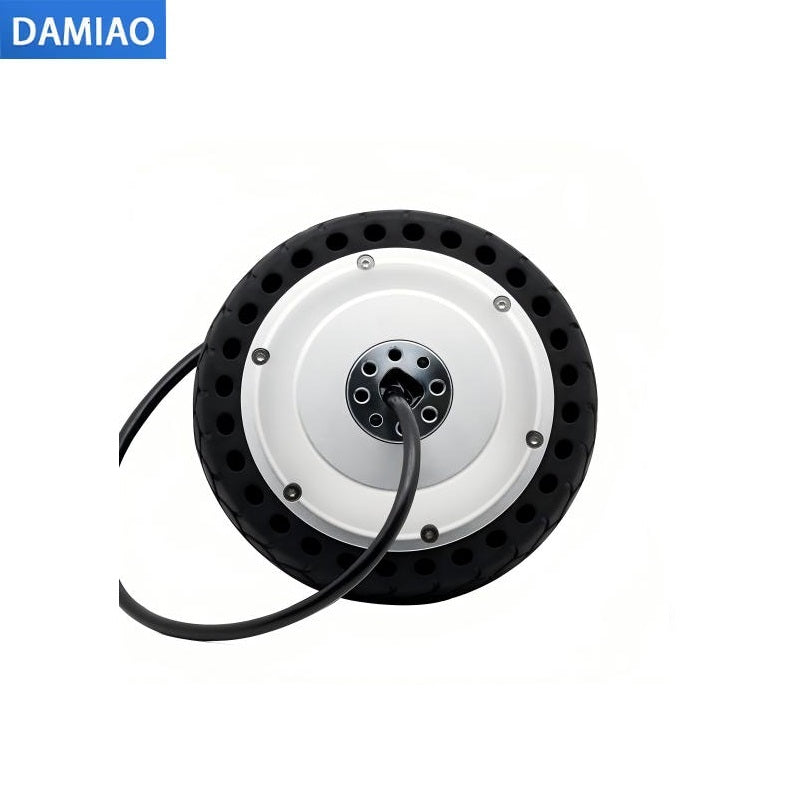

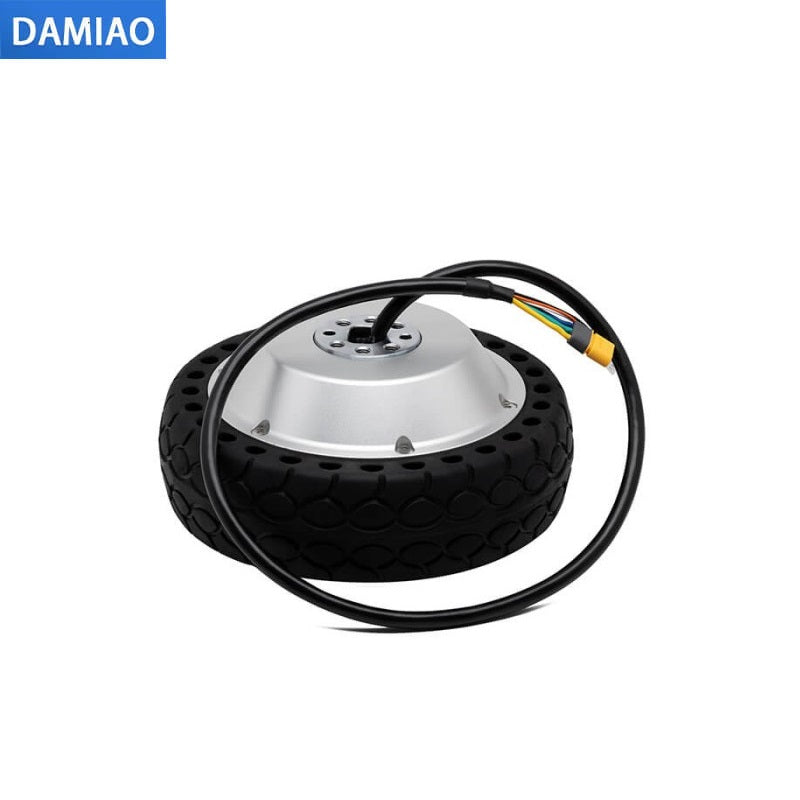

DAMIAO DM-H55 Motor

$175.00
Version

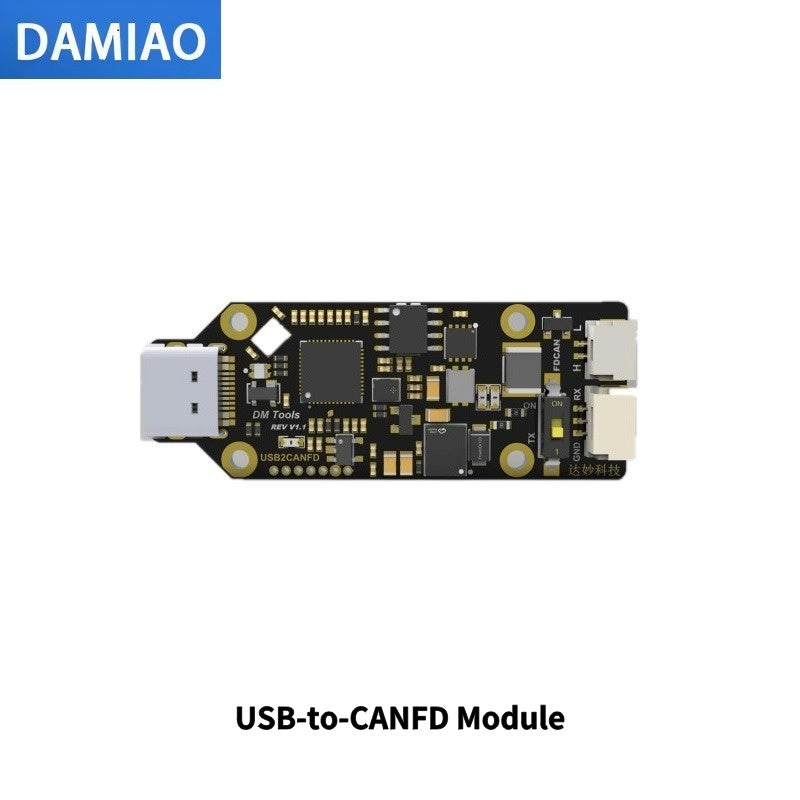

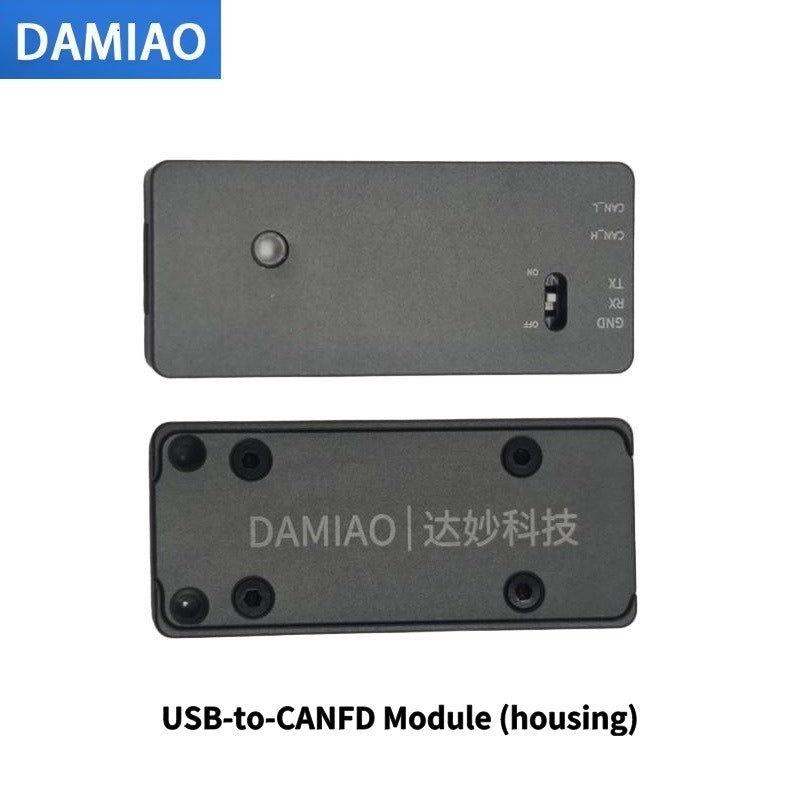

Communication Module

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information

Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Rated Voltage 24V (supports 24-48V)
Rated Phase / Supply Current 13.05A / 7.89A @ 24V; 13.05A / 5.36A @ 36V; 13.05A / 4.08A @ 48V
Peak Phase / Supply Current 33.55A / 22.62A @ 24V; 33.55A / 15.83A @ 36V; 33.55A / 12.38A @ 48V
Rated Torque 3.5 N·m
Peak Torque 9.0 N·m
Rated Speed 350 rpm
Max No-Load Speed 587 rpm @ 24V; 883 rpm @ 36V; 1185 rpm @ 48V
Modulus 18
Number of Pole Pairs 10
Phase Inductance 336 µH (@25°C)
Phase Resistance 0.281 Ω (@25°C)
Outer Diameter 141 mm
Height 66.9 mm
Motor Weight Approx. 2100g
Encoder Resolution 17 bit
Encoder Accuracy ±0.03 degrees
Number of Encoders 1
Control Interface CAN @ 5Mbps (Max)
Tuning Interface UART @ 921600 bps
Control Modes MIT Mode, Position & Velocity Mode, Velocity Mode, Force-Position Hybrid Control
Protection Driver over-temperature protection: 120°C, motor will exit enable mode. Motor over-temperature protection: configurable, recommended ≤100°C, motor will exit enable mode. Over-voltage protection: configurable, recommended ≤65V, motor will exit enable mode. Communication loss protection: if no CAN command is received within the set period, motor will exit enable mode. Over-current protection: configurable, recommended ≤0.98, motor will exit enable mode. Under-voltage protection: motor will exit enable mode if supply voltage falls below set value; supply voltage should not be lower than 20V.
