DAMIAO

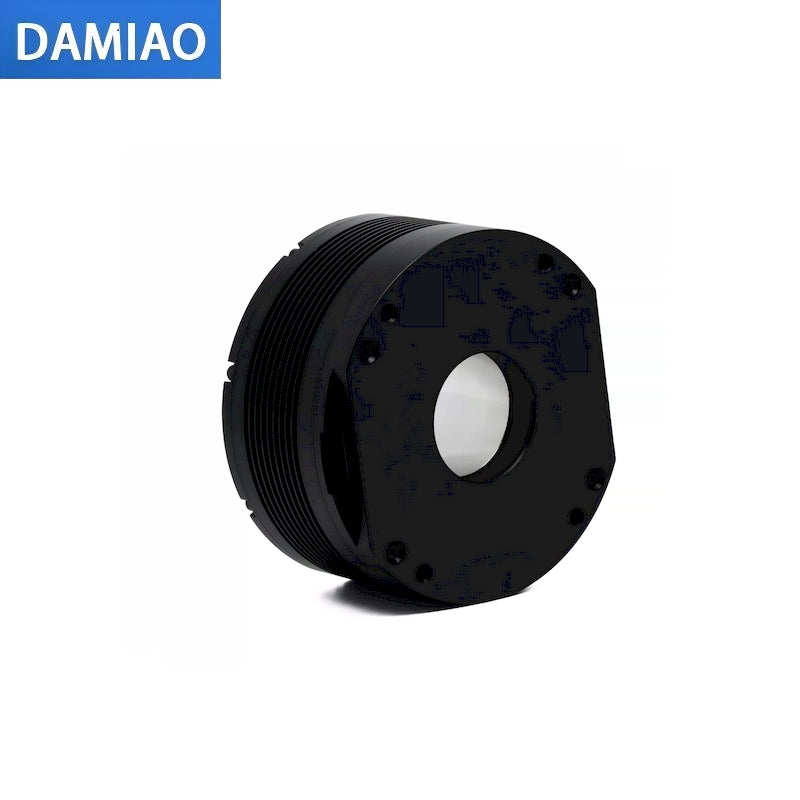

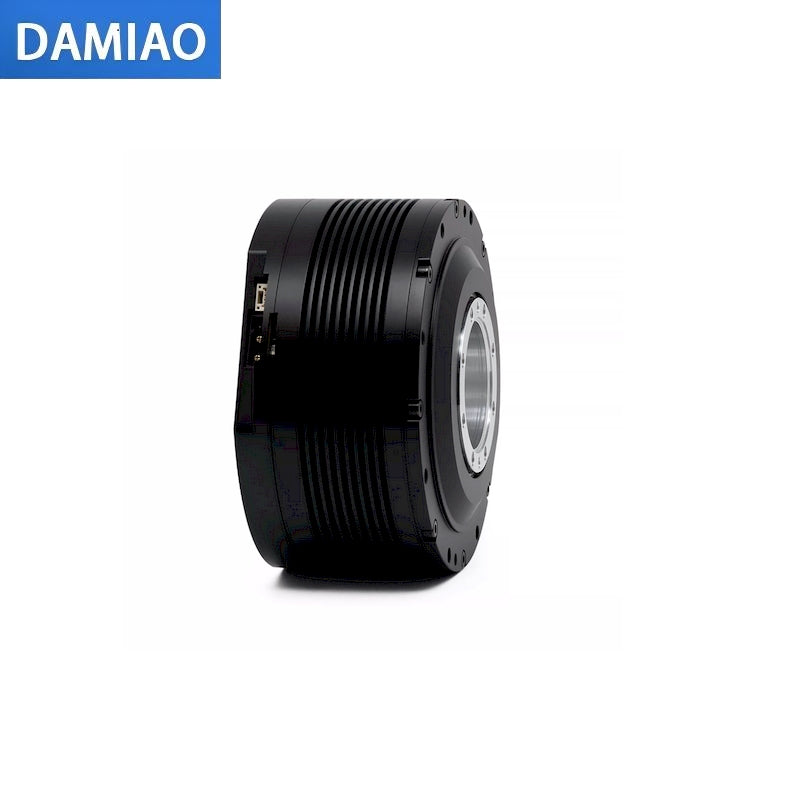

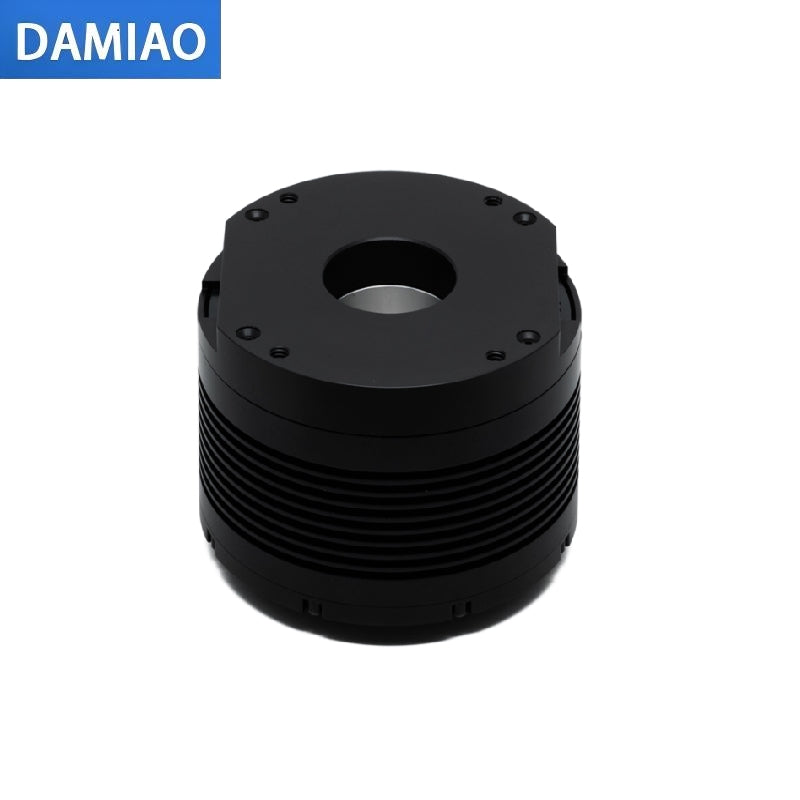

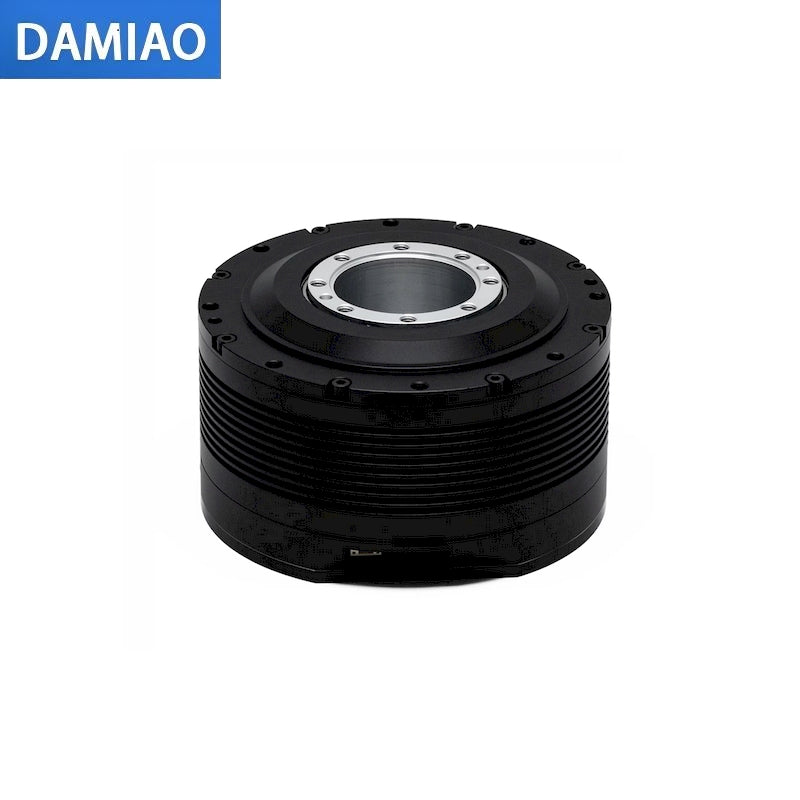

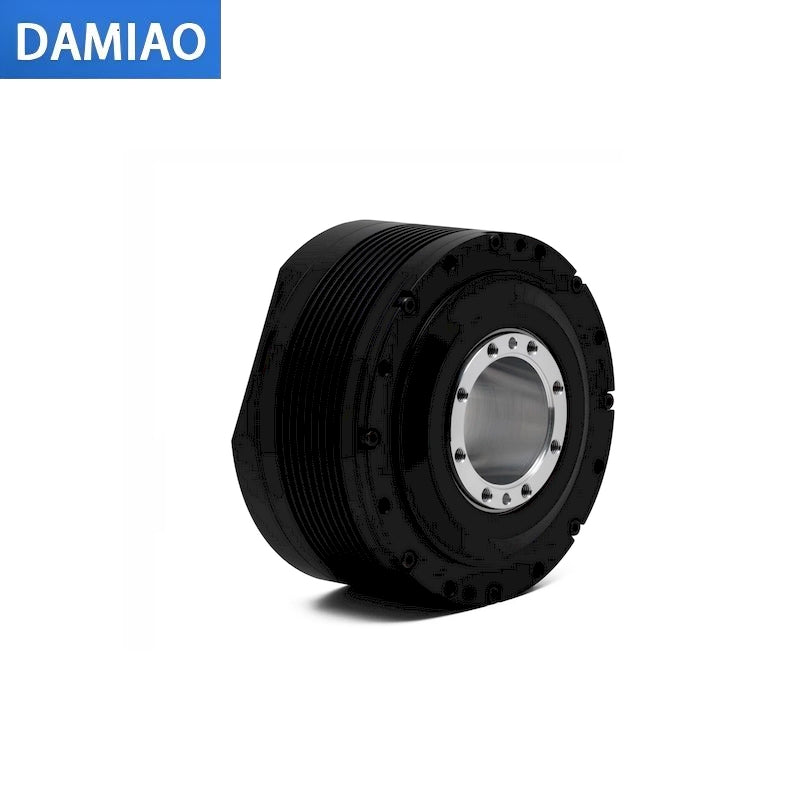

DAMIAO DM-G8518 Motor

$175.00
Version
Communication Module
Accessory Kit

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Motor Model DM-G8518
Rated Voltage 24 V (Supports 24–48 V)
Rated Phase / Supply Current 9.55 A / 10.51 A @ 24 V
9.55 A / 10.05 A @ 48 V
Peak Phase / Supply Current 36.1 A / 33.05 A @ 24 V
36.1 A / 18.05 A @ 48 V
Rated Torque 1.9 N·m
Peak Torque 8.78 N·m
Rated Speed 1000 rpm @ 24 V
2000 rpm @ 48 V
Peak Speed 1290 rpm @ 24 V
2590 rpm @ 48 V
Slot Count 36
Pole-Pair Count 16
Phase Inductance 105 μH @ 25 °C
Phase Resistance 0.225 Ω @ 25 °C
Outer Diameter 96 mm
Height 52.5 mm
Central Bore Diameter 33 mm
Motor Weight 831 g
Encoder Resolution 17 Bit
Encoder Accuracy ±0.03°
Encoder Quantity 1
Encoder Type Single Encoder (Single-Turn)
Control Interface CAN @ 5 Mbps (Maximum)
Parameter-Tuning Interface UART @ 921600 bps
Control Modes

MIT Mode;

Position Mode;

Velocity Mode;

Force-position hybrid control mode
Protection

Drive over-temperature protection: Protection temperature: 120°C. If overtemperature occurs, the motor will exit "enable mode".

Motor over-temperature protection: Set according to usage requirements; recommended not to exceed 100°C. If overtemperature occurs, the motor will exit "enable mode".

Motor over-voltage protection: Set according to usage requirements; recommended not to exceed 54V. If overvoltage occurs, it will exit "enable mode".

Communication loss protection: If no CAN command is received within the set period, it will automatically exit "enable mode".

Motor over-current protection: Set according to usage requirements; recommended not to exceed 0.98. If overcurrent occurs, it will exit "enable mode".

Motor under-voltage protection: If the supply voltage falls below the set value, it will exit "enable mode". The supply voltage should not be lower than 20V.

DAMIAO-DM-G8518-Drawing.pdf
