CubeMars

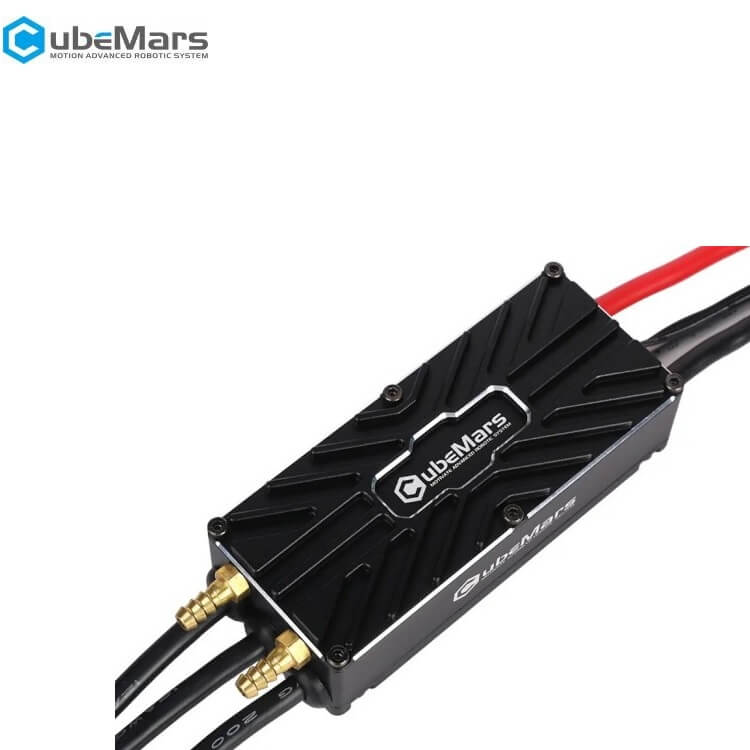

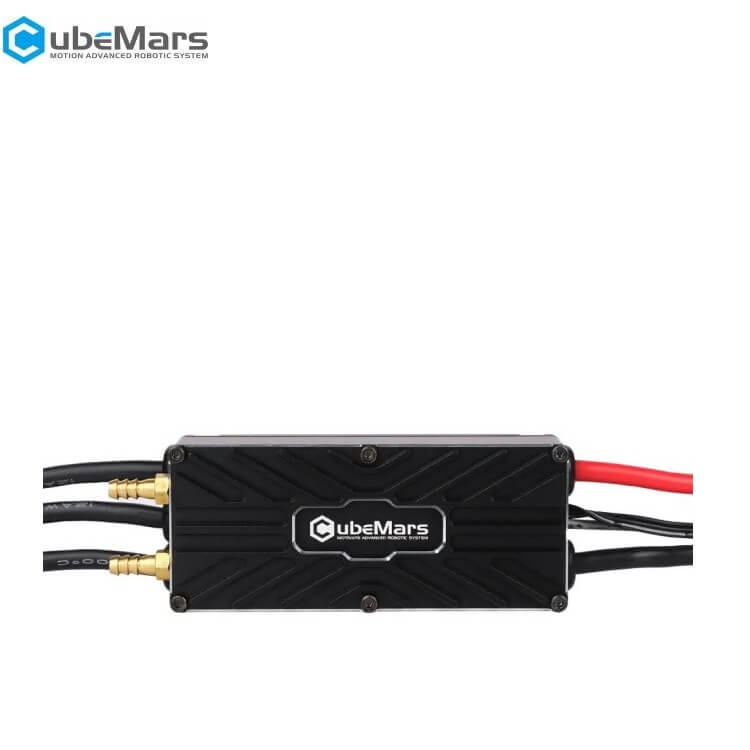

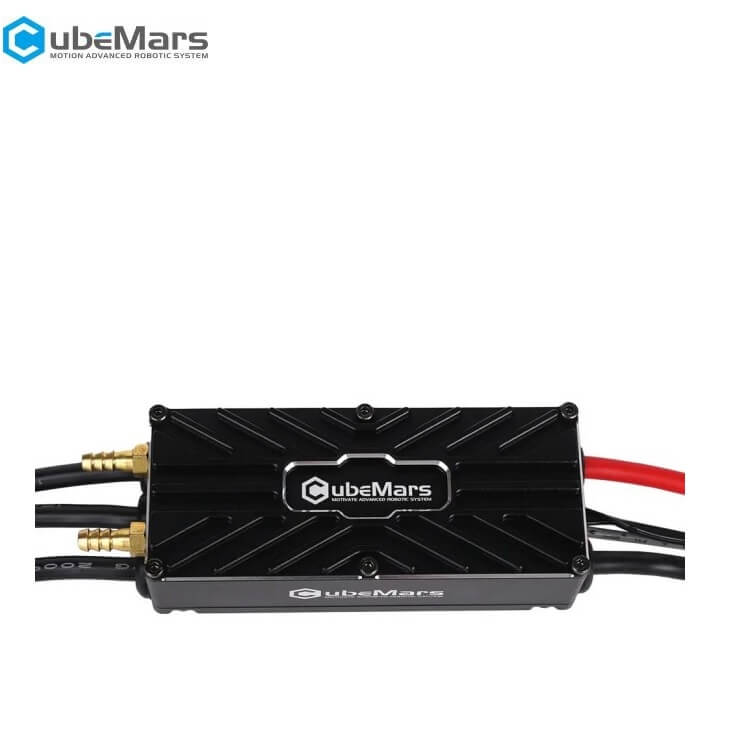

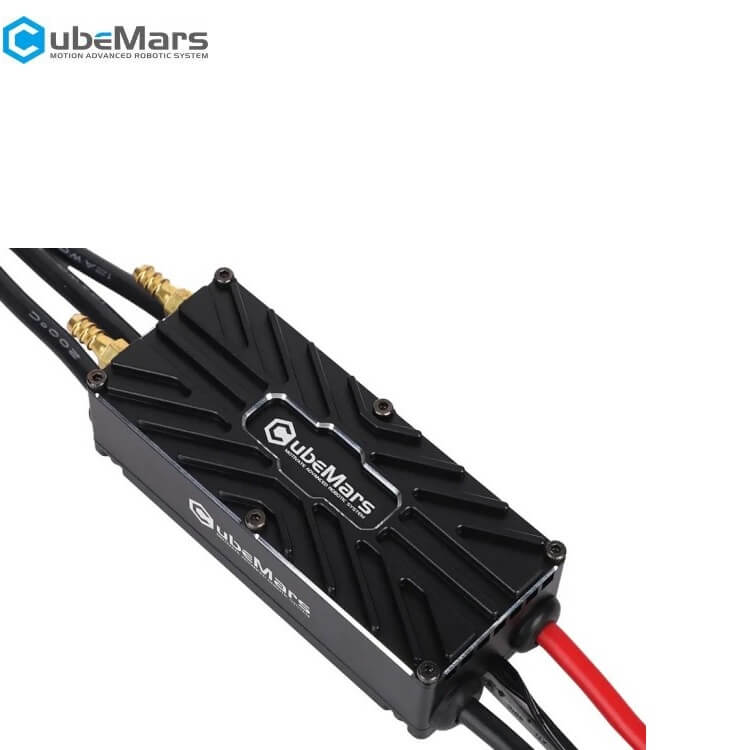

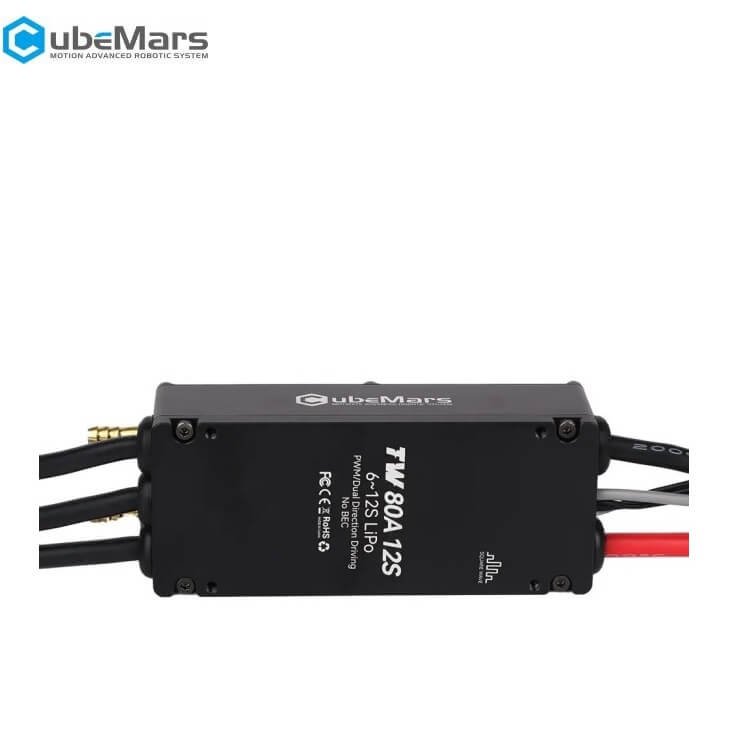

CubeMars TW-80A-12S Speed Controller

$219.99
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information



Technical Specifications

Parameter Value
Applicable models SW17 / DW20 / DW25
Size 83*35*22.8mm
Single unit weight 149.33g
Package dimensions (includes dual ESCs) 140*137*77mm
Wiring harness description Power cable (input): Red (positive), Black (negative)
Three-phase cable (output): 3 × Black
Signal cable ×1
Serial cable ×1
Input(V) 6-12S
Throttle range (with throttle midpoint at 1500 μs) 1000us-2000us
Bidirectional motor rotation 1000us-1500us Forward/ 1500us-2000us Reverse
Communication mode Serial
