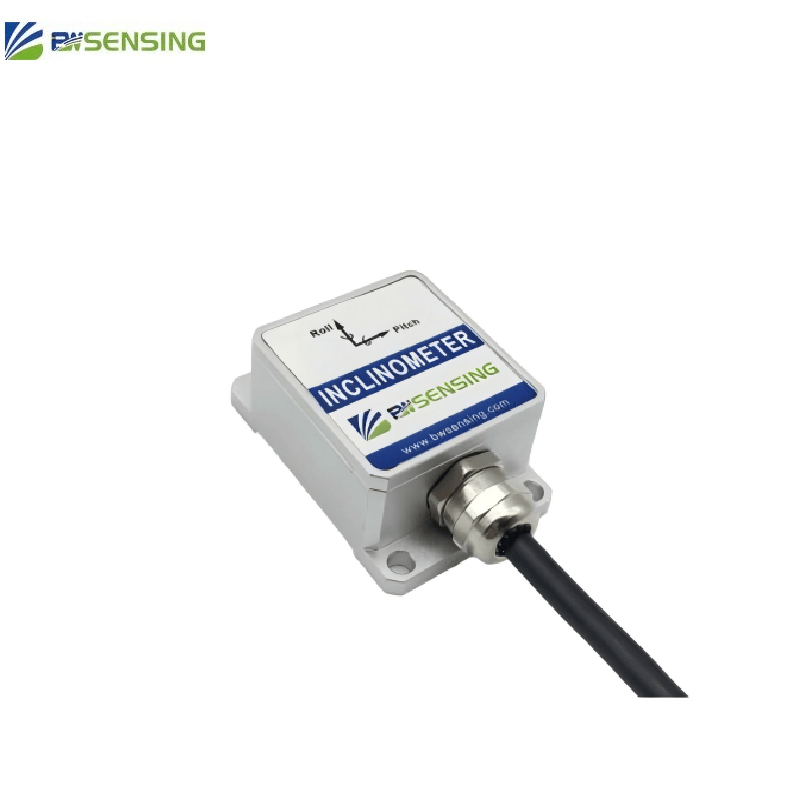

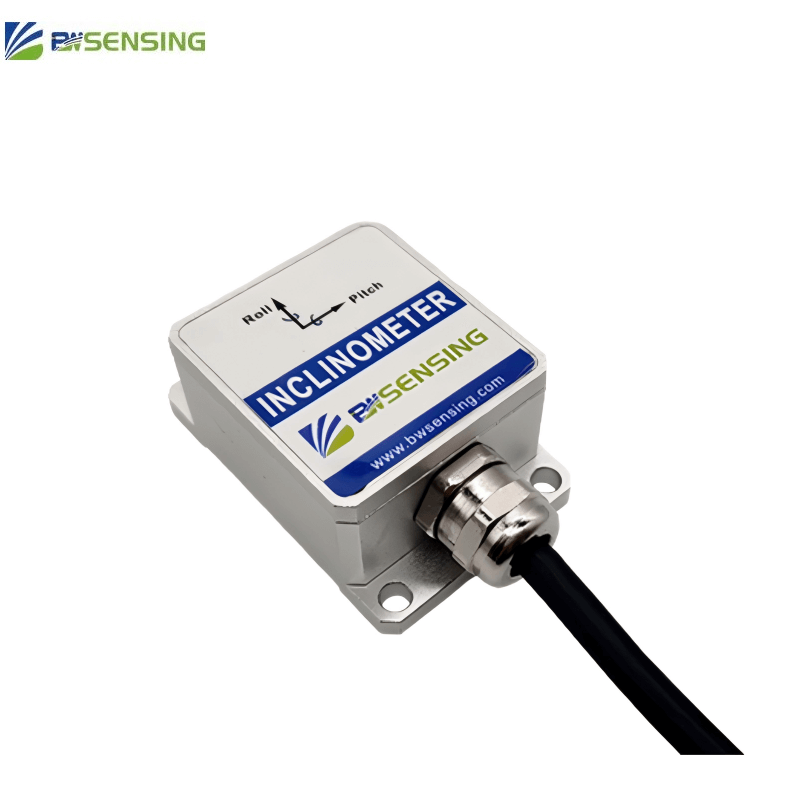

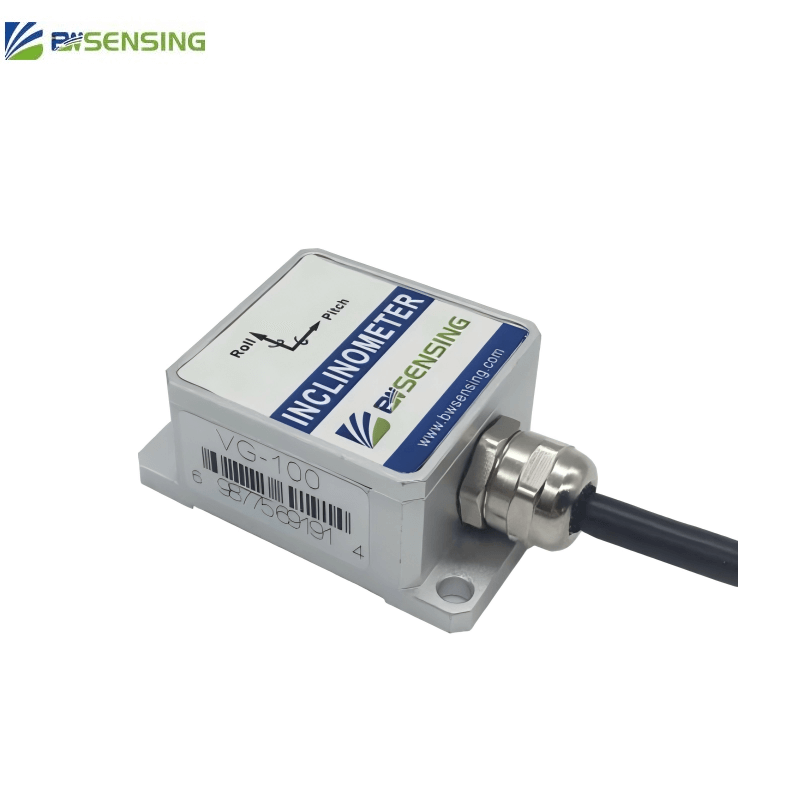

BWSENSING BW-VG100 Sensor
Regular price
$205.00
Unit price
Unavailable
BWSENSING BW-VG100 Sensor - BW-VG100 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
BWSENSING BW-VG100 Sensor
Regular price
$205.00
Unit price
Unavailable
BWSENSING BW-VG100 Sensor - BW-VG100 is backordered and will ship as soon as it is back in stock.
Product Information
Technical Specifications
| Parameter | Value |
|---|---|
| Power supply | 5V DC |
| Operating current |
30mA (Max40mA) |
| Operating temperature | -40°C~85°C |
| Store temperature |
-55°C~100°C |
| Dynamic accuracy | 2° |
| Static accuracy | 0.2° |
| Resolution | 0.01° |
| Tilt range | Pitch ± 90°, Roll ±180° |
| Size | L55 x W37 x H24 (mm) |
| Weight (including cable) | 130g |
| Weight (including package) | 210g |
| Start delay | <50ms |
| Maximum output frequency | 100Hz |
| Serial communication rate | 2400 to 115200 baud rate |
| Digital output format | Binary high performance protocol |
| MTBF |
≥30000 hours/time
|
| Electromagnetic compatibility | According to GBT17626 |
| Insulation resistance | ≥100 MΩ |
| Impact resistance |
2000g, 0.5ms, 3 times / axis |
| Connector |
Metal connector(standard cable is 1.5m) |
| Protection level |
IP67 |
| Shell material |
Magnesium alloy anodizing |
|
Installation
|
Three M4 screws |
