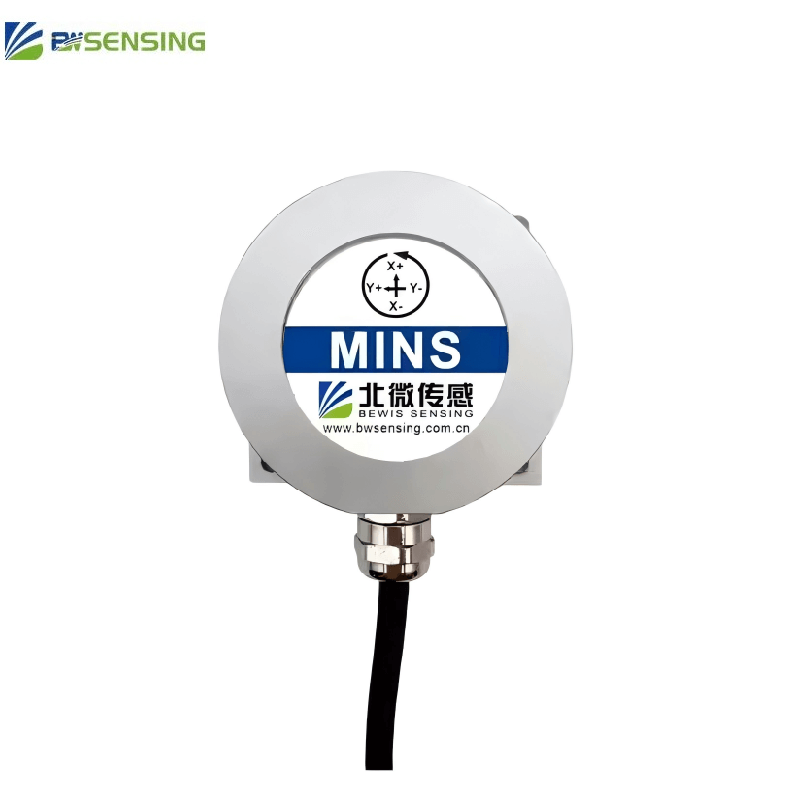

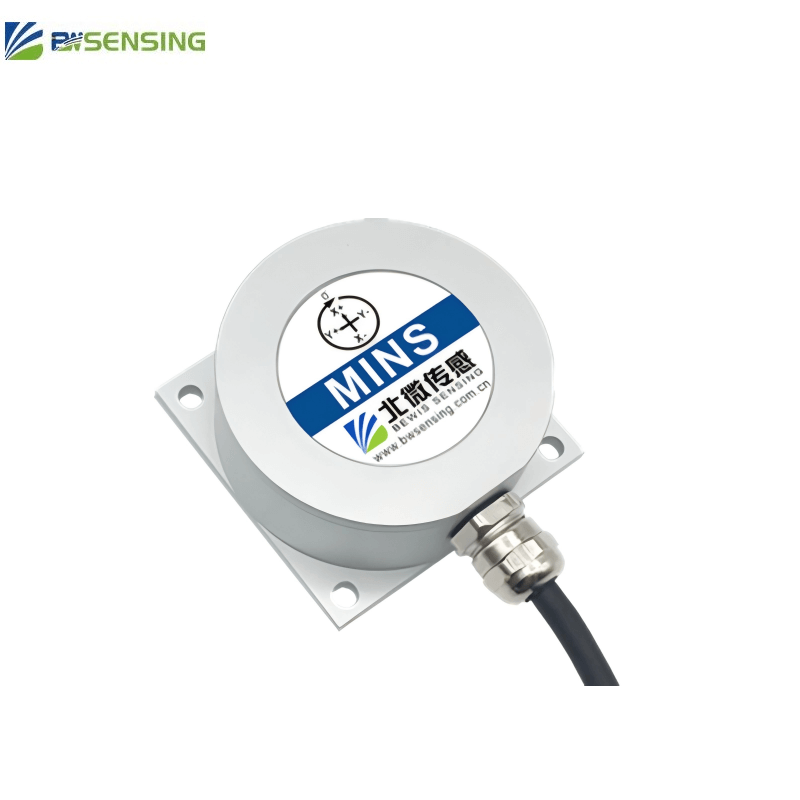

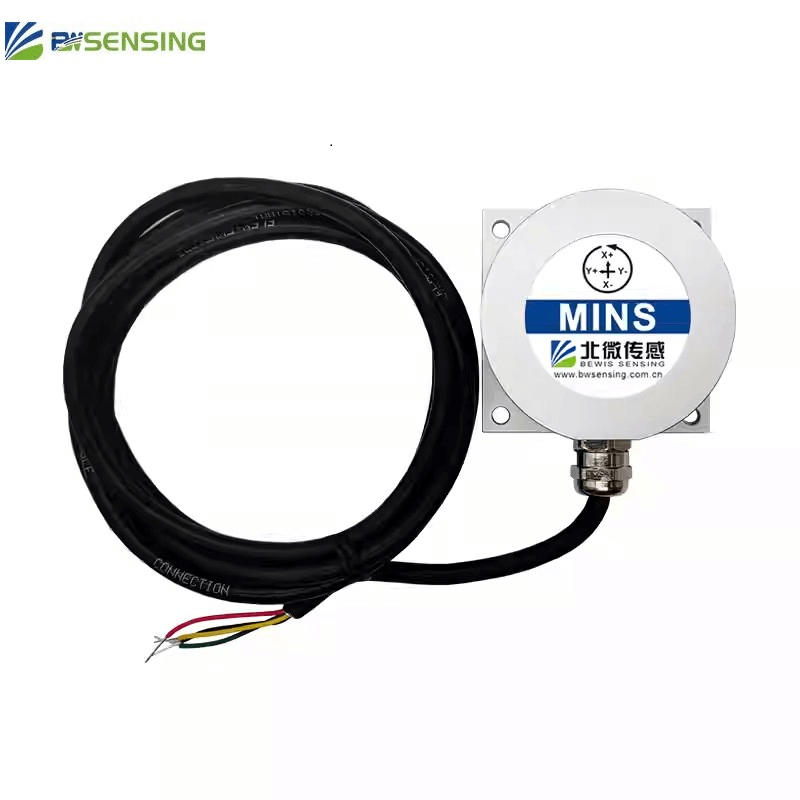

BWSENSING BW-MINS500 Sensor
Regular price
$2,105.00
Unit price
/
Unavailable
BWSENSING BW-MINS500 Sensor - BW-MINS500 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Product Information
Technical Specifications
Parameter | Value |
---|---|
Power supply | 9-36V DC |
Working current |
30mA(40mA max.) |
Operating temperature | -40~85℃ |
Storage temperature |
-55~100℃ |
Dynamic accuracy | 0.1° |
Static accuracy | 0.01° |
Measurement range | 0.1°/min |
Heading Holding Accuracy | Pitch± 90º, Roll± 180º |
Resolution | 0.01°/sec |
Bias stability at full temperature | 5°/h(10s,1σ) |
ARW | <0.1 °/√h |
Bias repeatability | <50 °/h(1σ) |
Scale factor nonlinearity | ≤100ppm(1σ) |
Scale factor repeatability | ≤100ppm(1σ) |
Range:X, Y, Z | ±1.8 g |
Bias stability | 0.001mg(25℃,100s,1σ) 0.01mg(25℃,10s,1σ) |
Communication mode | RS232/RS485/TLL |
Maximum output Frequency | 500Hz |
MTBF |
≥90000 h/times
|
EMC | According to GB17626 |
Insulation resistance | ≥100MΩ |
Impact resistance |
2000g, 0.5ms, 3times/axis |
Connector |
Metal joint (cable 1.5m) |
Protection Level |
IP67 |
Shell material |
Magnesium aluminum alloy oxidation |
Installation
|
Four M4 screws |
