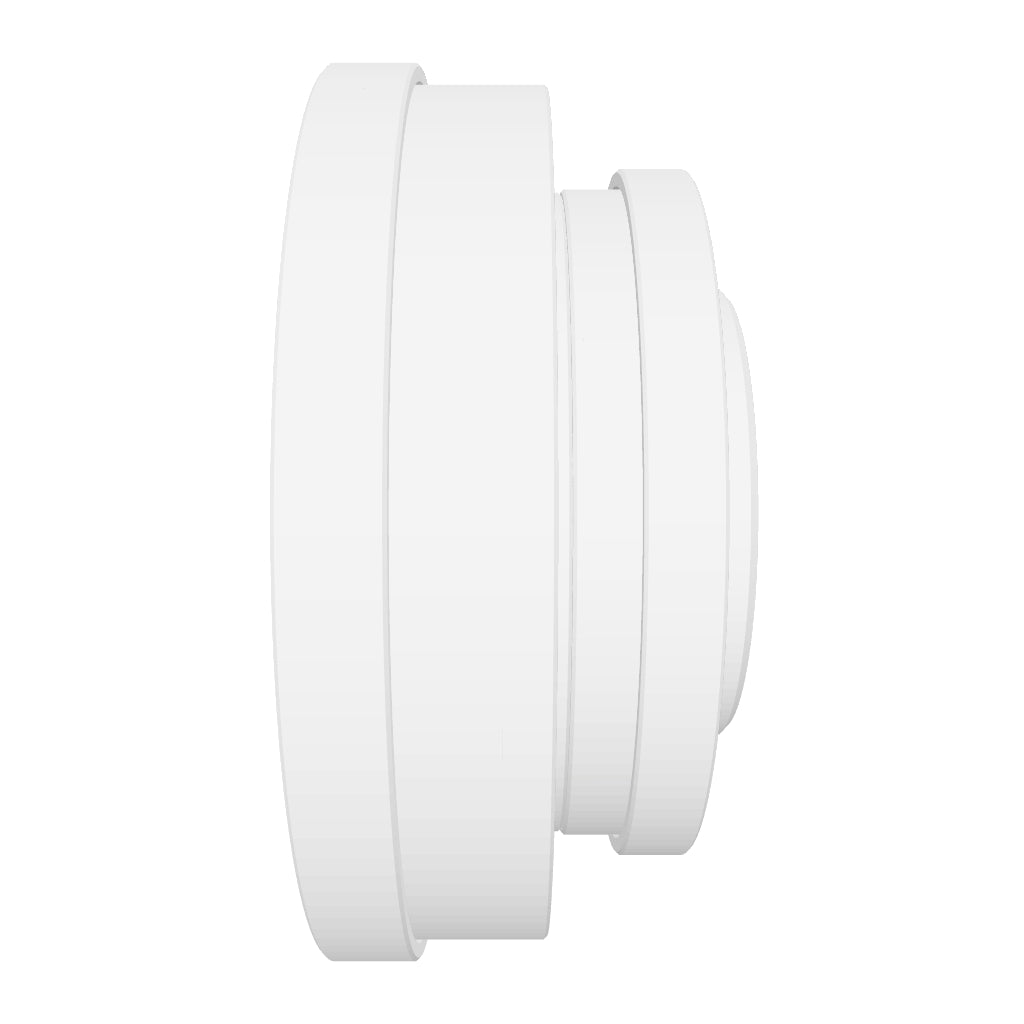

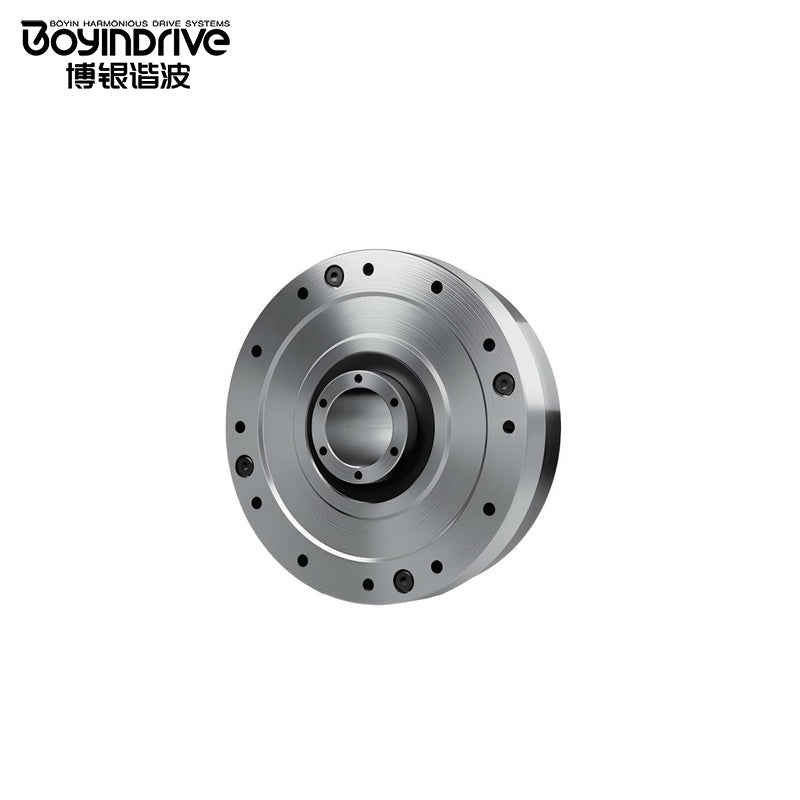

Boyin Drive YHS-25-III Reducer

$355.00
Version
Ratio

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value Value Value Value Value Value
Reduction Ratio 30 50 80 100 120 160
Rated Torque (at 2000 r/min) 26.0 Nm 38.0 Nm 62.0 Nm 66.0 Nm 66.0 Nm 66.0 Nm
Max. Torque at Start/Stop 48.0 Nm 96.0 Nm 134.0 Nm 152.0 Nm 163.0 Nm 172.0 Nm
Max. Average Load Torque 36.0 Nm 53.0 Nm 85.0 Nm 106.0 Nm 106.0 Nm 106.0 Nm
Max. Instantaneous Torque 92.0 Nm 184.0 Nm 249.0 Nm 279.0 Nm 300.0 Nm 309.0 Nm
Max. Input Speed 5500 r/min 5500 r/min 5500 r/min 5500 r/min 5500 r/min 5500 r/min
Average Input Speed 3500 r/min 3500 r/min 3500 r/min 3500 r/min 3500 r/min 3500 r/min
Backlash (High Precision, Arcses) ≤20 ≤20 ≤10 ≤10 ≤10 ≤10
Transmission Error (High Precision, Arcses) ≤60 ≤60 ≤30 ≤30 ≤30 ≤30
Design Life (High Precision) 12000 hour 12000 hour 15000 hour 15000 hour 15000 hour 15000 hour
Weight (Standard) 2.10 kg 2.10 kg 2.10 kg 2.10 kg 2.10 kg 2.10 kg
