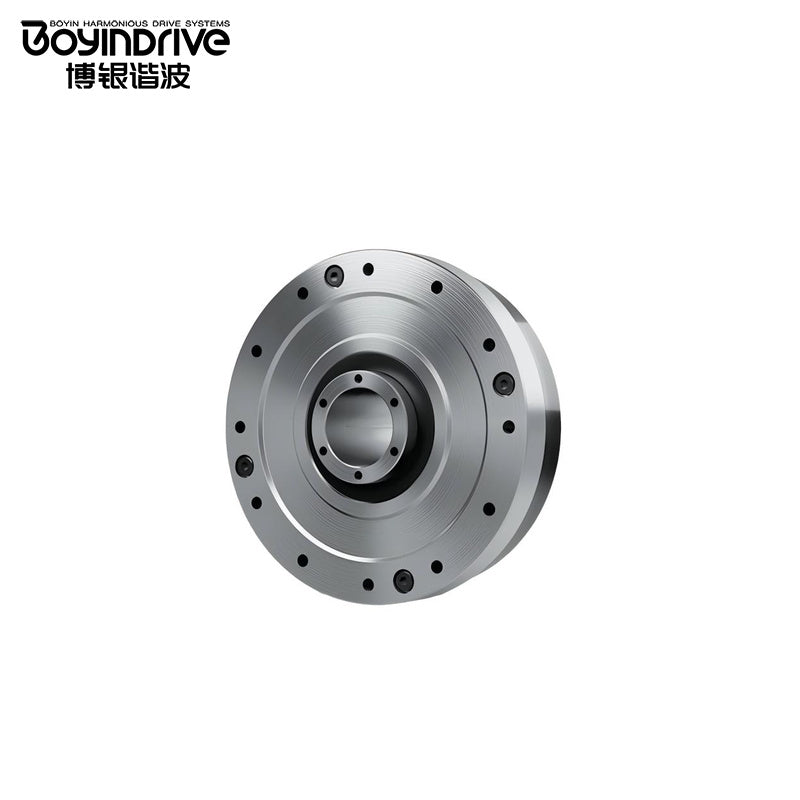

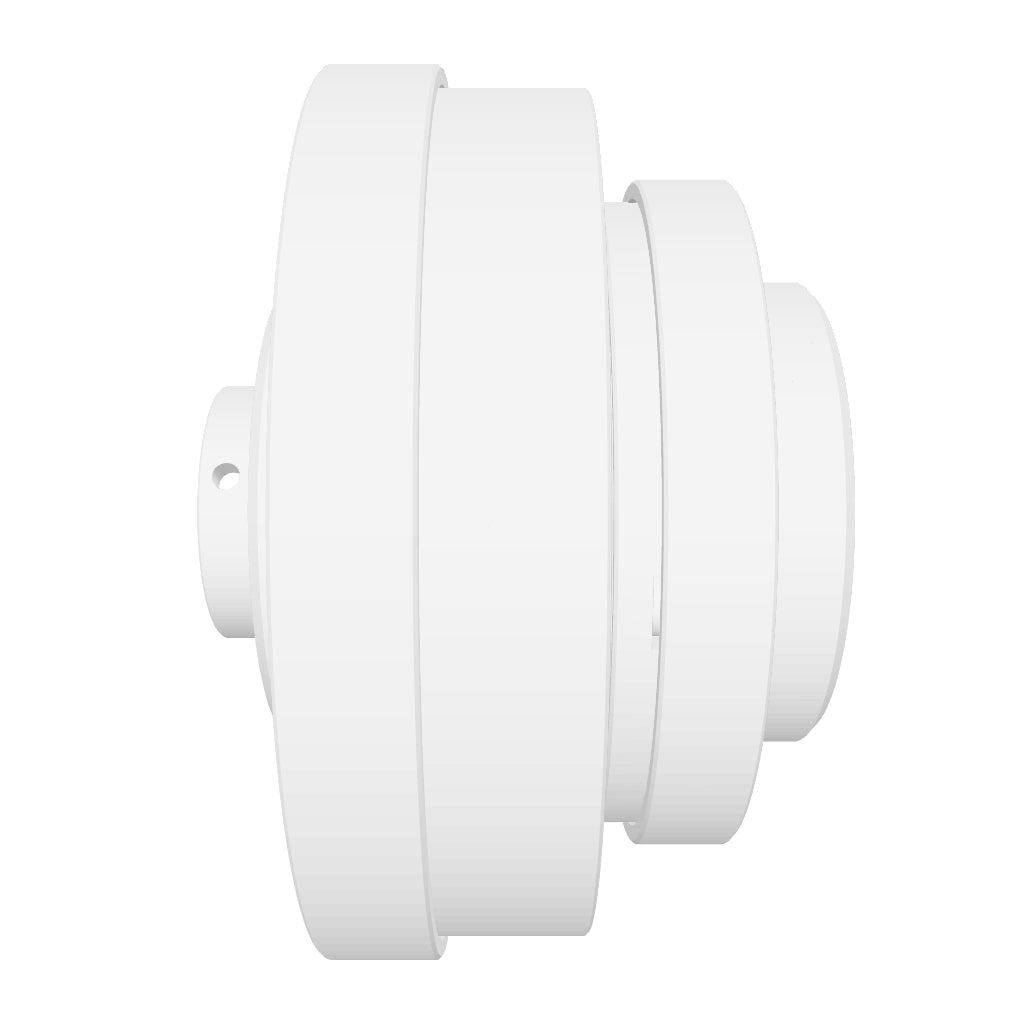

Boyin Drive YHS-17-III Reducer
Regular price
$305.00
Unit price
Boyin Drive YHS-17-III Reducer - YHS-17-XXX-C-III / 30 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Boyin Drive YHS-17-III Reducer
Regular price
$305.00
Unit price
Boyin Drive YHS-17-III Reducer - YHS-17-XXX-C-III / 30 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value | Value | Value | Value | Value |
|---|---|---|---|---|---|
| Reduction Ratio | 30 | 50 | 80 | 100 | 120 |
| Rated Torque (at 2000 r/min) | 8.7 Nm | 15.6 Nm | 21.5 Nm | 23.0 Nm | 23.0 Nm |
| Max. Torque at Start/Stop | 15.0 Nm | 33.0 Nm | 42.0 Nm | 52.0 Nm | 52.0 Nm |
| Max. Average Load Torque | 11.5 Nm | 25.0 Nm | 27.0 Nm | 37.0 Nm | 37.0 Nm |
| Max. Instantaneous Torque | 29.0 Nm | 69.0 Nm | 84.0 Nm | 106.0 Nm | 84.0 Nm |
| Max. Input Speed | 7000 r/min | 7000 r/min | 7000 r/min | 7000 r/min | 7000 r/min |
| Average Input Speed | 3500 r/min | 3500 r/min | 3500 r/min | 3500 r/min | 3500 r/min |
| Backlash (Arcses) | ≤20 | ≤20 | ≤10 | ≤10 | ≤10 |
| Transmission Error (Arcses) | ≤60 | ≤60 | ≤30 | ≤30 | ≤30 |
| Design Life | 12000 hour | 12000 hour | 15000 hour | 15000 hour | 15000 hour |
| Weight (Standard) | 1.00 kg | 1.00 kg | 1.00 kg | 1.00 kg | 1.00 kg |
