Boyin Drive | SKU:

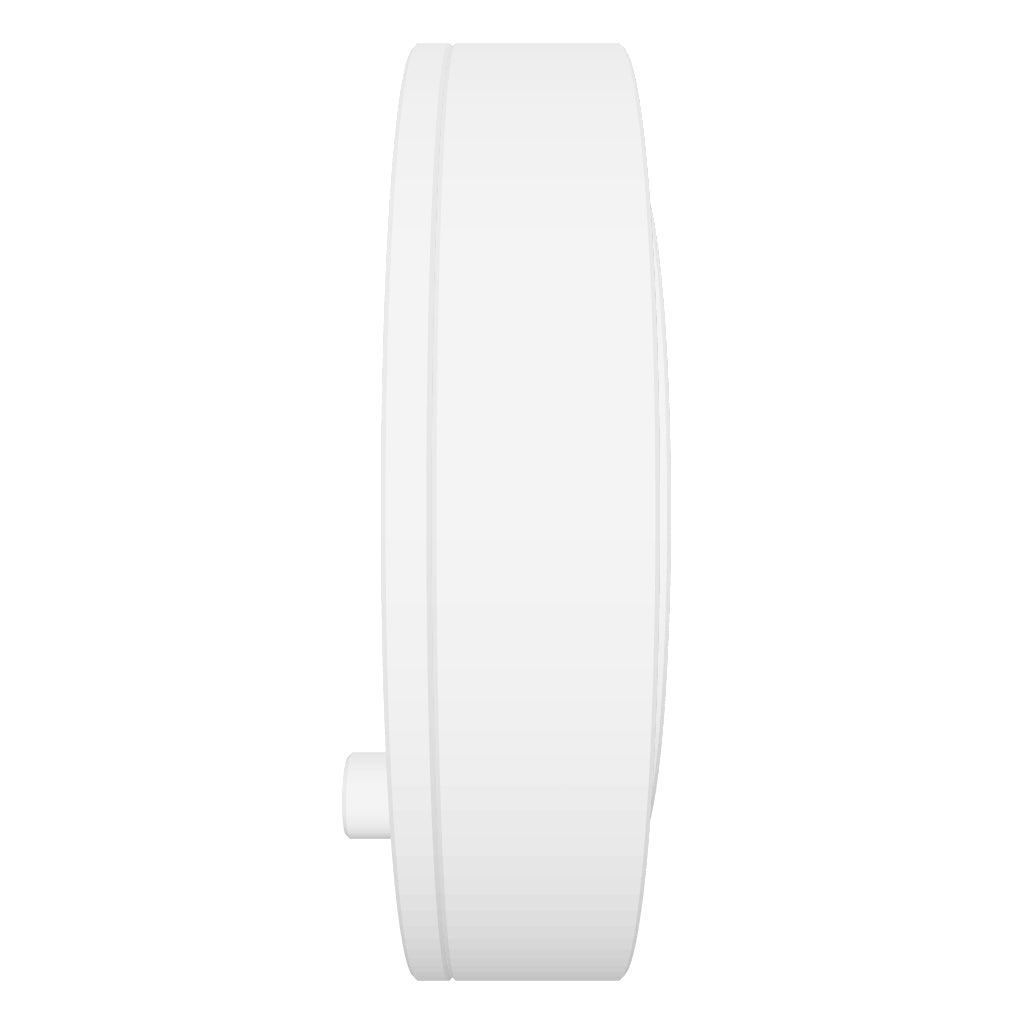

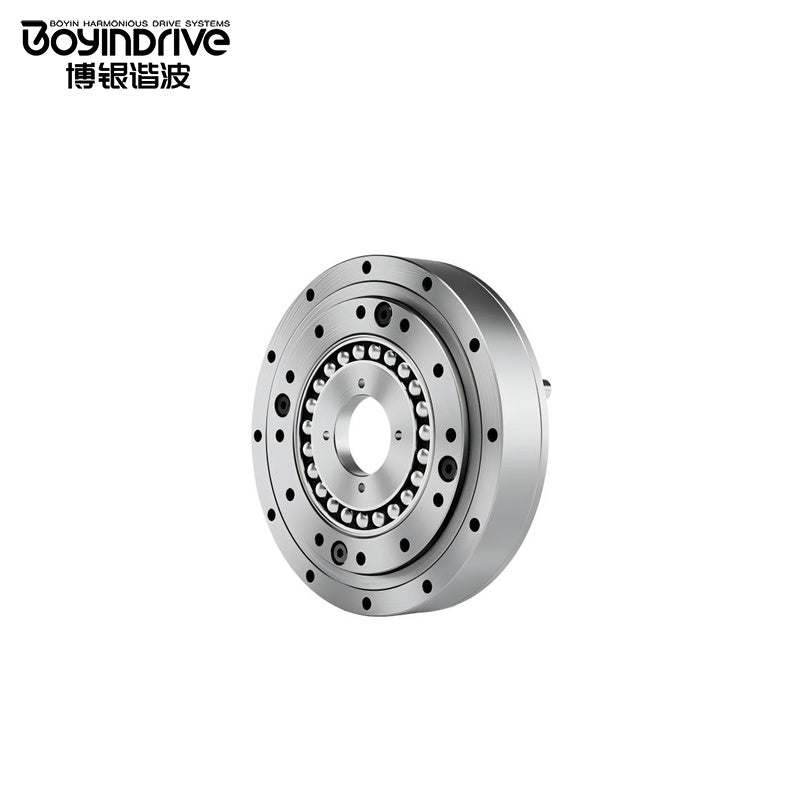

Boyin Drive YHD-17-I Reducer
Regular price
$235.00
Unit price
Boyin Drive YHD-17-I Reducer - YHD-17-XXX-C-I / 50 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Boyin Drive YHD-17-I Reducer
Regular price
$235.00
Unit price
Boyin Drive YHD-17-I Reducer - YHD-17-XXX-C-I / 50 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value | Value | Value | Value |
|---|---|---|---|---|
| Reduction Ratio | 50 | 80 | 100 | 120 |
| Rated Torque (at 2000 r/min) | 10.5 Nm | 12.0 Nm | 15.0 Nm | 15.0 Nm |
| Max. Torque at Start/Stop | 22.0 Nm | 28.0 Nm | 35.0 Nm | 38.0 Nm |
| Max. Average Load Torque | 17.0 Nm | 20.0 Nm | 25.0 Nm | 25.0 Nm |
| Max. Instantaneous Torque | 46.0 Nm | 55.0 Nm | 68.0 Nm | 68.0 Nm |
| Max. Input Speed | 7000 r/min | 7000 r/min | 7000 r/min | 7000 r/min |
| Average Input Speed (allowable) | 3500 r/min | 3500 r/min | 3500 r/min | 3500 r/min |
| Backlash (Arcses) | ≤20 | ≤20 | ≤20 | ≤20 |
| Transmission Error (Arcses) | ≤60 | ≤60 | ≤60 | ≤60 |
| Design Life | 10000 hour | 10000 hour | 10000 hour | 10000 hour |
| Weight | 0.43 kg | 0.43 kg | 0.43 kg | 0.43 kg |
