Boyin Drive | SKU:

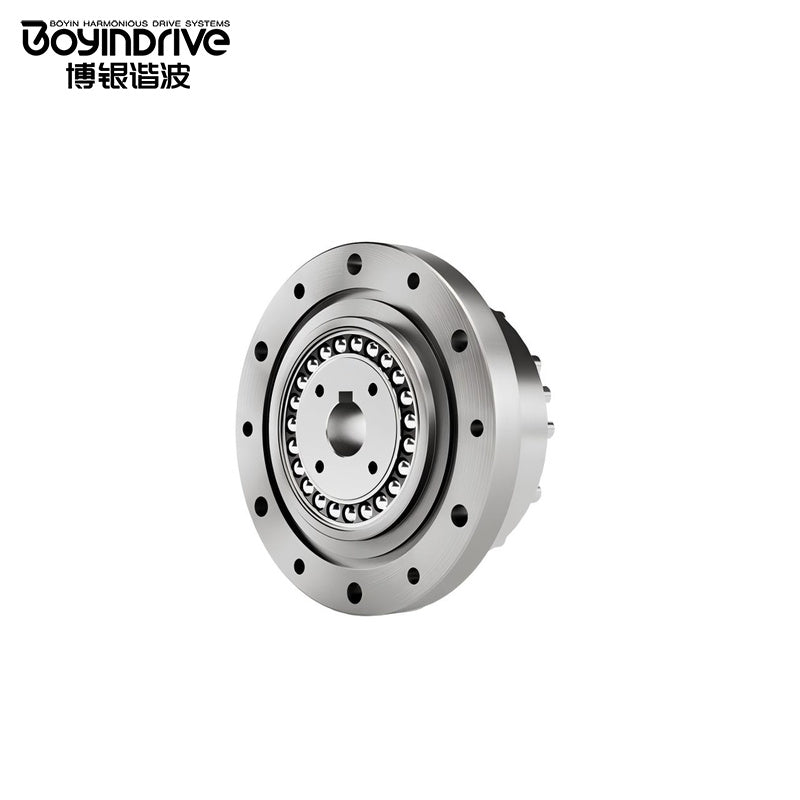

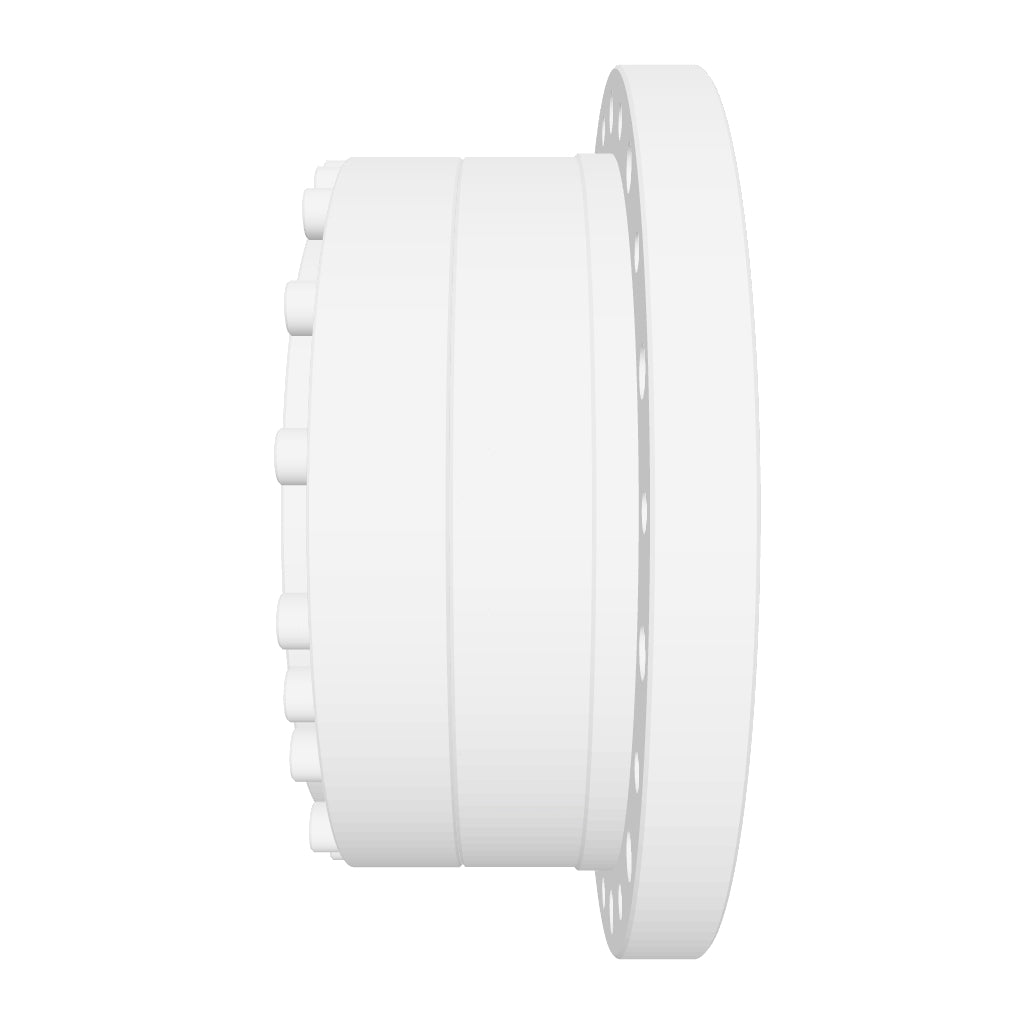

Boyin Drive YCS-32-I Reducer
Regular price
$355.00
Unit price
Boyin Drive YCS-32-I Reducer - YCS-32-XXX-C-I / 50 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Boyin Drive YCS-32-I Reducer
Regular price
$355.00
Unit price
Boyin Drive YCS-32-I Reducer - YCS-32-XXX-C-I / 50 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value | Value | Value | Value | Value |
|---|---|---|---|---|---|
| Reduction Ratio | 50 | 80 | 100 | 120 | 160 |
| Rated Torque (at 2000 r/min) | 74.0 Nm | 116.0 Nm | 134.0 Nm | 134.0 Nm | 134.0 Nm |
| Max. Torque at Start/Stop | 212.0 Nm | 298.0 Nm | 328.0 Nm | 348.0 Nm | 364.0 Nm |
| Max. Average Load Torque | 106.0 Nm | 164.0 Nm | 212.0 Nm | 212.0 Nm | 212.0 Nm |
| Max. Instantaneous Torque | 374.0 Nm | 560.0 Nm | 635.0 Nm | 672.0 Nm | 672.0 Nm |
| Max. Input Speed | 4500 r/min | 4500 r/min | 4500 r/min | 4500 r/min | 4500 r/min |
| Average Input Speed (allowable) | 3500 r/min | 3500 r/min | 3500 r/min | 3500 r/min | 3500 r/min |
| Backlash (High Precision, Arcses) | ≤20 | ≤10 | ≤10 | ≤10 | ≤10 |
| Transmission Error (High Precision, Arcses) | ≤60 | ≤30 | ≤30 | ≤30 | ≤30 |
| Design Life (High Precision) | 12000 hour | 15000 hour | 15000 hour | 15000 hour | 15000 hour |
| Weight (Standard) | 3.1 kg | 3.1 kg | 3.1 kg | 3.1 kg | 3.1 kg |
