Boyin Drive | SKU:

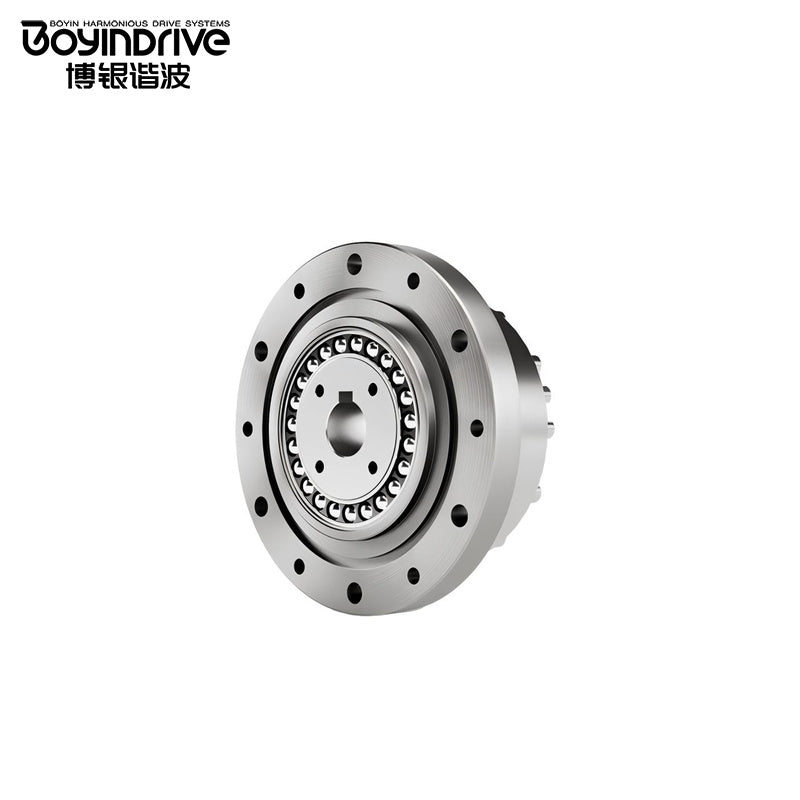

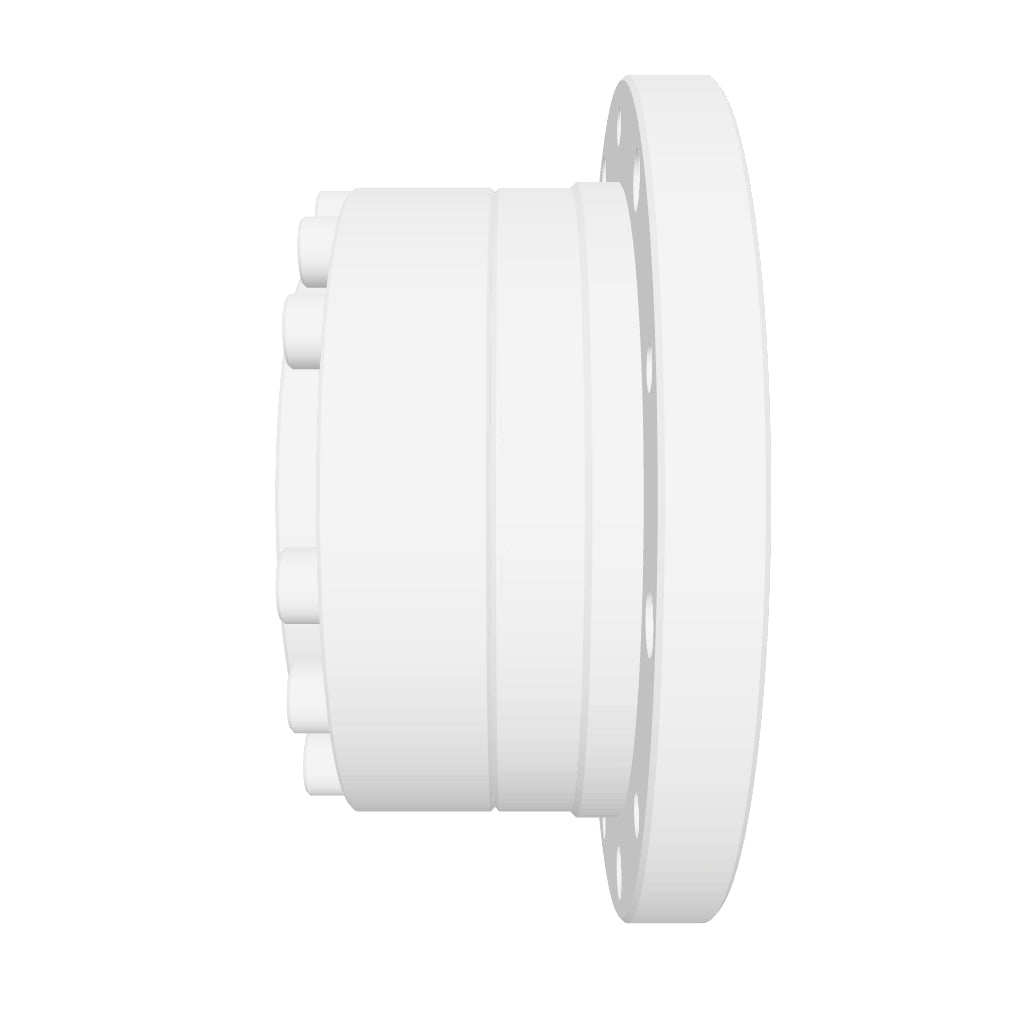

Boyin Drive YCS-14-I Reducer
Regular price
$235.00
Unit price
Boyin Drive YCS-14-I Reducer - YCS-14-XXX-C-I / 30 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Boyin Drive YCS-14-I Reducer
Regular price
$235.00
Unit price
Boyin Drive YCS-14-I Reducer - YCS-14-XXX-C-I / 30 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value | Value | Value | Value |
|---|---|---|---|---|
| Reduction Ratio | 30 | 50 | 80 | 100 |
| Rated Torque (at 2000 r/min) | 3.9 Nm | 5.2 Nm | 7.6 Nm | 7.6 Nm |
| Max. Torque at Start/Stop | 8.8 Nm | 17.0 Nm | 22.0 Nm | 27.0 Nm |
| Max. Average Load Torque | 6.7 Nm | 6.8 Nm | 10.8 Nm | 10.8 Nm |
| Max. Instantaneous Torque | 16.8 Nm | 34.0 Nm | 46.0 Nm | 53.0 Nm |
| Max. Input Speed | 8000 r/min | 8000 r/min | 8000 r/min | 8000 r/min |
| Average Input Speed (allowable) | 3500 r/min | 3500 r/min | 3500 r/min | 3500 r/min |
| Backlash (Arcses) | ≤20 | ≤20 | ≤10 | ≤10 |
| Transmission Error (Arcses) | ≤60 | ≤60 | ≤30 | ≤30 |
| Design Life | 12000 hour | 12000 hour | 15000 hour | 15000 hour |
| Weight (Standard) | 0.55 kg | 0.55 kg | 0.55 kg | 0.55 kg |
