AgileX PiPER Robotic Arm
Regular price
$1,999.00
Unit price
AgileX PiPER Robotic Arm - PiPER / ONLY Arm is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
AgileX PiPER Robotic Arm
Regular priceFrom
$25.00
Unit price
AgileX PiPER Robotic Arm - PiPER / ONLY Arm is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value | Value |
|---|---|---|
| Model | PiPER X | PiPER |
| DOF | 6 | 6 |
| Payload | 1.5 kg | 1.5 kg |
| Weight | 4.5 kg | 4.2 kg |
| Repeatability | ±0.1 mm | ±0.1 mm |
| Reach | 669.59 mm | 626 mm |
| Input voltage | DC 24 V | DC 24 V |
| Material | Aluminum & Plastic housing | Aluminum alloy boby, polymer shell |
| Controller | Integrated | Integrated |
| Communication | CAN | CAN |
| Programming | Drag teaching / offline trajectory / API / PC | Drag teaching / offline trajectory / API / PC |
| External Interface | Power ×1, CAN ×1 | Power ×1, CAN ×1 |
| Base installation dimensions | 70 mm × 70 mm × M5 × 4 | 70 mm × 70 mm × M5 × 4 |

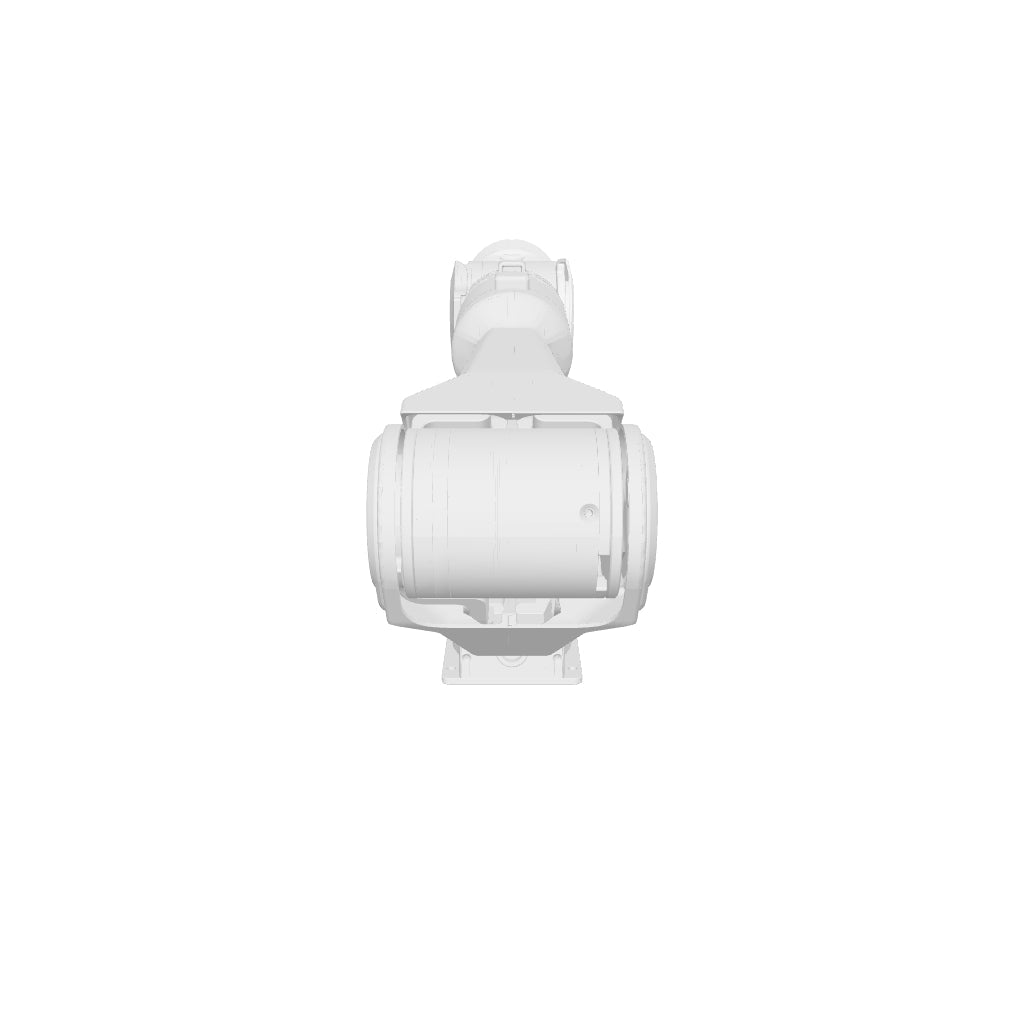

AgileX_PiPER_Robotic_Arm_STP.zip

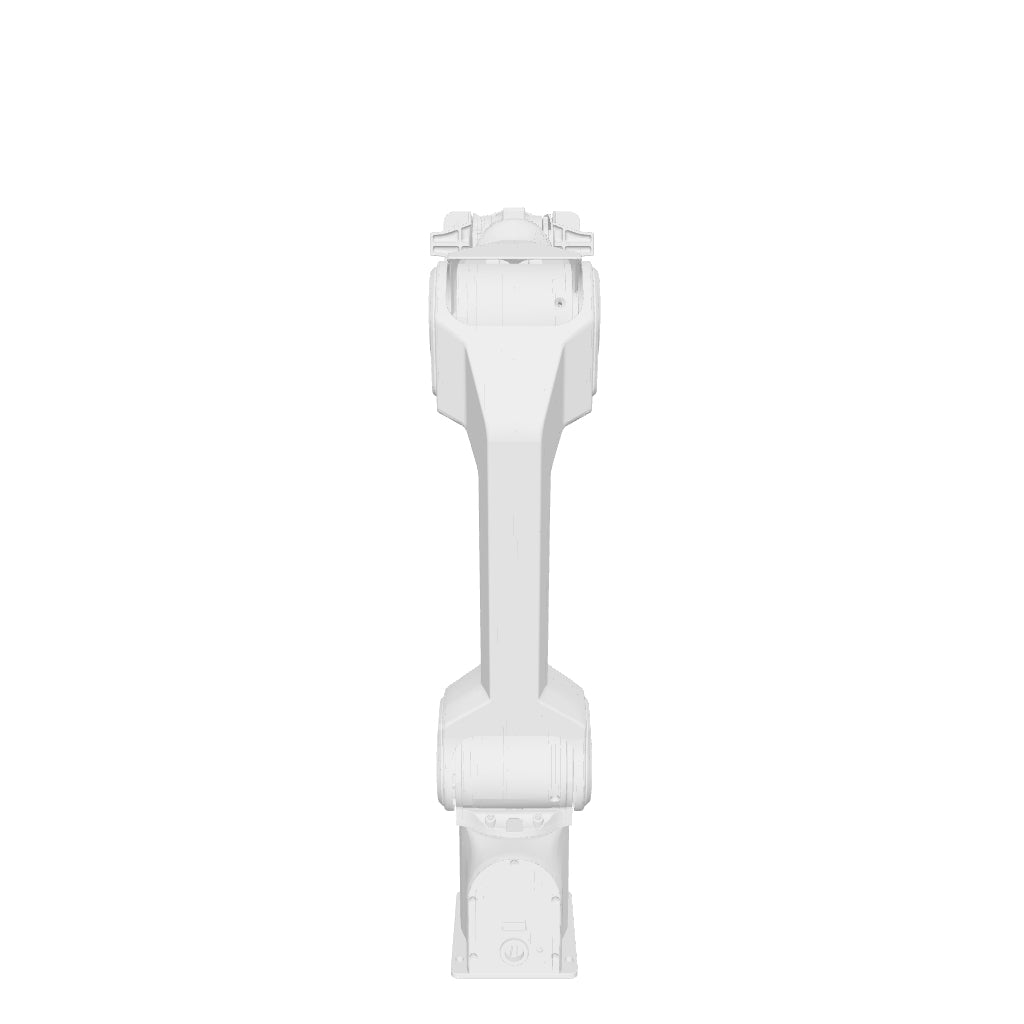

AgileX_PiPER_with_Gripper_STP.zip

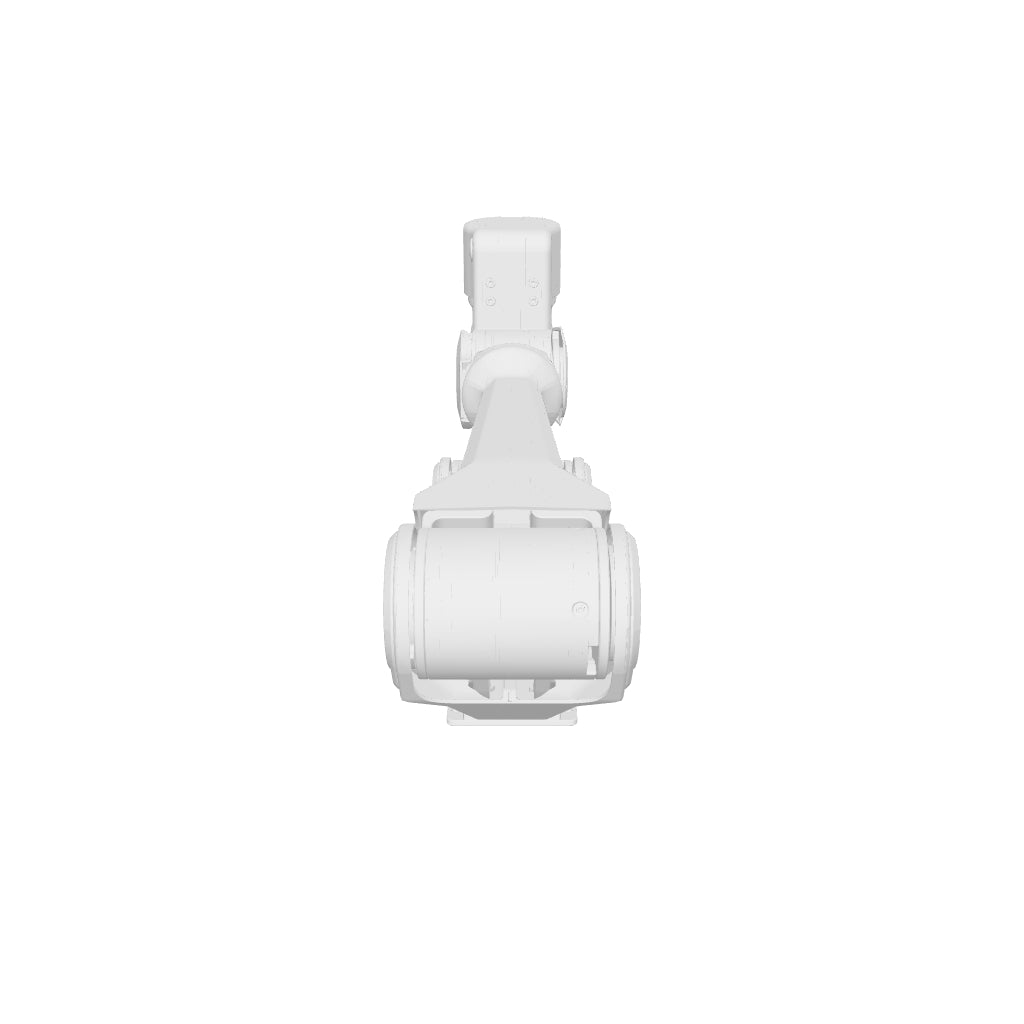

AgileX_PiPERX_Robotic_Arm_STP.zip

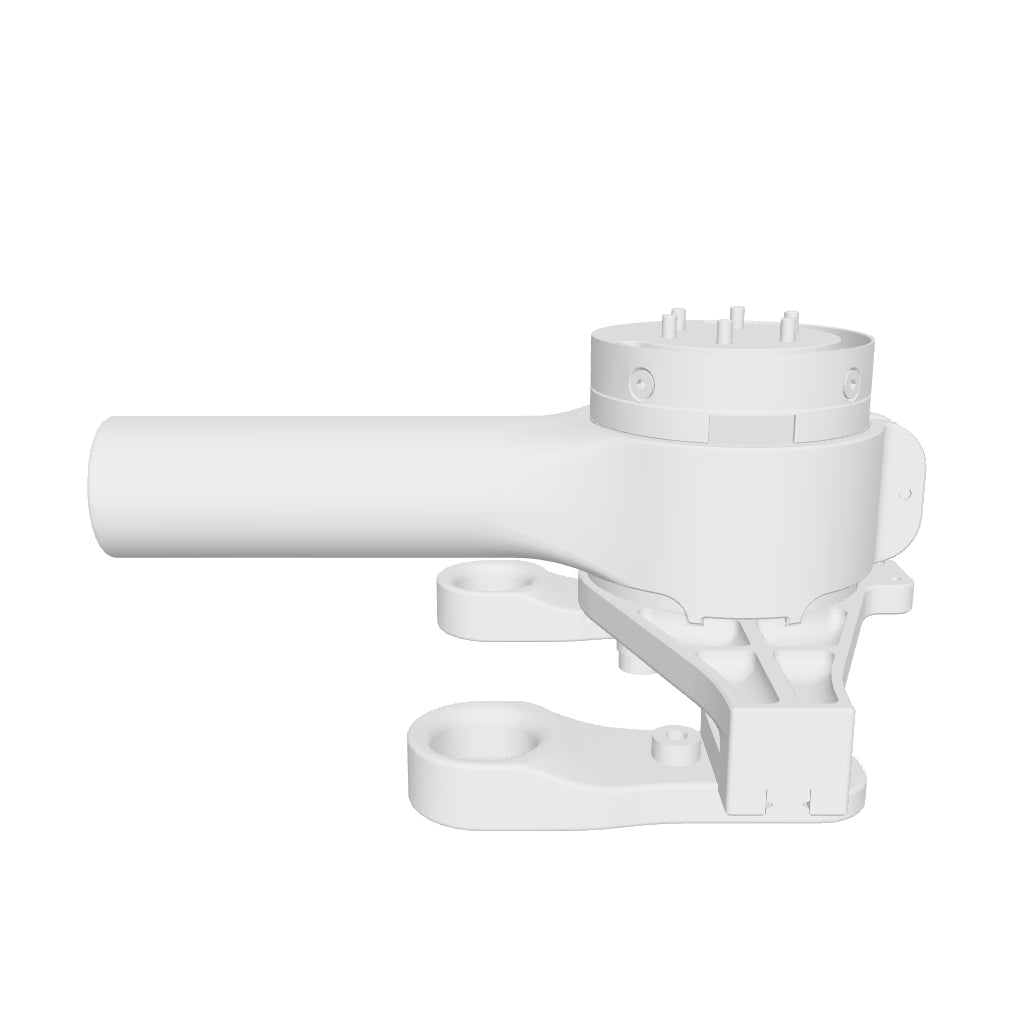

AgileX_Teach_pendant.STEP

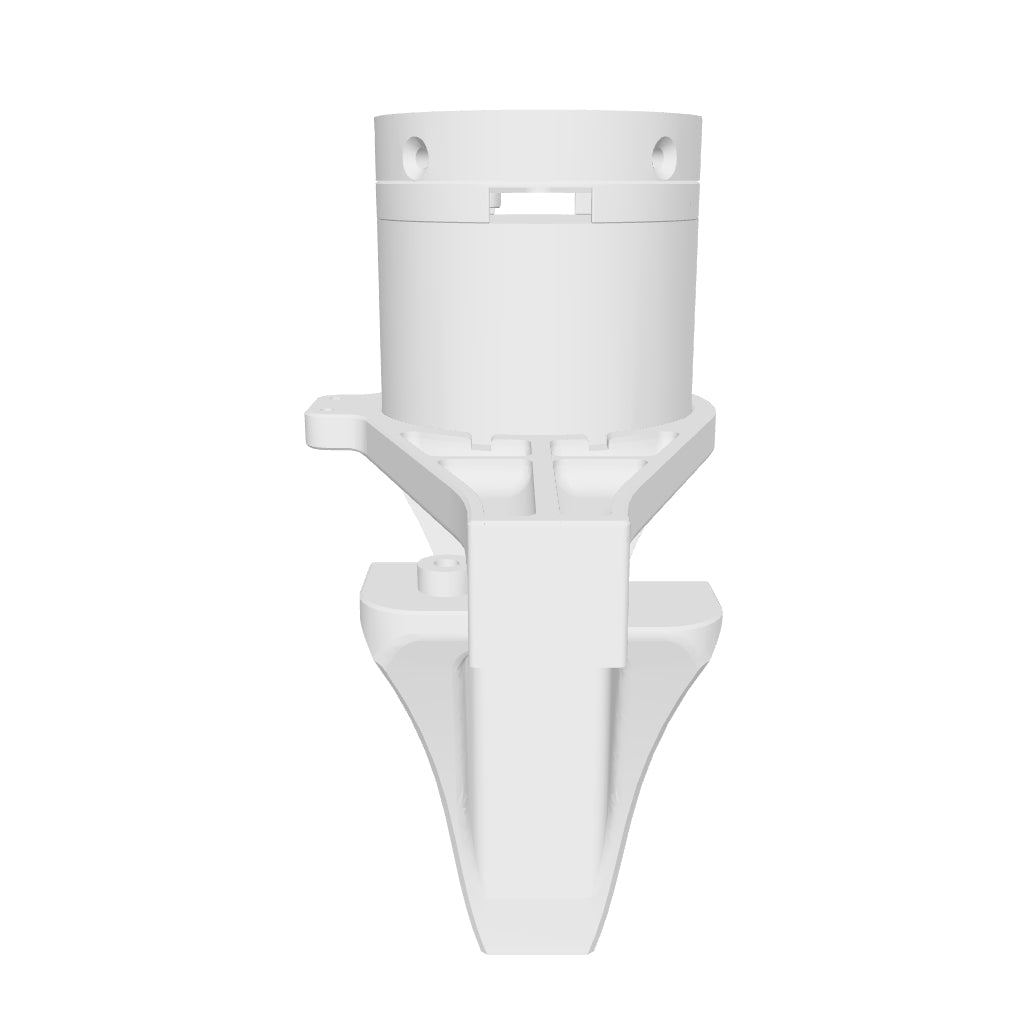

AgileX_Gripper.STEP

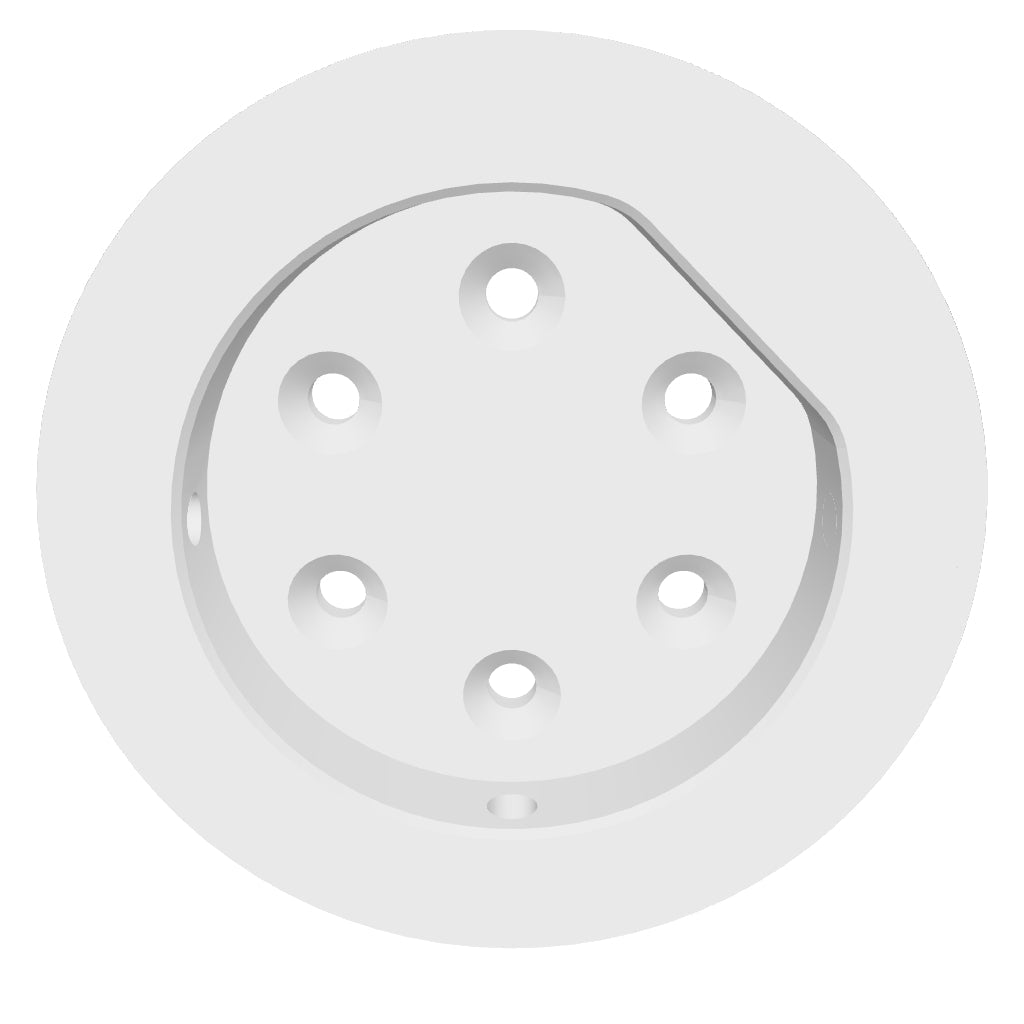

AgileX_Flange.STP
AgileX_PIPER_Product_User_Manual.pdf
AgileX_PIPERX_User_Manual.pdf
