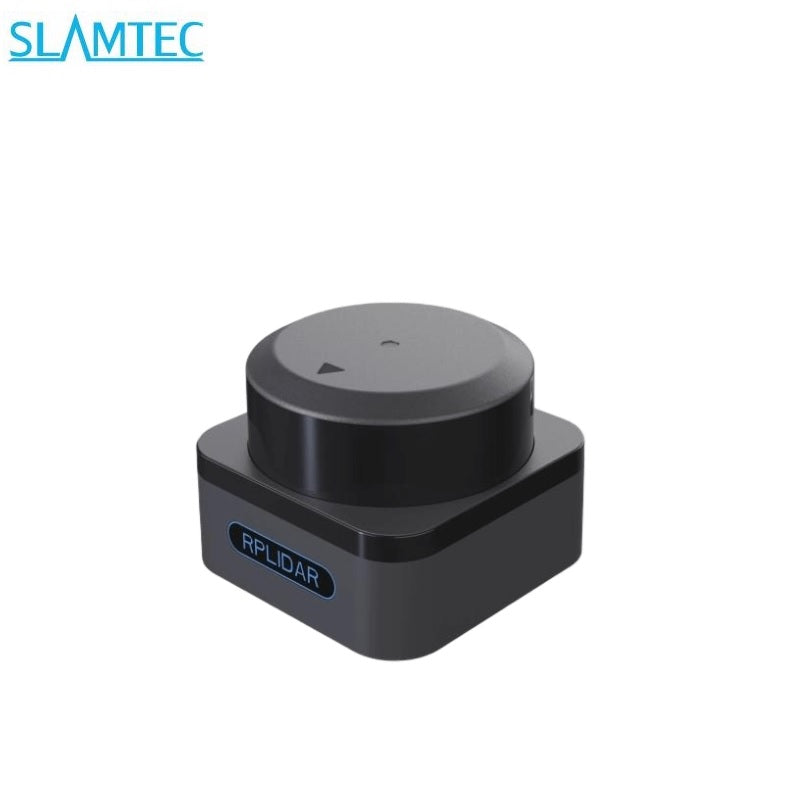

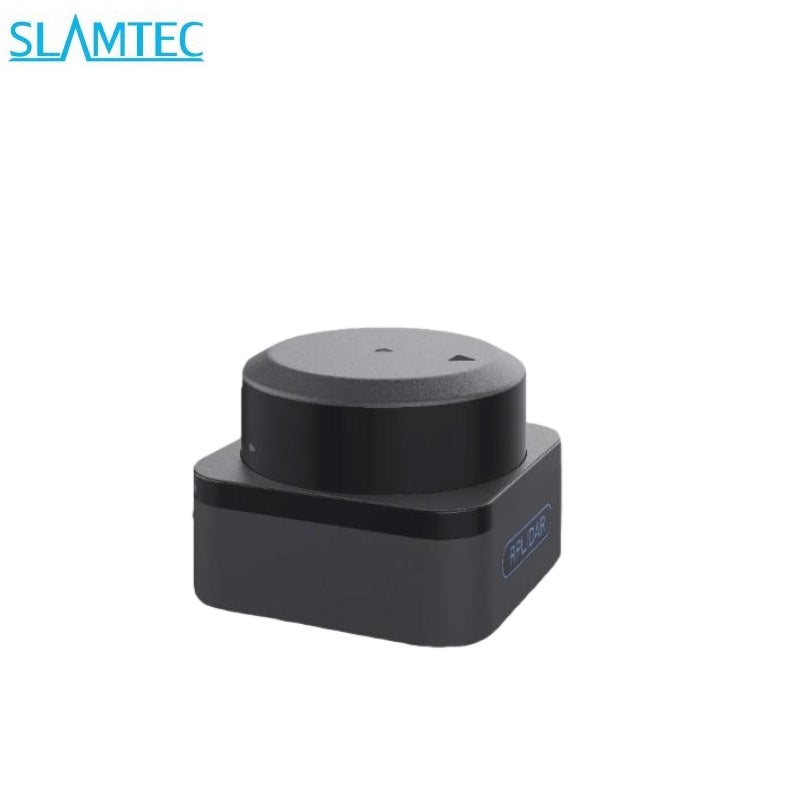

SLAMTEC RPLIDAR S3 LiDAR
SLAMTEC RPLIDAR S3 LiDAR

SLAMTEC RPLIDAR S3 LiDAR

$620.00
$620.00
Version: RPLIDAR S3 (Serial Port)
Subtotal: $620.00
SLAMTEC RPLIDAR S3 LiDAR

SLAMTEC RPLIDAR S3 LiDAR

$620.00
SLAMTEC RPLIDAR S3 LiDAR
SLAMTEC RPLIDAR S3 LiDAR

SLAMTEC RPLIDAR S3 LiDAR

$620.00
Version: RPLIDAR S3 (Serial Port)
Description
Description
x




Technical Specifications

Parameter Value
Model

SLAMTEC RPLIDAR S3
Application Scenarios

Ideal for both outdoor and indoor environments with reliable resistance to daylight（≥80Klux）
Distance Range White object: 0.05-40 meters (under 70% reflection)
Distance Range

Black object: 0.05-15 meters (under 10% reflection)

0.05 - 5 meters (under 2% reflection)
Scan Field Flatness 0°-1.5° (other angle requirements can be customized)
Sample Rate

32kHz
Scanning Frequency
Typ. 10Hz, 10~20Hz
Angular Resolution Typ.  0.1125°, 0.1125°~0.225°
Communication Interface TTL UART
Communication Speed 1M
Accuracy ±30mm
Resolution 10mm
Working Wavelength

895-915nm
Laser Power

25W
Pulse Length

5ns
Laser Safety Class

IEC-60825 Class 1
Power Voltage

4.9—5.2V
Power Voltage Ripple

150mV(Max)
System Start Current

1200mA
Power Current 450mA
Weight
115g
Working Temperature Range
-10—50ºC
Storage Temperature Range
-20—60ºC
