SLAMTEC | SKU:

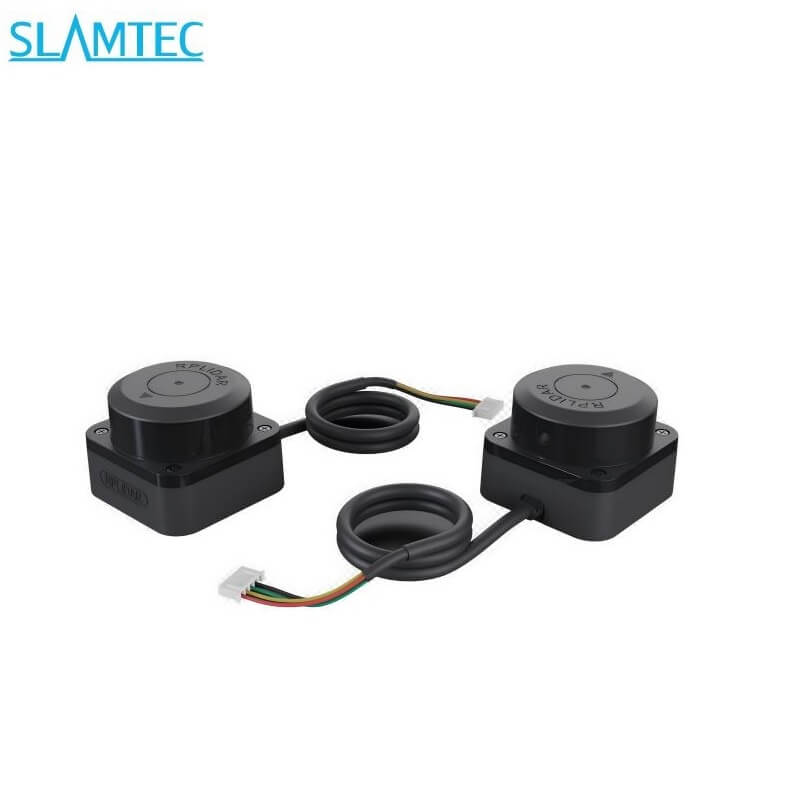

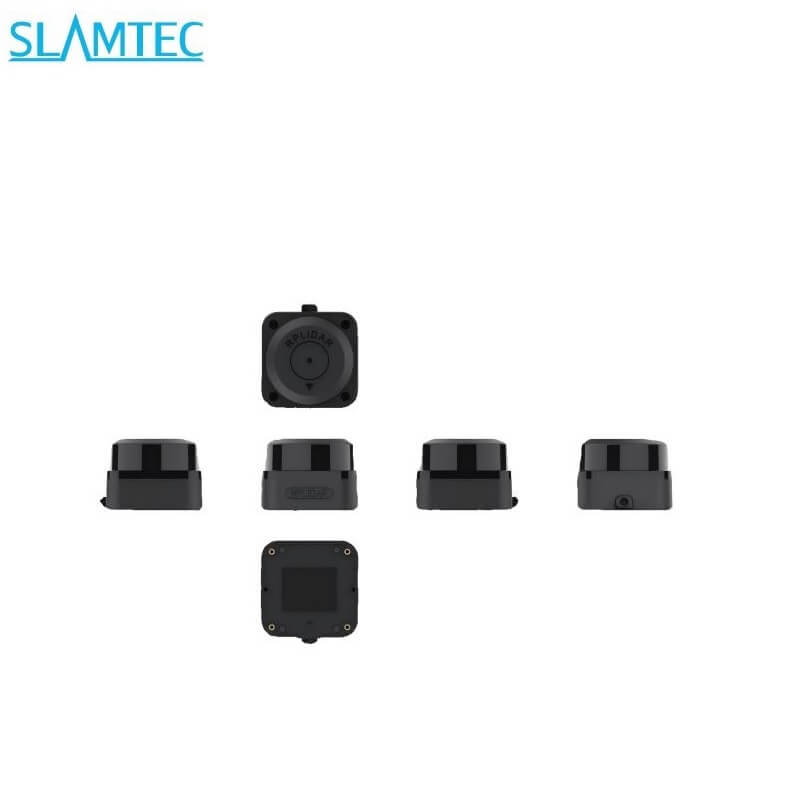

SLAMTEC RPLIDAR C1 LiDAR
Regular price
$90.00
Unit price
SLAMTEC RPLIDAR C1 LiDAR - RPLIDAR C1 LiDAR is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
SLAMTEC RPLIDAR C1 LiDAR
Regular price
$90.00
Unit price
SLAMTEC RPLIDAR C1 LiDAR - RPLIDAR C1 LiDAR is backordered and will ship as soon as it is back in stock.
Product Information
Technical Specifications
| Parameter | Value |
|---|---|
| Model |
SLAMTEC RPLIDAR C1 |
| Distance Range | White object: 0.05-12 meters (under 70% reflection) |
| Distance Range |
Black object: 0.05-6 meters (under 10% reflection)
|
| Scan Field Flatness | 0°~1.5° (can be customized) |
| Sample Rate |
5KHz |
| Scanning Frequency | 8~12Hz, 10Hz@typical |
| Angular Resolution | 0.72°@typical |
| Communication Interface | TTL UART |
| Communication Speed | 460800 |
| Accuracy |
±30mm*
|
| Resolution | 15mm* |
| Degree of Protection | IP54 |
| Ambient Light Limit | 40,000lux |
| Working Wavelength |
895-915nm |
| Laser Power |
20W |
| Pulse Length |
1.4ns |
| Laser Safety Class |
IEC-60825 Class 1 |
| Power Voltage |
4.8—5.2V |
| Power Voltage Ripple |
150mV(Max) |
| System Start Current |
800mA |
| Power Current |
230mA |
|
Weight
|
110g |
|
Working Temperature Range
|
-10—40ºC |
|
Storage Temperature Range
|
-20—60ºC |
