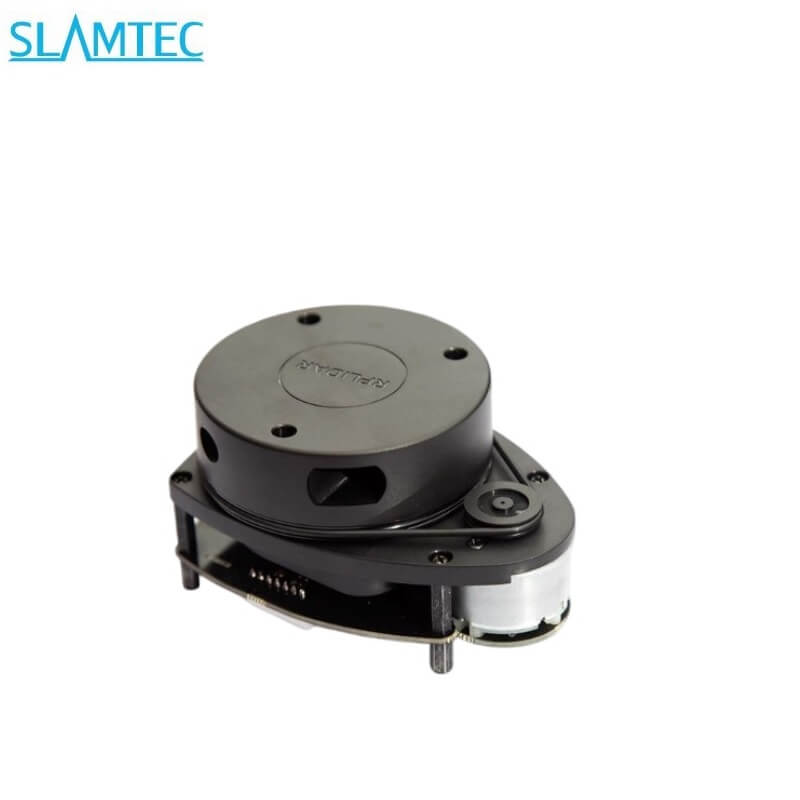

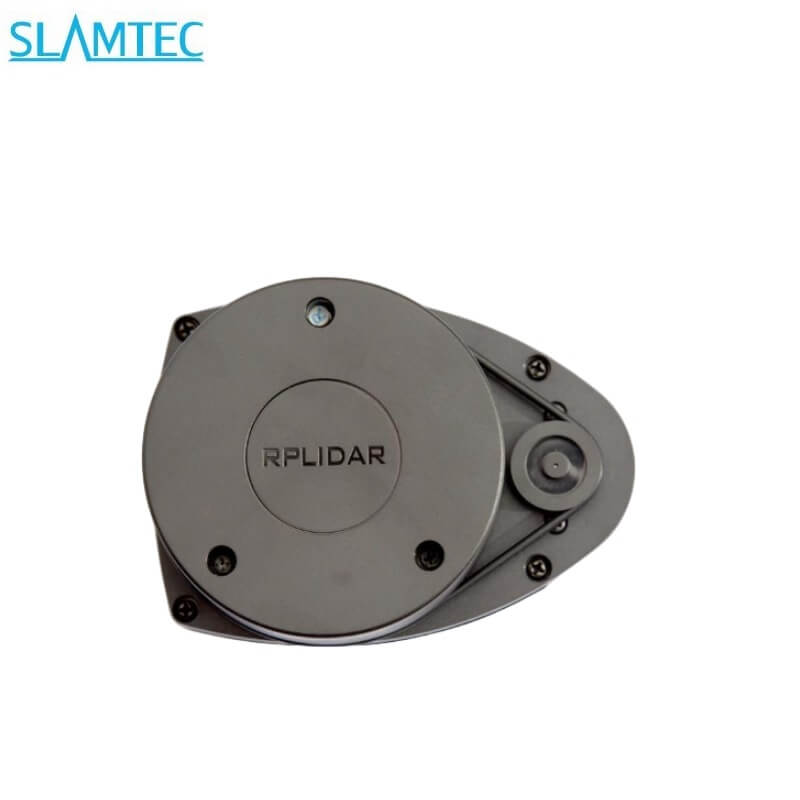

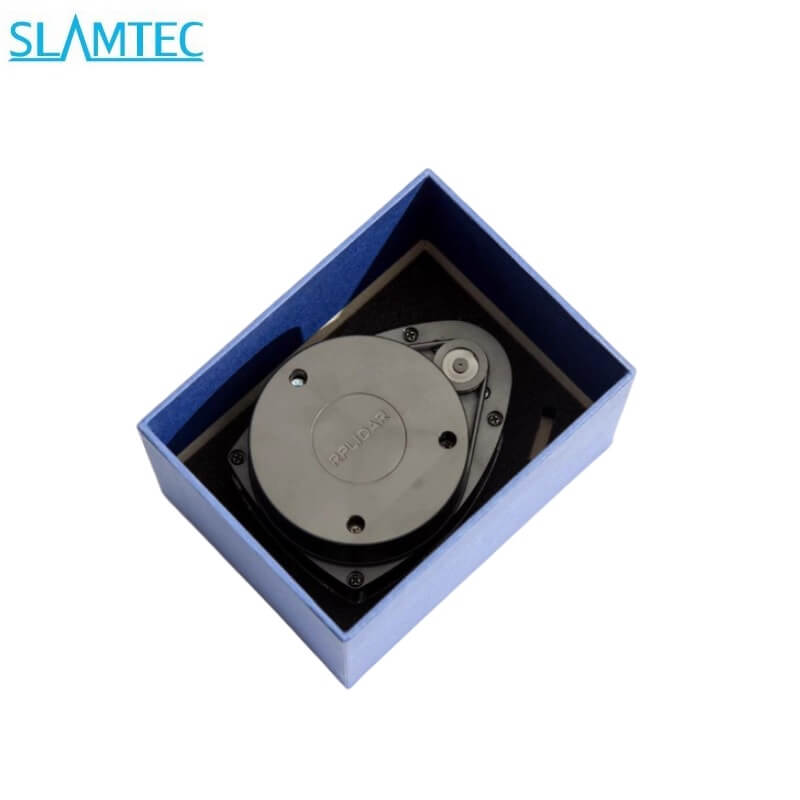

SLAMTEC RPLIDAR A1 LiDAR
SLAMTEC RPLIDAR A1 LiDAR
SLAMTEC RPLIDAR A1 LiDAR

SLAMTEC RPLIDAR A1 LiDAR

$100.00
$100.00
Version: RPLIDAR A1 LiDAR
Subtotal: $100.00
SLAMTEC RPLIDAR A1 LiDAR

SLAMTEC RPLIDAR A1 LiDAR

$100.00
SLAMTEC RPLIDAR A1 LiDAR
SLAMTEC RPLIDAR A1 LiDAR
SLAMTEC RPLIDAR A1 LiDAR

SLAMTEC RPLIDAR A1 LiDAR

$100.00
Version: RPLIDAR A1 LiDAR
Description
Description
x




Technical Specifications

Parameter Value
Model

SLAMTEC RPLIDAR A1
Distance Range 0.15-12m
Angular Range 0-360°
Scan Field Flatness -1.5-1.5°
Distance Resolution
<0.5mm (<1.5 meters)
<1% of the distance (All distance range)
Angular Resolution ≤1° (5.5Hz scan rate)
Sample Duration 0.125ms
Sample Frequency ≥8000HZ
Scan Rate 5.5HZ (Typical value is measured when RPLIDAR A1 takes 360 samples per scan)
Laser wavelength 785nm (Infrared Light Band)
Laser power 3mW
Pulse length

110us
Band rate

115200bps
Working mode

8N1
Scanner system voltage
5V


Scanner system voltage ripple

20mV
Scanner system start current

500mA
Scanner system current

80mA (Sleep mode, 5V inpu)

300mA (Work mode, 5V input)
Motor system voltage 5V
Motor system current
100mA (5V input)
Weight
170g
Temperature Range
0—40ºC

RPLIDAR_A1_Introduction_and_Datasheet.pdf
