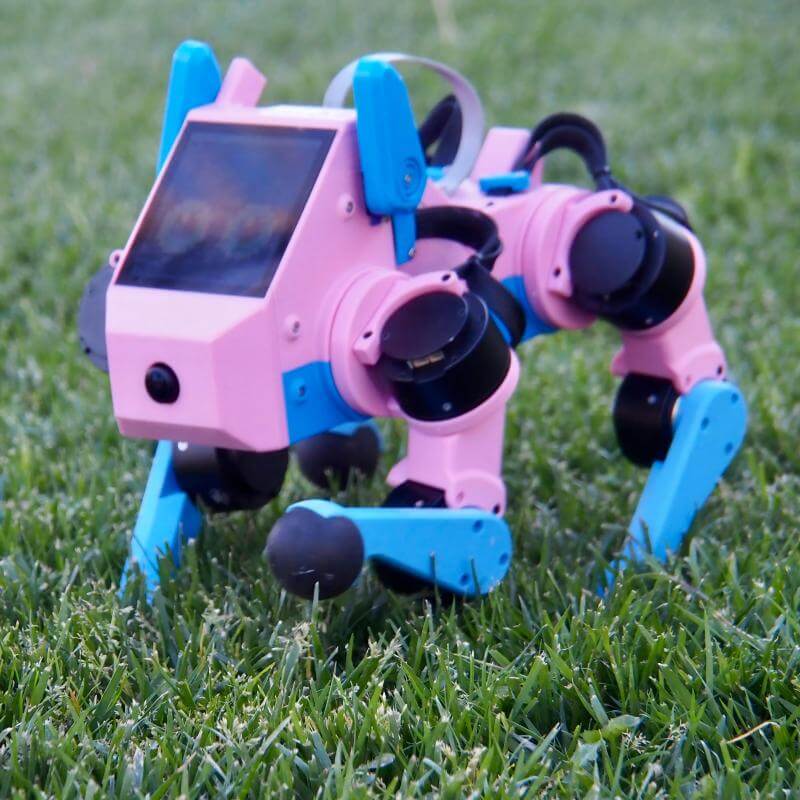

Pupper V3 (Stanford Open Source Robotics Dog)

$1,320.00
Actuation
Kit type

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information

Description
Information
Specifications

Pupper V3 Core Components Bundle

Buy Pupper V3 3D Printing Kit Pupper V3 with Motors

SteadyWin GIM4305-10 Planetary Reducer Servo Motor (12pcs)

  • ✓ Pre-installed Pupper V3 firmware
  • ✓ Default parameters pre-configured per BOM
  • ✓ CAN IDs pre-set (1x4, 2x4, 3x4 groups)

(Optional) Full Parts Kit

Pupper V3 Parts Animation

Full Parts Kit Includes:

Part Name Quantity Notes
Hardware
M2.5x25 socket head cap screw 10
M2.5x10 socket head cap screw 100
M2.5 heat-set tapered threaded insert 100
M3x8 cap head screw 50
Squash ball double yellow dot 4 Dunlop competition ball
Brain Electronics
4x4in Waveshare HDMI Raspberry Pi screen 1
Raspberry Pi 5 8 GB 1
Raspberry Pi AI kit 1 13TOPS. Kit includes 2x20 female header extension.

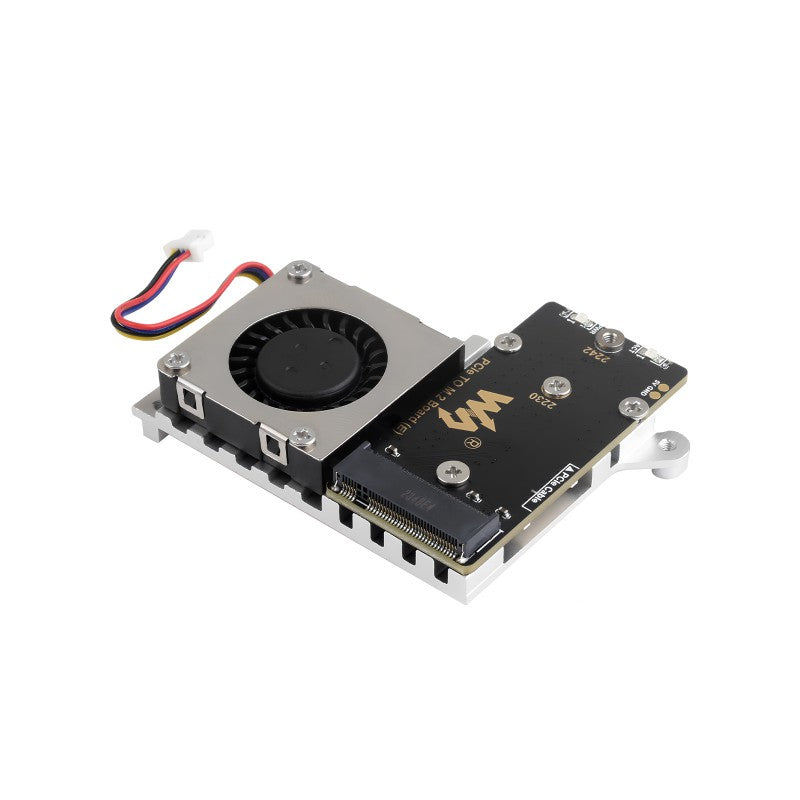

M.2 adapter board for AI kit 1
Pi hat control board 1 Custom Pupper V3 PCB
USB Flash drive 128 GB 1 Samsung drive (Must be formatted to FAT32 for RPi 5).
Arducam IMX296 1 1.58MP Color Global Shutter Camera Module
Fisheye lens 1 Arducam M12 Mount 0.76mm Focal Length Lens
Lens holder 1 Arducam 7mm Height M12x P0.5 Metal Lens Mount
Speaker 1 PH2.0 connector, 3W, 4Ohm
Other Electronics
Power distribution board 1 Custom Pupper V3 PCB
Ear servos (SG92R) 2 Use with adapter cables.
Actuation
Steadywin GIM4305 with SHS driver 12 Pre-flashed firmware, pre-set CAN ID & parameters.
Cables
12" (30cm) ZH1.5 6-pin cable 6 2 spares
8" (20cm) ZH1.5 6-pin cable 6 2 spares
6" (15cm) ZH1.5 6-pin cable 6 2 spares
6" (15cm) ZH1.5 10-pin cable 2 1 spare
10mm cable wrap braided sleeving 1 10 meters, black
8" (20cm) SH1.0 7-pin to Dupont cable 2 1 spare. For firmware flashing.
4" (10cm) PH2.0 3-pin to Dupont cable 4 2 spares. For ear servos.

Not Included (Purchase Separately):

Due to shipping restrictions, these are required but not included. Please refer to the BOM.

Part Name Quantity Notes
3D Printed Parts 1 set Print per BOM or buy at AIFITLAB.
DeWalt 20V Powerstack Battery 1.7Ah 1 Purchase per BOM.
PS5 Wireless Controller 1 Purchase per BOM.
Wireless Keyboard 1 Purchase per BOM.
Wireless Mouse 1 Highly recommended.
Raspberry Pi 27W USB-C Power Supply 1 Required for setup.
ST-LINK V2 (STM32 Debugger) 1 For flashing firmware. See docs.

(Optional) PCB Parts

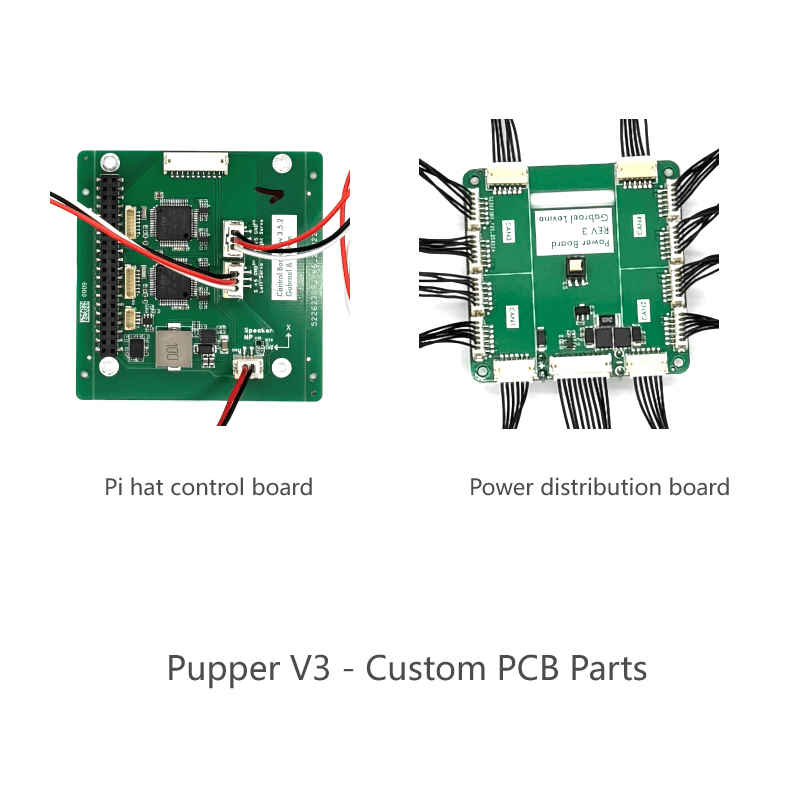

Pupper V3 PCB Boards
  • ✓ Includes Pi Hat + PDB boards
  • ✓ Assembled and verified by AIFITLAB
  • ✓ JLCPCB premium manufacturing

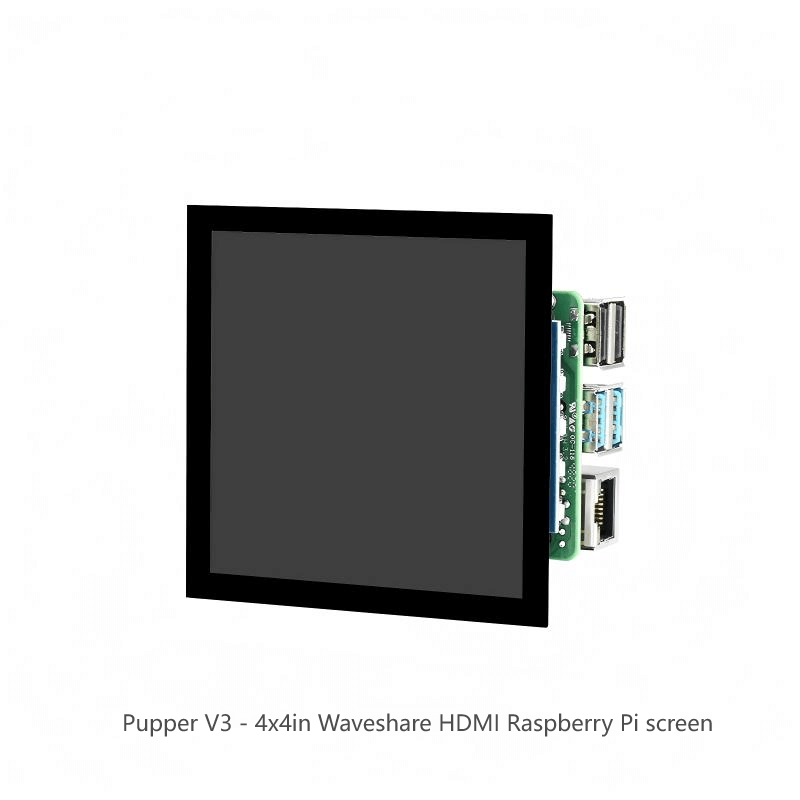

(Optional) 4" Waveshare HDMI Touchscreen

Waveshare HDMI Touchscreen

Display Features:

  • ▪ 720×720 Resolution
  • ▪ 170° Viewing Angle
  • ▪ Full-lamination Glass

Connectivity:

  • ▪ Dual Touch Interfaces
  • ▪ USB-C Power/Data
  • ▪ Multi-OS Support

(Optional) Camera Kit

Arducam Camera Module Arducam Fisheye Lens Arducam 7mm Lens Holder

Includes:

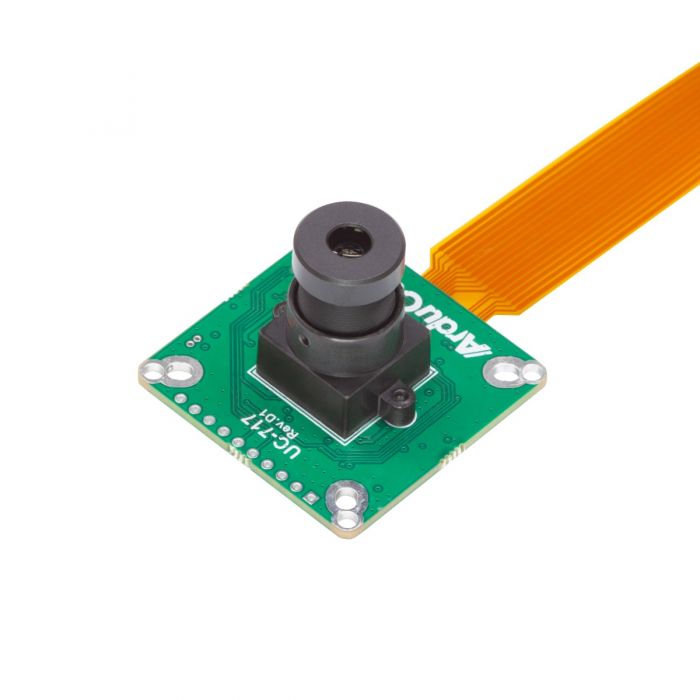

  • Arducam 1.58MP IMX296 Color Global Shutter Camera Module
  • Arducam M12 Mount 0.76mm Focal Length Camera Lens
  • Arducam 7mm Height M12x P0.5 Metal Lens Mount
