HAITAI | SKU:

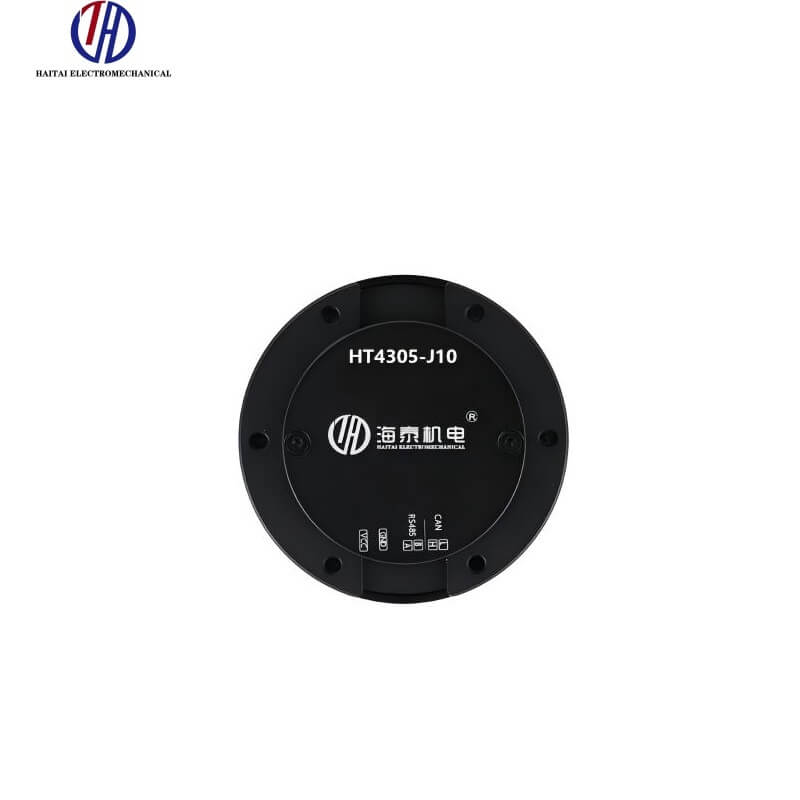

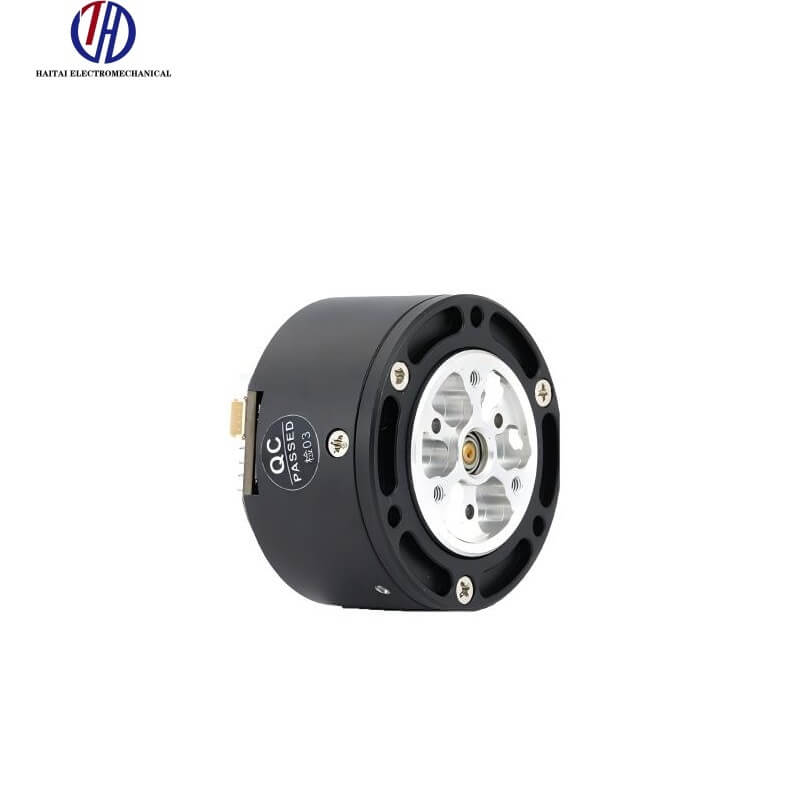

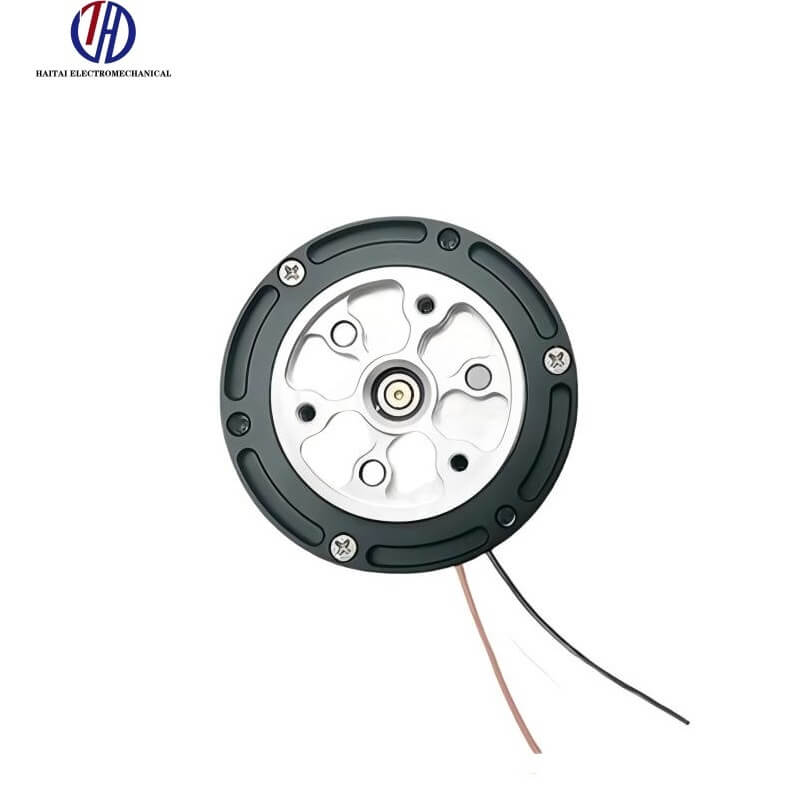

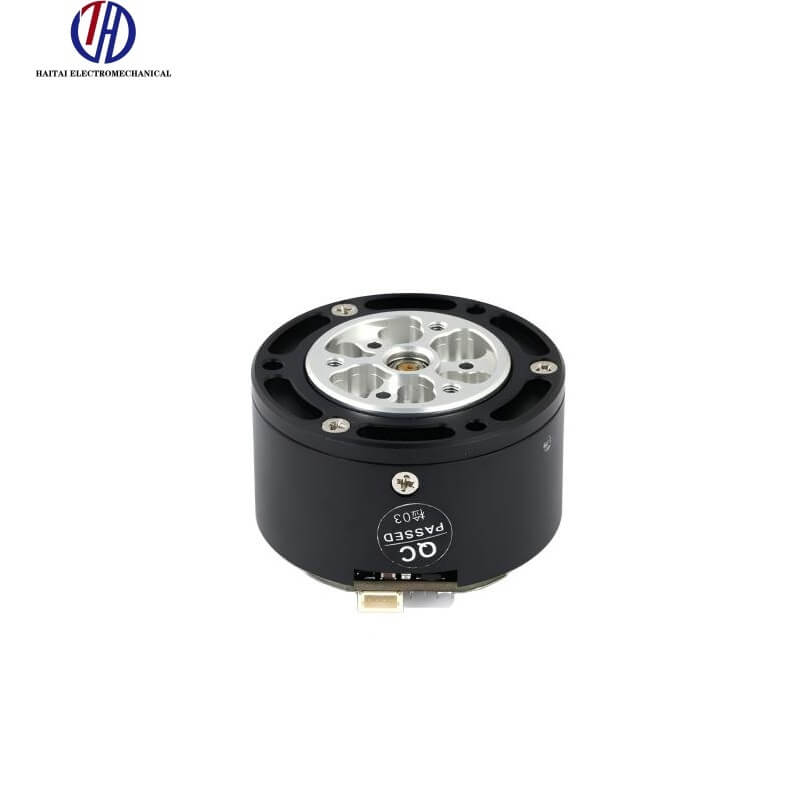

HAITAI HT4305-J10 Motor
Regular price
$110.00
Unit price
/
Unavailable
HAITAI HT4305-J10 Motor - HT4305-J10 Motor is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
HAITAI HT4305-J10 Motor
Regular price
$110.00
Unit price
/
Unavailable
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Nominal Voltage | 24V |
| Voltage Range | 12-24V |
| Power | 30W |
| Nominal Torque | 1N·m |
| Stall Torque | 3N·m |
| Nominal Speed after Reduction | 300RPM |
| Max Speed after Reduction | 400RPM |
| Nominal Current | 2A |
| Stall Current | 5A |
| Phase to Phase Resistance | 1.26Ω |
| Phase to Phase Inductance | 0.51mH |
| Speed Constant | 165rpm/V |
| Torque Constant | 0.05N·m/A |
| Rotor Inertia | 100g·cm² |
| Number of Pole Pairs | 14 pairs |
| Gear Ratio | 10:1 |
| Gear Type | Planetary |
| Reducer Gear Material | ALU (standard) or STEEL (custom) |
| Reducer Gear Backlash | <7arcmin |
| Motor Weight without Driver | 140g |
| Motor Weight with Driver | 150g |
| Size without Driver | Ø53×26mm |
| Size with Driver | Ø53×36mm |
| Max Axial Load | 300N |
| Max Radial Load | 500N |
| Noise | <65dB |
| Working Temperature Range | -20℃ ~ +85℃ |

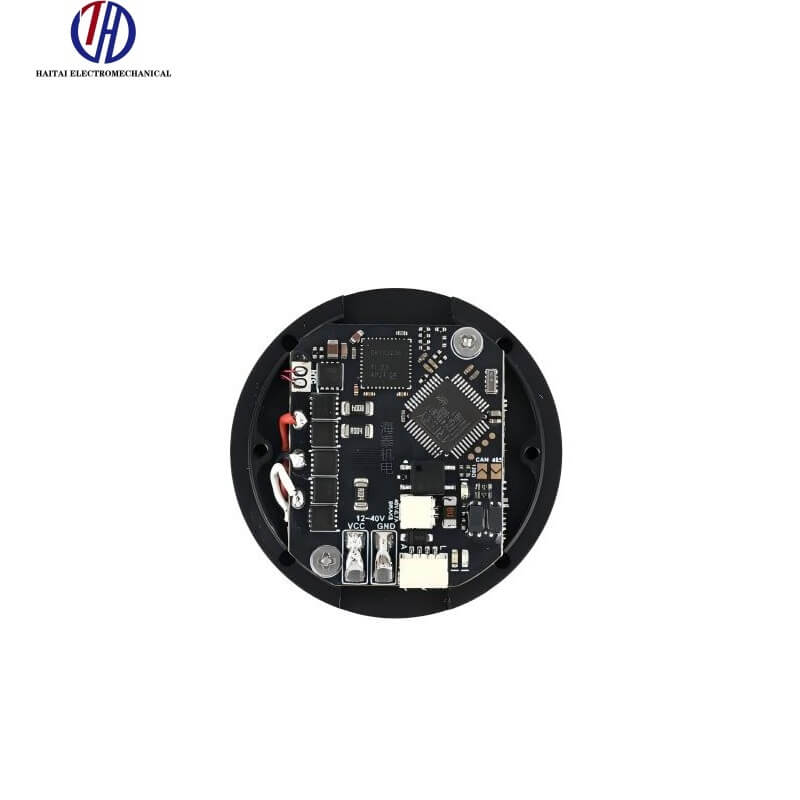

| Driver Board Communication Interface | RS485 & CAN |
| Resolution of Encoder on Driver | 14Bit |
| Support for Individual Encoders | AS5047P/AS5048A |
| Supports External or Internal Drives | Yes |
