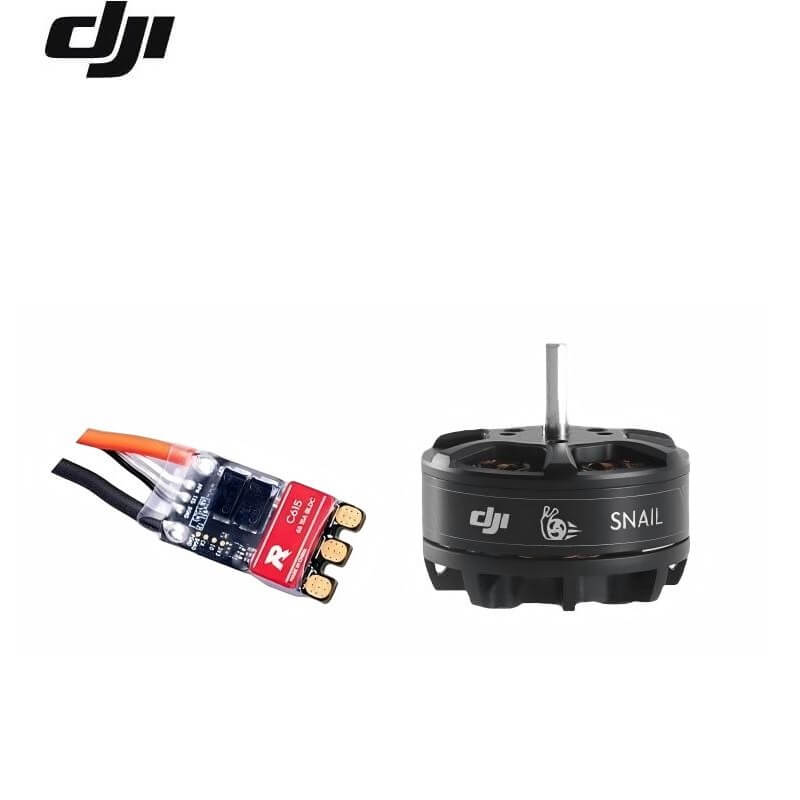

DJI RoboMaster Snail 2305 Motor & C615 Speed Controller

$39.00

Version

RoboMaster Snail 2305 Motor RoboMaster C615 Speed Controller RoboMaster Snail 2305 Motor With C615 Speed Controller

Product variants

Delivery and Shipping

We automatically select the most cost-effective carrier from China for each destination country
Shipping rates are dynamically calculated based on real-time quotes
Final rates may vary due to promotional offers or carrier adjustments

Humanoid Robots

Robotic Arms

Exoskeletons

Quadruped Robots

AGV Vehicles

ARU Robots

Parameter	Value

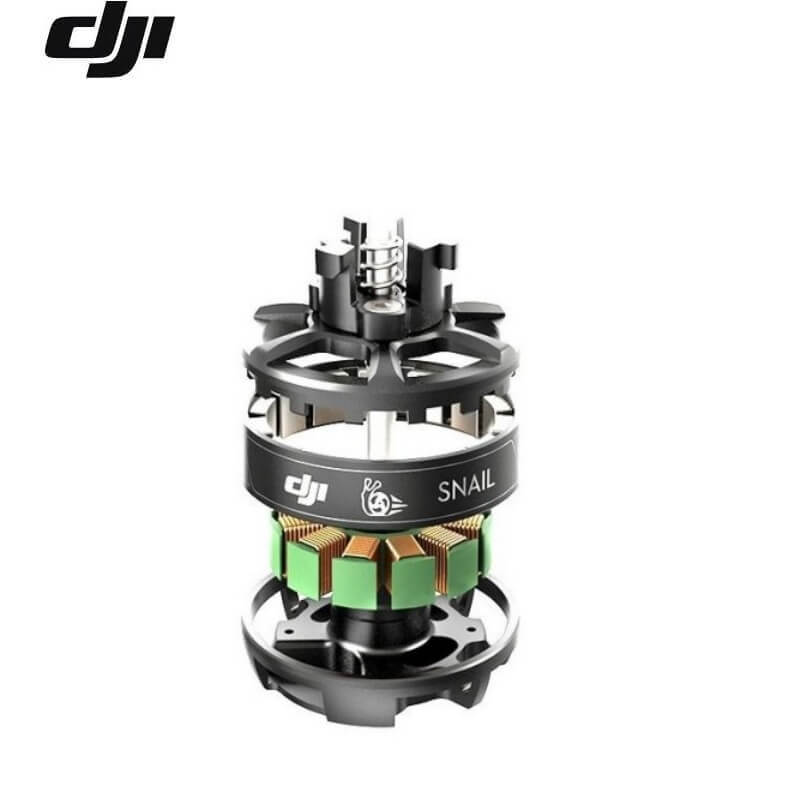

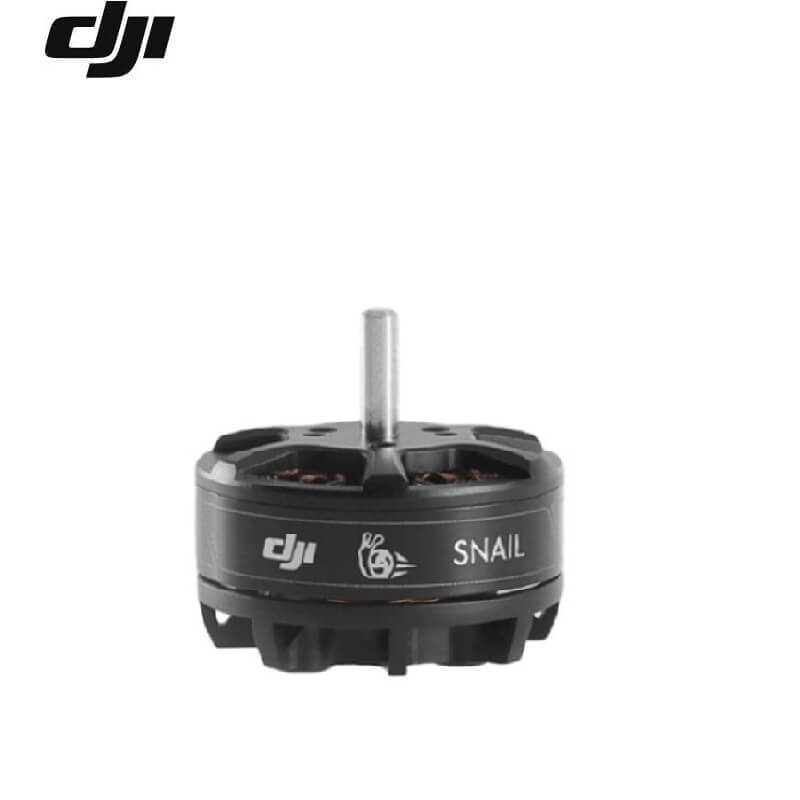

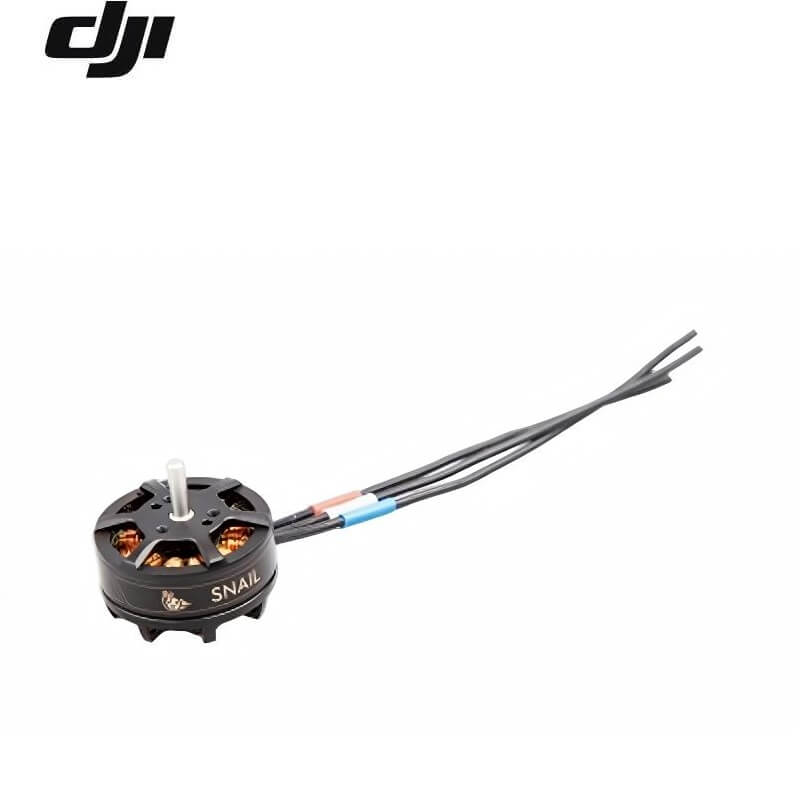

	Snail 2305 Motor
Motor Outer Diameter	29 mm
Output Shaft Diameter	2.95 mm
Weight (excluding wires)	27.8 g
KV Rating	2400 rpm/V
Stator Size	23×5 mm
Rated Voltage	DC 24 V
Speed Constant	875 rpm/V
Torque Constant	10.9 mN · m/A
No-load Speed	21000 rpm
No-load Current	0.4 A
Mechanical Time Constant	150 ms
Rotor Moment of Inertia (approx. translation*)	1.84 kg · mm²
Phase Inductance	25.9 μH
Phase Resistance	181.5 mΩ

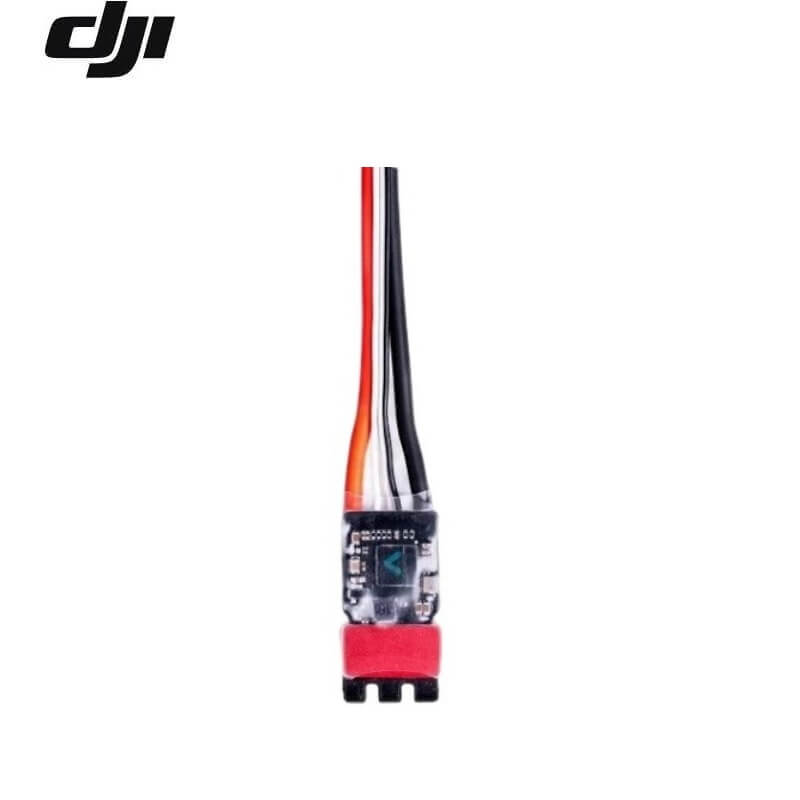

	C615 Speed Controller
Rated Voltage	DC 24 V
Maximum Allowable Voltage	DC 26 V MAX
Maximum Continuous Current	15A MAX
Maximum Peak Current (3 seconds)	20A MAX
Compatible Control Signal Frequency	500 Hz MAX
Supported Battery	35 - 65 LiPo (Likely meaning 3S-6S LiPo)
Weight	9.7 g
Operating Temperature	-10 to 40 ℃
Compatible Motor Models	Shail 2305, etc. (Note: likely typo for Snail)
