DAMIAO | SKU:

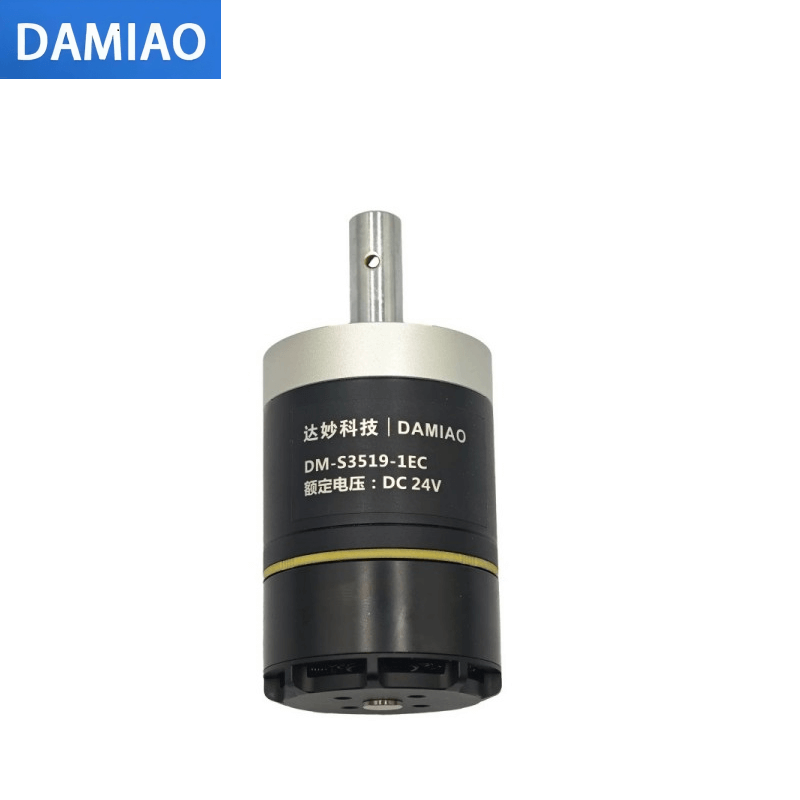

DAMIAO DM-S3519-1EC Motor
Regular price
$65.00
Unit price
/
Unavailable

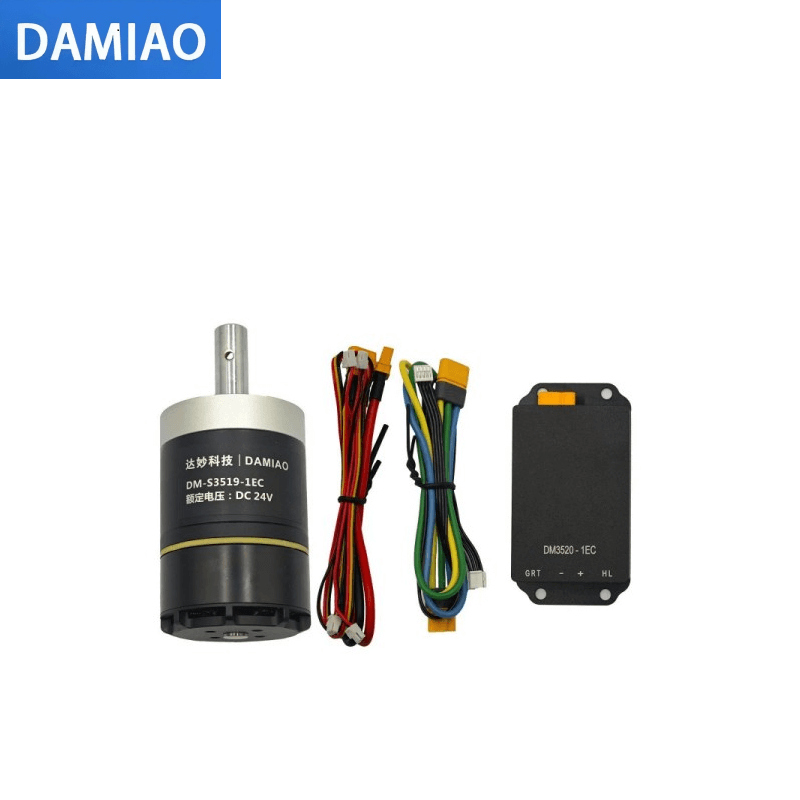

DAMIAO DM-S3519-1EC Motor - DM-S3519-1EC (without Driver) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
DAMIAO DM-S3519-1EC Motor
Regular price
From
$48.00
Unit price
/
Unavailable
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Model |
DM-S3519-1EC
|
| Nominal Voltage | 24V |
| Nominal Current | 9.2A |
| Peak Current | 20.5A |
| Nominal Torque | 3.5N.M |
| Peak Torque | 7.8N.M |
| Nominal Speed |
395rpm |
| Max. No-load Speed | 435rpm |
| Reduction Ratio | 3591/187(1:19.2) |
| Pole Pairs | 7 |
| Phase Inductance | 55μH |
| Phase Resistance | 0.2Ω |
| Outer Diameter | 42mm |
| Height | 91.5mm |
| Motor Weight | 396g |
| Encoder Resolution | 14Bit |
| Encoder Quantity | 2 |
| Encoder Type | Incremental Encoder |
| Control Interface | CAN |
| Configuration Interface | UART@921600bps |
DM-S3519-1EC_instalation_drawing.pdf
DM-S3519-1EC_User_Manual.pdf
