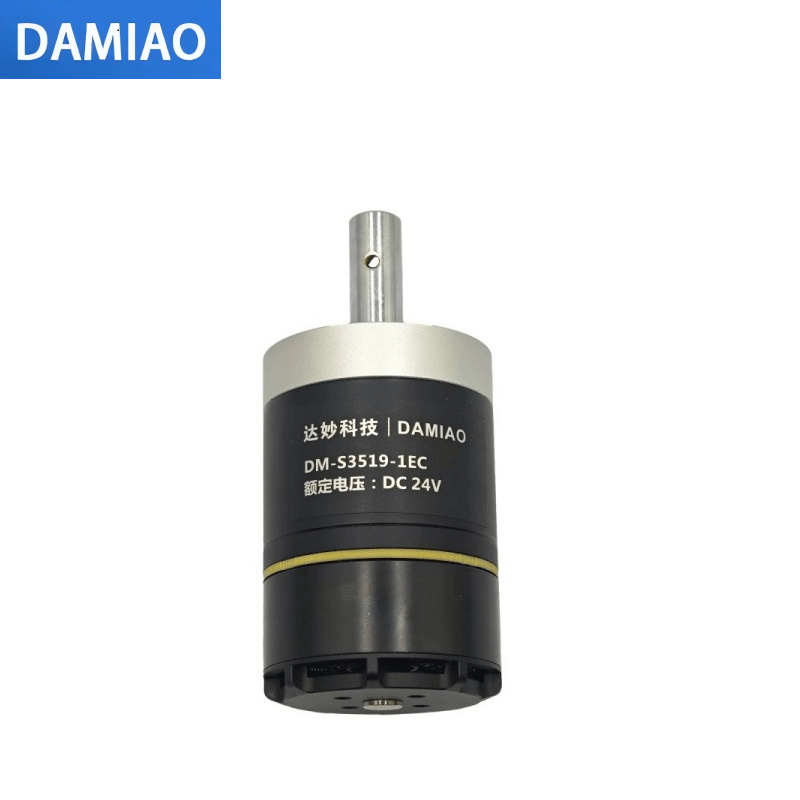

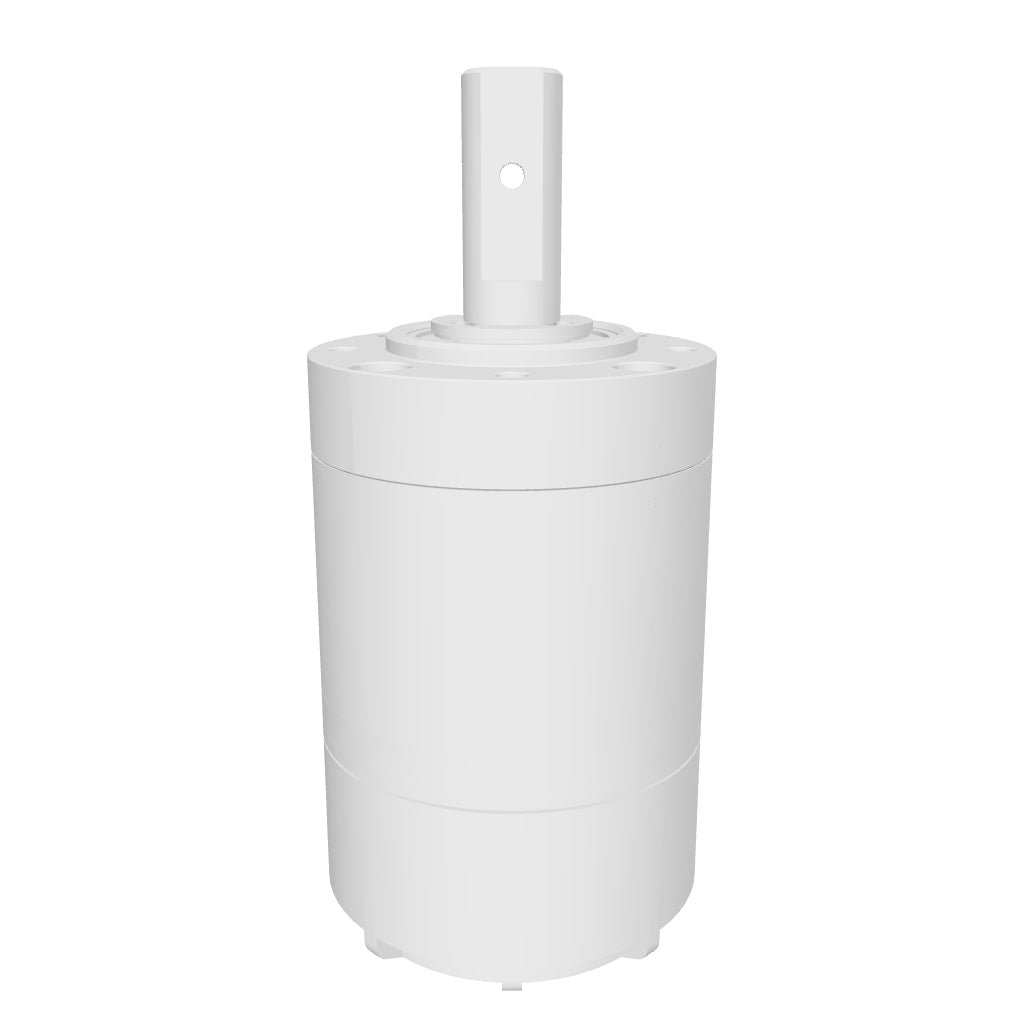

DAMIAO DM-S3519-1EC Motor
DAMIAO DM-S3519-1EC Motor
DAMIAO DM-S3519-1EC Motor

DAMIAO DM-S3519-1EC Motor

$65.00
$65.00
Version: DM-S3519-1EC (without Driver)
Subtotal: $65.00
DAMIAO DM-S3519-1EC Motor

DAMIAO DM-S3519-1EC Motor

$65.00
DAMIAO DM-S3519-1EC Motor
DAMIAO DM-S3519-1EC Motor
DAMIAO DM-S3519-1EC Motor

DAMIAO DM-S3519-1EC Motor

$65.00
Version: DM-S3519-1EC (without Driver)
Description
Description
x

Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Model
 DM-S3519-1EC
Nominal Voltage 24V
Nominal Current 9.2A
Peak Current 20.5A
Nominal Torque 3.5N.M
Peak Torque 7.8N.M
Nominal Speed

395rpm
Max. No-load Speed 435rpm
Reduction Ratio 3591/187(1:19.2)
Pole Pairs 7
Phase Inductance 55μH
Phase Resistance 0.2Ω
Outer Diameter 42mm
Height 91.5mm
Motor Weight 396g
Encoder Resolution 14Bit
Encoder Quantity 2
Encoder Type Incremental Encoder
Control Interface CAN
Configuration Interface UART@921600bps



DM-S3519-1EC_instalation_drawing.pdf
DM-S3519-1EC_User_Manual.pdf
