DAMIAO | SKU:

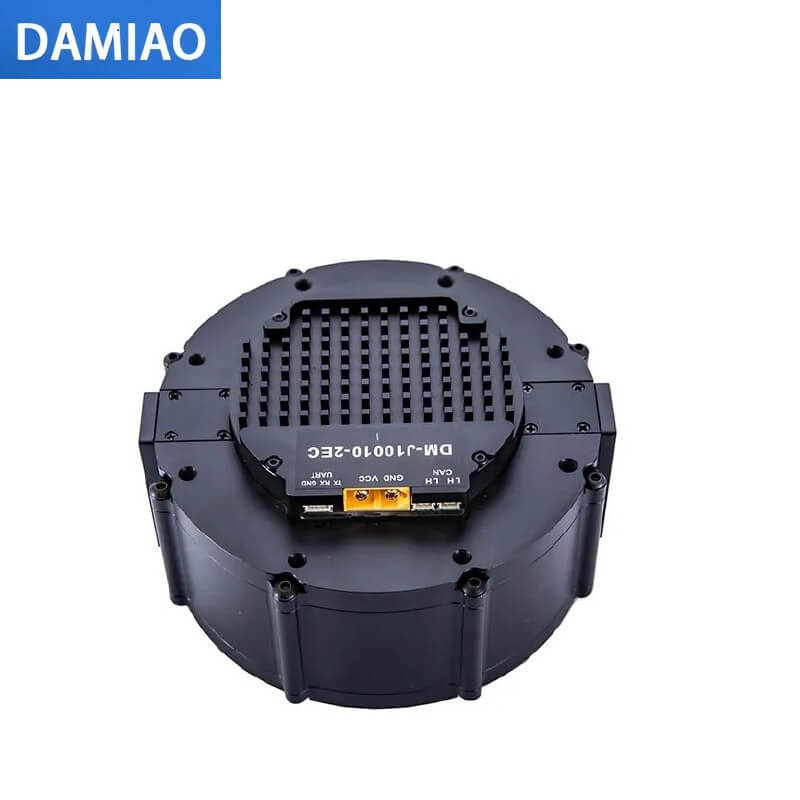

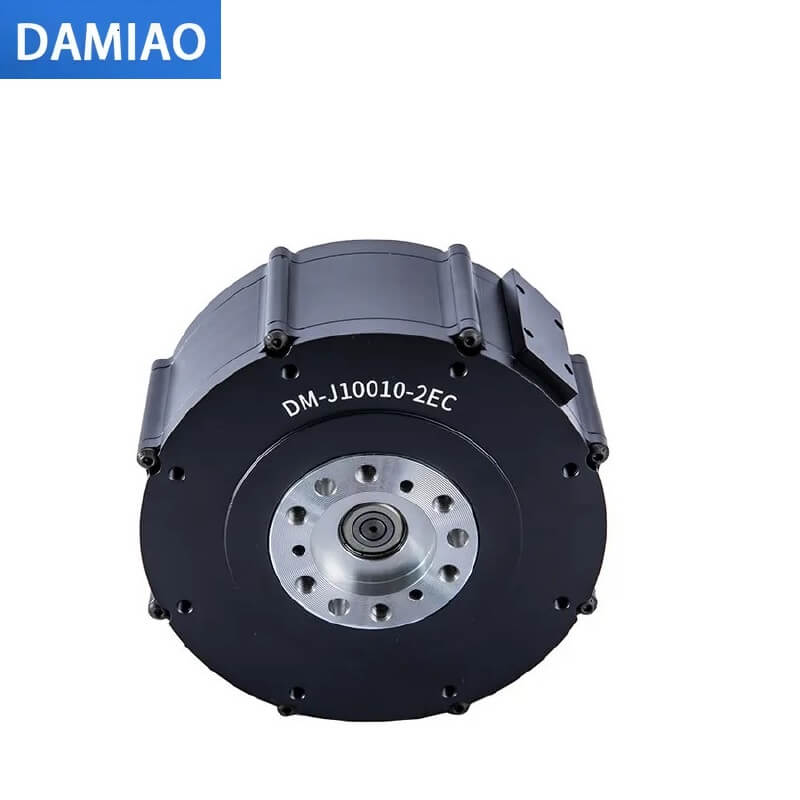

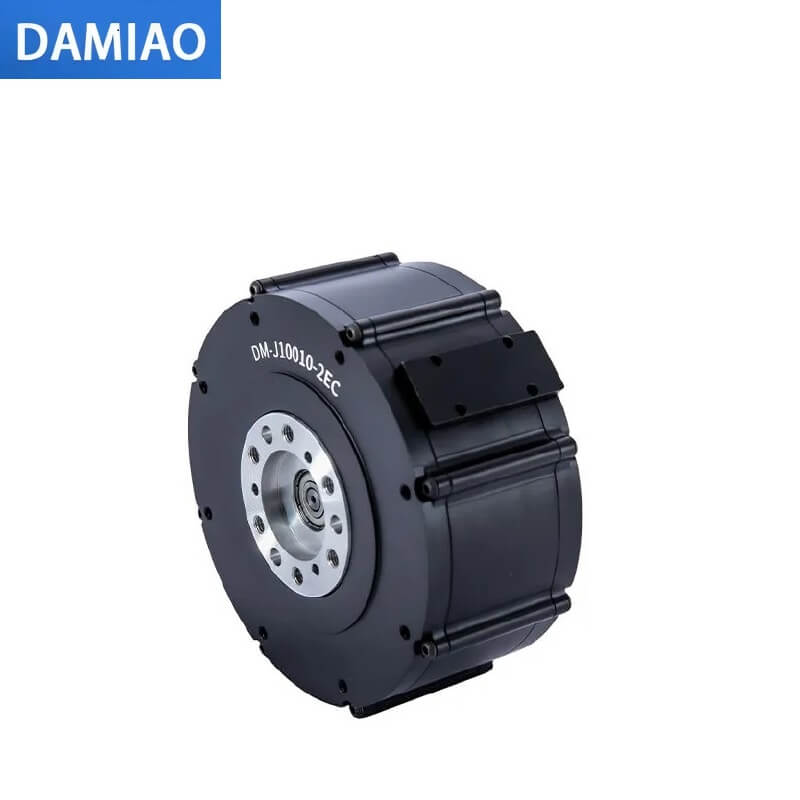

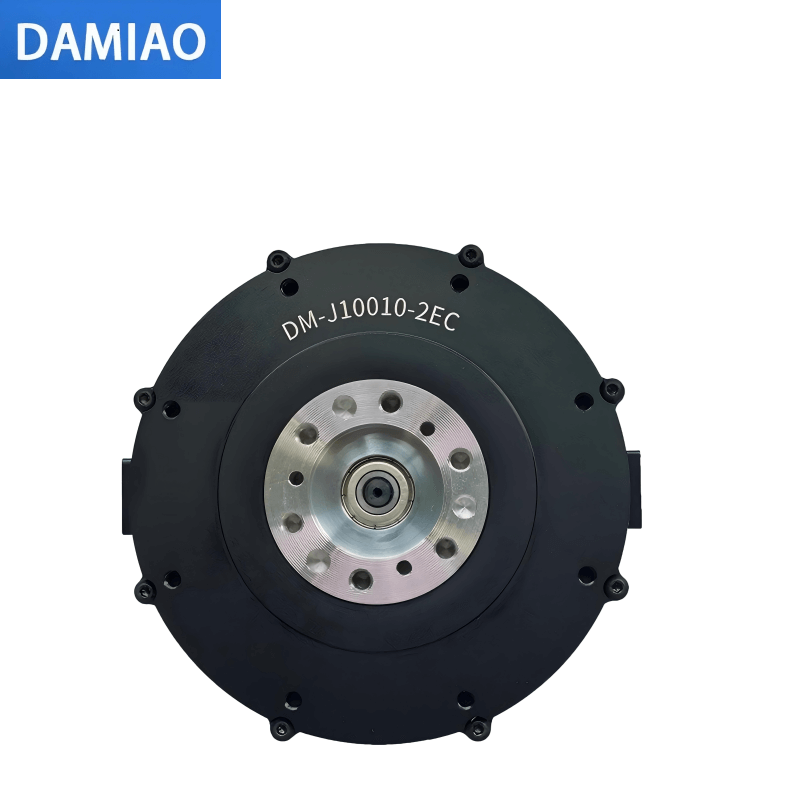

DAMIAO DM-J10010-2EC Motor
Regular price
$455.00
Unit price
/
Unavailable
DAMIAO DM-J10010-2EC Motor - Include Driver is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
DAMIAO DM-J10010-2EC Motor
Regular price
From
$455.00
Unit price
/
Unavailable
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Model |
DM-J10010-2EC
|
| Nominal Voltage | 48V |
| Nominal Current | 20A |
| Peak Current | 70A |
| Nominal Torque | 40N.M |
| Peak Torque | 150N.M |
| Nominal Speed |
100rpm |
| Max. No-load Speed | 150rpm |
| Reduction Ratio | 10:1 |
| Pole Pairs | 21 |
| Phase Inductance | 100μH |
| Phase Resistance | 0.13Ω |
| Outer Diameter | 112mm |
| Height | 62mm |
| Motor Weight | 1485g |
| Encoder Resolution | 14Bit |
| Encoder Quantity | 2 |
| Encoder Type | Single-Turn Magnetic Encoder |
| Control Interface | CAN@1Mbps |
| Configuration Interface | UART@921600bps |
DM_J10010_instalation_drawing.pdf
