CubeMars | SKU:

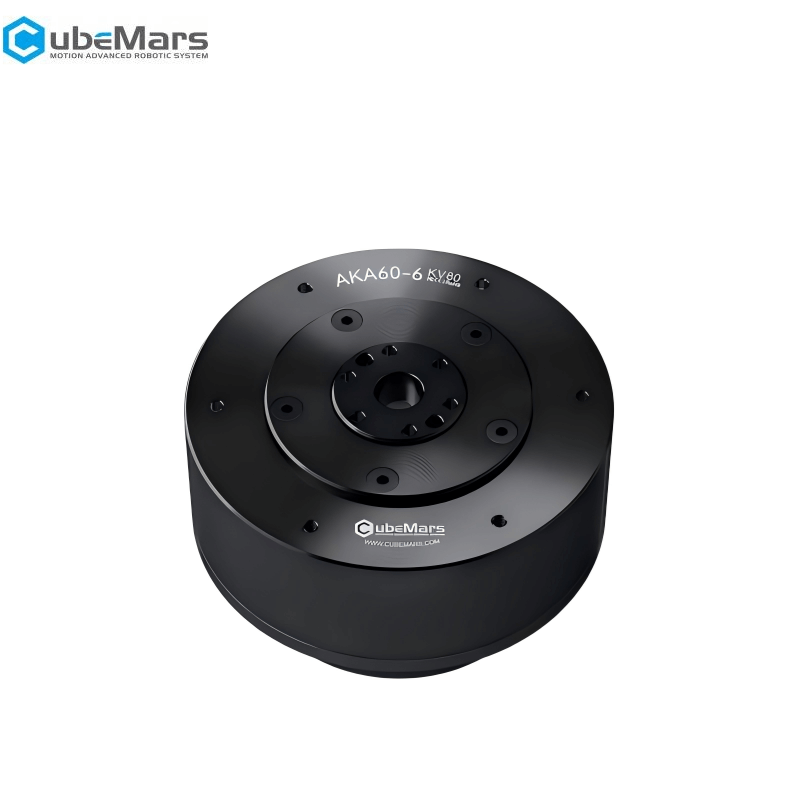

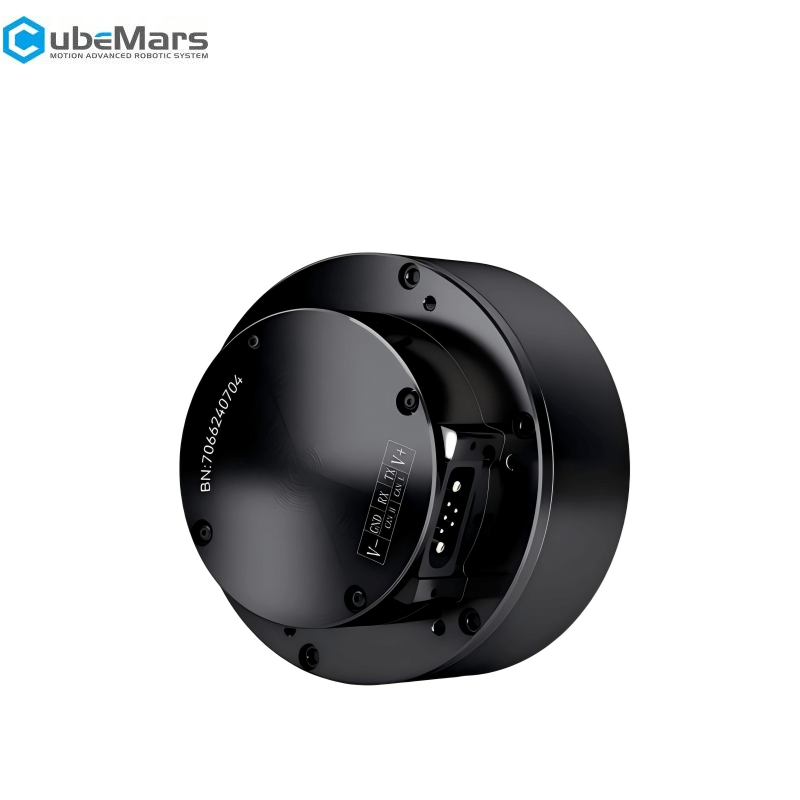

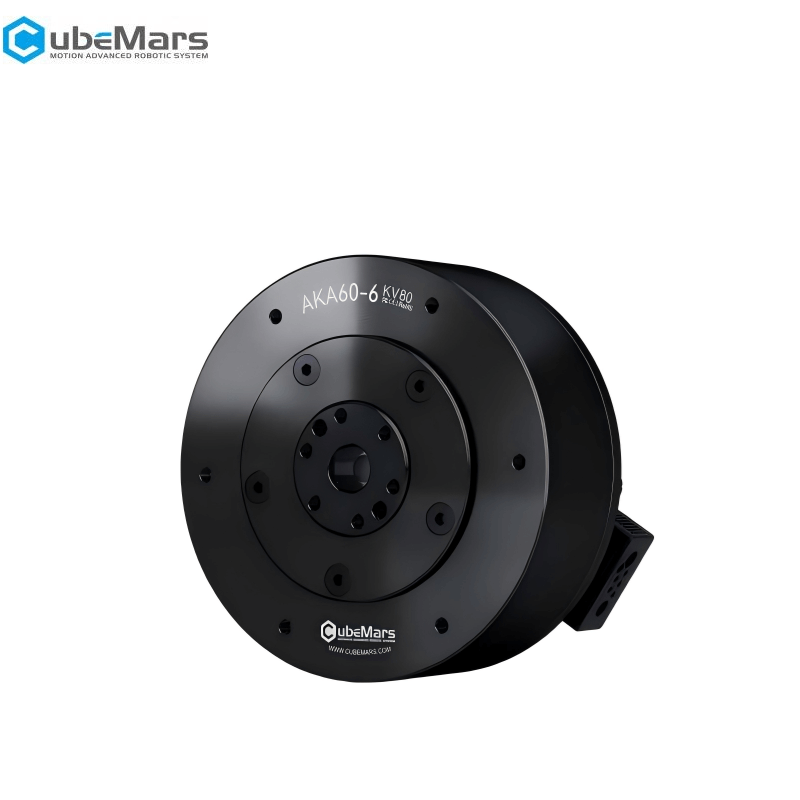

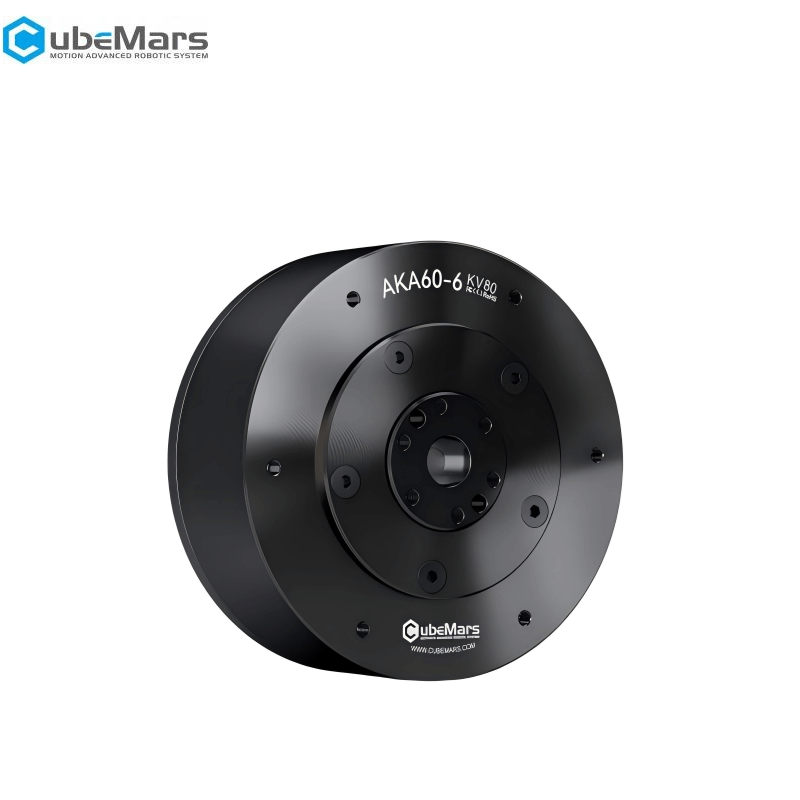

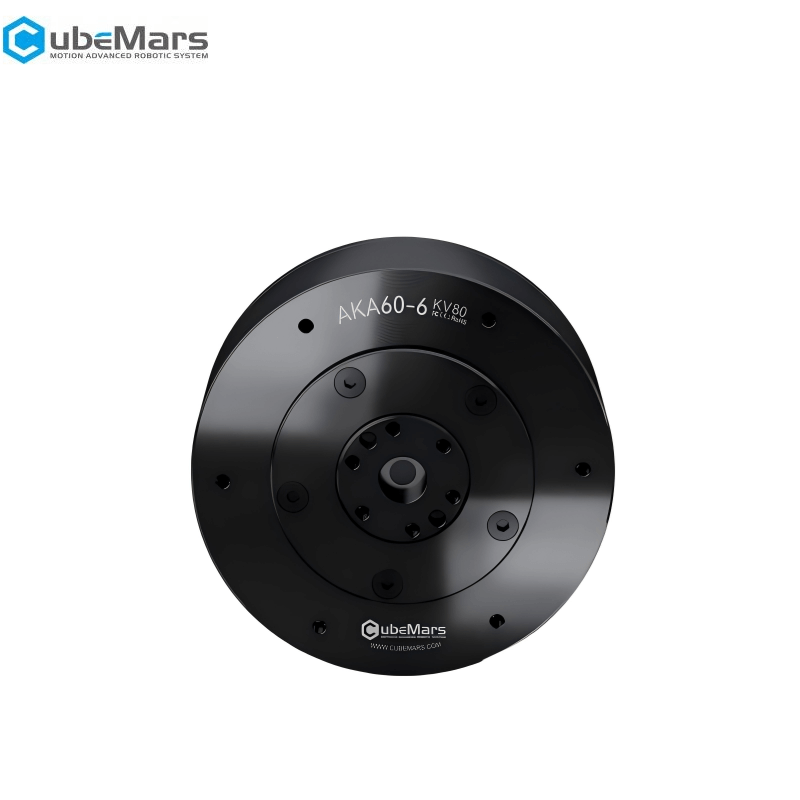

CubeMars AKA60-6 Motor
Regular price
$298.90
Unit price
Unavailable
CubeMars AKA60-6 Motor - AKA60-6 KV80 Motor is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
CubeMars AKA60-6 Motor
Regular price
$298.90
Unit price
Unavailable
CubeMars AKA60-6 Motor - AKA60-6 KV80 Motor is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Peak torque | 9N.m |
| Peak current | 11.2ADC |
| Kv | 80rpm/V |
| Kt | 0.11937N.m/A |
| Ke | 0.0125V/krpm |
| Phase to Phase resistance | 595mΩ |
| Phase to Phase inductance |
675μH |
| Inertia |
331.91gcm² |
| Km | 0.1541Nm/√W |
| Mechanical time constant |
2.5ms |
| Electrical time constant |
1.13ms |
| Weight |
460g |
| Rated Voltage |
24/48V |
| Rated Torque | 3N.m |
| Rated Speed | 200/400rpm |
| Rated Current | 4ADC |
| Insulation Class | H |
| No-Load Speed | 320/640rpm |
| Insulation High-Voltage | 500V |
| Operation Ambient Temperature |
-20℃~50℃ |
| Winding type |
Star |
| Insulation Resistance |
10MΩ |
| Pole Pairs | 14 |
| Reduction Ratio | 6∶1 |
| Rated Radial Load | 18kg |
