ToFFuture Technology | SKU:

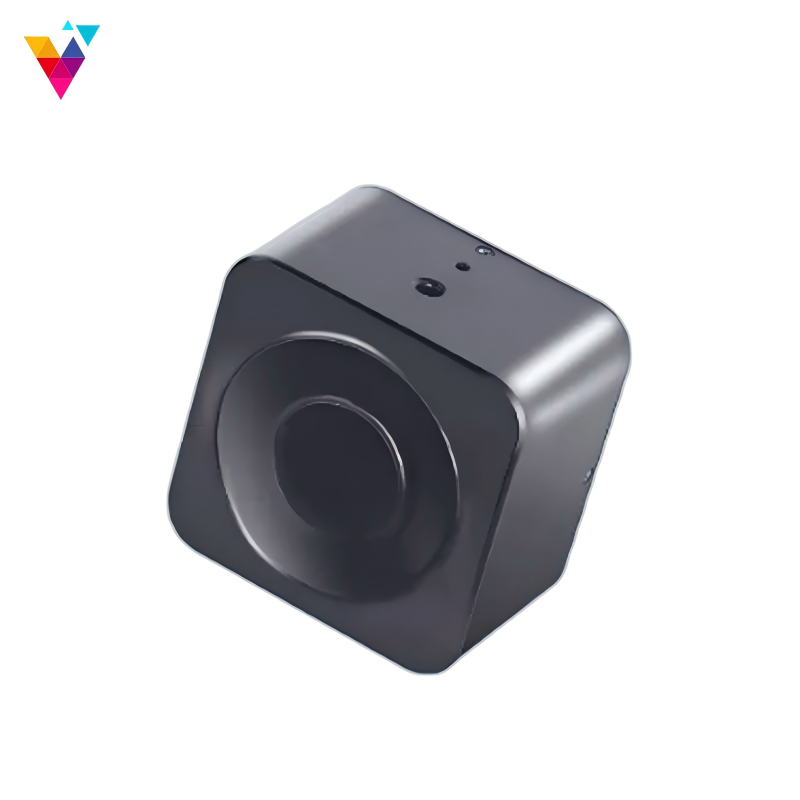

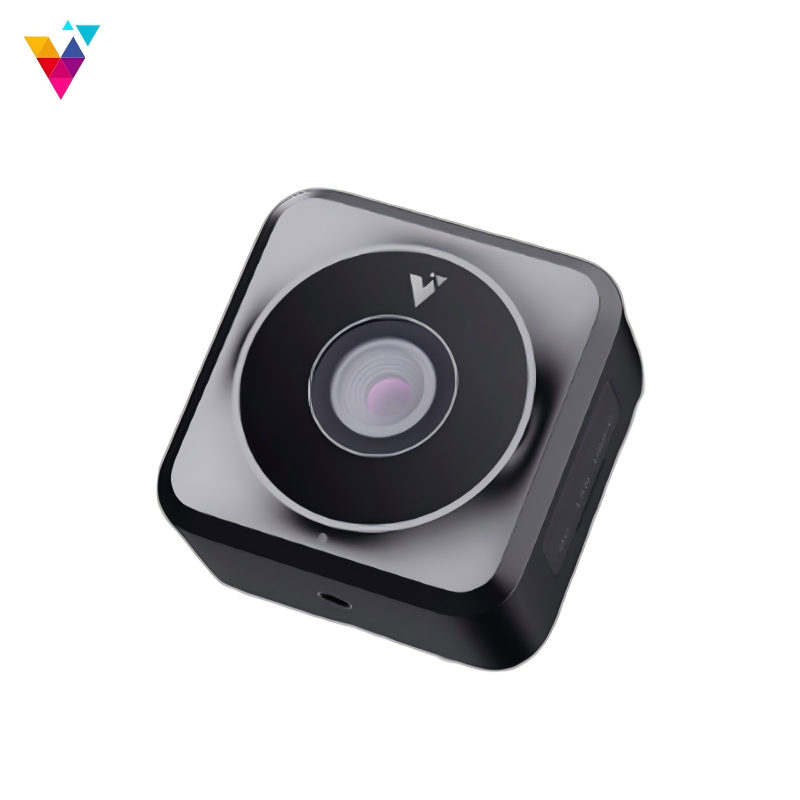

ToFFuture XT-S240 Mini LiDAR
Regular price
$490.00
Unit price
ToFFuture XT-S240 Mini LiDAR - XT-S240 Mini is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
ToFFuture XT-S240 Mini LiDAR
Regular price
$490.00
Unit price
ToFFuture XT-S240 Mini LiDAR - XT-S240 Mini is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Product Name | XT-S240 Mini |
| FOV | 106° X 80° |
| Wavelength (nm) | 940 |
| Average Power (W) | 6 |
| Output Data | Infrared image /Depth image /3D point cloud |
| SDK | C / Python / Linux / Ros |
| Accuracy | 1-3% |
| Angular Resolution | 0.33°H X 0.33° (equivalent 240 lines) |
| Detect Range | 10m outdoor (0.3-12m indoor) |
| Frame Rate (fps) | 10-24 |
| Size (mm) | 68x68x45 |
| Weight | 198g |
| Voltage | 12-25V@3A/DC |
| Working Temperature | -20°C to 60°C |
