NANGU | SKU:

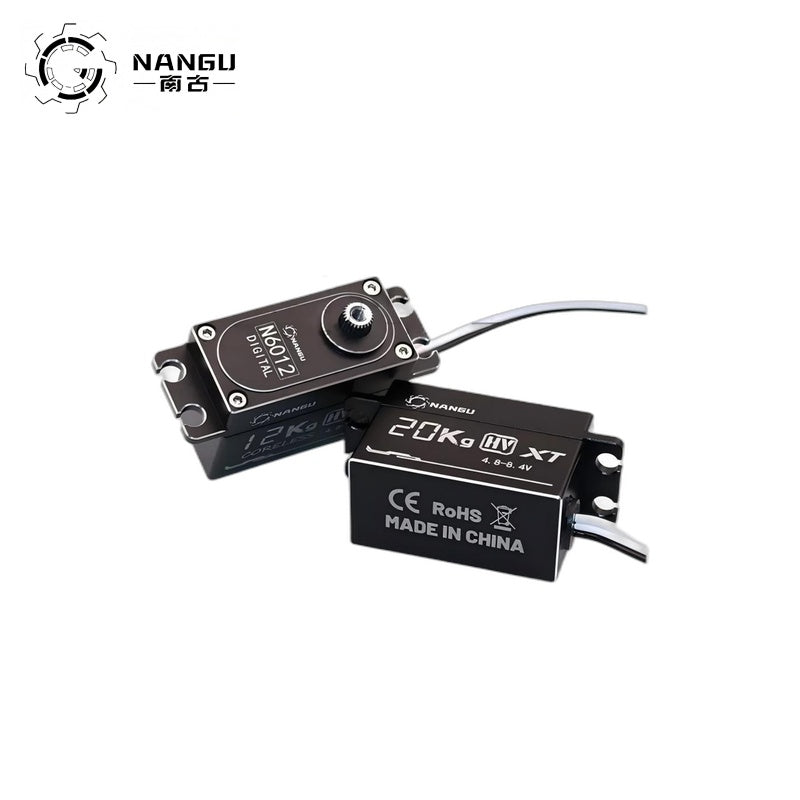

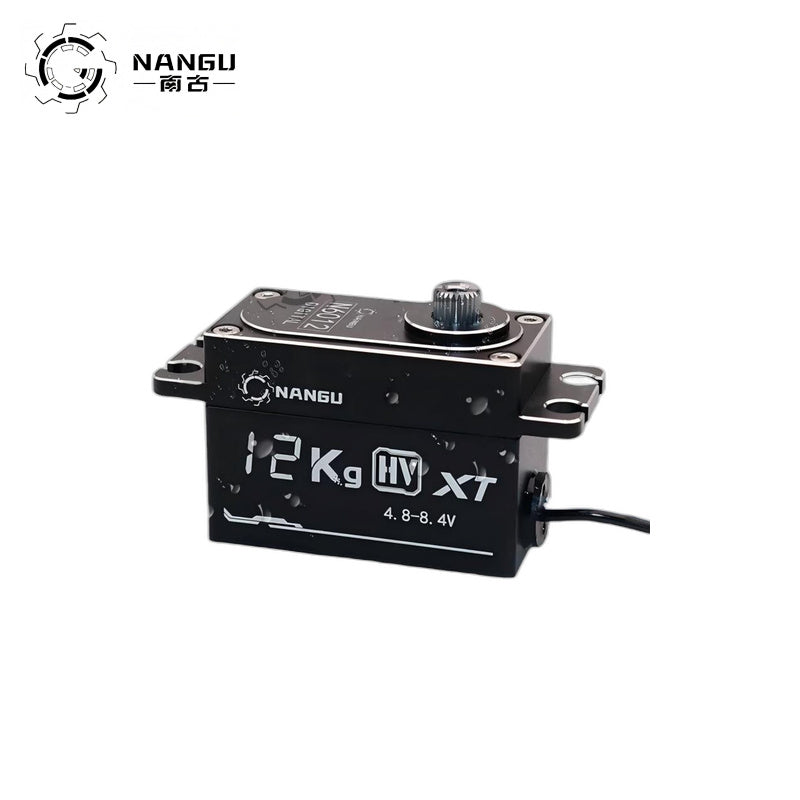

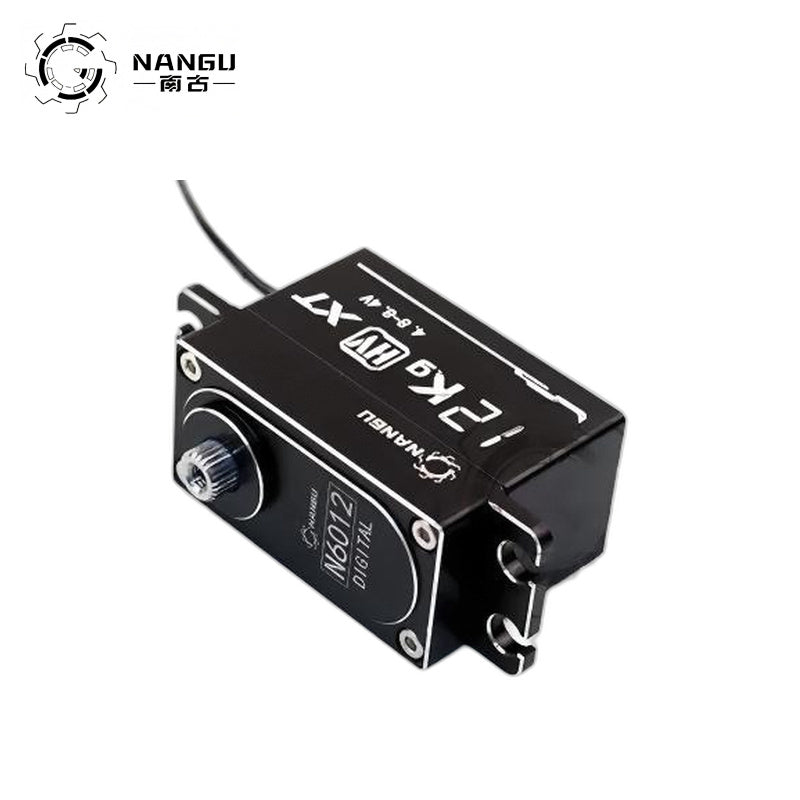

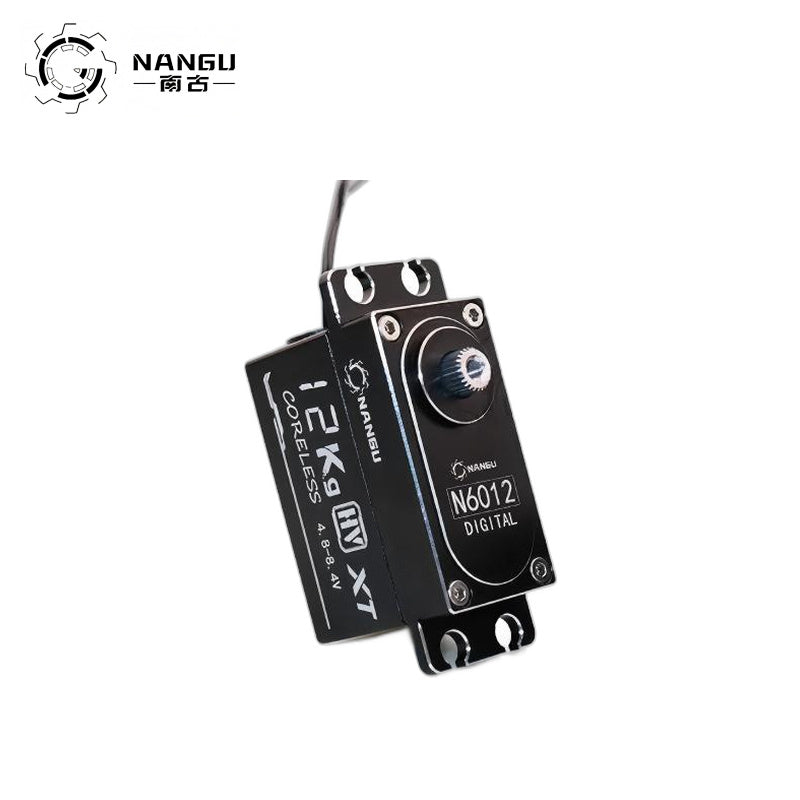

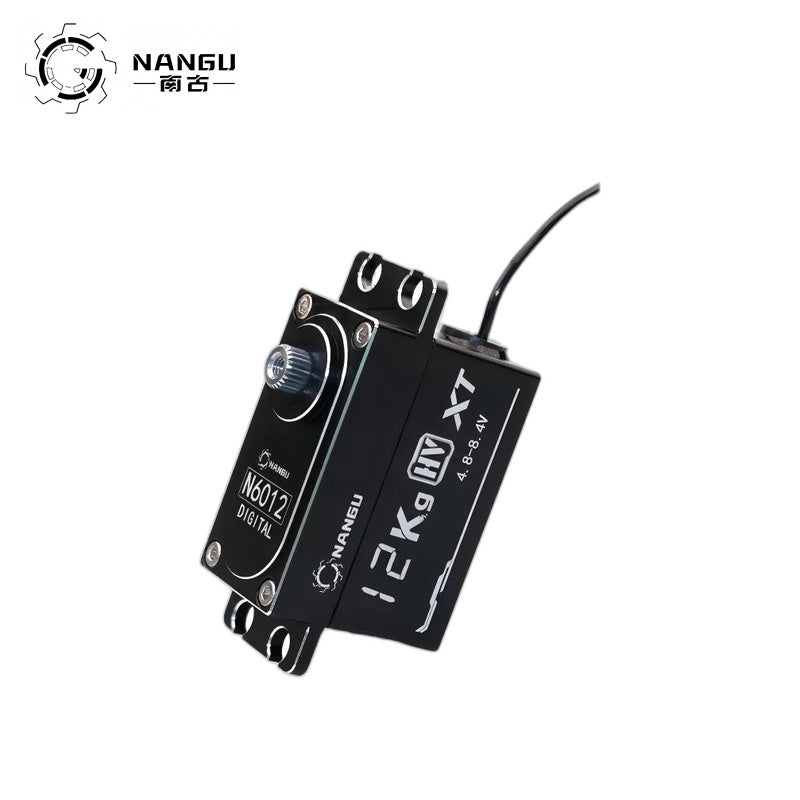

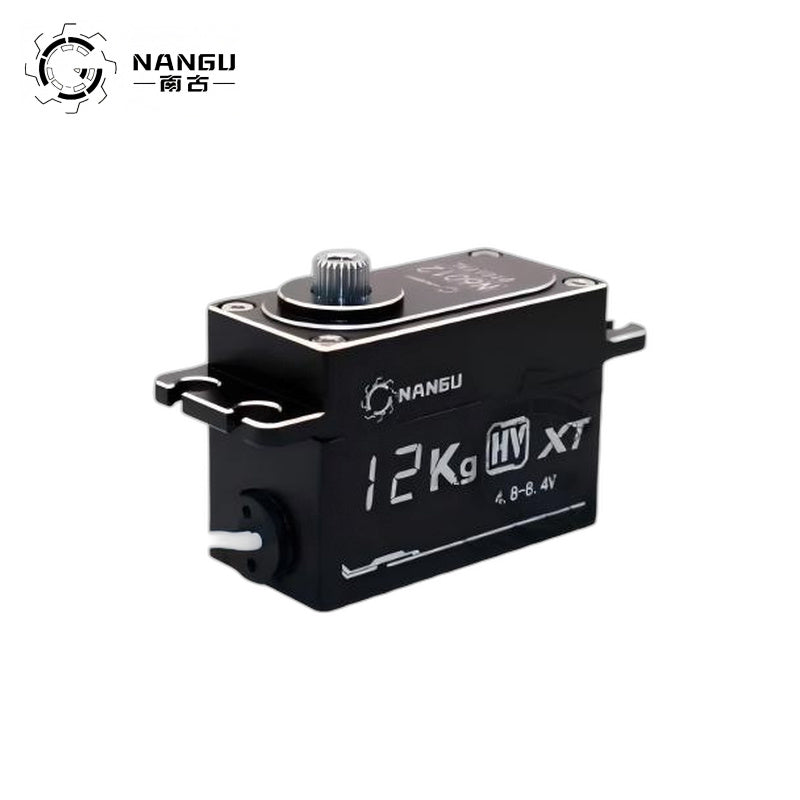

NANGU N60 Series Servo Motor
Regular price
$25.00
Unit price
NANGU N60 Series Servo Motor - N6012 (12 kg) / Brushed Servo / 90° (Includes Metal Servo Arm) is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
NANGU N60 Series Servo Motor
Regular priceFrom
$25.00
Unit price
NANGU N60 Series Servo Motor - N6012 (12 kg) / Brushed Servo / 90° (Includes Metal Servo Arm) is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | 5V | 6V | 7.4V | 8.4V |
|---|---|---|---|---|
| 12KG Coreless | ||||
| Speed / 60° (s) | 0.09 | 0.07 | 0.062 | 0.055 |
| Stall Torque (kg) | 10 | 11 | 12.5 | 13.5 |
| 20KG Coreless | ||||
| Speed / 60° (s) | 0.14 | 0.12 | 0.067 | 0.06 |
| Stall Torque (kg) | 18.5 | 20.5 | 23 | 25 |
| 12KG Carbon‑brush | ||||
| Speed / 60° (s) | 0.105 | 0.085 | 0.077 | 0.07 |
| Stall Torque (kg) | 10 | 11 | 12.5 | 13.5 |
| 20KG Carbon‑brush | ||||
| Speed / 60° (s) | 0.16 | 0.14 | 0.087 | 0.08 |
| Stall Torque (kg) | 18.5 | 20.5 | 23 | 25 |
NANGU N60 Series Servo Motor-drawing.pdf
