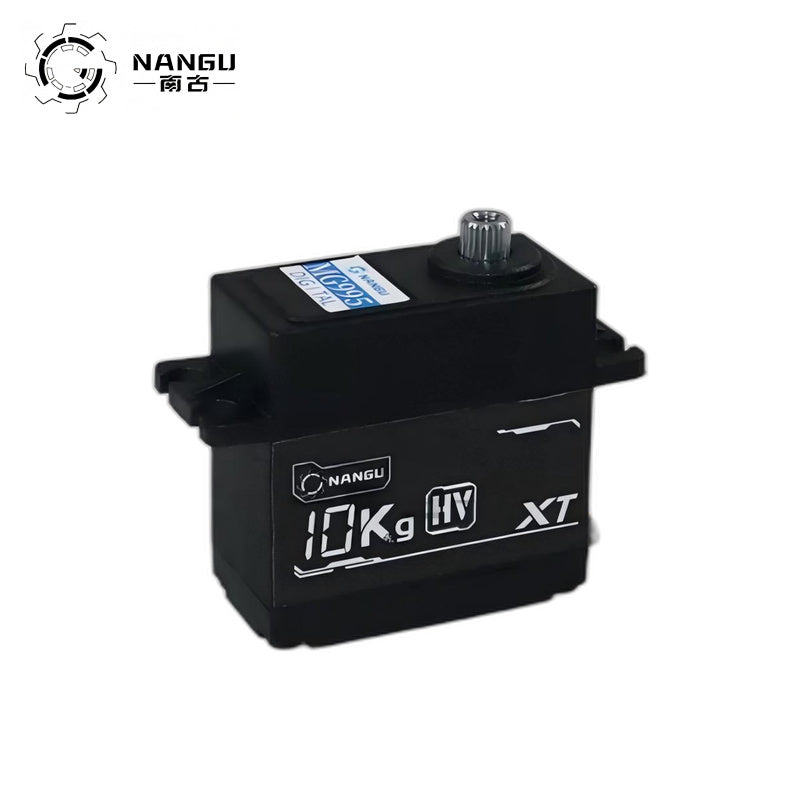

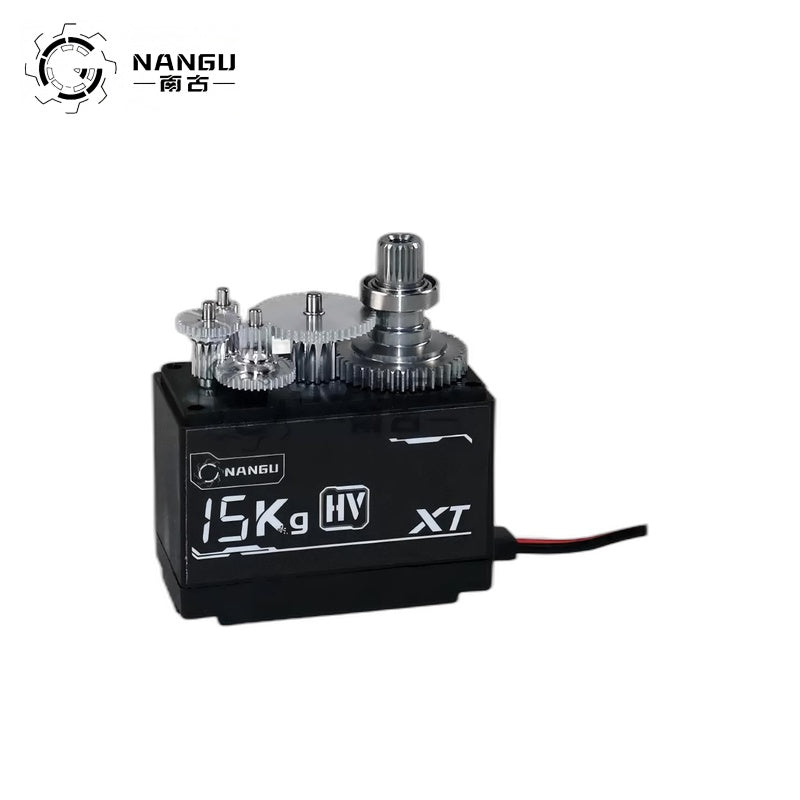

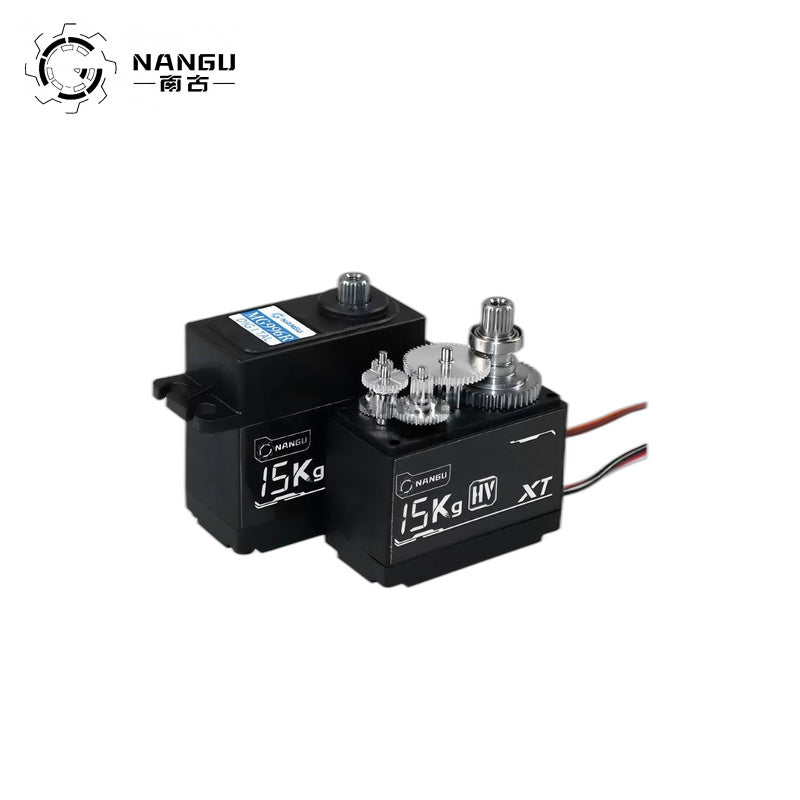

NANGU MG996R Servo Motor

$15.00

Version

MG996R 90° (20KG) MG996R 120° (20KG) MG996R 180° (20KG) MG996R 270° (20KG) MG996R 300° (20KG) MG996R 360° (20KG)

speed

Fast speed Standard speed

Delivery and Shipping

We automatically select the most cost-effective carrier from China for each destination country
Shipping rates are dynamically calculated based on real-time quotes
Final rates may vary due to promotional offers or carrier adjustments

Humanoid Robots

Robotic Arms

Exoskeletons

Quadruped Robots

AGV Vehicles

ARU Robots

Parameter	5V	6V	7.4V	8.4V
Fast speed
Fast‑Mode Speed (60°/s)	0.13 s	0.11 s	0.10 s	0.09 s
Fast‑Mode No‑load Current (mA)	400 mA	500 mA	550 mA	600 mA
Fast‑Mode Stall Torque (kg)	20.5 kg	22.5 kg	25.5 kg	27.5 kg
Fast‑Mode Stall Current (A)	4 A	5 A	5.3 A	5.6 A
Standard speed
Standard‑Mode Speed (60°/s)	0.27 s	0.24 s	0.22 s	0.20 s
Standard‑Mode No‑load Current (mA)	400 mA	450 mA	500 mA	550 mA
Standard‑Mode Stall Torque (kg)	20.5 kg	22 kg	25 kg	27 kg
Standard‑Mode Stall Current (A)	2.2 A	2.5 A	3.2 A	4 A
