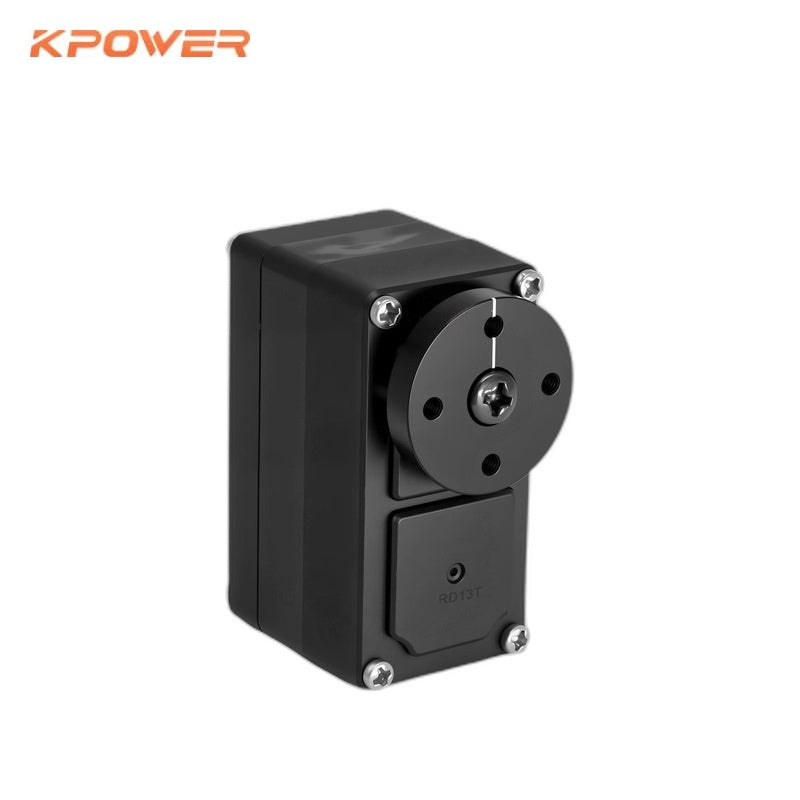

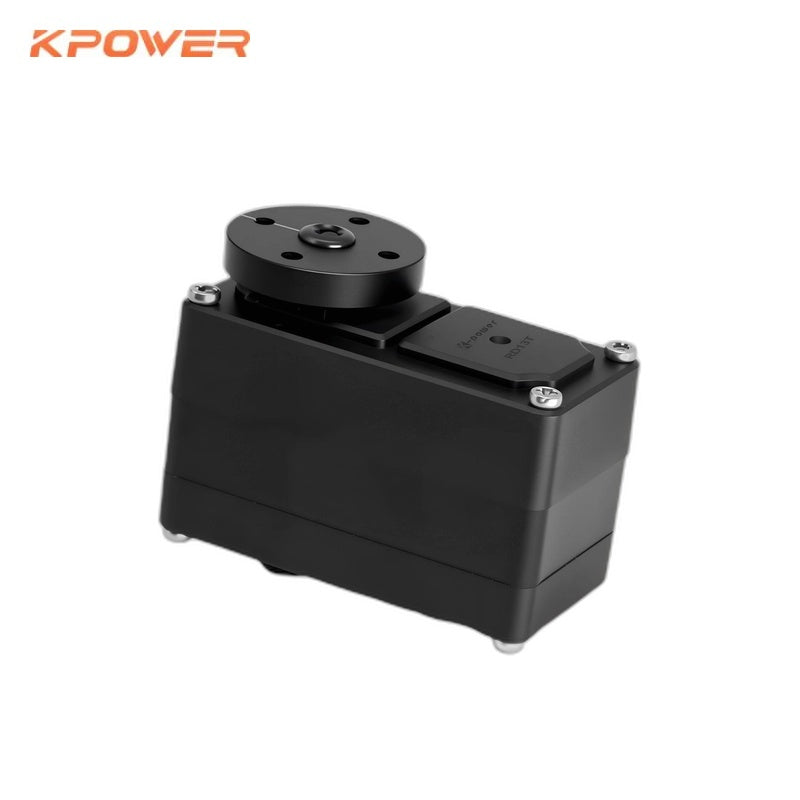

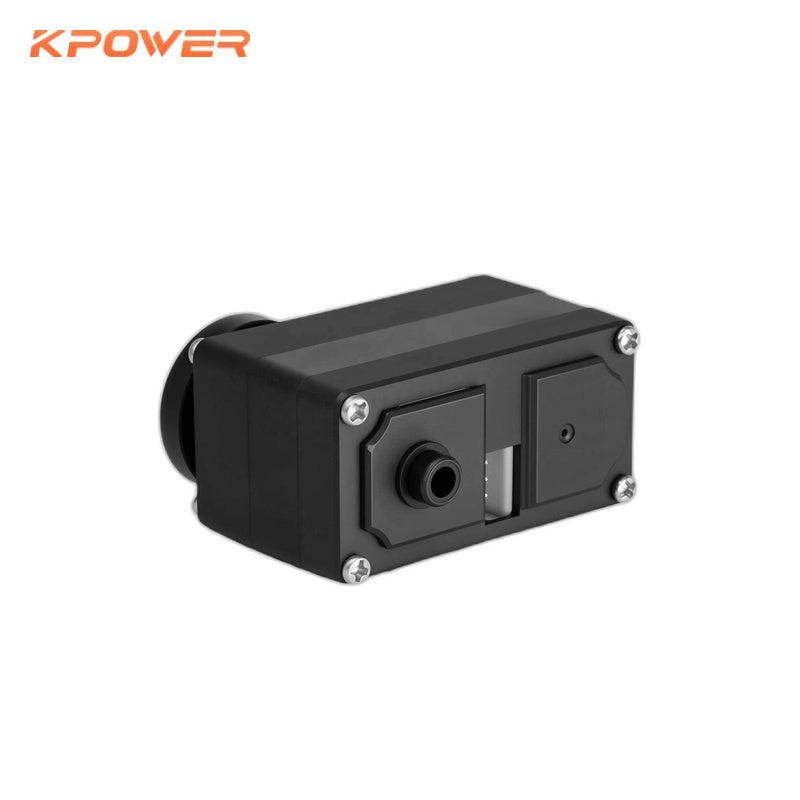

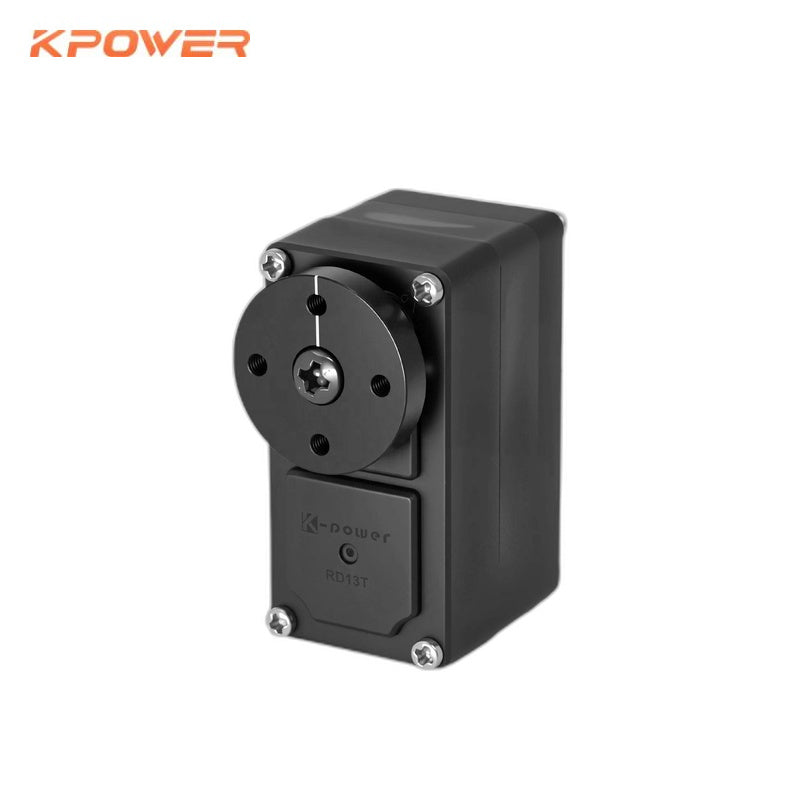

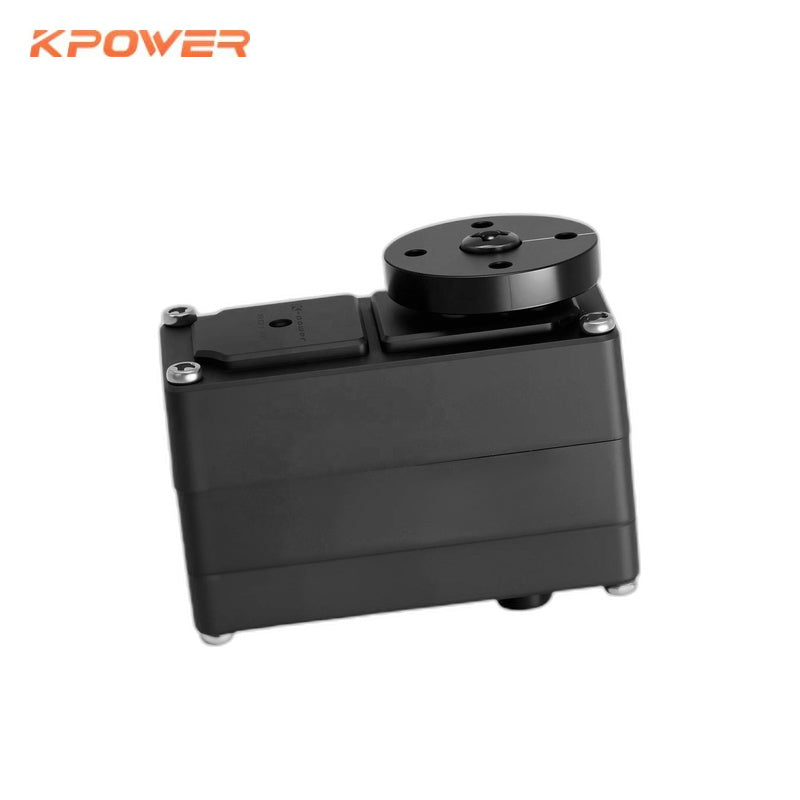

Kpower RD13T Servo Motor
Regular price
$25.00
Unit price
Kpower RD13T Servo Motor - RD13T is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Kpower RD13T Servo Motor
Regular price
$25.00
Unit price
Kpower RD13T Servo Motor - RD13T is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Stall Torque | 13 kg |
| Rated Torque | 3.3 kg |
| No-load Speed | 0.24 sec |
| Weight | 46 g |
| Dimension | 44.4 × 22.7 × 25.9 mm |
| Travel Angle Range | 180° (Customizable) |
| Operating Voltage | 4.8 ~ 8.4 V |
| Horn Gear Spline | N/A |
| Gear Material | Metal |
| Motor | Coreless Motor |
| Protocol | PWM | TTL | RS-485 |
| No-load Current | 2000 mA |
| Position Sensor | Magnetic Encoder |
| Case Material | Plastic |
| Ball Bearing | 2BB |
| Working Frequency | 50 ~ 333 Hz |
| Operating Temperature | -10 ~ 50°C |
| IP Rating | IP42 |
