Kpower | SKU:

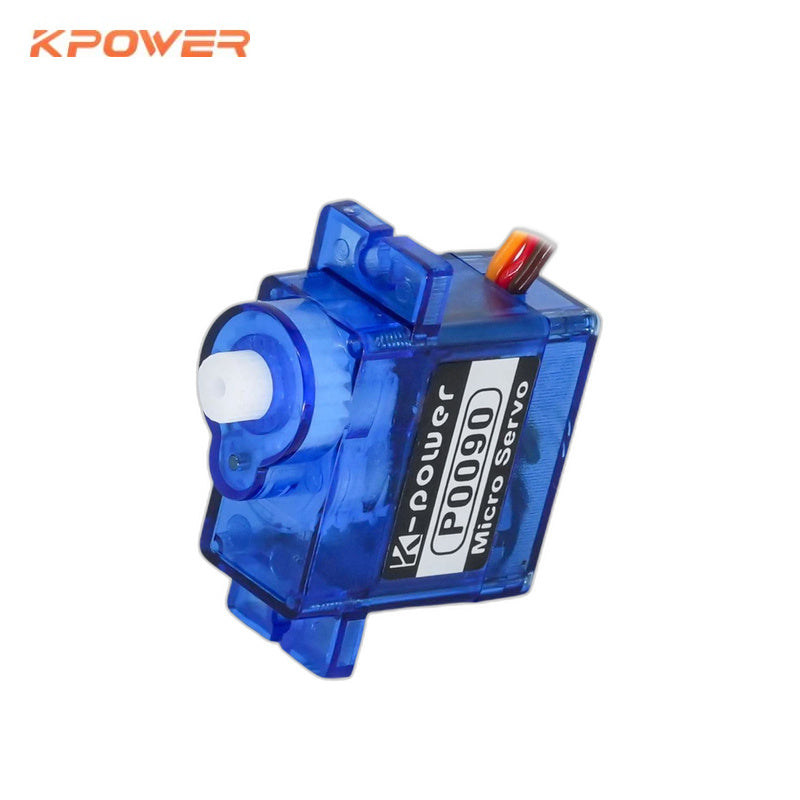

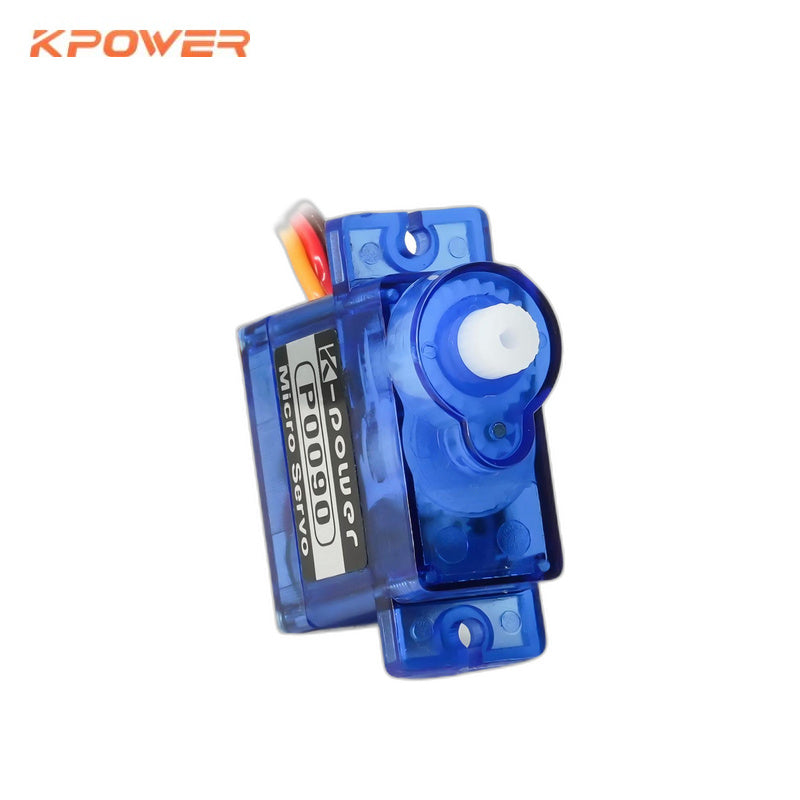

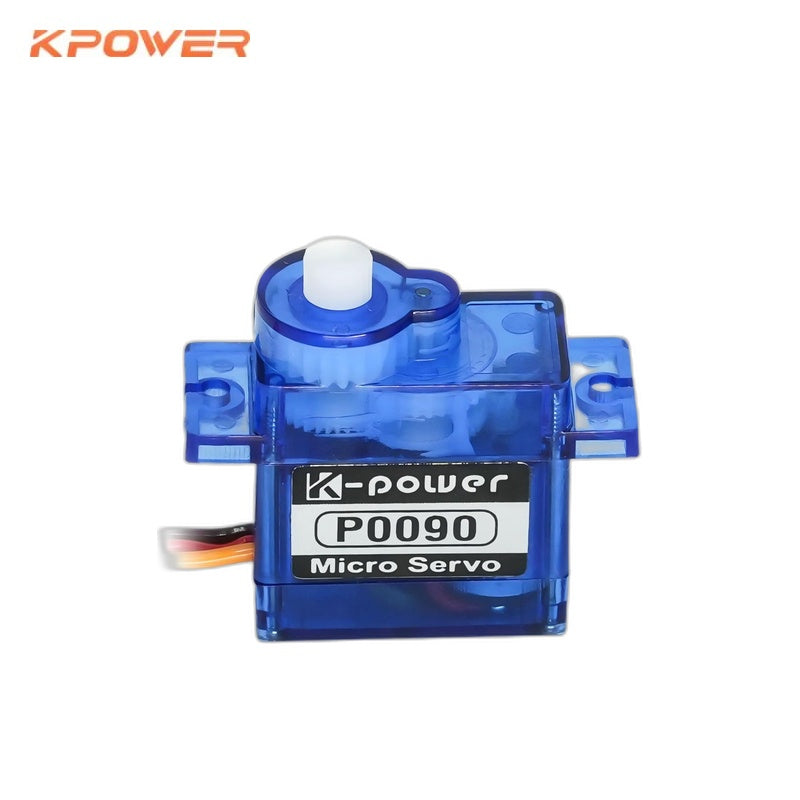

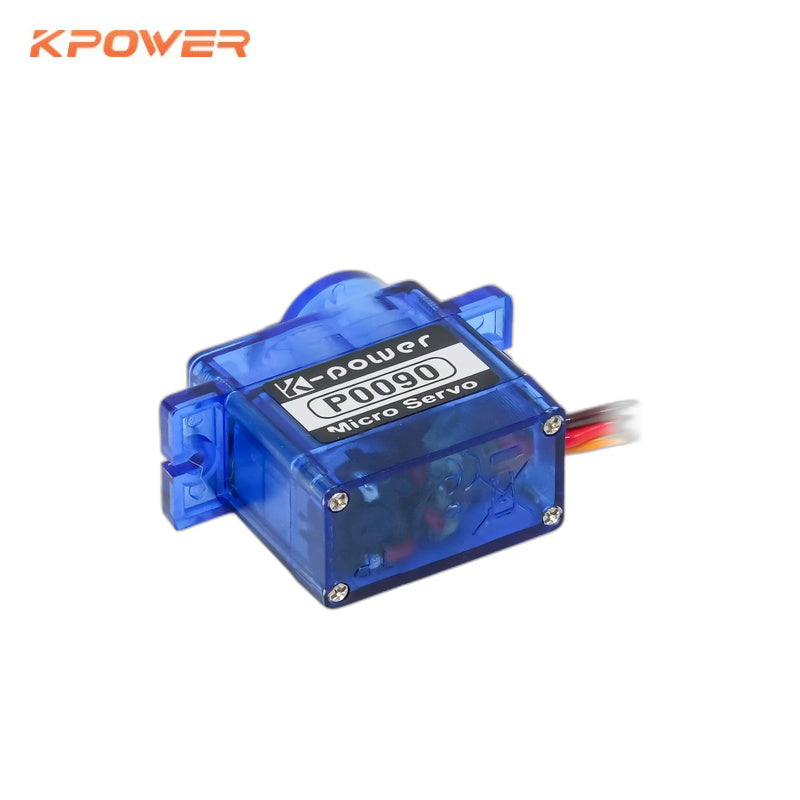

Kpower P0090 Servo Motor
Regular price
$25.00
Unit price
Kpower P0090 Servo Motor - P0090 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Kpower P0090 Servo Motor
Regular price
$25.00
Unit price
Kpower P0090 Servo Motor - P0090 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Stall Torque | 1.8 kg |
| Rated Torque | 0.5 kg |
| No-load Speed | 0.09 s/60° |
| Weight | 9 g |
| Dimension | 22.7 × 12.5 × 26.9 mm |
| Travel Angle Range | 120° (Customizable) |
| Operating Voltage | 4.8 ~ 8.4 V |
| Horn Gear Spline | 21T φ4.8 mm |
| Gear Material | POM |
| Motor | DC Brushed |
| Protocol | PWM | TTL | RS-485 |
| No-load Current | 1000 mA |
| Position Sensor | Potentiometer |
| Case Material | Plastic |
| Ball Bearing | 2BB |
| Working Frequency | 50 ~ 333 Hz |
| Operating Temperature | -10 ~ 50°C |
| IP Rating | IP42 |
