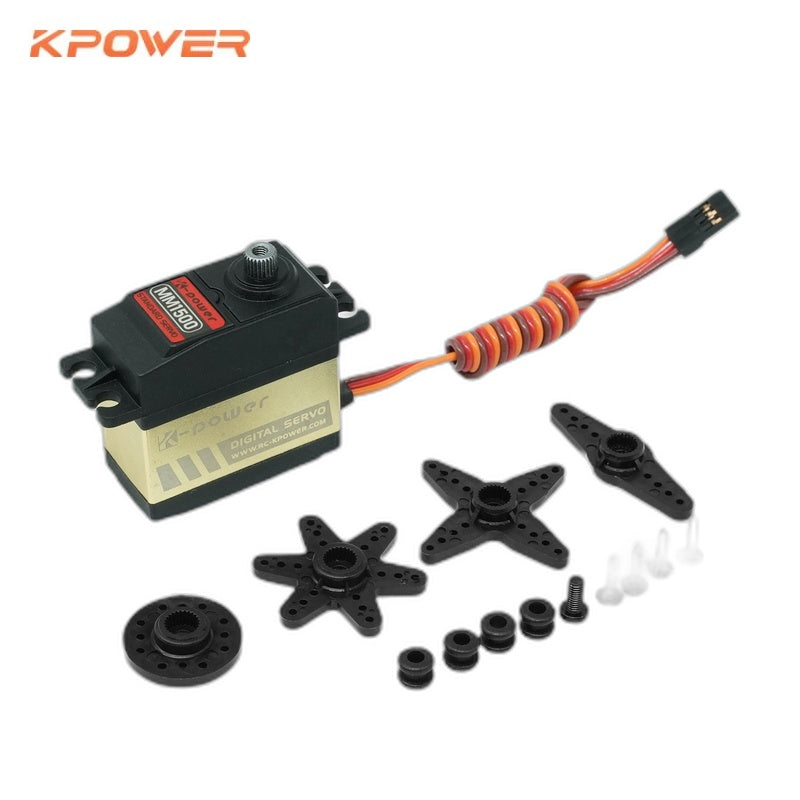

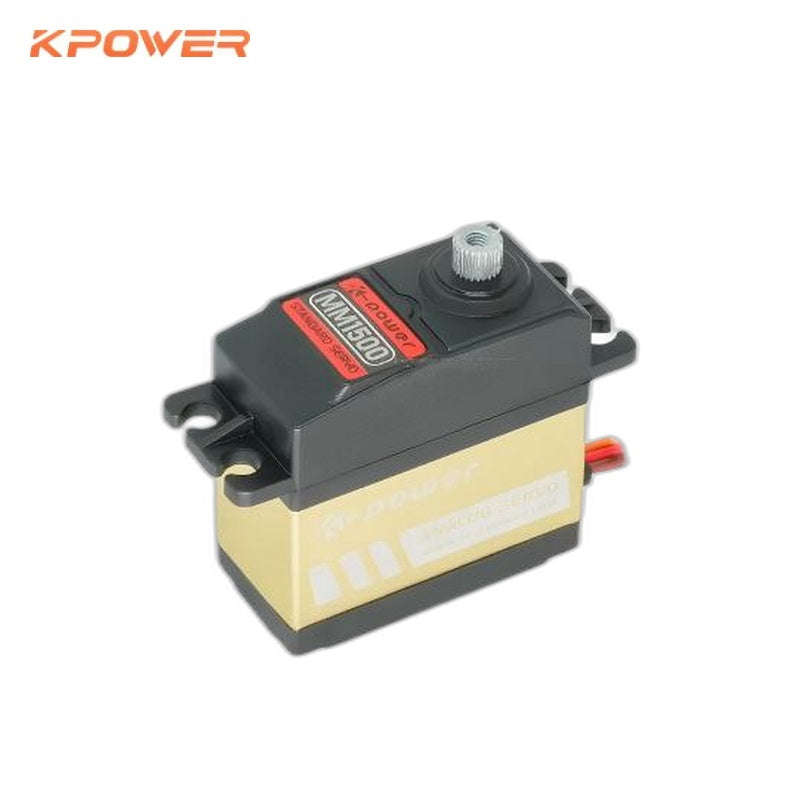

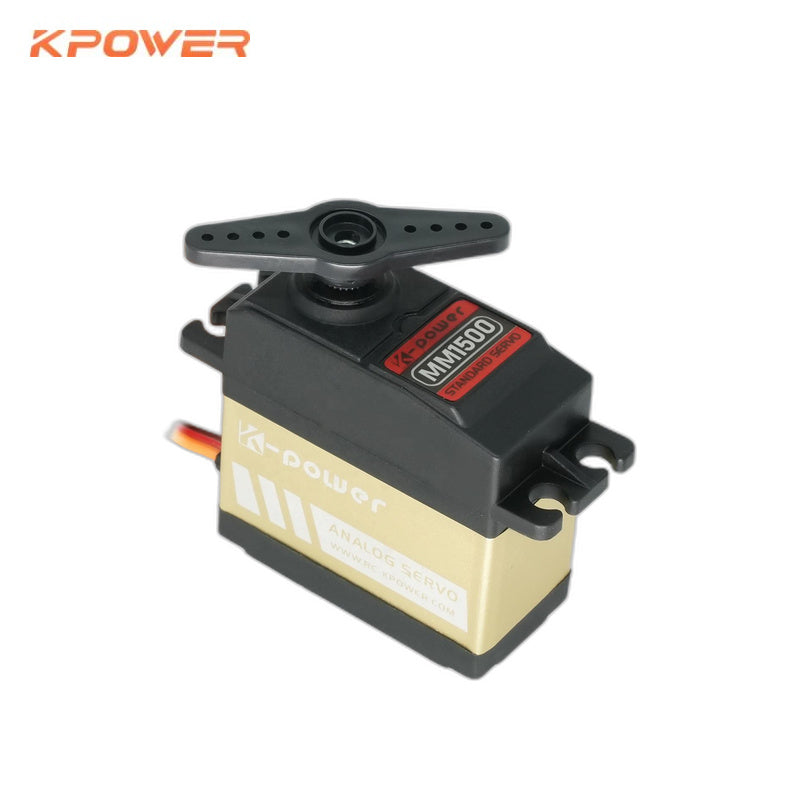

Kpower MM1500 Servo Motor
Regular price
$25.00
Unit price
Kpower MM1500 Servo Motor - MM1500 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Kpower MM1500 Servo Motor
Regular price
$25.00
Unit price
Kpower MM1500 Servo Motor - MM1500 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Model Type | Digital Servo MM1500 |
| Motor Type | DC Brushed |
| Case material | Aluminum Mid Case |
| Gear material | Metal |
| Bearing Type | 2BB |
| Weight | 58 g / 2 oz |
| Dimension | 40 × 20 × 37.5 mm³ / 1.6 × 0.8 × 1.6 in³ |
| Operation Voltage | 4.8 ~ 6 V |
| Torque | 4.8V: 15.5 kg·cm (214 oz·in) 6.0V: 16.3 kg·cm (225 oz·in) |
| Speed | 4.8V: 0.15 sec/60° 6.0V: 0.13 sec/60° |
| Pulse Width | 900 ~ 2100 μs |
| Dead band width | 4 μs |
| Interface Type | JR / FT / JST1.5 / JST2.0 / Other |
| Operating Temperature | -20 to 60 °C |
| Splining | 25T |
| Wire Length | 20 cm |
| Certification | CE & FCC |
| Application | RC Hobby / RC robot / airplane / car / boat / Retract landing gear |
| Service | One year Warranty. Customized and OEM are available. |
