Kpower M0300 Servo Motor
Regular price
$25.00
Unit price
Kpower M0300 Servo Motor - M0300 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Kpower M0300 Servo Motor
Regular price
$25.00
Unit price
Kpower M0300 Servo Motor - M0300 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Stall Torque | 4.5 kg |
| Rated Torque | 1 kg |
| No-load Speed | 0.12 s |
| Weight | 58 g |
| Dimension | 40.7 × 19.8 × 37.7 mm |
| Travel Angle Range | 120° (Customizable) |
| Operating Voltage | 4.8 ~ 8.4 V |
| Horn Gear Spline | 25T φ5.7 mm |

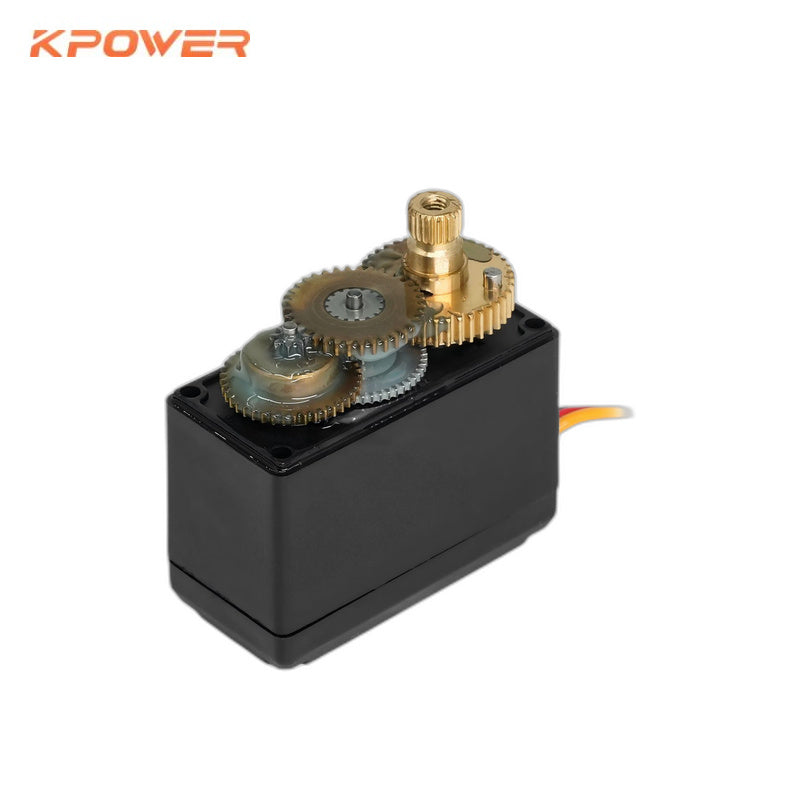

| Gear Material | Metal |
| Motor | DC Brushed |
| Protocol | PWM | TTL | RS-485 |
| No-load Current | 2500 mA |
| Position Sensor | Potentiometer |
| Case Material | Plastic |
| Ball Bearing | 2BB |
| Working Frequency | 50 ~ 333 Hz |
| Operating Temperature | -10 ~ 50°C |
| IP Rating | IP42 |
