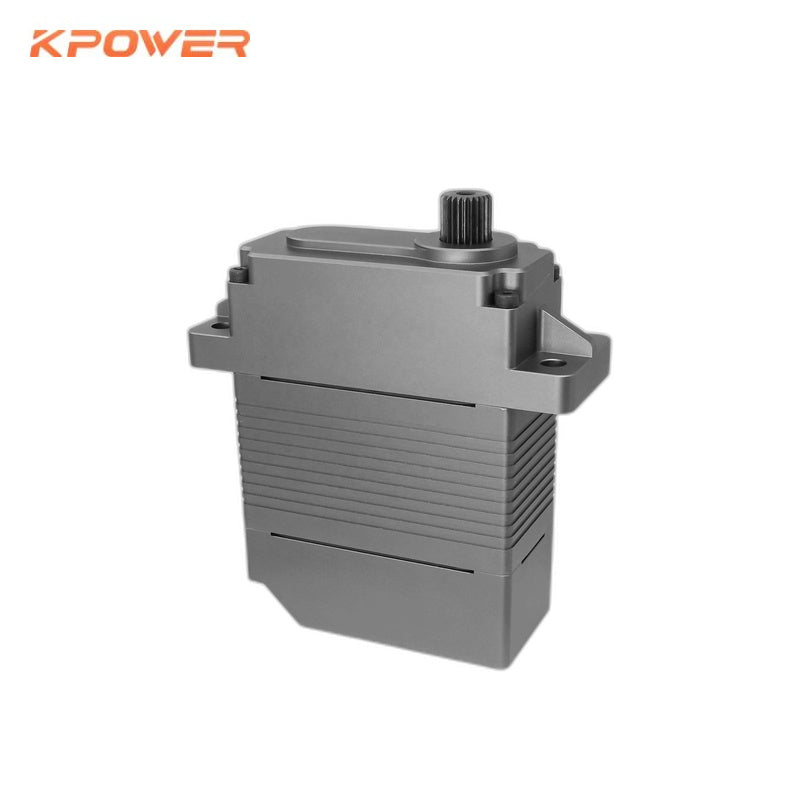

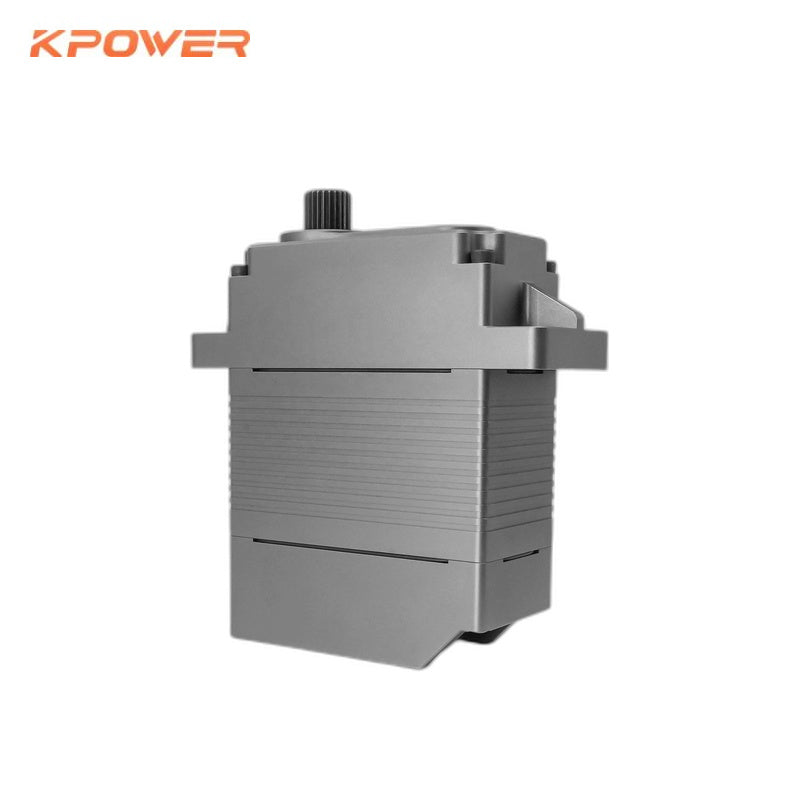

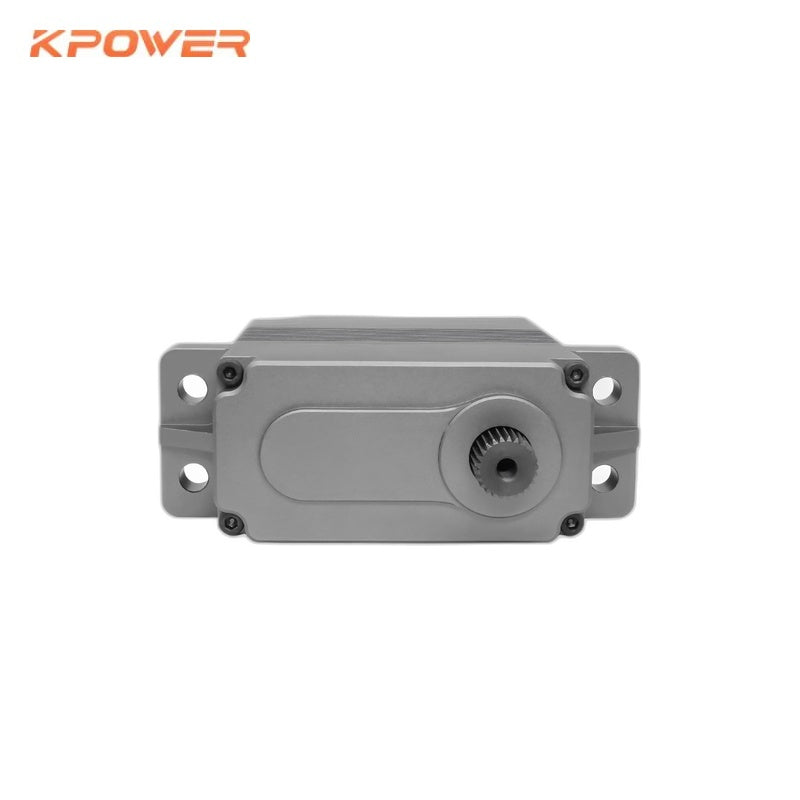

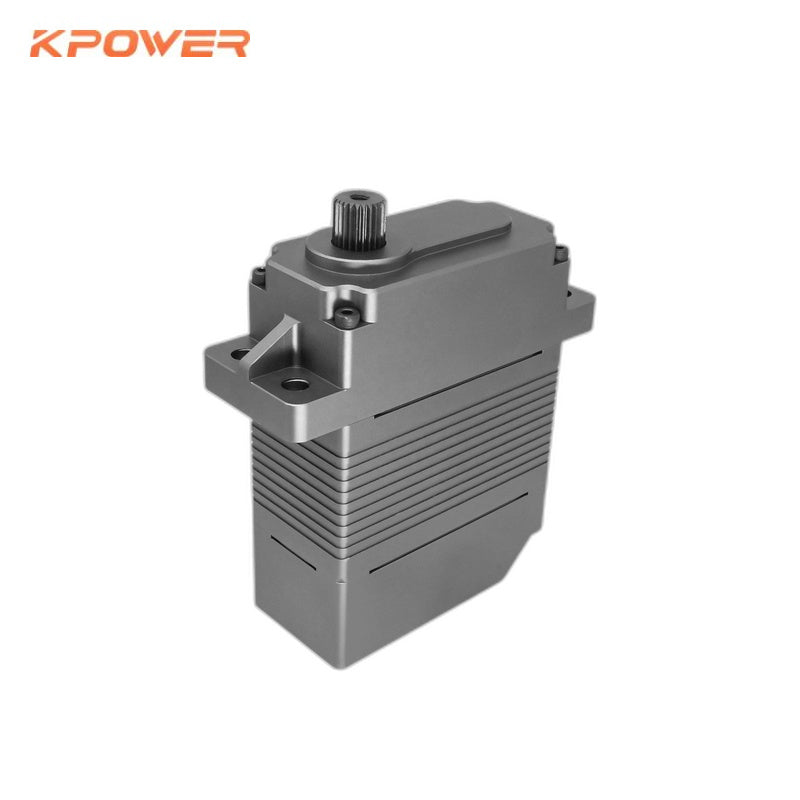

Kpower HB1200T Servo Motor
Regular price
$3,920.00
Unit price
Kpower HB1200T Servo Motor - HB1200T is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Kpower HB1200T Servo Motor
Regular price
$3,920.00
Unit price
Kpower HB1200T Servo Motor - HB1200T is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Stall Torque | 1200 kg |
| Rated Torque | 300 kg |
| No-load Speed | 0.25 s |
| Weight | 1700 g |
| Dimension | 98.7 × 48 × 131.1 mm |
| Travel Angle Range | 120° (Customizable) |
| Operating Voltage | 24 ~ 32 V |
| Horn Gear Spline | 25T φ16 mm |
| Gear Material | Steel |
| Motor | Brushless |
| Protocol | PWM | TTL | RS-485 |
| No-load Current | 30000 mA |
| Position Sensor | Magnetic Encoder |
| Case Material | Aluminum Alloy |
| Ball Bearing | 6BB |
| Working Frequency | 50 ~ 333 Hz |
| Operating Temperature | -40 ~ 85°C |
| IP Rating | IP42 |
