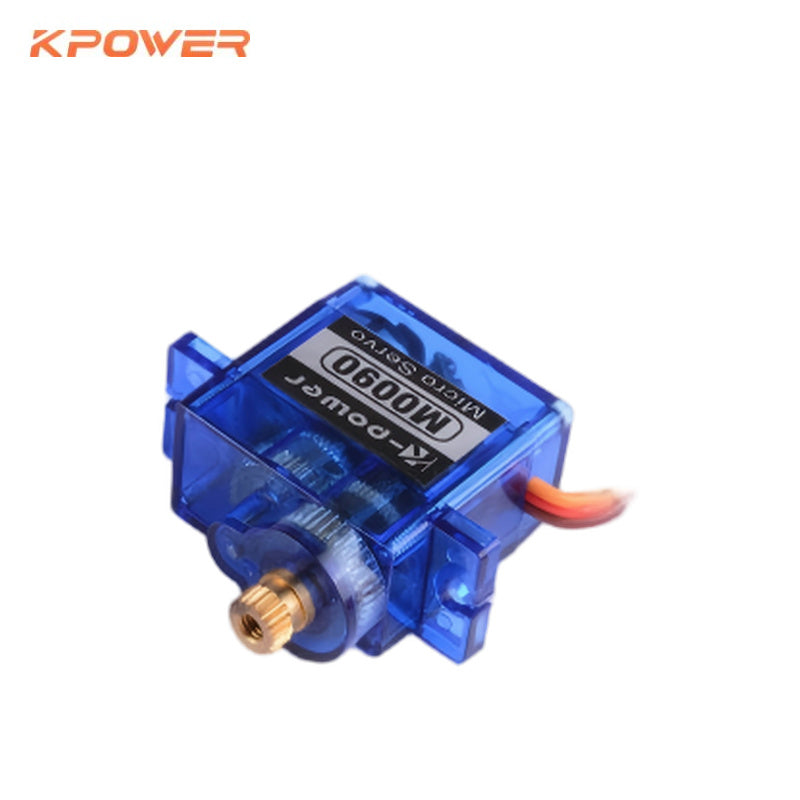

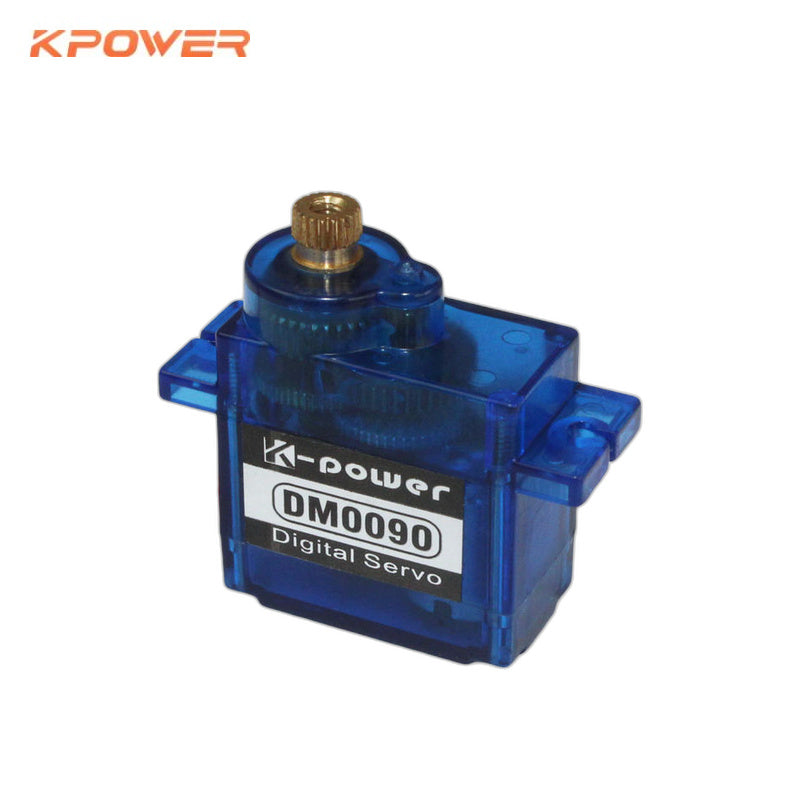

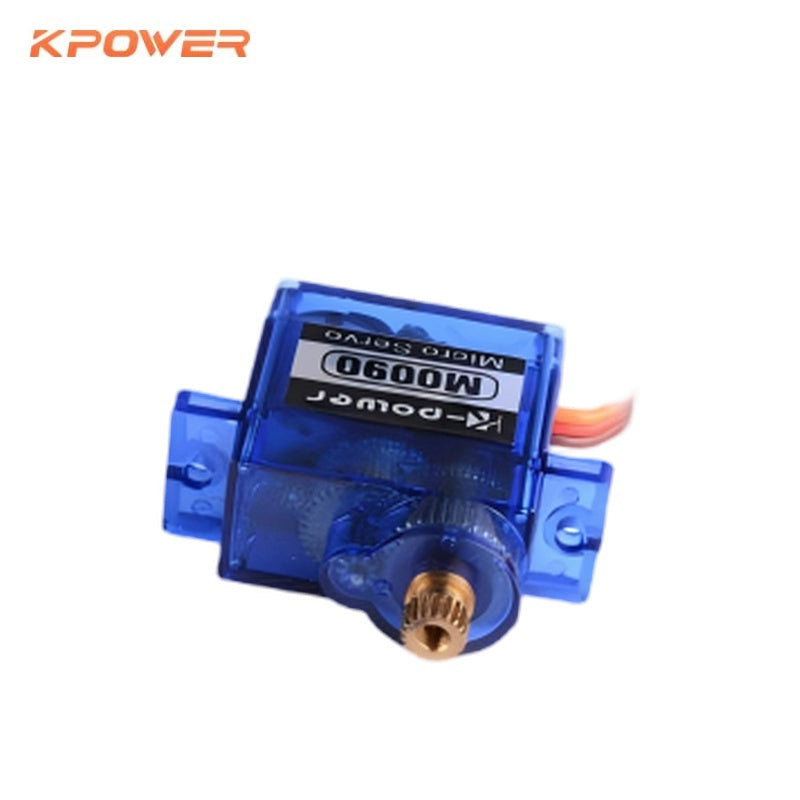

Kpower DM0090 Servo Motor
Regular price
$25.00
Unit price
Kpower DM0090 Servo Motor - DM0090 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Kpower DM0090 Servo Motor
Regular price
$25.00
Unit price
Kpower DM0090 Servo Motor - DM0090 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Gear Material | Metal |
| Communication Protocol | PWM |
| Case Material | Plastic |
| Motor Type | Core |
| Operating Temperature | -10°C ~ +50°C |
| Dead Band | 5 μs |
| Travel Angle | 120° ± 15° |
| Pulse Width Range | 900 ~ 2100 μs |
| Operating Voltage Range | 4.8 V ~ 6.0 V |
| Dimensions | 22.4 × 12.5 × 22.8 mm |
| Weight | 14 g ± 1 g |
| Wire Gauge | 30 AWG PVC |
| No load speed | 4.8V: 0.09 ± 0.01 sec/60° 6.0V: 0.08 ± 0.01 sec/60° |
| Stall torque | 4.8V: 2.0 ± 0.20 kg·cm 6.0V: 2.5 ± 0.20 kg·cm |
| No load current | 4.8V: 300 ± 30 mA 6.0V: 350 ± 30 mA |
| Stall current | 4.8V: 700 ± 40 mA 6.0V: 800 ± 40 mA |
