Kpower | SKU:

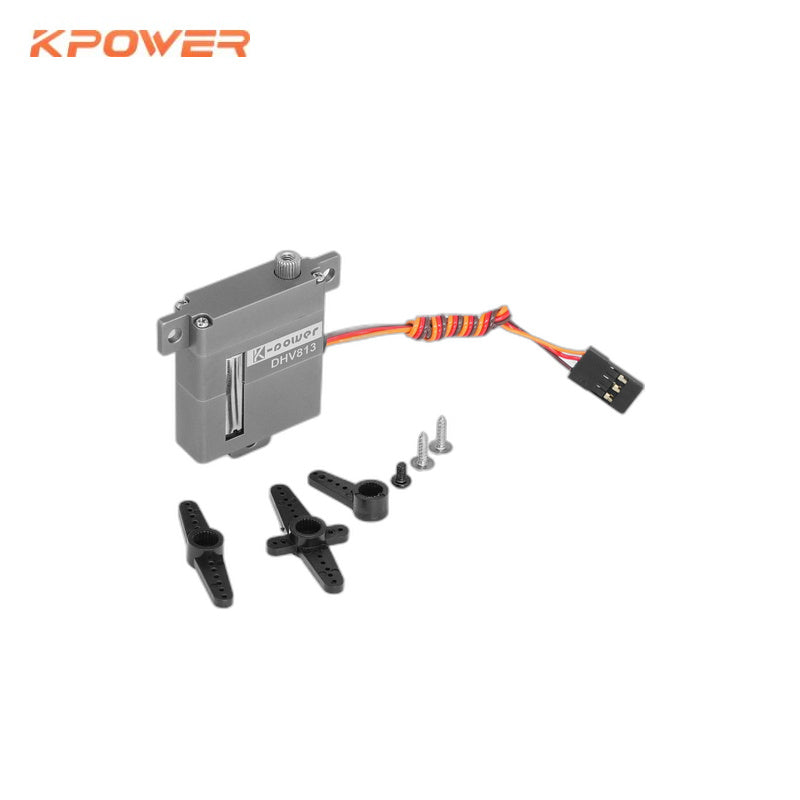

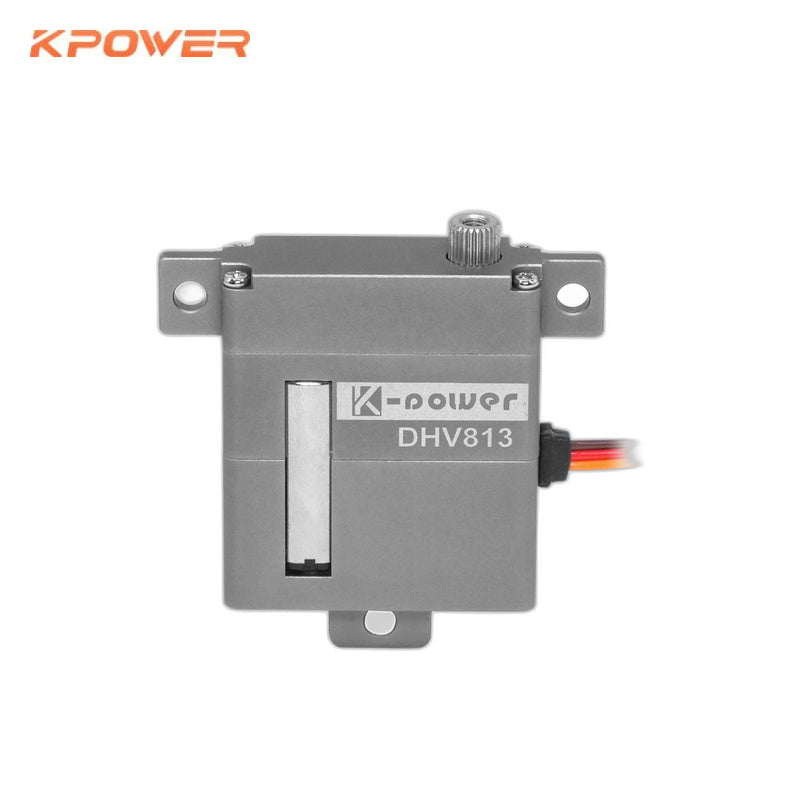

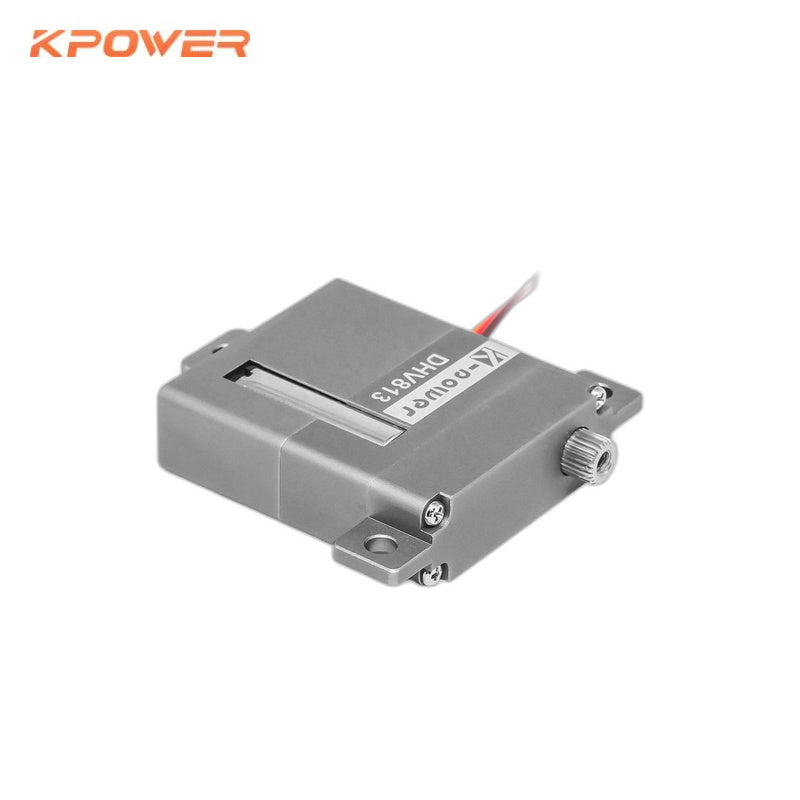

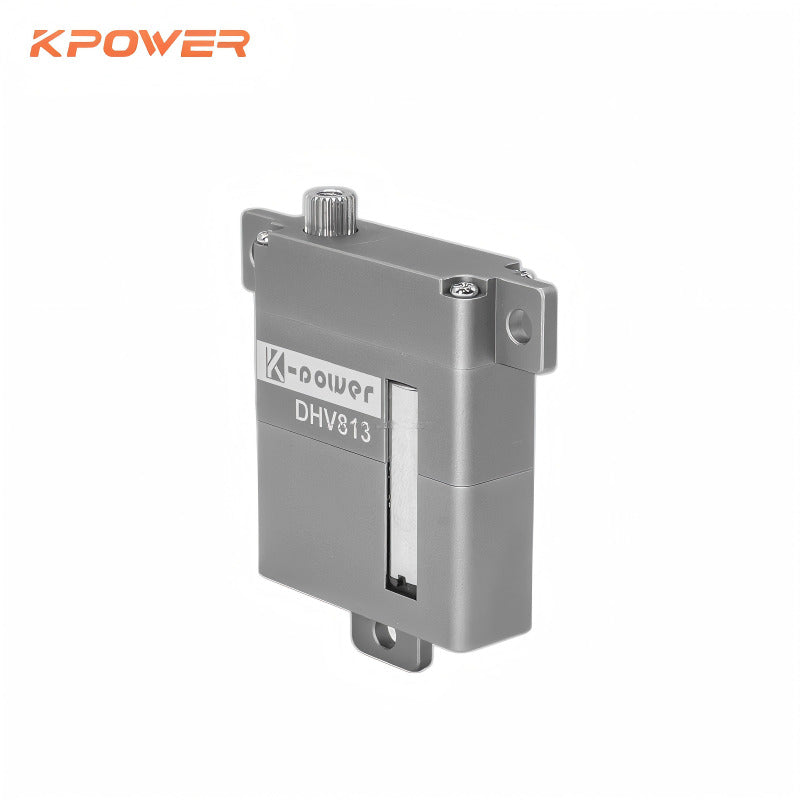

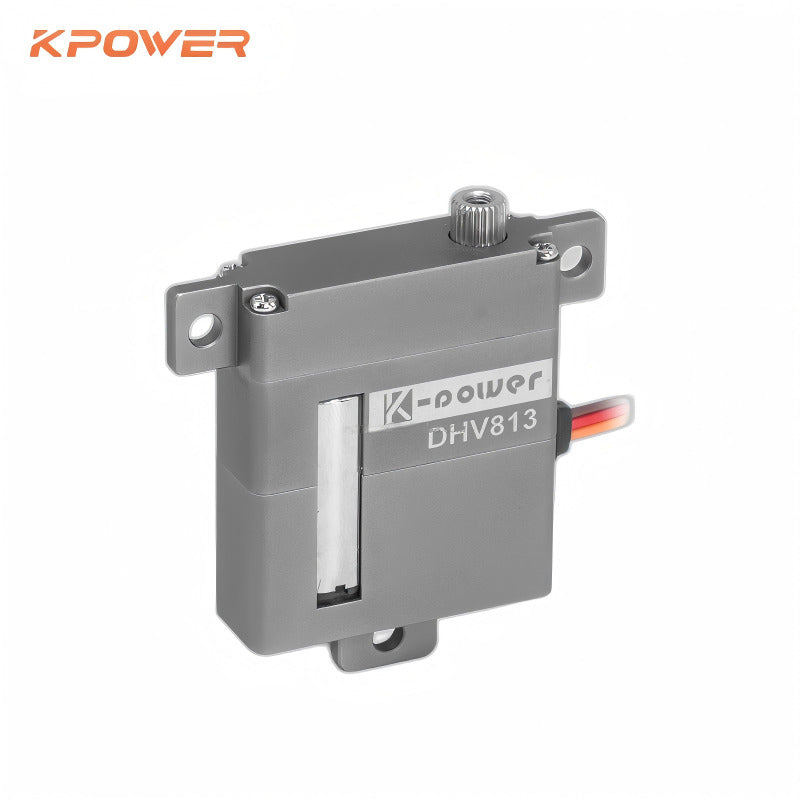

Kpower DHV813 Servo Motor
Regular price
$60.00
Unit price
Kpower DHV813 Servo Motor - DHV813 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Kpower DHV813 Servo Motor
Regular price
$60.00
Unit price
Kpower DHV813 Servo Motor - DHV813 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Stall Torque | 9 kg·cm |
| No-load Speed | 0.09 sec/60° |
| Travel Angle | 120° (custom supported) |
| Voltage Range | 6 V |
| Dimensions | 30 × 10 × 35 mm |
| Weight | 29 g (1.02 oz) |
| Stall Current | 2500 mA |
| Case Material | Aluminum Alloy |
| Gear | Metal |
| Spline | 25T Φ5 mm |
| Motor | Coreless Motor |
| Bearing | 2BB |
| Position Sensor | Potentiometer |
| Signal & Protocol | PWM | UART-TTL | RS-485 |
| Waterproof | IP42 |
| Operating Temperature | -10 ~ 50°C |
