BWSENSING | SKU:

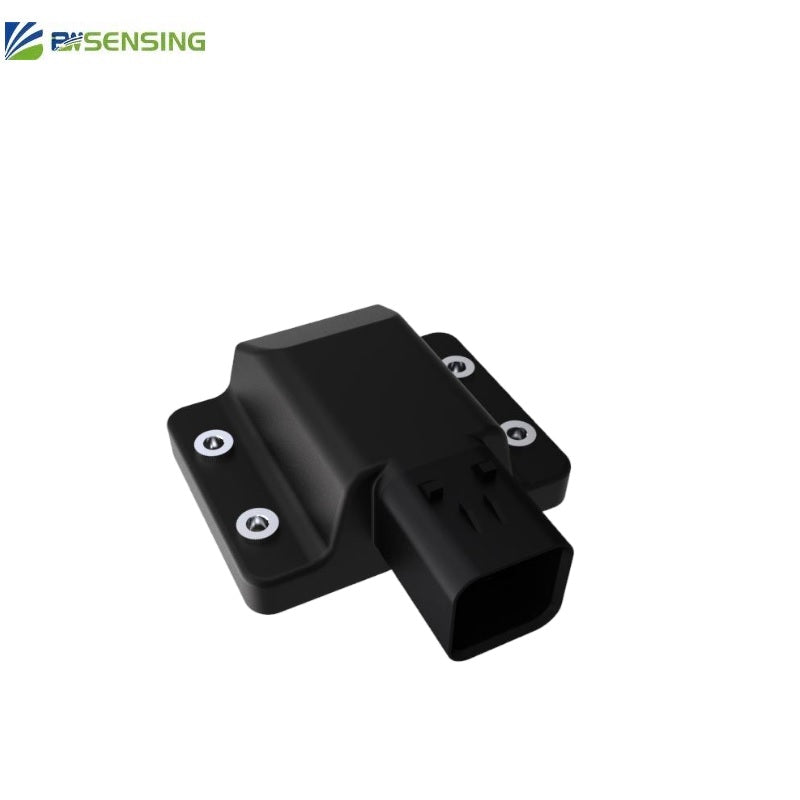

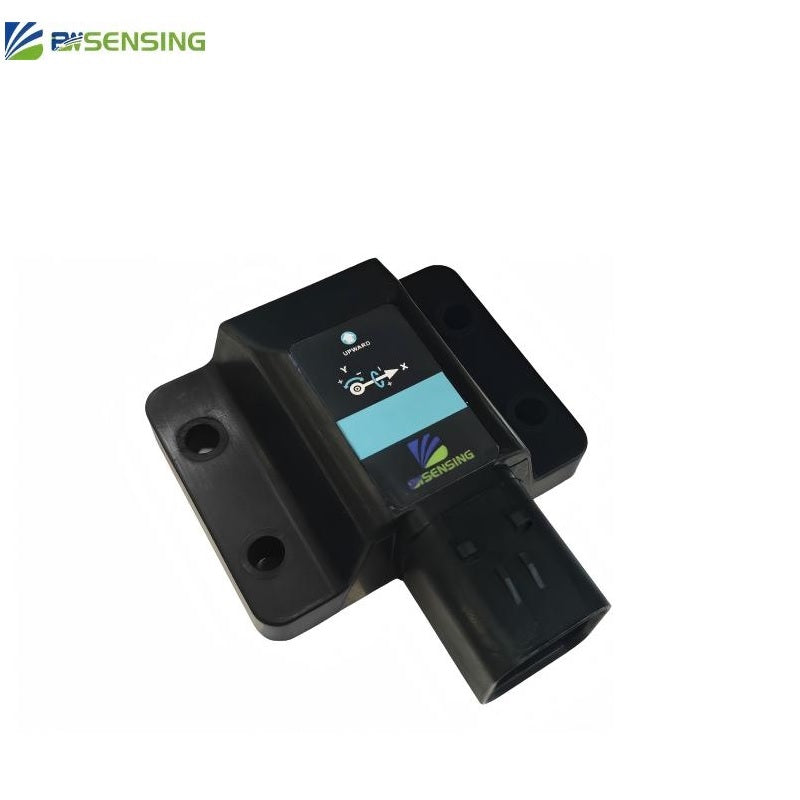

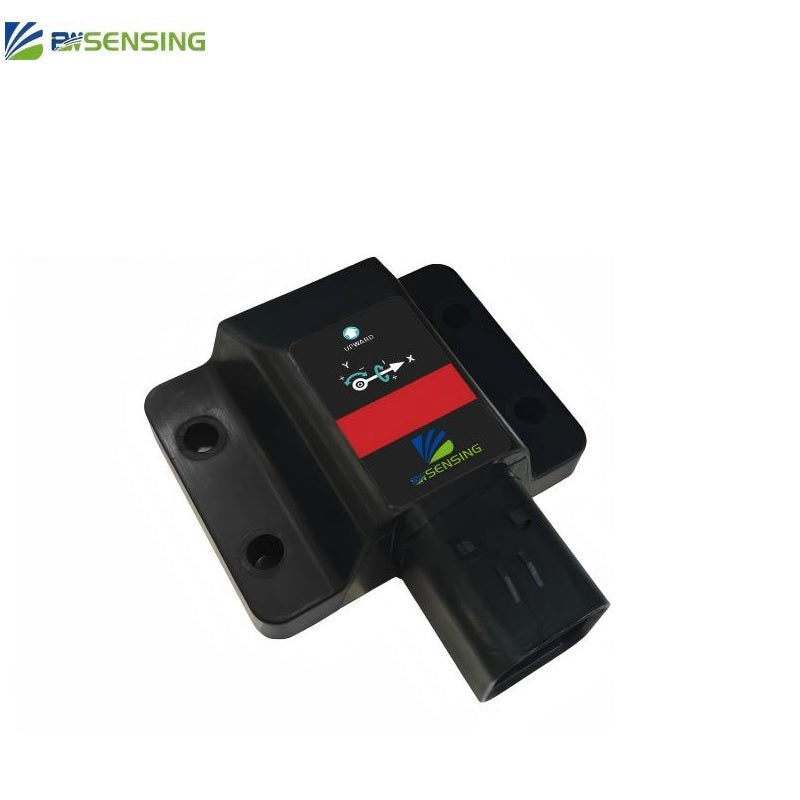

BWSENSING BW-VG55R Sensor
Regular price
$260.00
Unit price
Unavailable
BWSENSING BW-VG55R Sensor - BW-VG55R (Horizontal installation) is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
BWSENSING BW-VG55R Sensor
Regular price
$260.00
Unit price
Unavailable
BWSENSING BW-VG55R Sensor - BW-VG55R (Horizontal installation) is backordered and will ship as soon as it is back in stock.
Product Information
Technical Specifications
| Parameter | Value |
|---|---|
| Model | BW-VG55R |
| Power supply | 9-36V DC |
| Working current |
30mA (60mA MAX) |
| Working Temperature | -40~+80℃ |
| Storage Temperature |
-55~+100℃ |
| Range (Gyroscope) | ±500°/s |
| Range (Accelerometer) | ±8g，±4g |
| Resolution (Gyroscope) | 0.018°/s |
| Resolution (Accelerometer) | 0.25mg, 0.13mg |
| Total temperature zero deviation(-20°℃~+60°℃)(Gyroscope) | X、Y、Z: 0.1°/s |
| Total temperature zero deviation(-20°℃~+60°℃)(Accelerometer) | X、Y、Z:5mg Z:40mg |
| Zero bias instability (Gyroscope) |
5°/h (Allan)
|
| Zero bias instability (Accelerometer) | 0.05mg (Allan) |
| Dynamic accuracy (lowdynamic scenarios) | 1° (RMS) |
| static accuracy | 0.1° (RMS) |
| Resolution |
0.01° |
| Tilt angle |
pitch±80°，roll±180° |
| Size |
L70*W80*H27.9(mm) |
| Maximum output frequency |
200Hz |
| CAN |
25kbps-1mbps |
|
EMC
|
Follow GBT17626 |
|
insulation resistance
|
≥100MΩ |
|
shock resistance
|
2000g，0.5ms，3times/axis |
