BWSENSING | SKU:

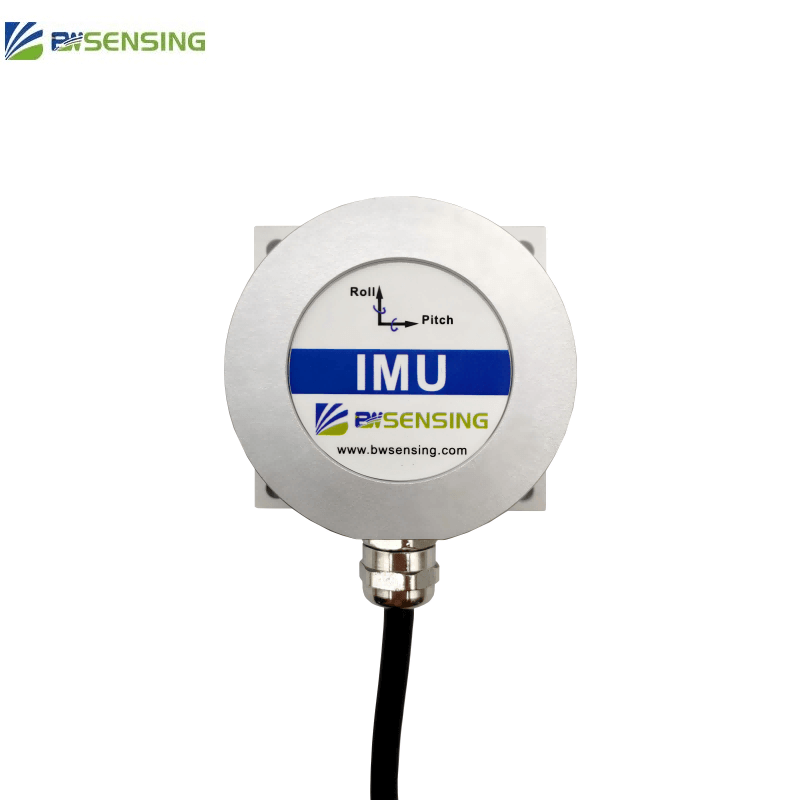

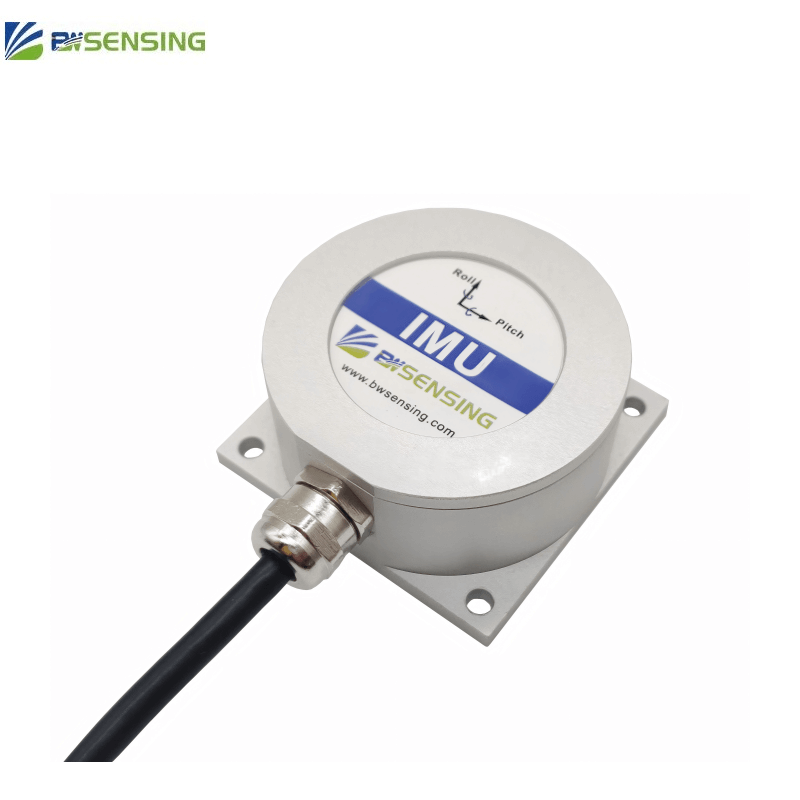

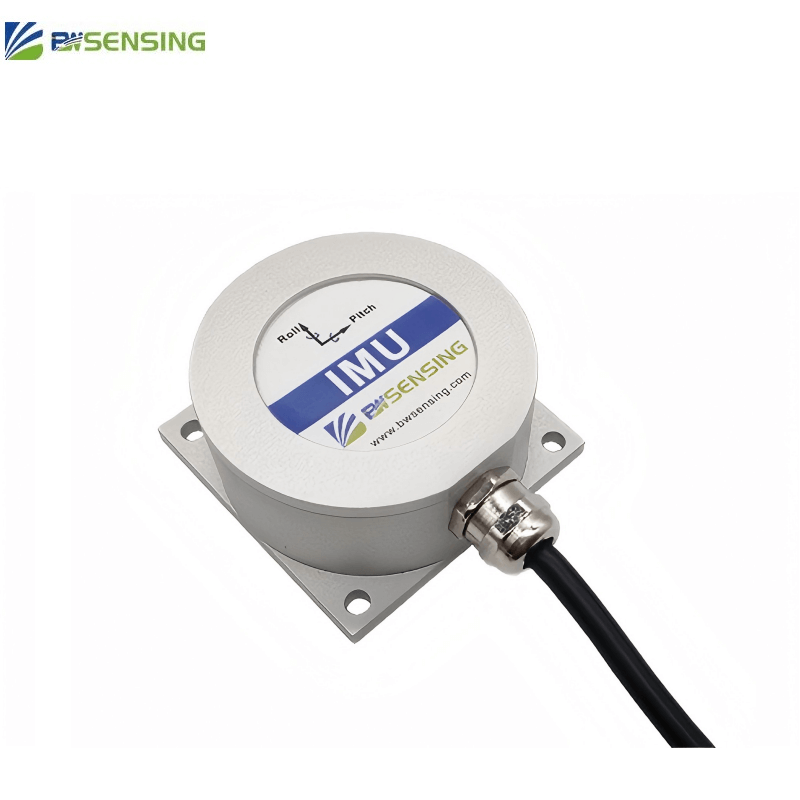

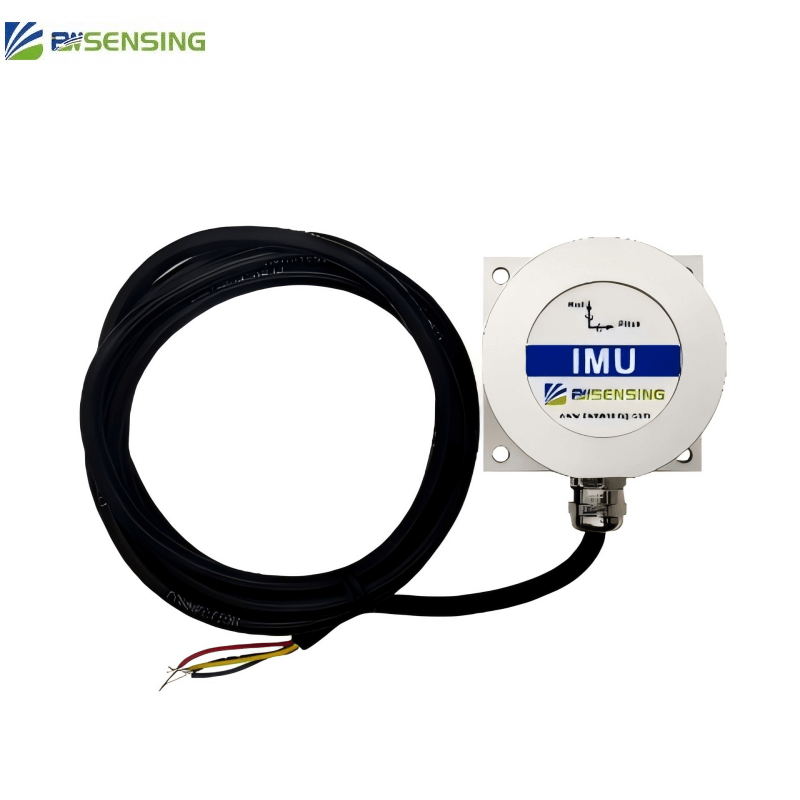

BWSENSING BW-IMU127C Sensor
Regular price
$340.00
Unit price
/
Unavailable
BWSENSING BW-IMU127C Sensor - BW-IMU127C is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Product Information
Technical Specifications
Parameter | Value |
---|---|
Model | IMU127C |
Power voltage | 9-36V DC |
Working current |
30mA (40mA Max) |
Operating Temperature | -40°C~+85°C |
Storage Temperature |
-55°C~+100℃ |
Resolution | 0.01°/sec |
Range | ±400°/sec |
Bias stability at room temperature | <0.5 °/h(100s,1σ) <30 °/h(10s,1σ) |
Bias stability at full temperature | <20 °/h(10s,1σ) |
Angle random walk coefficient | <0.1 °/√h |
Bias repeatability | <50 °/h(1σ) |
Scale factor non-linearity |
≤100ppm(1σ)
|
Scale factor repeatability | ≤100ppm(1σ) |
Bandwidth | 100Hz |
Range: X, Y, Z | ±3.6 g |
Resolution |
0.01 mg |
Bias stability | 0.001mg(25℃,100s,1σ) 0.01mg(25℃,10s,1σ) |
Connector |
Metal joint(Cable 1.5m) |
Protection level |
IP67 |
Shell material |
Magnesium aluminum alloy anodizing |
Installation
|
Four M4 screws |
