ZHONGLING TECHNOLOGY | SKU:

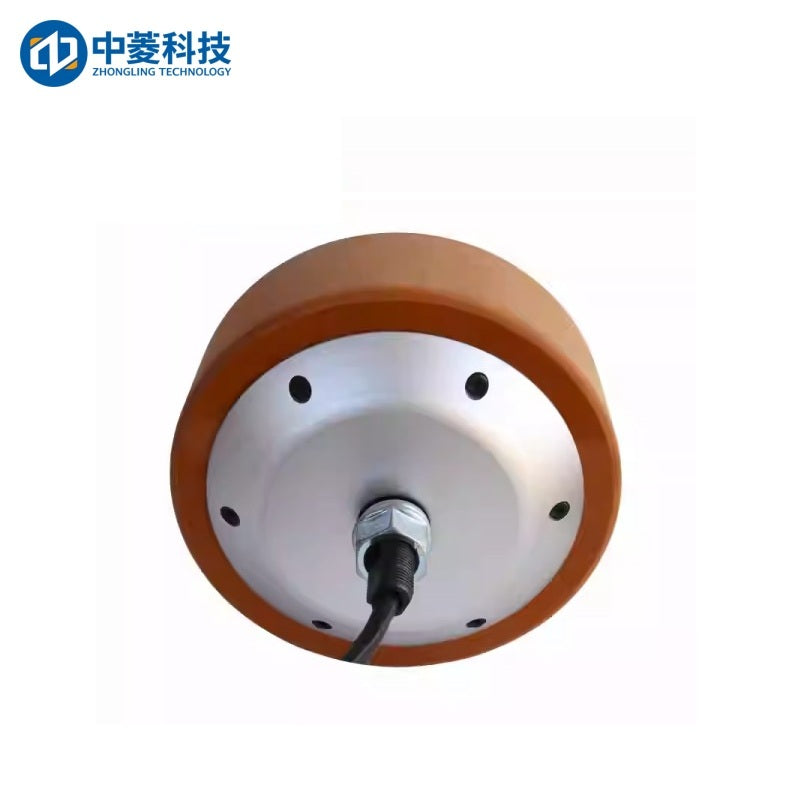

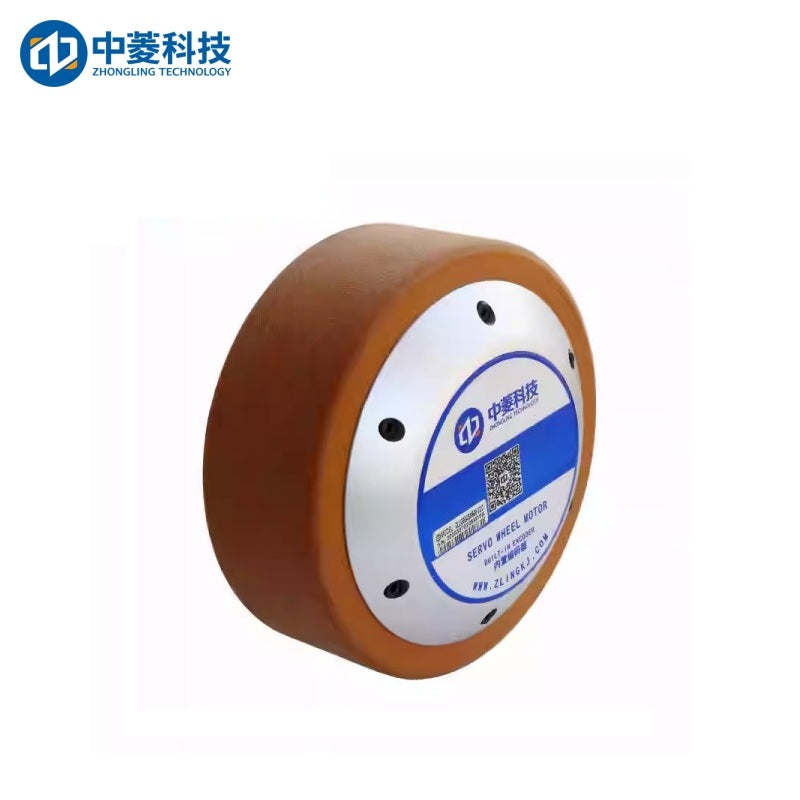

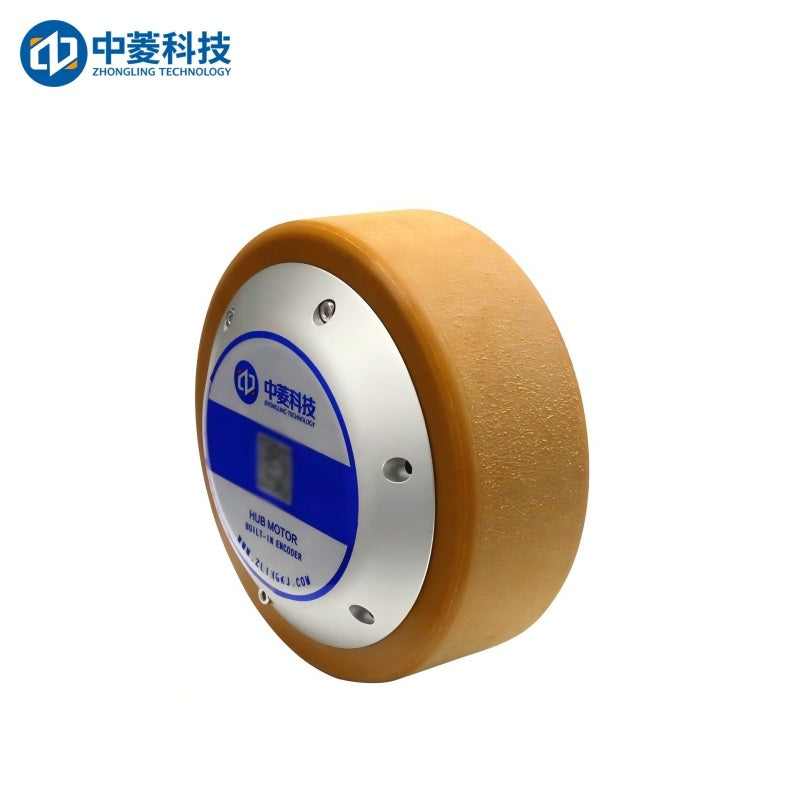

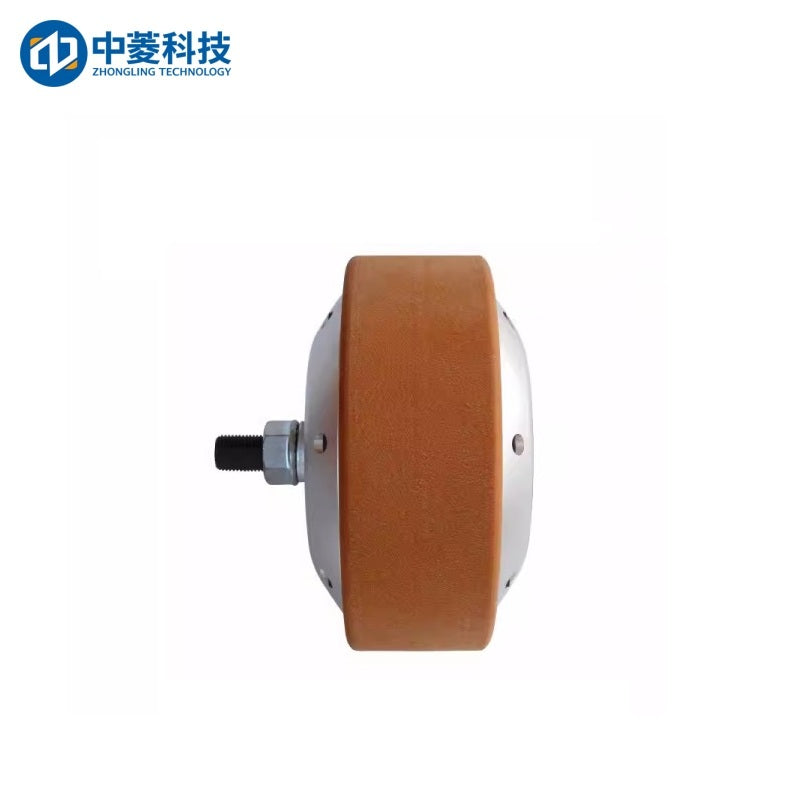

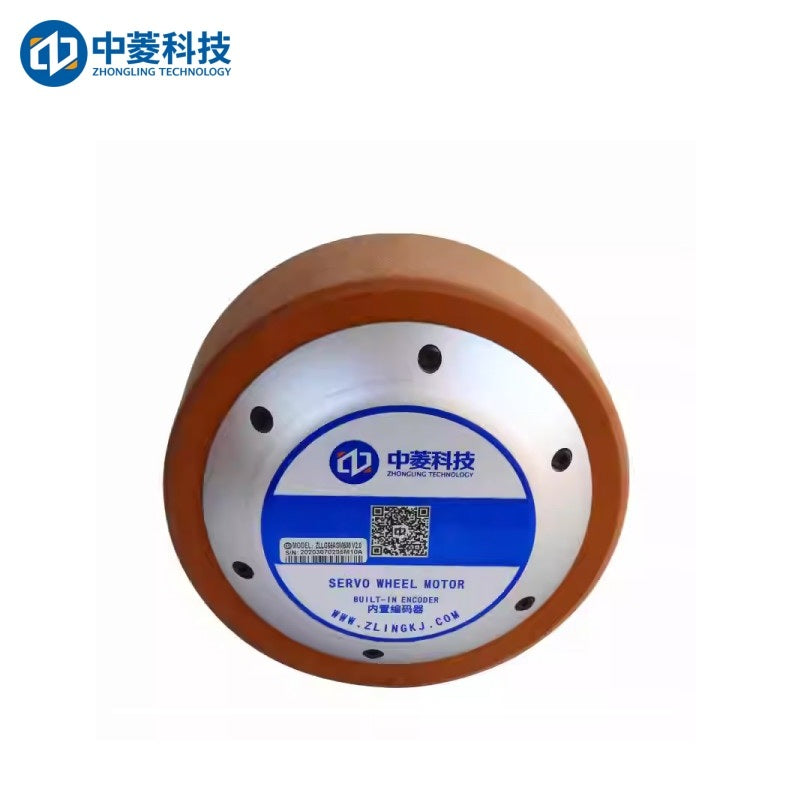

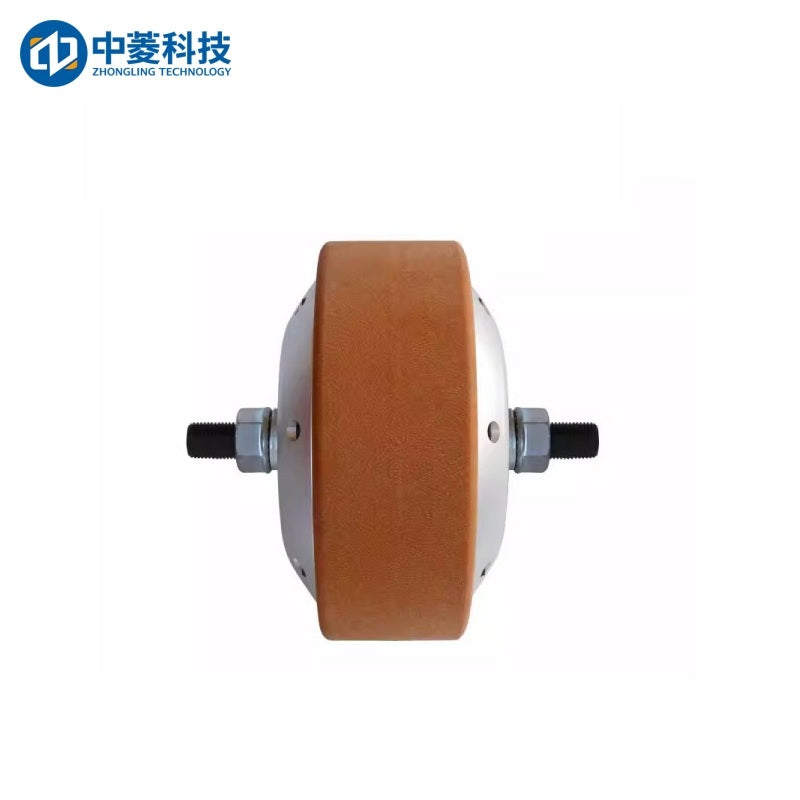

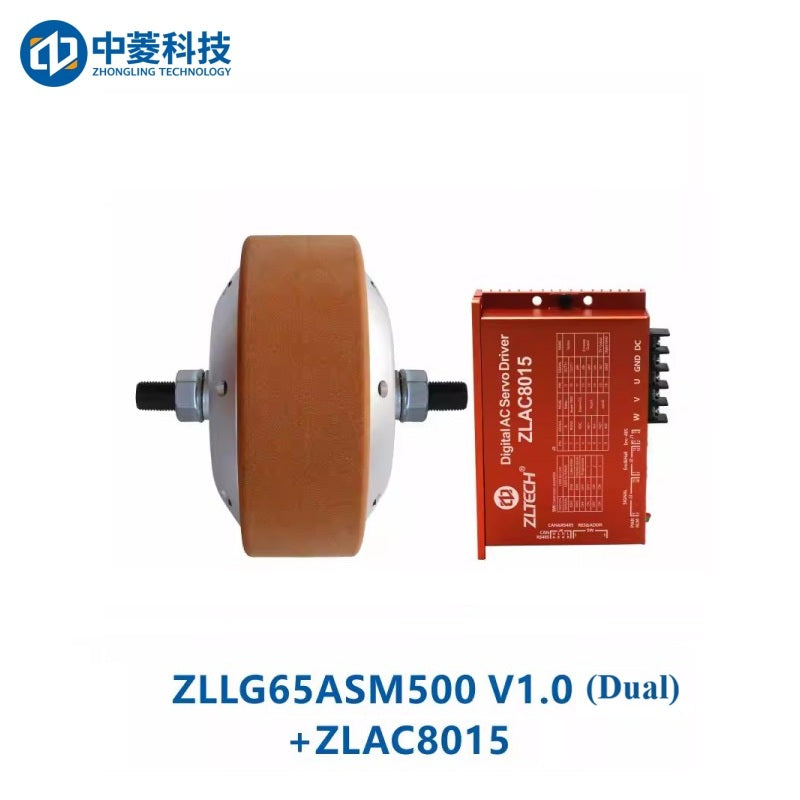

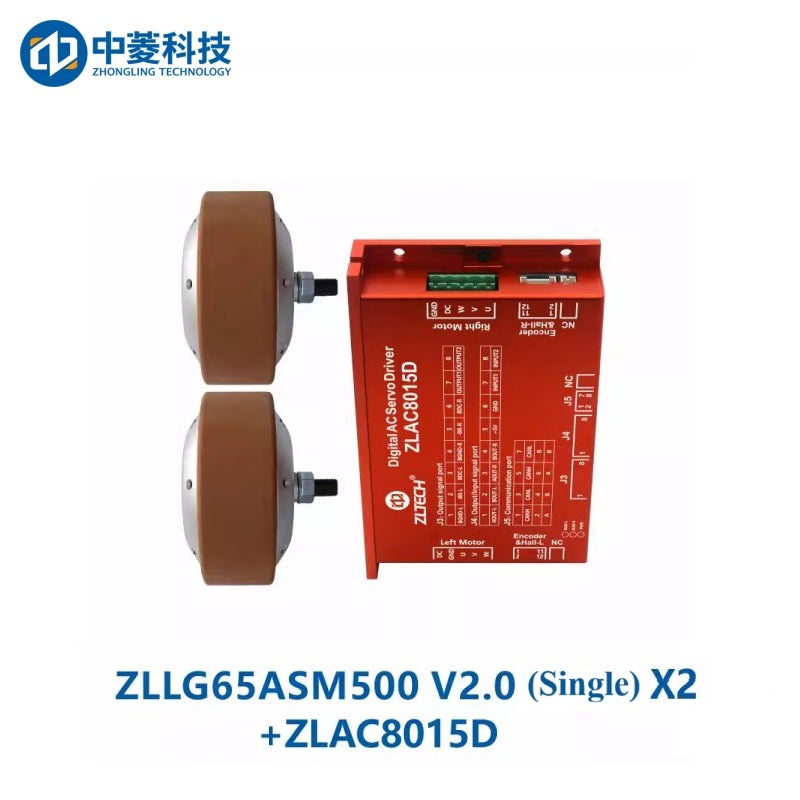

ZHONGLING ZLLG65-ASM500 V2.0 Motor
Regular price
$250.00
Unit price
ZHONGLING ZLLG65-ASM500 V2.0 Motor - Single Shaft / Not Incloud Driver is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
ZHONGLING ZLLG65-ASM500 V2.0 Motor
Regular priceFrom
$250.00
Unit price
ZHONGLING ZLLG65-ASM500 V2.0 Motor - Single Shaft / Not Incloud Driver is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ZLLG65-ASM500 V2.0 Single Axis |
| Outer Diameter | 165±2mm |
| Weight | 4.85KG |
| Rated Voltage | 48VDC |
| Rated Output Power | 500W |
| Rated Torque | 10N.m |
| Instantaneous Maximum Torque |
30N.m |
| Rated Speed |
260RPM |
| Rated Maximum Speed | 360RPM |
| Rated Phase Current |
7A |
| Instantaneous Maximum Current | 21A |
| Pole Pairs | 15 |
| Encoder Lines | 4096 |
| Tire Type | Polyurethane (PU) |
| Brake Method | Electric Brake |
| Protection Class |
IP65 |
| Recommended Load |
< 200KG (dual wheel) |

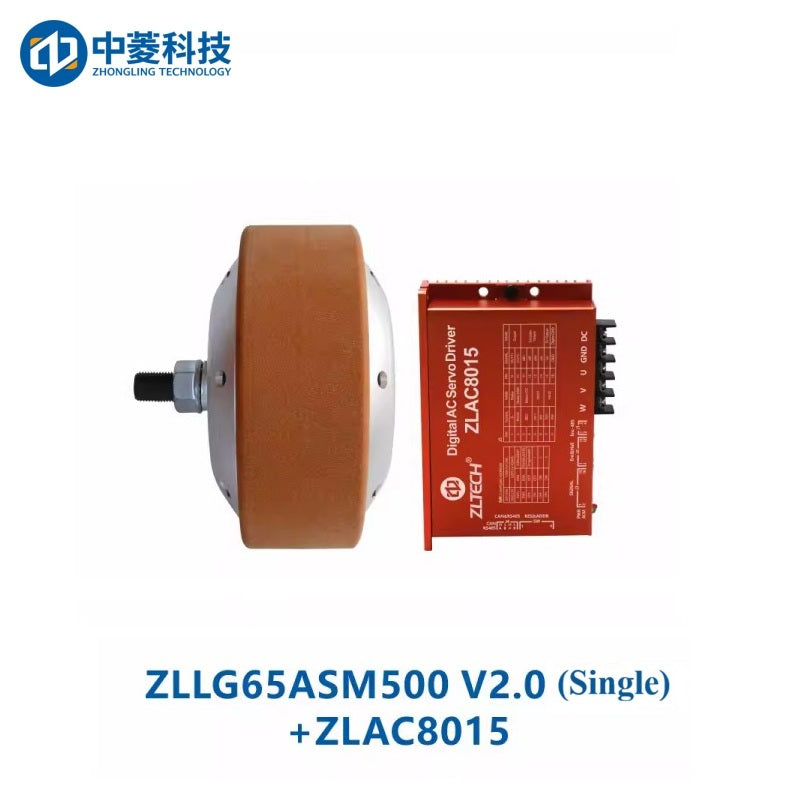

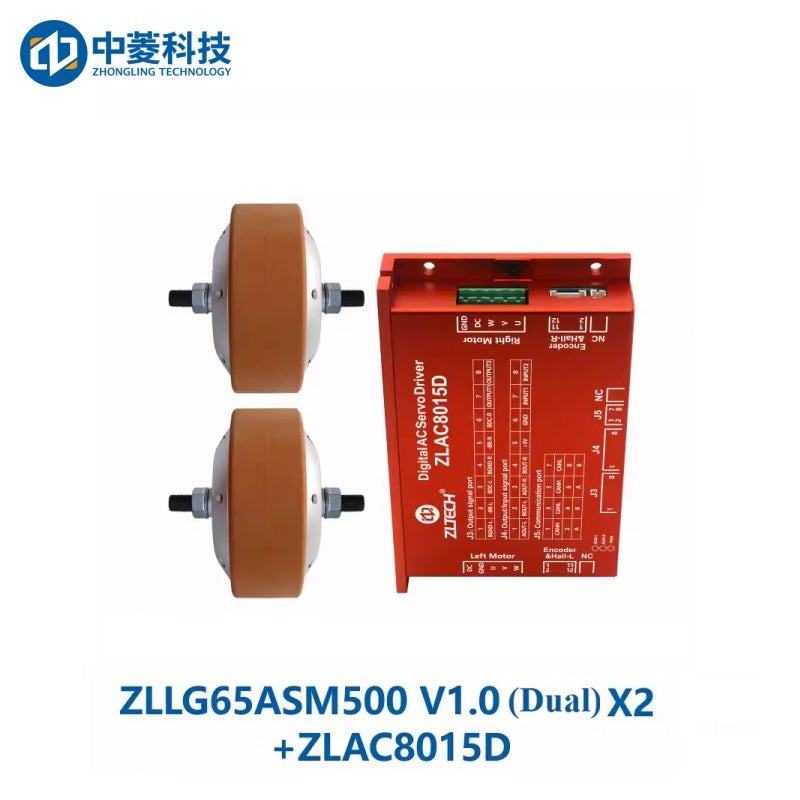

| Compatible Driver | ZLAC8015, ZLAC8030, ZLAC8030L |
ZLLG65-ASM500 V2.0_Motor_Product_instalation_drawing.pdf
ZLAC8015-Drawing.pdf
ZLAC8015D-Drawing.pdf
