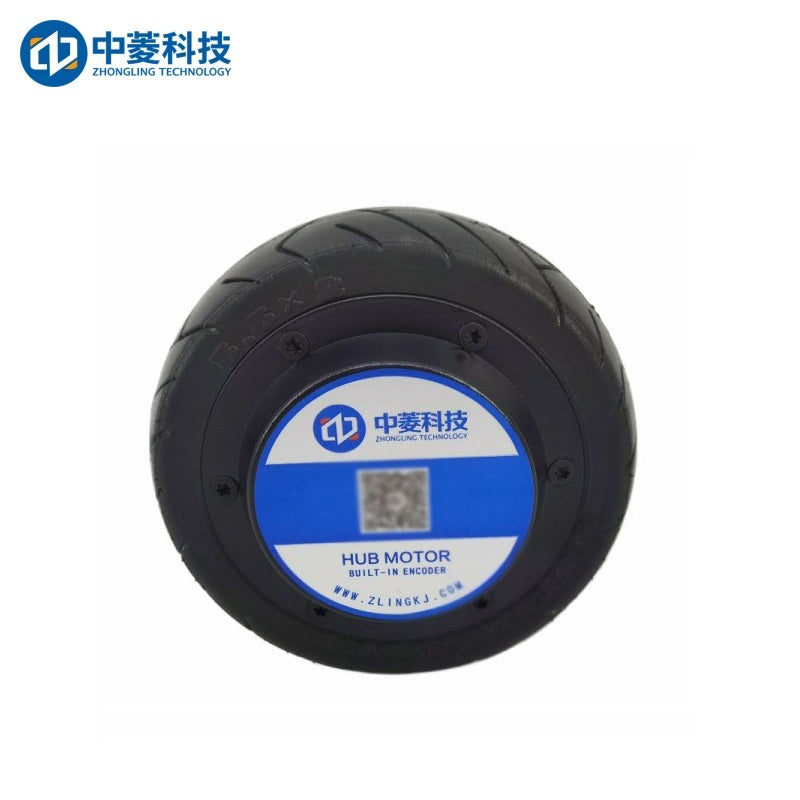

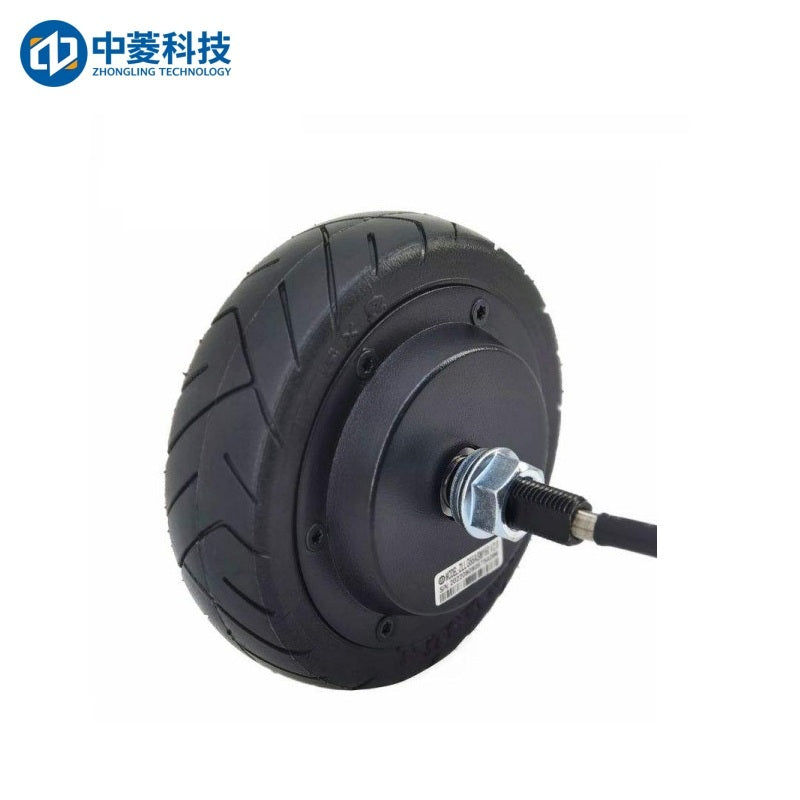

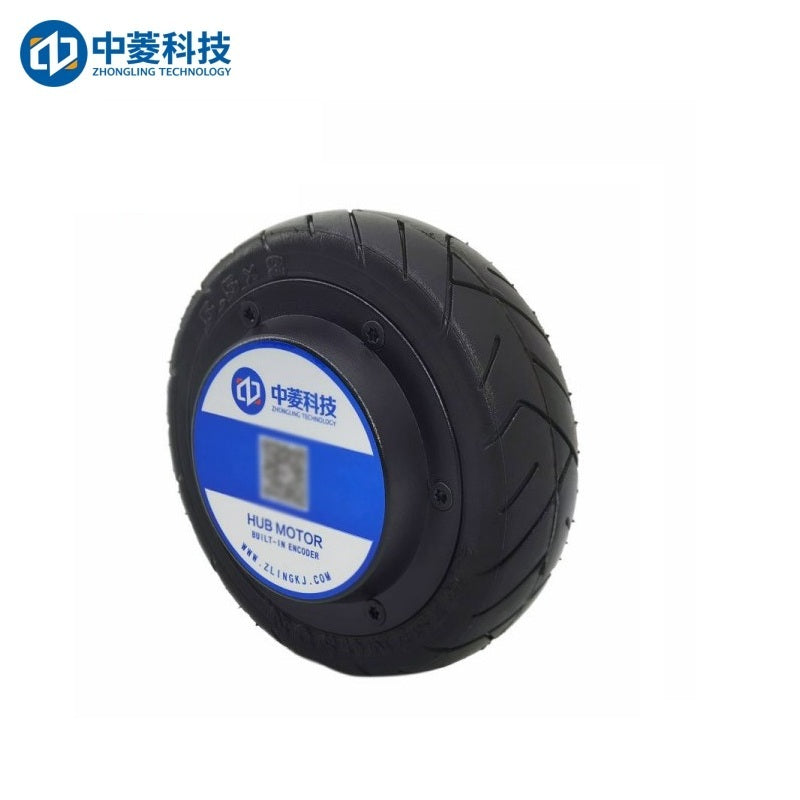

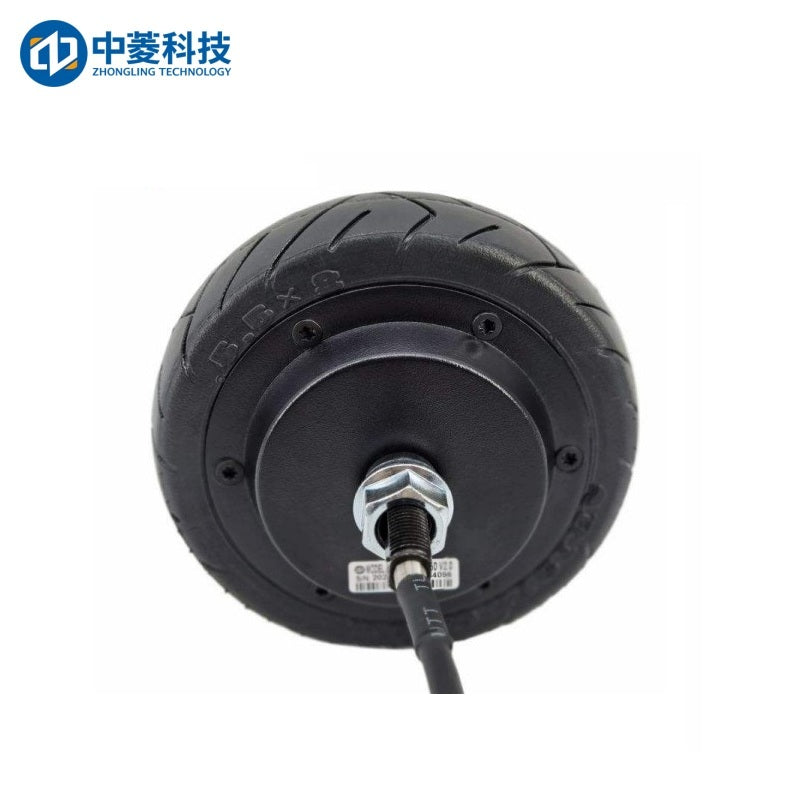

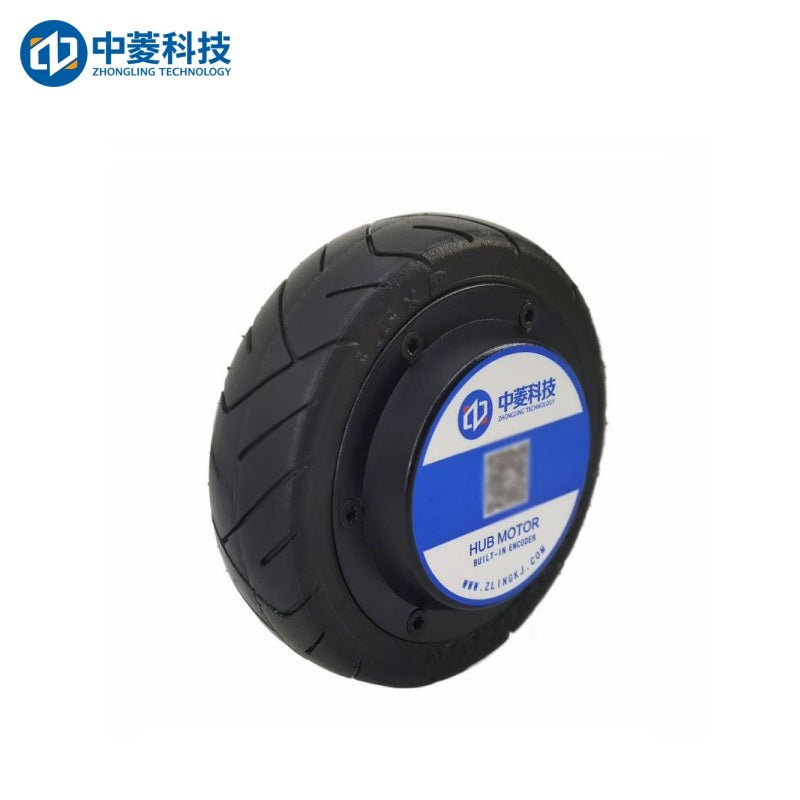

ZHONGLING ZLLG55-ASM150 V2.0 Motor
Regular priceFrom
$110.00
Unit price
ZHONGLING ZLLG55-ASM150 V2.0 Motor - Single Shaft / Not Incloud Driver is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ZLLG55-ASM150V2.0 Single Axis |
| Outer Diameter | 130±2mm |
| Weight | 2.0KG |
| Rated Voltage | 24VDC |
| Rated Output Power | 150W |
| Rated Torque | 3N.m |
| Instantaneous Maximum Torque |
9N.m |
| Rated Speed |
270RPM |
| Rated Maximum Speed | 350RPM |
| Rated Phase Current |
5A |
| Instantaneous Maximum Current | 15A |
| Pole Pairs | 10 |
| Encoder Lines | 4096 |
| Tire Type | Rubber Pattern |
| Brake Method | Electric Brake |
| Protection Class |
IP54 |
| Recommended Load |
< 60KG (dual wheel) |

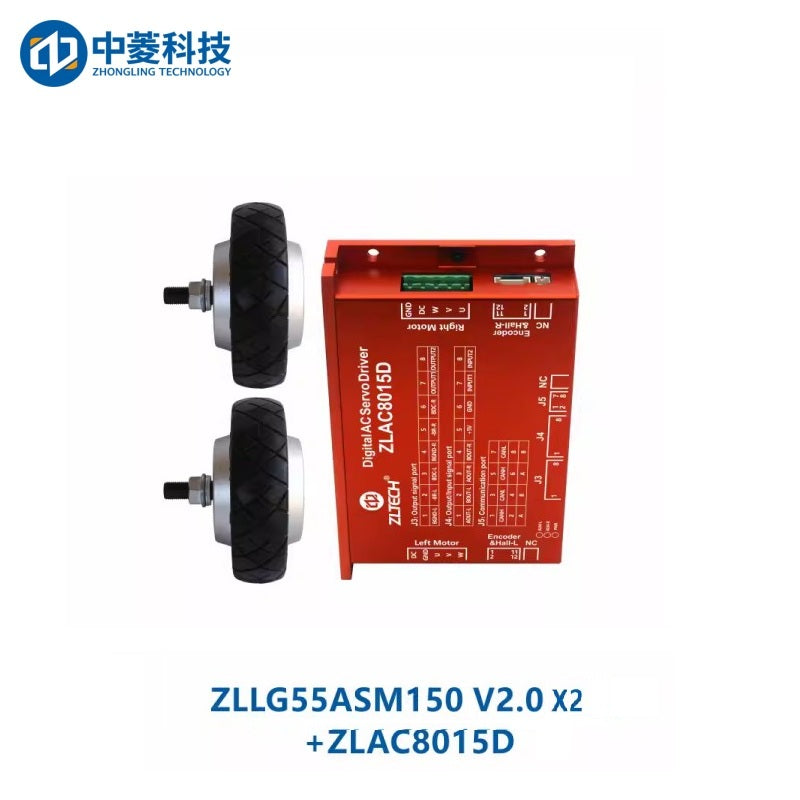

| Compatible Driver | ZLAC8015, ZLAC8015D |
ZLLG55-ASM150 V2.0_Motor_Product_instalation_drawing.pdf
ZLAC8015-Drawing.pdf
ZLAC8015D-Drawing.pdf
