ZHONGLING TECHNOLOGY | SKU:

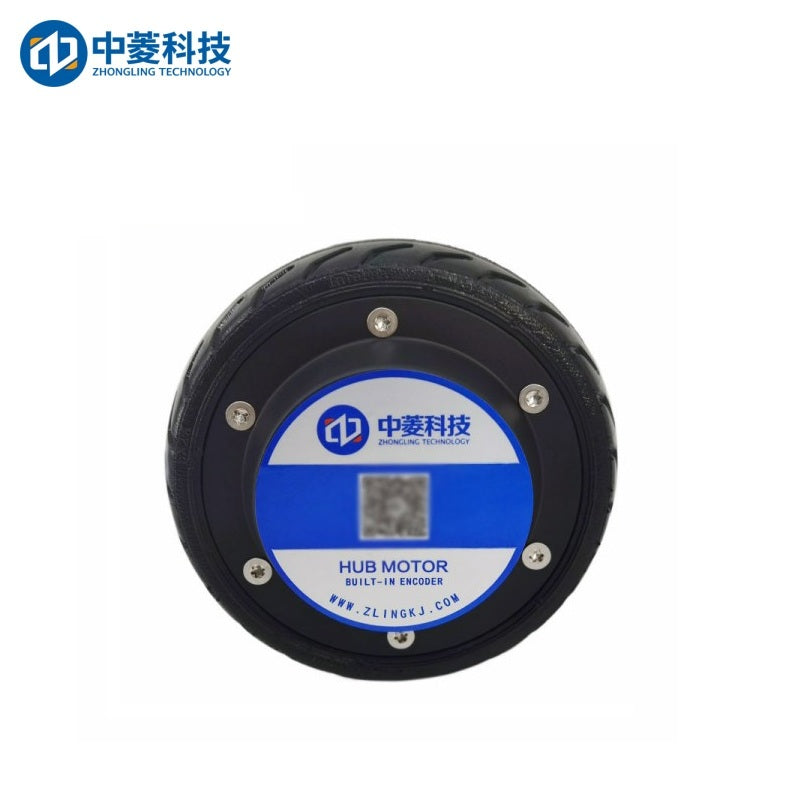

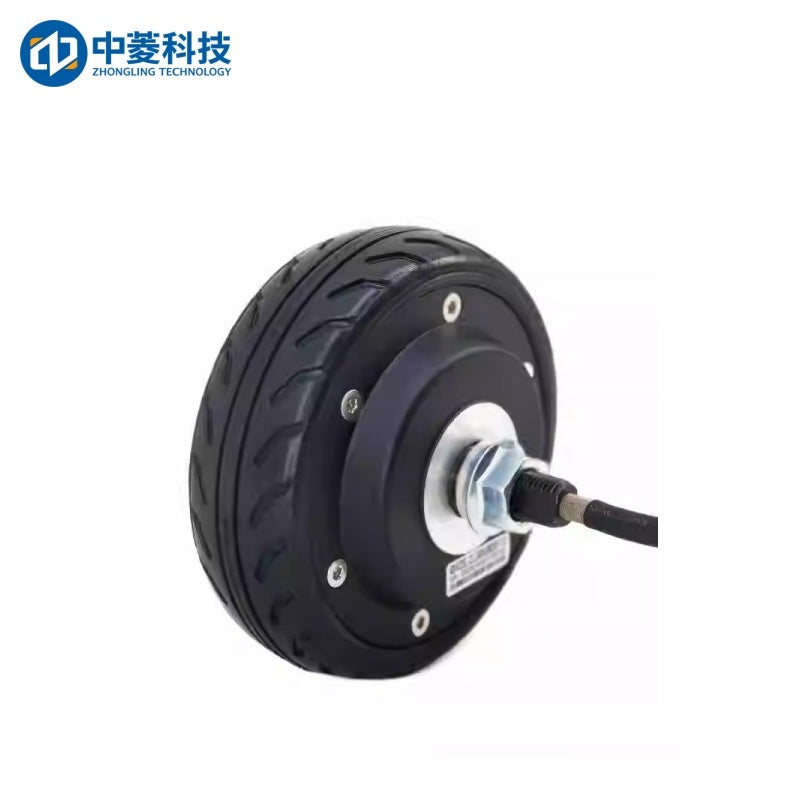

ZHONGLING ZLLG50-ASM200 V1.0 Motor
Regular price
$110.00
Unit price
ZHONGLING ZLLG50-ASM200 V1.0 Motor - Single Shaft / Not Incloud Driver is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
ZHONGLING ZLLG50-ASM200 V1.0 Motor
Regular priceFrom
$110.00
Unit price
ZHONGLING ZLLG50-ASM200 V1.0 Motor - Single Shaft / Not Incloud Driver is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|

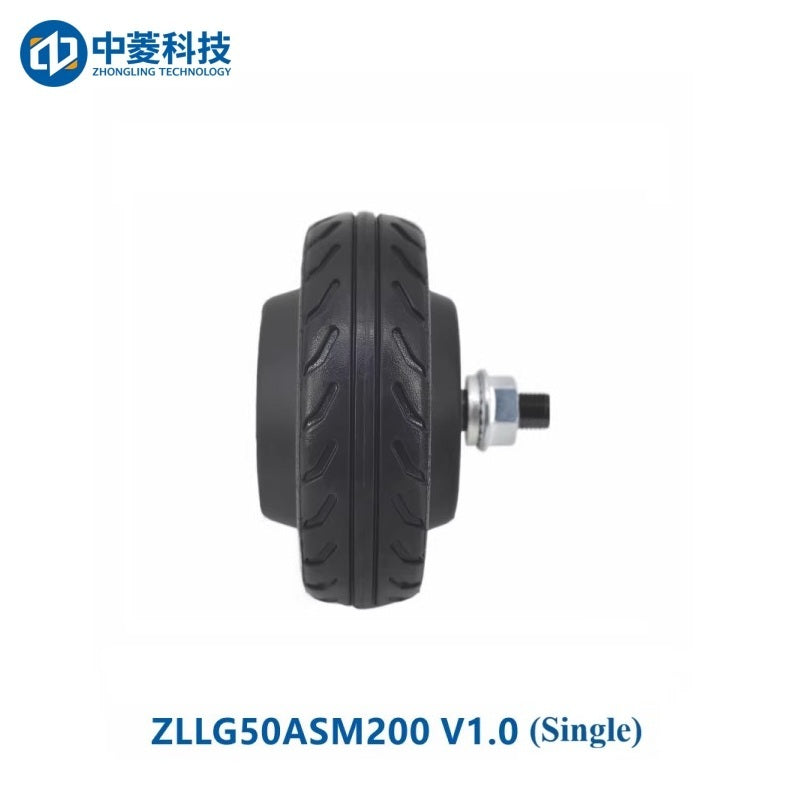

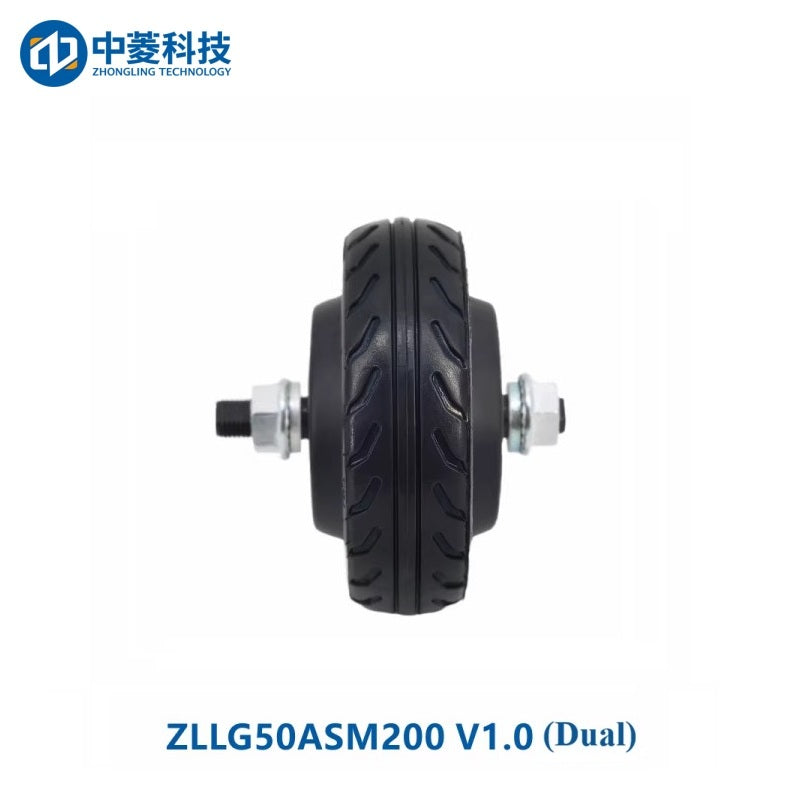

| Model | ZLLG50ASM200V1.0 Single/Double Axis |
| Outer Diameter | 130±2mm |
| Weight | Single Axis: 1.95KG / Double Axis: 2.0KG |
| Rated Voltage | 24VDC |
| Rated Output Power | 150W |
| Rated Torque | 3N.m |
| Instantaneous Max Torque |
9N.m |
| Rated Speed |
270RPM |
| Rated Max Speed | 350RPM |
| Rated Phase Current | 5A |
| Instantaneous Max Current |
15A |
| Pole Pairs | 10 |
| Encoder Lines | 1024 |
| Tire Type | Rubber pattern |
| Brake Method | Electric brake |
| Protection Level | IP54 |
| Recommended Load | <60KG (Double Wheel) |

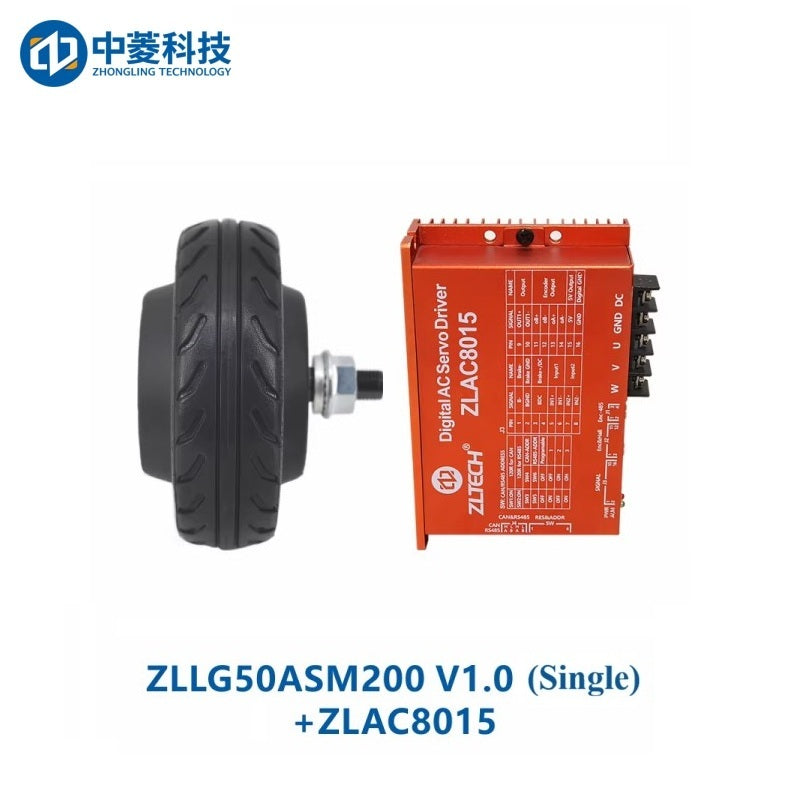

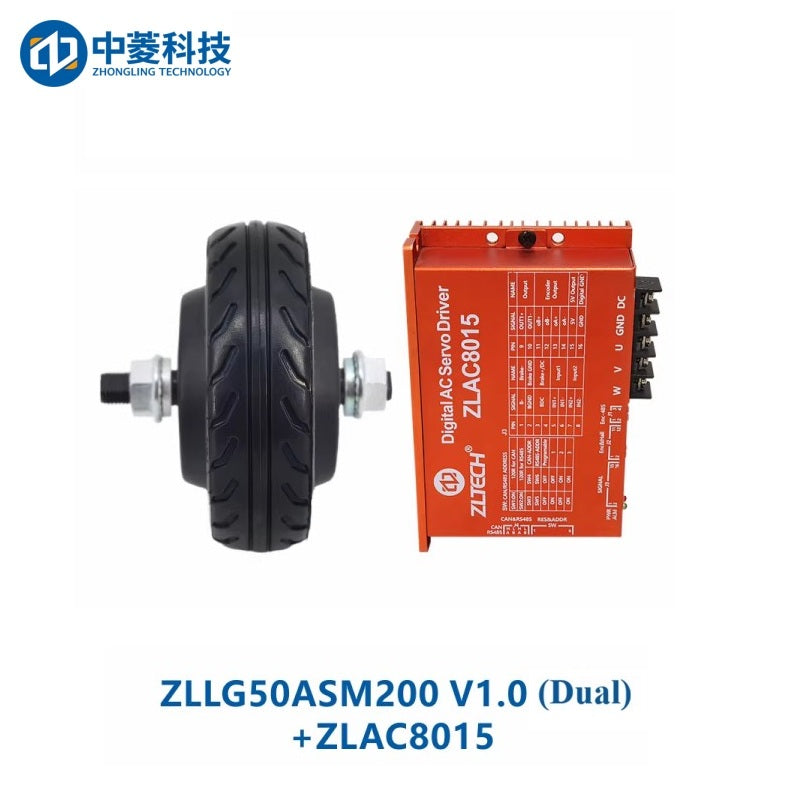

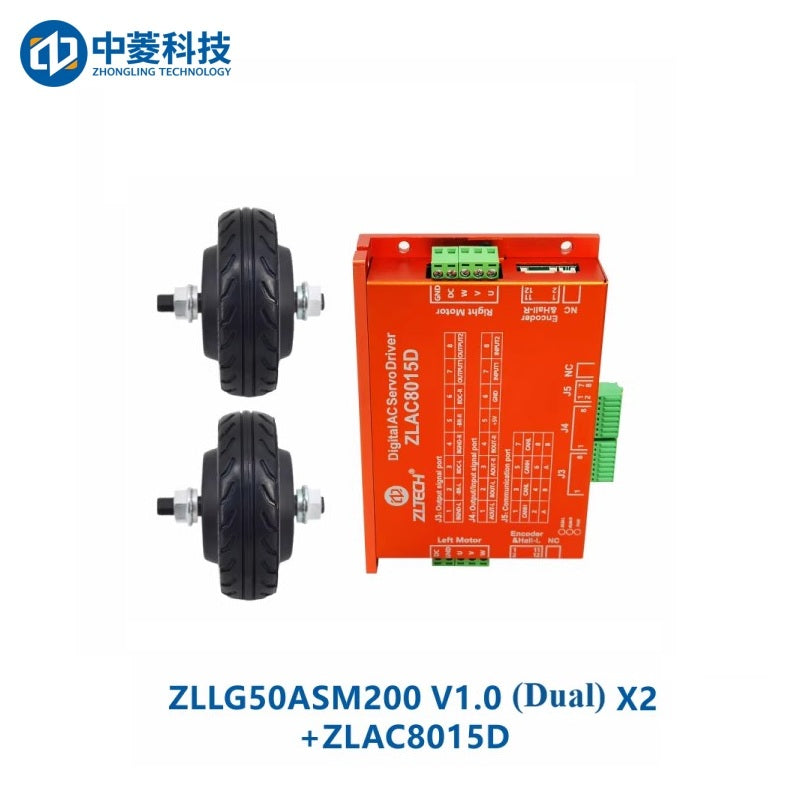

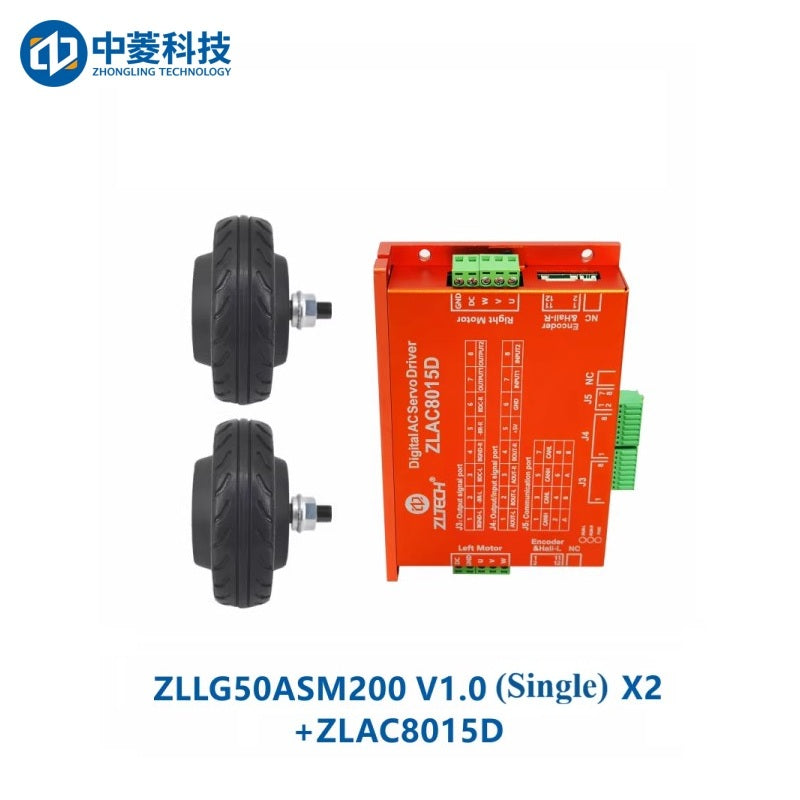

| Compatible Drivers |
ZLAC8015, ZLAC8015D |
ZLLG50-ASM200 V1.0_Motor_Product_instalation_drawing.pdf
ZLAC8015-Drawing.pdf
ZLAC8015D-Drawing.pdf
