ZHONGLING TECHNOLOGY | SKU:

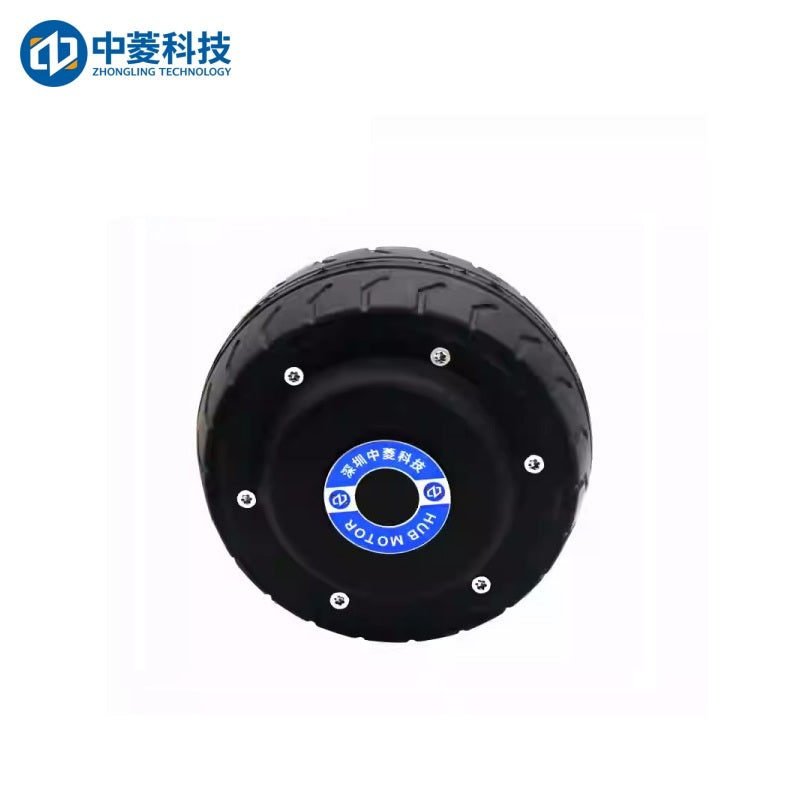

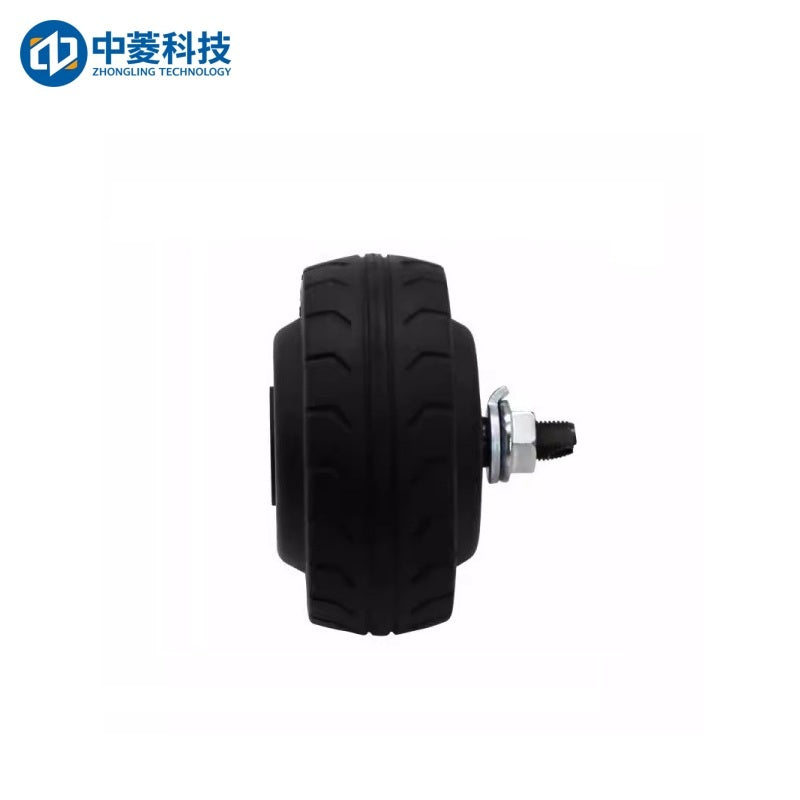

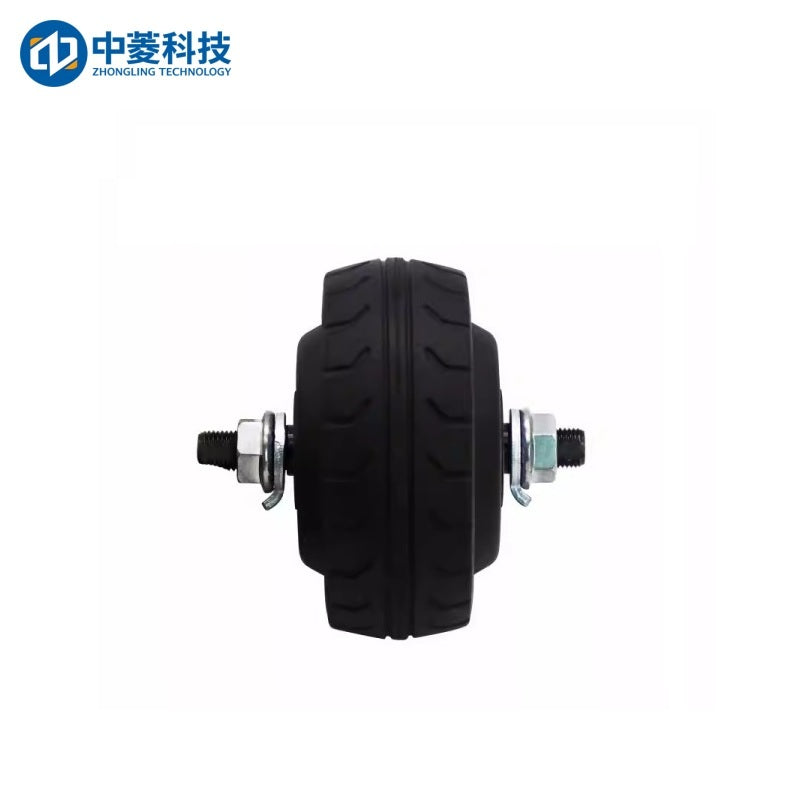

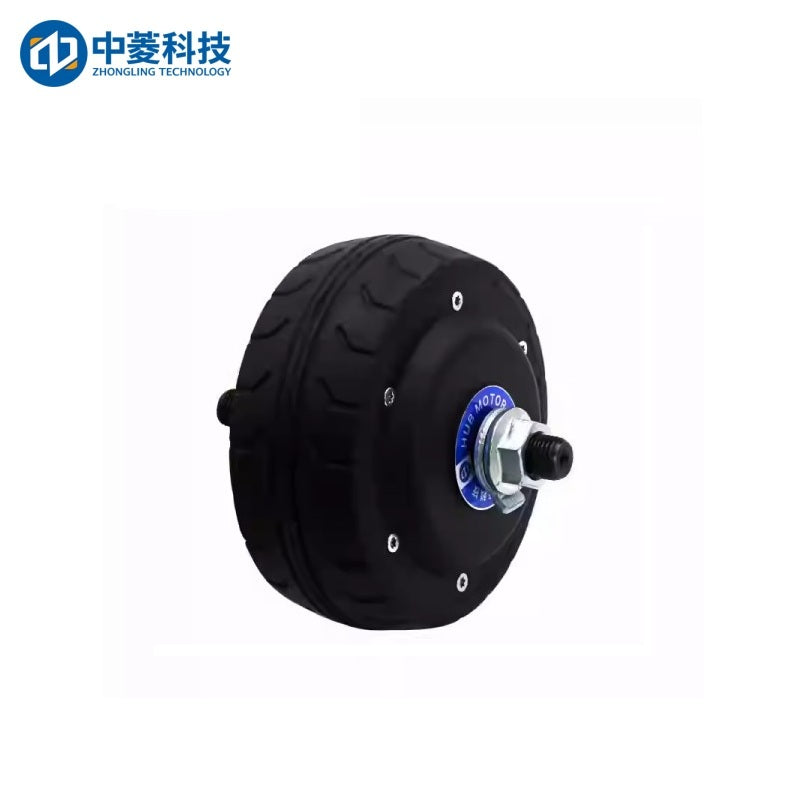

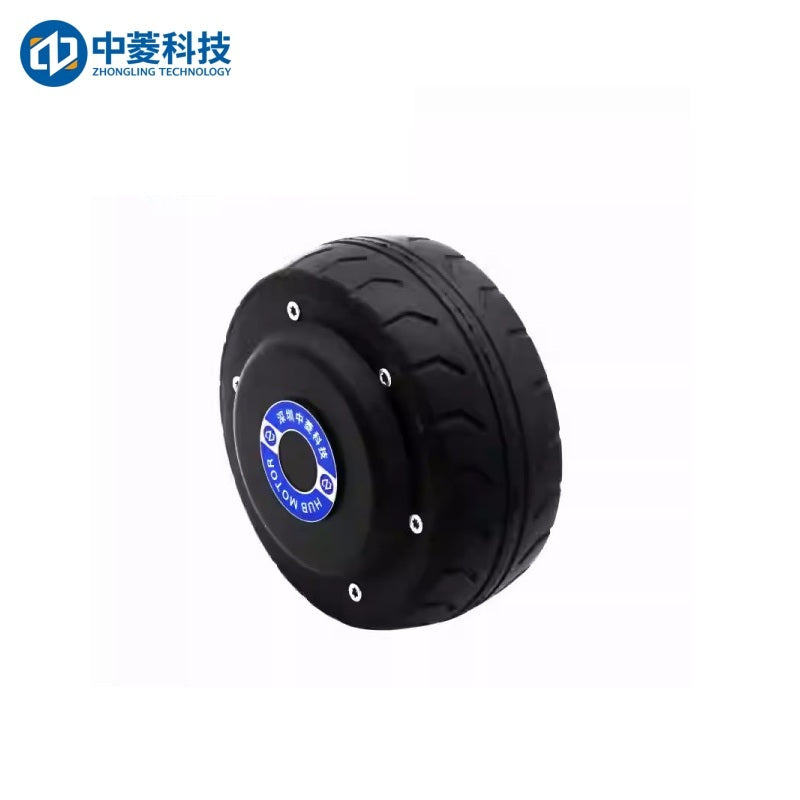

ZHONGLING ZLLG40-ASM100 V1.0 Motor
Regular price
$110.00
Unit price
ZHONGLING ZLLG40-ASM100 V1.0 Motor - Single Shaft / Not Incloud Driver is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
ZHONGLING ZLLG40-ASM100 V1.0 Motor
Regular priceFrom
$110.00
Unit price
ZHONGLING ZLLG40-ASM100 V1.0 Motor - Single Shaft / Not Incloud Driver is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ZLLG40-ASM100V1.0 Single Axis/Dual Axis |
| Outer Diameter | 107±2mm |
| Weight | Single Axis: 1.45KG/Dual Axis: 2.0KG |
| Rated Voltage | 24VDC |
| Rated Output Power | 100W |
| Rated Torque | 2N.m |
| Instantaneous Maximum Torque |
6N.m |
| Rated Speed |
450RPM |
| Rated Maximum Speed | 550RPM |
| Rated Phase Current |
5A |
| Instantaneous Maximum Current | 15A |
| Pole Pairs | 10 |
| Encoder Lines | 1024 |
| Tire Type | Rubber Pattern |
| Brake Method | Electric Brake |
| Protection Class |
IP54 |
| Recommended Load |
< 50KG (dual wheel) |

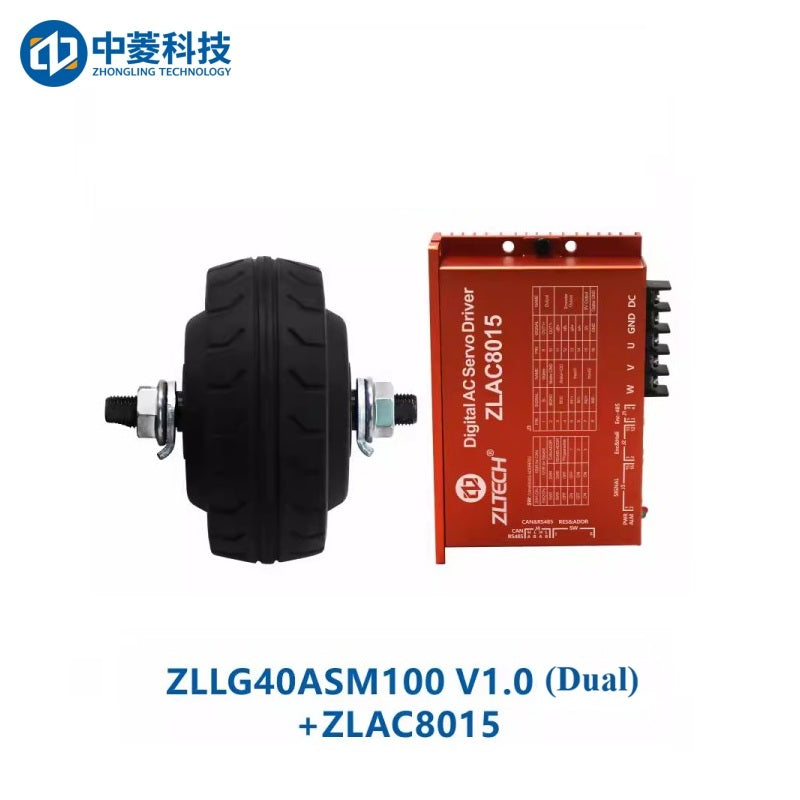

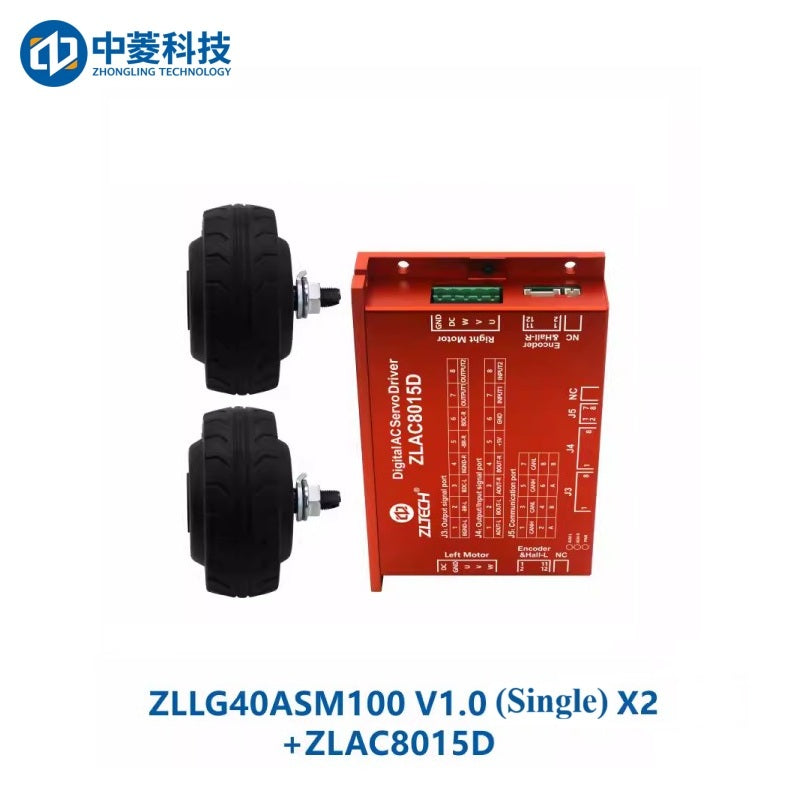

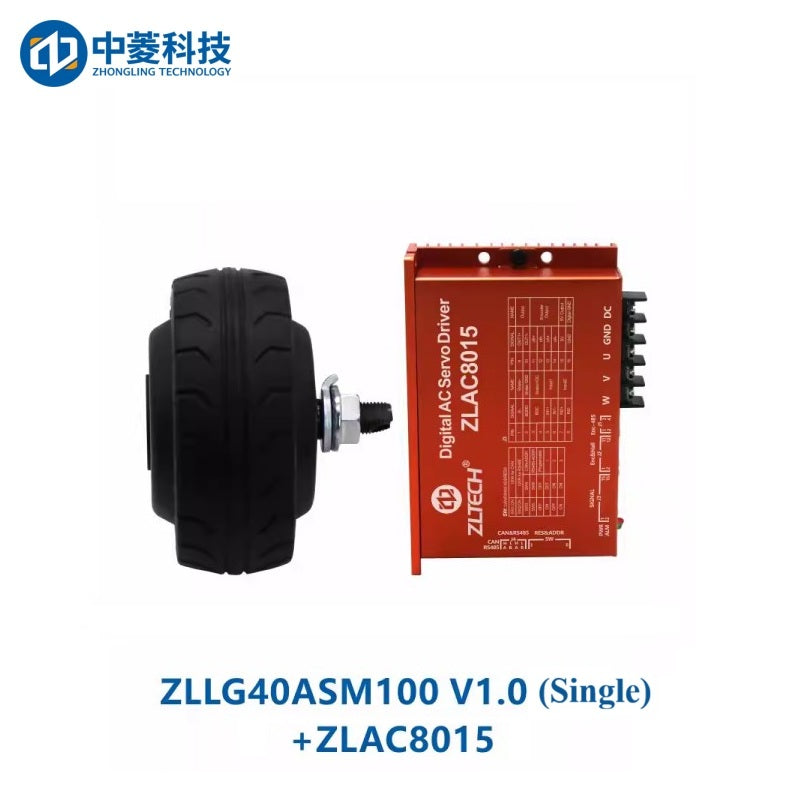

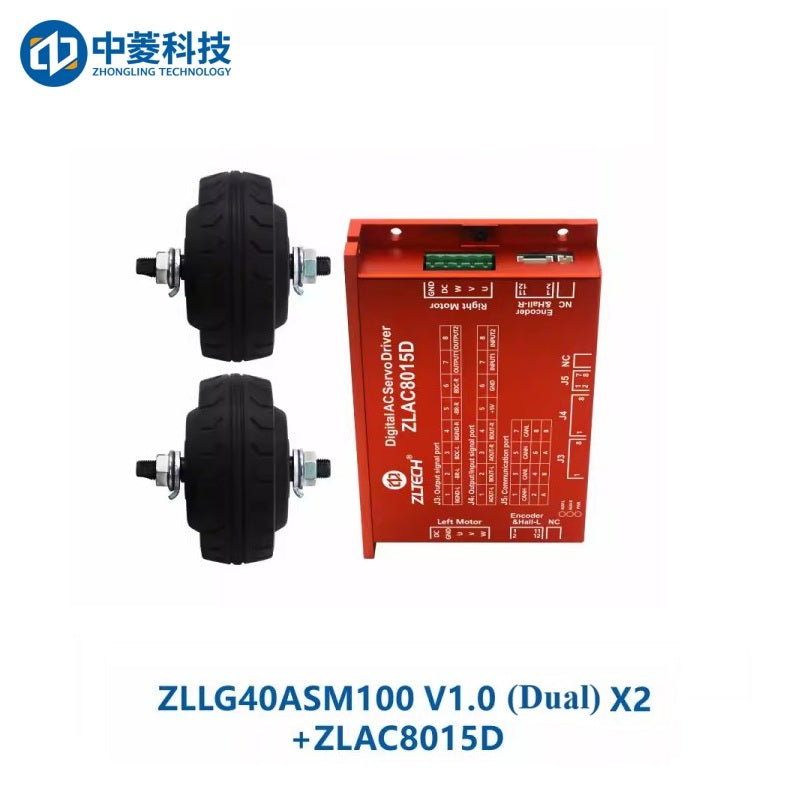

| Compatible Driver | ZLAC8015, ZLAC8015D |
ZLLG40-ASM100 V1.0_Motor_Product_instalation_drawing.pdf
ZLAC8015-Drawing.pdf
ZLAC8015D-Drawing.pdf
