ZHONGLING TECHNOLOGY | SKU:

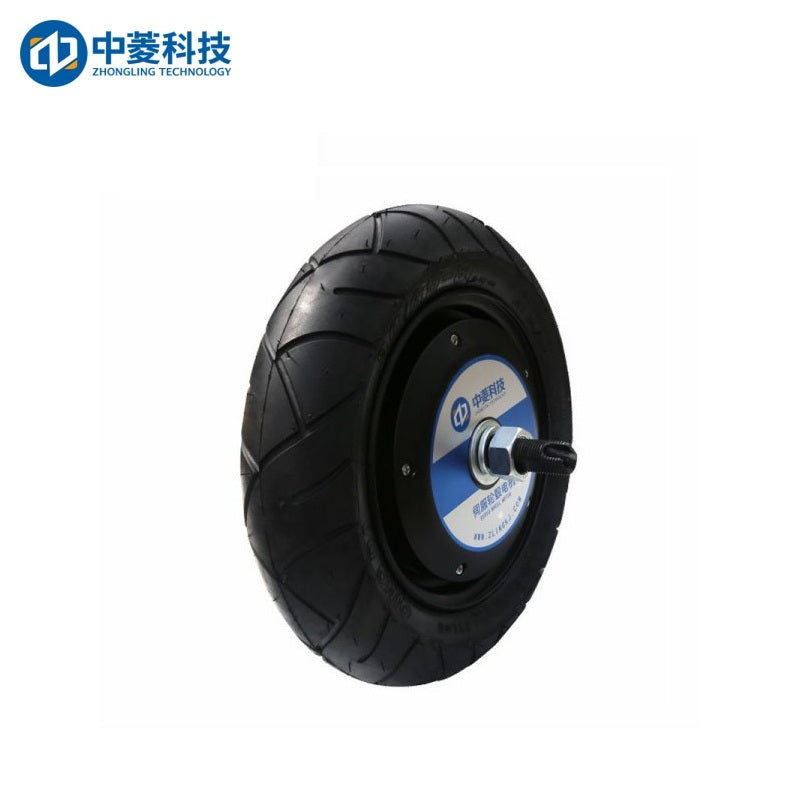

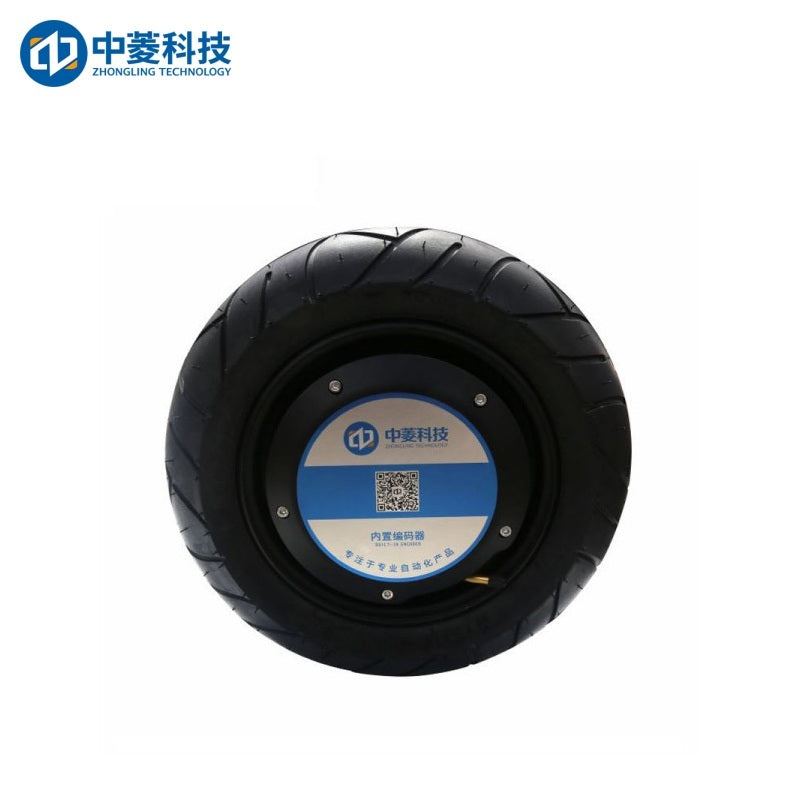

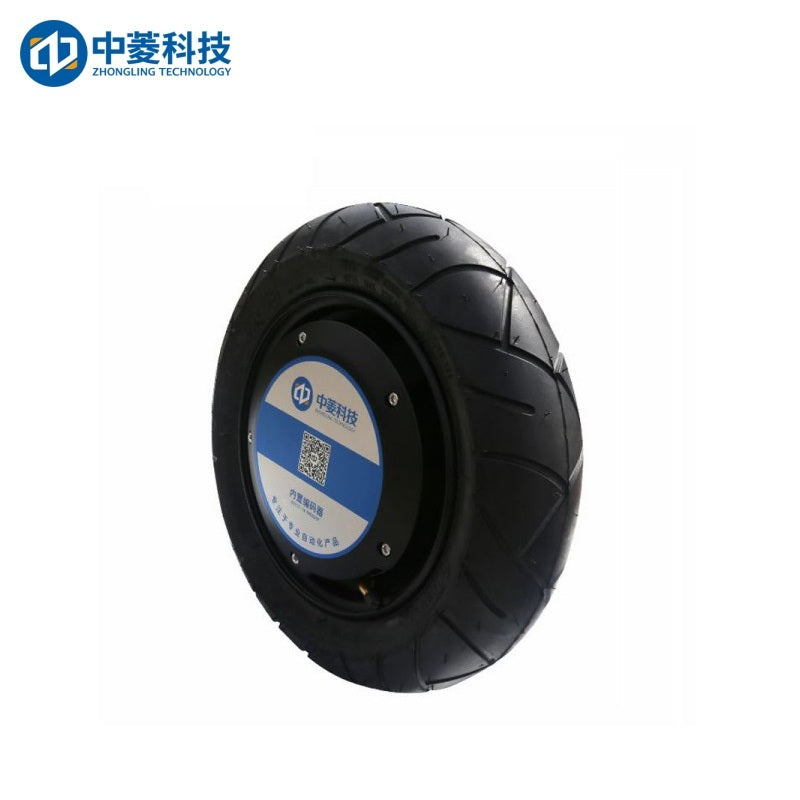

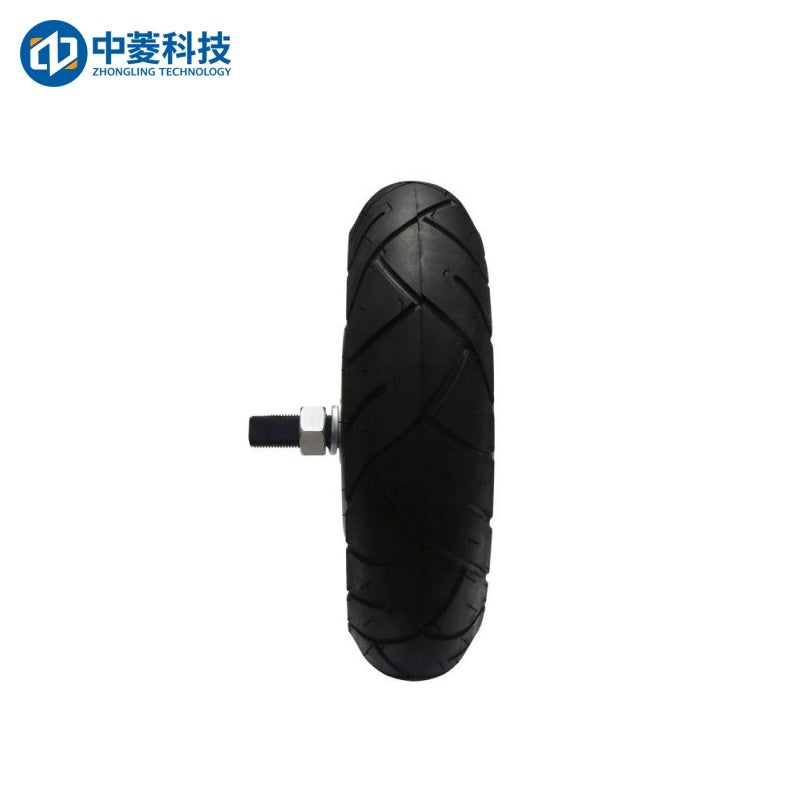

ZHONGLING ZLLG13-ASM800 V2.0 Motor
Regular price
$295.00
Unit price
ZHONGLING ZLLG13-ASM800 V2.0 Motor - Single Shaft / Not Incloud Driver is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
ZHONGLING ZLLG13-ASM800 V2.0 Motor
Regular priceFrom
$295.00
Unit price
ZHONGLING ZLLG13-ASM800 V2.0 Motor - Single Shaft / Not Incloud Driver is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ZLLG13-ASM800 V2.0 SINGLE SHAFT |
| Outer Diameter | 337.4±2mm |
| Weight | 9.55KG |
| Rated Voltage | 48VDC |
| Rated Output Power | 800W |
| Rated Torque | 17N.m |
| Instantaneous Maximum Torque |
51N.m |
| Rated Speed |
150RPM |
| Rated Maximum Speed | 180RPM |
| Rated Phase Current |
7.5A |
| Instantaneous Maximum Current | 22A |
| Pole Pairs | 20 |
| Encoder Lines | 4096 |
| Tire Type | PNEUMATIC RUBBER TIRE |
| Protection Class |
IP65 |
| Recommended Load |
200KG/2 MOTORS |
| Compatible Driver | ZLAC8030, ZLAC8030L |
ZLLG13-ASM800 V2.0_Motor_Product_instalation_drawing.pdf
ZLAC8030-Drawing.pdf
ZLAC8030L-Drawing.pdf
