Yunshis | SKU:

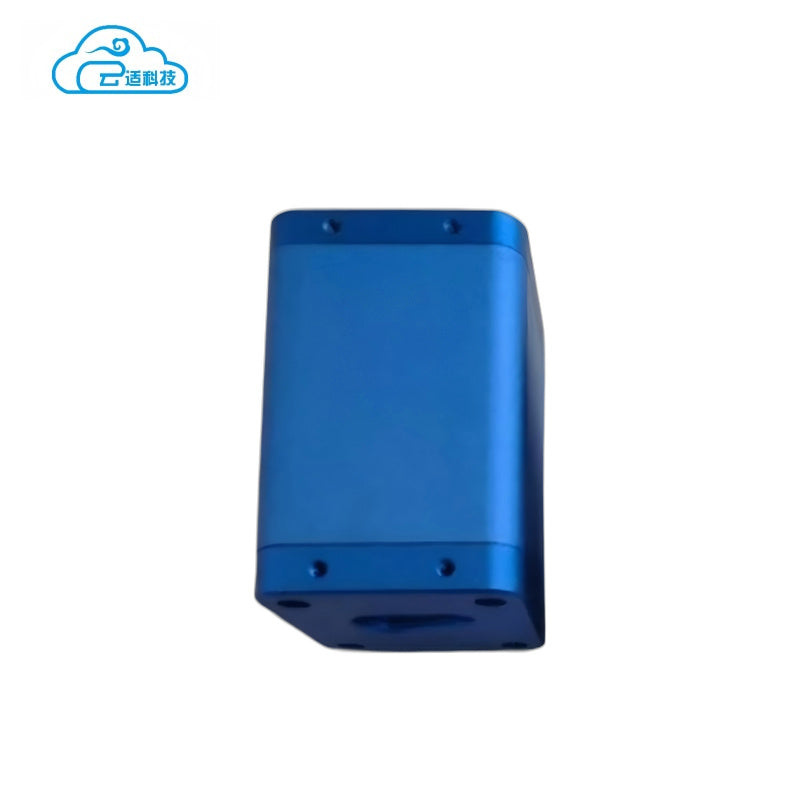

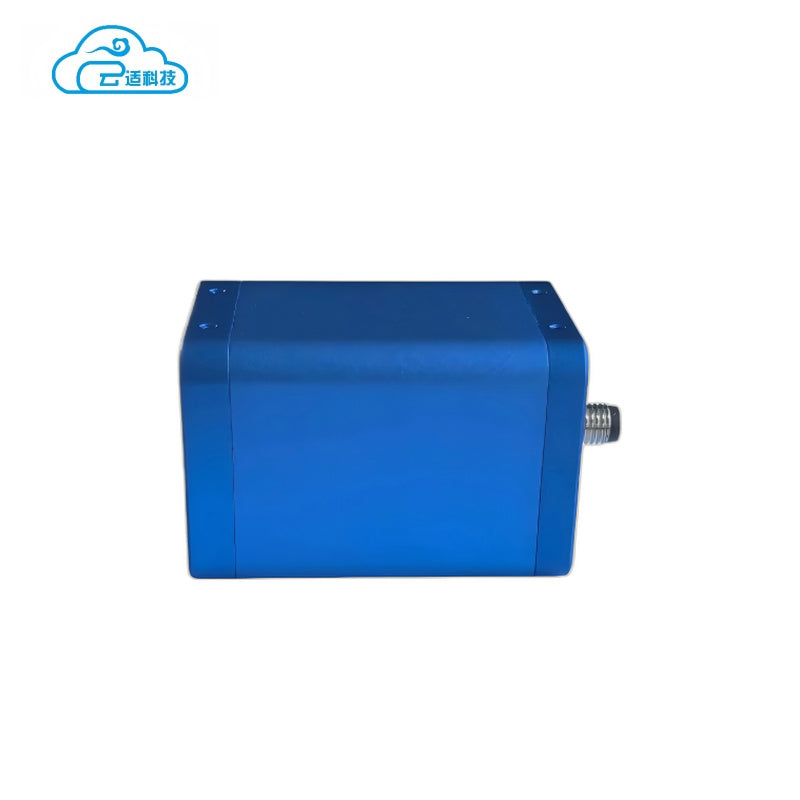

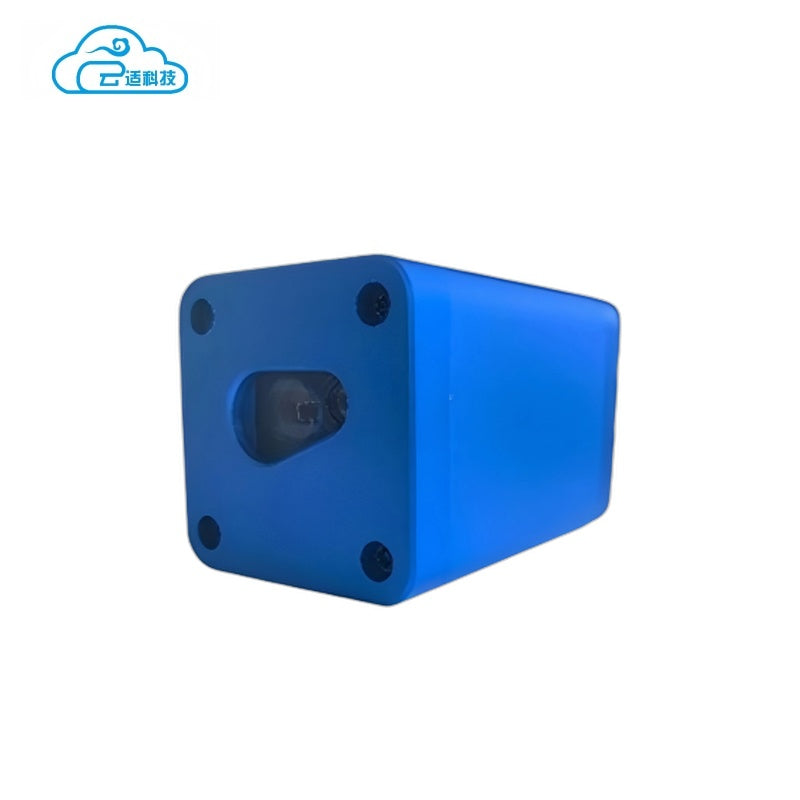

Yunshis SM Series Laser Distance Sensor
Regular price
$160.00
Unit price
Yunshis SM Series Laser Distance Sensor - 10m RS485 / 0-5V with aviation connector output is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Yunshis SM Series Laser Distance Sensor
Regular priceFrom
$160.00
Unit price
Yunshis SM Series Laser Distance Sensor - 10m RS485 / 0-5V with aviation connector output is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value | Value | Value |
|---|---|---|---|
| Model | PLS-SM10 | PLS-SM30 | PLS-SM60 |
| Measurement Range | 0.08 ~ 10 m | 0.08 ~ 30 m | 0.08 ~ 60 m |
| Resolution | 0.1 mm | ||
| Repeatability | 1 mm | ||
| Accuracy | ±1 mm + D*(1/10000) | ||
| Measurement Rate | 1 - 5 Hz | ||
| Response Time | Min. 0.2s (Max) | ||
| Target Object | Natural surface of static/dynamic targets or dedicated reflector | ||
| Ambient Light Immunity | Withstands outdoor sunlight up to 10kLux | ||
| Light Source | Red visible laser, wavelength 630~660 nm | ||
| Laser Safety Class | Class 1 (IEC 60825-1:2014, EN 60825-1:2014) | ||
| Typical Spot Diameter | Φ2 cm (at 10m) | ||
| Laser Lifespan | 50000 hours | ||
| Output Signals | RS485 / 4-20mA / 0-5V / TTL | ||
| Power Supply | DC 7 ~ 28 V | ||
| Power Consumption | < 2 W | ||
| Housing Material | Aluminum Alloy | ||
| Lens Material | PMMA | ||
| Dimensions | 77.5 × 42 × 42 mm | ||
| IP Rating | IP65 | ||
| Weight | 270 g | ||
| Operating Temperature | -10 ~ +40 °C | ||
| Mounting | Bottom: M2.5*4 screw holes, Top: M2.5*4 screw holes | ||
