Yunshis | SKU:

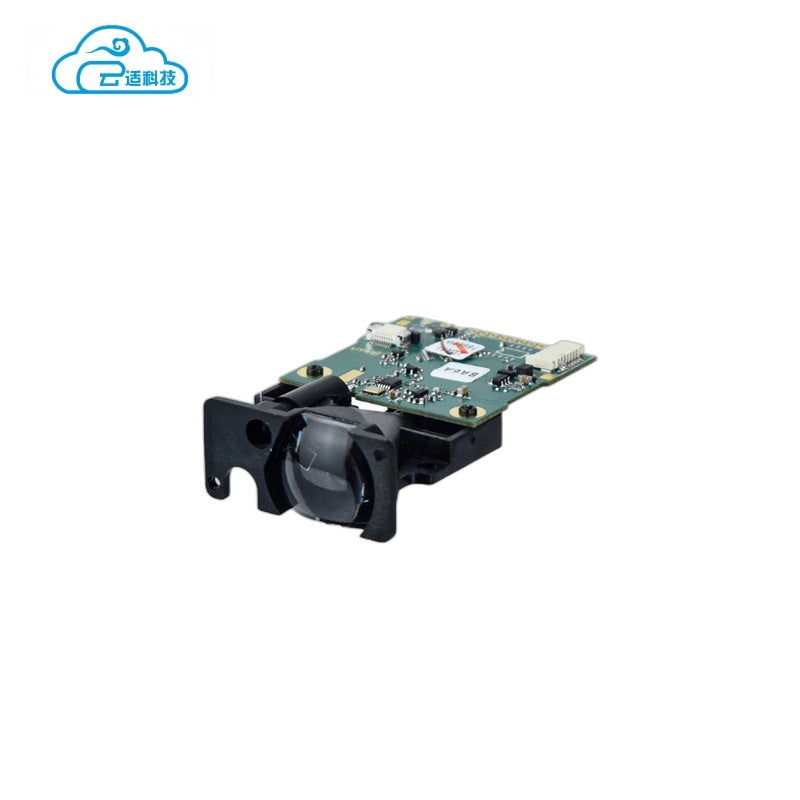

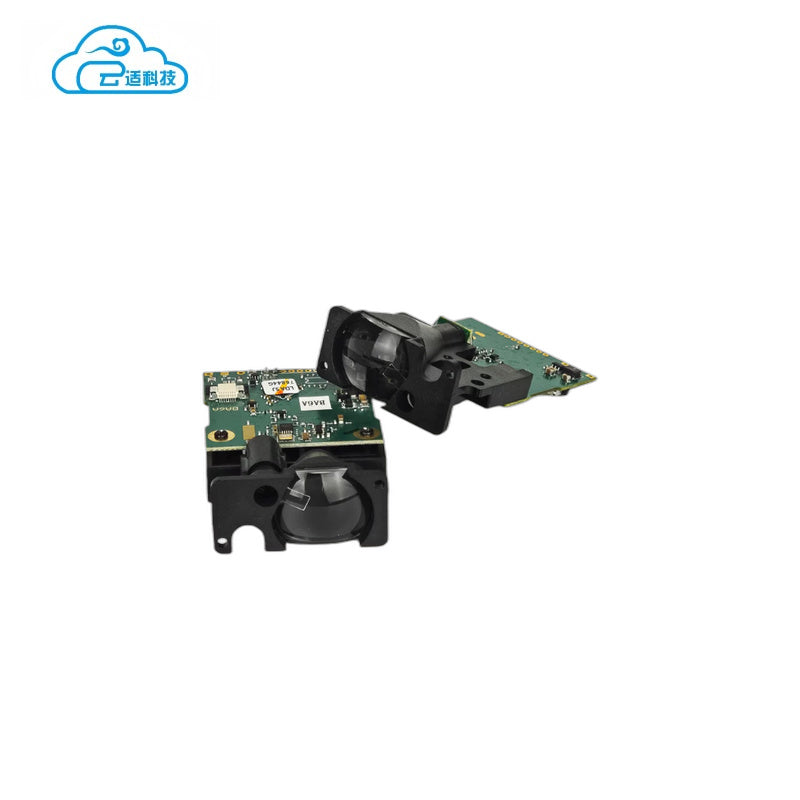

Yunshis SK100 Series LiDAR
Regular price
$90.00
Unit price
Yunshis SK100 Series LiDAR - SK100 LiDAR is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Yunshis SK100 Series LiDAR
Regular priceFrom
$90.00
Unit price
Yunshis SK100 Series LiDAR - SK100 LiDAR is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value | Value | Value | Value | Value |
|---|---|---|---|---|---|
| Model | SK100 | SK100A | SK100B | SK100C | SK100D |
| Variant Description | Standard Version | High Frequency | Enhanced Version (Optimized for Black Targets) |
Long Range | Green Laser |
| Accuracy | ±3 mm | ||||
| Resolution | 1 mm | ||||
| Indoor Measurement Range | 100 m (90% Reflectivity) |
100 m (90% Reflectivity) |
100 m (90% Reflectivity) |
150 m (90% Reflectivity) |
100 m (90% Reflectivity) |
| 59 m (20% Reflectivity) |
59 m (20% Reflectivity) |
77 m (20% Reflectivity) |
53 m (20% Reflectivity) |
24 m (20% Reflectivity) |
|
| Outdoor Measurement Range (with dedicated reflector, 90% reflectivity) |
60 m | 20 m | 30 m | 30 m | 30 m |
| Blind Area | 3 cm | ||||
| Frequency | 3 Hz | Max 20 Hz | 3 Hz | 3 Hz | 3 Hz |
| Measurement Time | > 0.3 s | > 0.08 s | > 0.3 s | > 0.3 s | > 0.3 s |
| Output Interface | UART TTL | ||||
| Laser Safety Class | Class II | ||||
| Laser Type | Red Laser, 635 nm | Green Laser | |||
| Size | 63 * 40 * 18 mm | ||||
| Weight | 13 g | ||||
| Voltage | DC 2.5 ~ 3.3 V | ||||
| Working Temperature | -20 ~ 50 °C | ||||
