Yunshis | SKU:

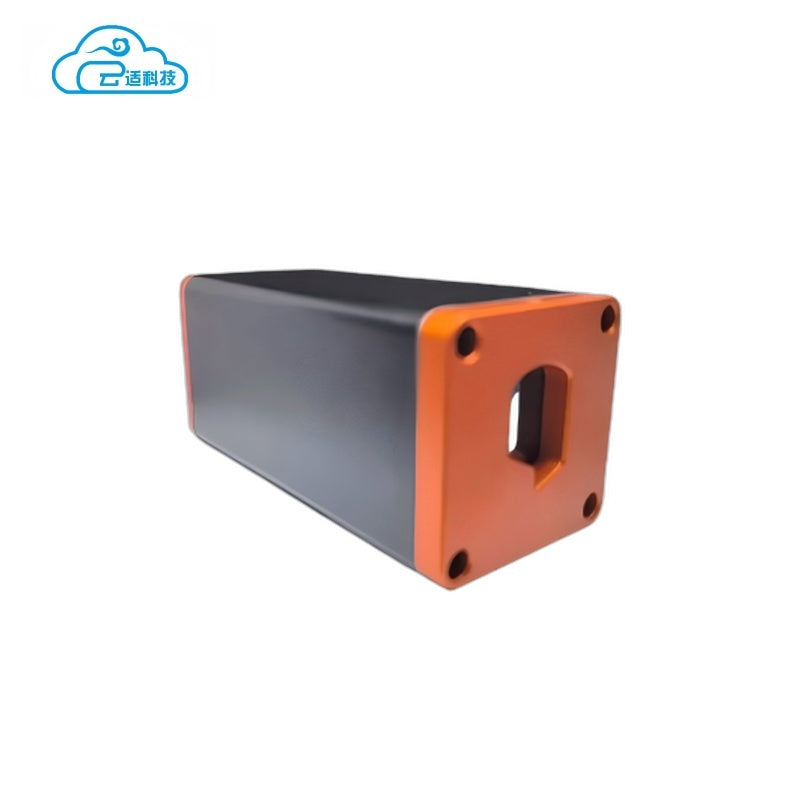

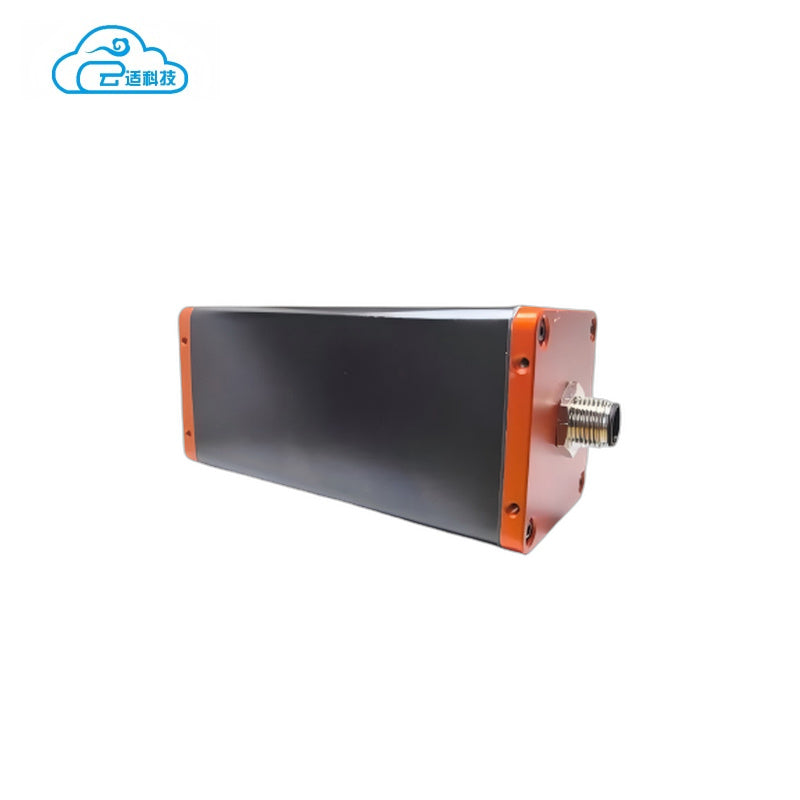

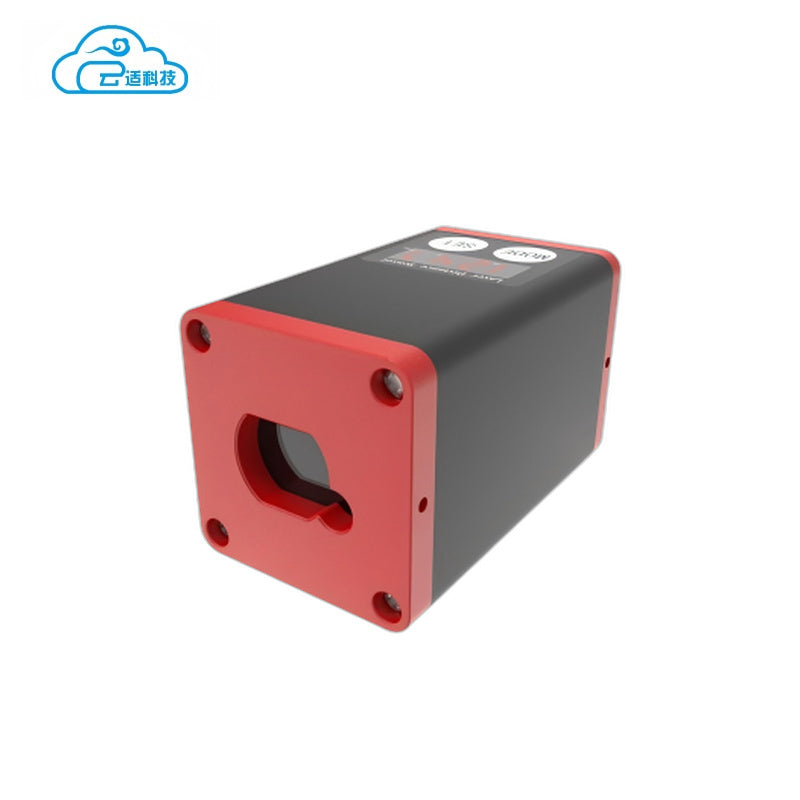

Yunshis SK-Pro Laser Ranging Sensor
Regular price
$680.00
Unit price
Yunshis SK-Pro Laser Ranging Sensor - 30m range is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Yunshis SK-Pro Laser Ranging Sensor
Regular priceFrom
$680.00
Unit price
Yunshis SK-Pro Laser Ranging Sensor - 30m range is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value | Value | Value |
|---|---|---|---|
| Model | SK-Pro30 | SK-Pro60 | SK-Pro100 |
| Measurement Range | 0.05~30m | 0.05~60m | 0.05~100m |
| Resolution | 0.1mm | ||
| Repeatability Precision | 0.5mm | ||
| Accuracy | 1mm | ||
| Measurement Rate | 30Hz (Adjustable) | ||
| Response Time | Min 0.033s | ||
| Target Object | Natural surface or dedicated reflection plate for static/dynamic targets | ||
| Ambient Light Immunity | Anti-outdoor sunlight 100kLux | ||
| Light Source | Red visible laser, wavelength 650~660nm | ||
| Laser Safety Class | Class 1 (IEC 60825-1:2014, EN 60825-1:2014) | ||
| Typical Spot Diameter | Φ2mm (at 10m) | ||
| Laser Lifespan | Over 100000h | ||
| Power Supply | DC7~28V | ||
| Power Consumption | <2W | ||
| Housing Material | Aluminum Alloy | ||
| Lens Material | PMMA | ||
| Dimension (L*W*H) | 52*52*115mm | ||
| IP Rating | IP67 | ||
| Weight | 270g | ||
| Operating Temperature | -20~+60°C | ||
| Mounting | Bottom M3*4 screw holes, side M3*4 screw holes | ||
